Description

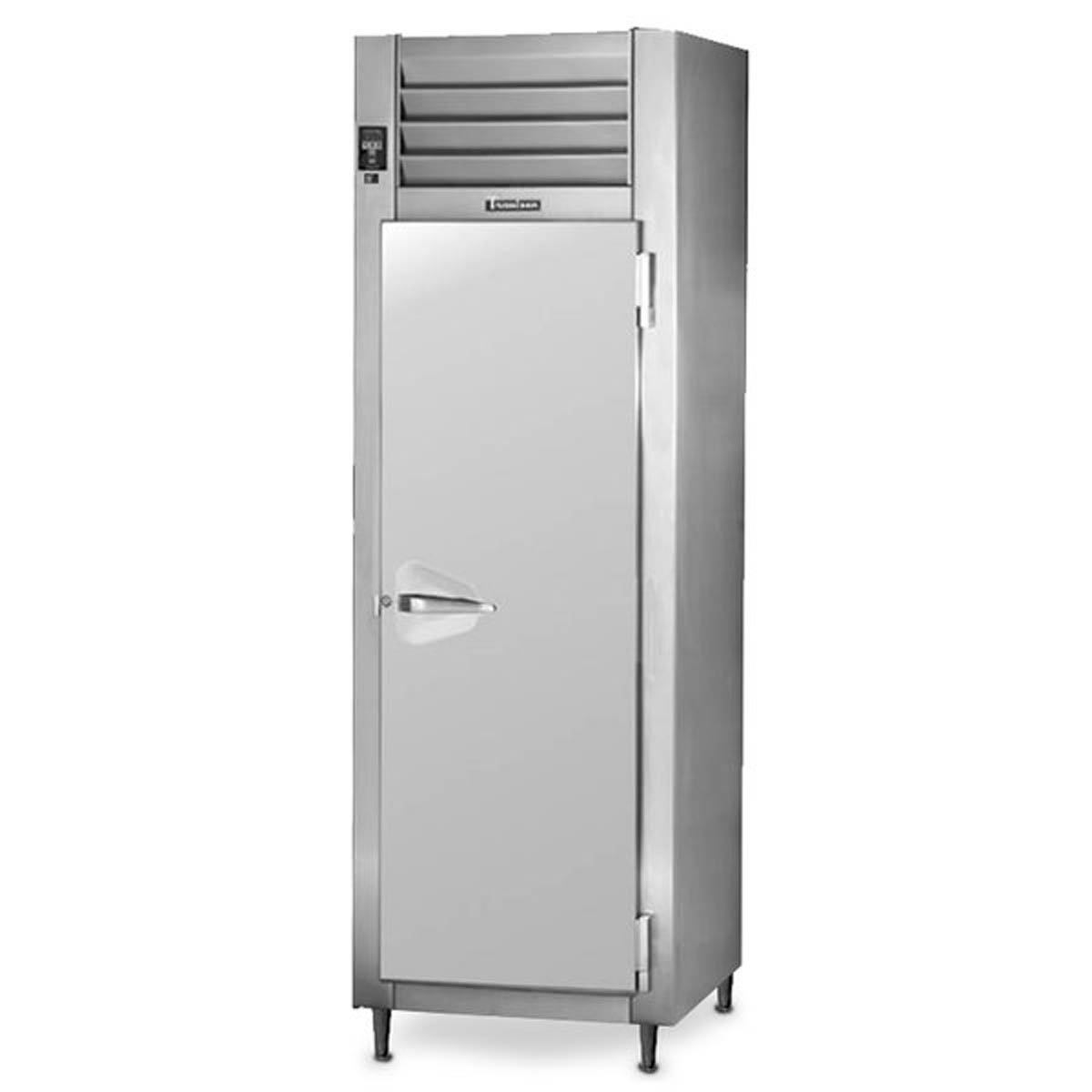

The Traulsen RET132EUT-FHS is a 32-inch, one-section self-contained Even-Thaw reach-in cabinet designed specifically to thaw frozen food product. Its top-mounted refrigeration system, Smart Control, and sensor-based automatic operation support a hands-free thawing workflow; once product is thawed, the system automatically returns to refrigeration.
This exact RET132EUT-FHS configuration has one full-height solid stainless steel door and 18.18 cu. ft. of net capacity. The interior includes 14 tray slides, with each pair sized to accept either 18 x 26 inch or 14 x 18 inch pans. Pans are not stated as included.
Applications and Workflow
Suitable for commercial kitchens, commissaries, and food-production operations that need a dedicated cabinet for controlled thawing of frozen product before preparation. This is an Even-Thaw cabinet, not a holding cabinet; do not select it for general refrigerated holding use.
Features and Practical Benefits
Dedicated automatic thawing workflow
The Smart Control uses sensors and automatic operation to manage the thawing process, then reverts to refrigeration after product is thawed.
Full-height solid-door access
This model’s single full-height solid door provides one uninterrupted access opening and has a self-closing design with a 120-degree stay-open position.
Flexible pan support
Fourteen #1 tray slides are standard. Each pair can hold either one 18 x 26 inch pan or one 14 x 18 inch pan, allowing the interior arrangement to match the operation’s pan format.
Durable, cleanable cabinet construction
The cabinet front, sides, louver assembly, door, interior, and door liner are stainless steel. Magnetic snap-in EZ-Clean gaskets simplify routine door-gasket cleaning.
Technical Specifications
| Manufacturer model | RET132EUT-FHS |
|---|---|
| Cabinet type | One-section Even-Thaw reach-in cabinet |
| Door configuration | One full-height solid door |
| Net capacity | 18.18 cu. ft. |
| Overall width | 32 in. |
| Overall depth | 35 in. |
| Overall height | 83 1/4 in. on 6 in. legs |
| Depth with door open 90 degrees | 62 5/16 in. |
| Clear door width | 26 1/2 in. |
| Tray slides | 14 #1 tray slides |
| 18 x 26 in. pan capacity | 14 pans |
| 14 x 18 in. pan capacity | 28 pans |
| Electrical connection | 115V / 60Hz / 1-phase, NEMA 5-20P |
| Full-load amperage | 12 A |
| Refrigerant | R-450A |
| Compressor rating | 1/2 HP |
| Refrigeration system | Top-mounted, self-contained |
| Standard operating temperature | 37 to 41°F |
| Included supports | Four adjustable 6 in. stainless steel legs |
Installation and Purchasing Considerations
- Allow a 32 inch overall width, 35 inch overall depth, and 83 1/4 inch overall height on the supplied 6 inch legs.
- Plan for 62 5/16 inches of depth when the door is open 90 degrees. The clear door width is 26 1/2 inches.
- Connect to 115V, 60Hz, single-phase power using the attached 9-foot cord with NEMA 5-20P plug. The unit draws 12 full-load amps.
- The refrigeration system is top mounted and self-contained. Traulsen notes that 12 inches of top clearance is preferred for performance and service access.
- Four adjustable 6 inch stainless steel legs are included. Confirm the desired door hinge orientation when ordering, since the supplied information does not establish a left- or right-hinged version for this unit.
Choosing This Configuration
RET132EUT-FHS is the one-section model with one full-height solid door. It is distinct from the RET132EUT-HHS configuration, which uses half-height solid doors.
The cabinet has 18.18 cu. ft. net capacity and 14 tray slides. Its stated pan capacities describe the slide system; pans are not identified as included.
This cabinet is intended solely for thawing. It should not be selected as a refrigerated holding cabinet.
Casters, plated shelves, a finished back, foot pedal, and other listed accessories are options rather than confirmed standard equipment on this configuration.
Frequently Asked Questions
What electrical connection does the RET132EUT-FHS require?
It requires 115V, 60Hz, single-phase power and is equipped with a NEMA 5-20P plug on a 9-foot cord. Full-load amperage is 12 amps.
How much room is needed to open the door?
The cabinet is 35 inches deep overall, and its depth becomes 62 5/16 inches with the door open 90 degrees. The clear door width is 26 1/2 inches.
Are food pans included with the cabinet?
The cabinet includes 14 tray slides. The manufacturer states that each pair accepts either 18 x 26 inch or 14 x 18 inch pans, but does not identify pans as included.
Can this unit be used to hold refrigerated food?
No. Traulsen identifies its Even-Thaw models as intended solely for thawing and not for use as holding cabinets.
