Description

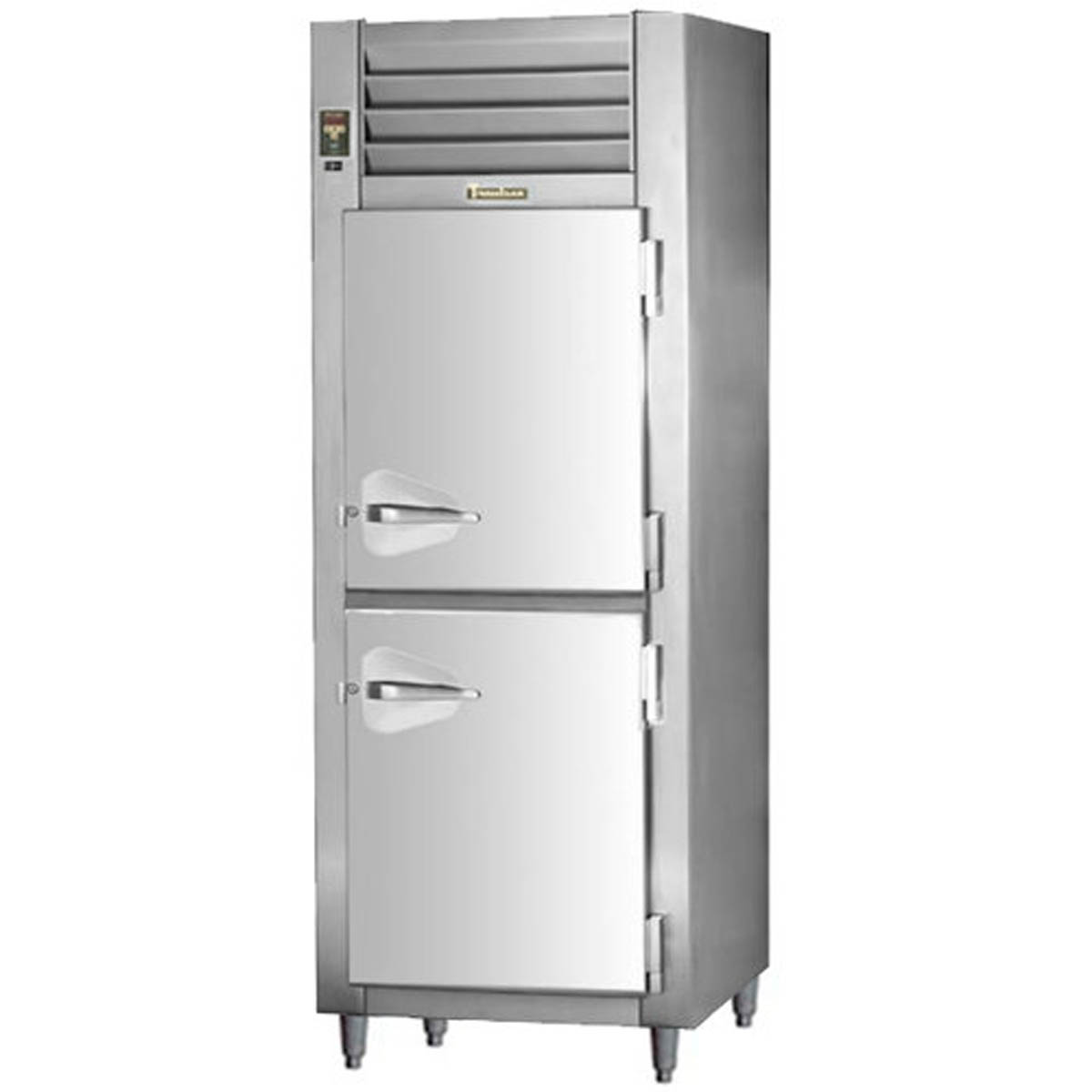

The Traulsen RET132EUT-HHS is a 32-inch, one-section Even-Thaw reach-in cabinet designed specifically to thaw frozen food product. Its top-mounted, self-contained refrigeration system uses Smart Control automation and returns to refrigeration after the product is thawed.
This configuration has two half-height solid doors, allowing staff to access part of the cabinet while keeping the other compartment closed. Fourteen tray slides support pan-based staging, with each pair sized for either one 18 x 26 inch pan or two 14 x 18 inch pans. This cabinet is solely intended for thawing, not as a food-holding cabinet.
Applications and Workflow
Suitable for commercial kitchens, commissaries, and food-production operations that need a dedicated cabinet for organized thawing of frozen product on 18 x 26 inch or 14 x 18 inch pans. It is not intended to serve as a holding cabinet after thawing.
Features and Practical Benefits
Dedicated Even-Thaw operation
A specialized refrigeration and airflow design supports the cabinet’s thawing function, while the automated control system reverts to refrigeration once product is thawed.
Half-door access
Two half-height solid doors let employees open only the area being loaded or unloaded. The doors self-close and can stay open at 120 degrees for loading.
Pan-oriented interior
Fourteen #1 tray slides are included. Each pair accepts one 18 x 26 inch pan or two 14 x 18 inch pans, helping organize product through the thawing workflow.
Stainless steel work construction
The cabinet front, sides, louver assembly, doors, interior, and door liner are stainless steel for a durable commercial finish.
Accessible top-mounted system
The self-contained refrigeration package is top mounted behind the louver assembly, and the cabinet includes a condenser filter.
Technical Specifications
| Manufacturer model | RET132EUT-HHS |
|---|---|
| Cabinet configuration | One section with half-height solid doors |
| Door quantity | 2 |
| Net capacity | 18.18 cu. ft. |
| Overall width | 32 in. |
| Overall depth | 35 in. |
| Overall height on supplied legs | 83 1/4 in. |
| Depth with door open 90 degrees | 62 5/16 in. |
| Clear half-door height | 27 13/16 in. |
| Pan capacity | 14 pans, 18 x 26 in. |
| Alternate pan capacity | 28 pans, 14 x 18 in. |
| Electrical requirement | 115V / 60Hz / 1-phase; NEMA 5-20P plug |
| Full-load amperage | 12 A |
| Refrigeration system | Top-mounted, self-contained |
| Refrigerant | R-450A |
| Compressor horsepower | 1/2 HP |
| Included supports | Four adjustable 6 in. stainless steel legs |
| Included tray slides | 14 #1 type tray slides |
| Power cord | 9 ft. cord with plug attached |
Installation and Purchasing Considerations
- Allow a 32-inch overall width, 35-inch overall depth, and 83 1/4-inch overall height on the supplied 6-inch adjustable legs.
- Plan for a 62 5/16-inch depth when a door is open 90 degrees. The clear half-door opening height is 27 13/16 inches.
- Provide 115V, single-phase, 60 Hz electrical service with a NEMA 5-20P receptacle. The unit has a 9-foot cord and attached plug.
- Leave 12 inches of clearance above the cabinet where possible for preferred performance and service access.
- This is a self-contained, top-mounted unit; no remote condenser is specified. Verify the selected door hinging and required aisle clearance before ordering.
Choosing This Configuration
RET132EUT-HHS is the half-height solid-door version of Traulsen’s 32-inch, one-section RET132EUT Even-Thaw cabinet.
The related RET132EUT-FHS configuration uses a full-height solid door rather than this model’s half-height door arrangement.
The cabinet includes tray slides, but pans are not identified as included.
The supplied adjustable stainless steel legs are standard. Casters, alternate supports, plated shelves, and other listed accessories are options rather than standard equipment.
Frequently Asked Questions
Can the RET132EUT-HHS be used as a refrigerated holding cabinet?
No. Traulsen identifies its Even-Thaw models as intended solely for thawing and not for use as holding cabinets.
What pans fit the included tray slides?
Each pair of tray slides can hold either one 18 x 26 inch pan or two 14 x 18 inch pans. The cabinet has 14 tray slides.
What electrical connection does this cabinet need?
It requires 115V, 60 Hz, single-phase power, draws 12 full-load amps, and is equipped with a NEMA 5-20P plug on a 9-foot cord.
How much clearance is needed above the cabinet?
Traulsen notes that 12 inches of top clearance is preferred for performance and service access. Also account for the 62 5/16-inch depth with a door opened 90 degrees.
