Description

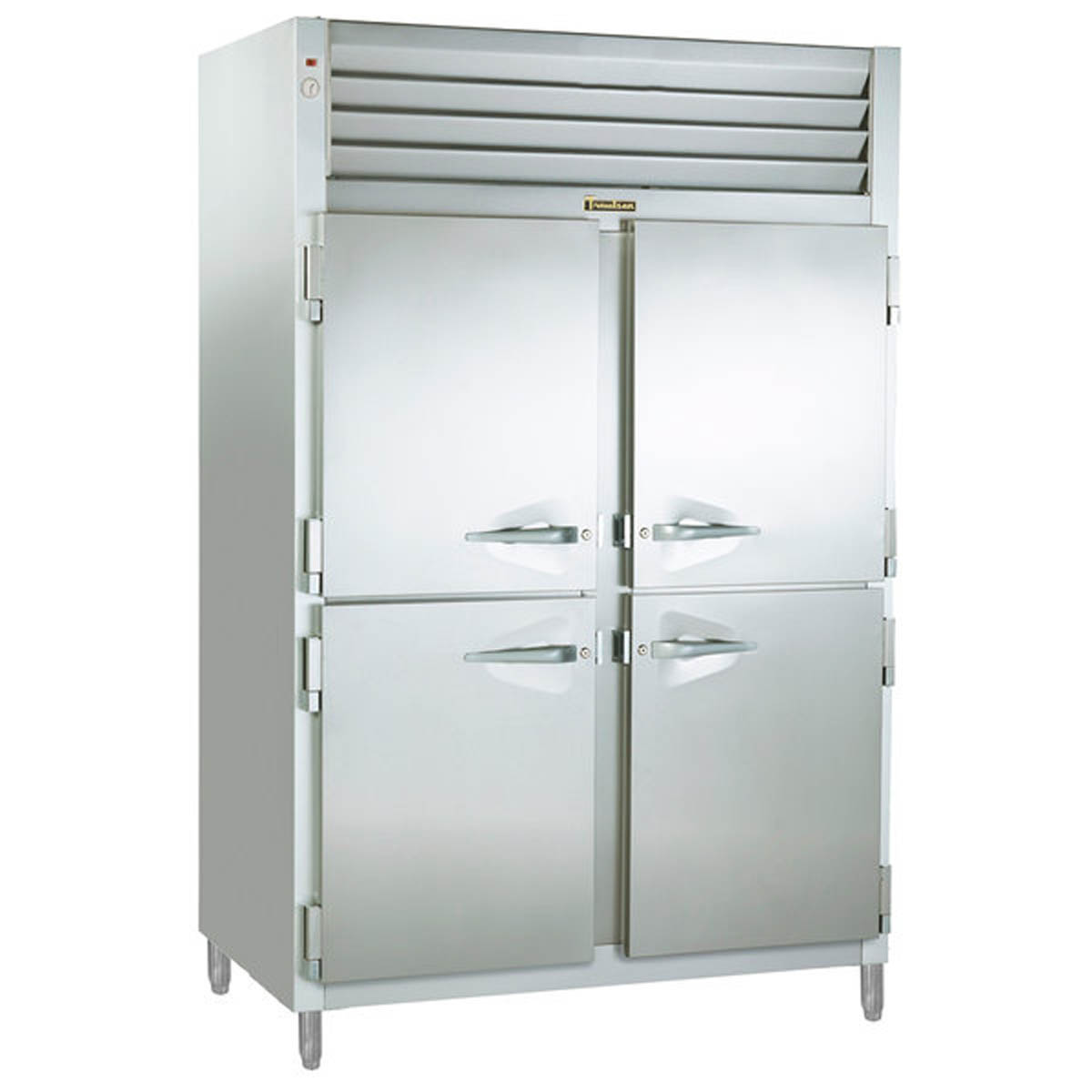

The Traulsen RET232NUT-HHS is a 52 1/8-inch-wide, two-section Even-Thaw reach-in cabinet designed specifically to thaw frozen product. Its top-mounted, self-contained refrigeration system uses Smart Control operation and automatically returns to refrigeration operation after product is thawed.
This exact RET232NUT-HHS configuration has four half-height solid doors, allowing staff to open one compartment area at a time while accessing the cabinet’s 28 included #1 trayslides. Each trayslide pair accepts either one 18 x 26 inch pan or two 14 x 18 inch pans; pans are not stated as included.
Applications and Workflow
Suitable for commercial kitchens, commissaries, bakeries, and institutional food-prep operations that need a dedicated cabinet for controlled thawing of frozen product. This model is solely intended for thawing and is not a holding cabinet.
Features and Practical Benefits
Dedicated Even-Thaw workflow
The cabinet is engineered for thawing, with a refrigeration and airflow design that supports the Even-Thaw process and returns to refrigeration operation once product is thawed.
Four half-height solid doors
The RET232NUT-HHS has four half-height solid doors with locks, self-closing action, and a 120-degree stay-open position for loading and unloading.
Pan-ready interior
Twenty-eight #1 trayslides are included—14 per section. A pair of trayslides accommodates one 18 x 26 inch pan or two 14 x 18 inch pans.
Practical self-contained setup
The top-mounted self-contained refrigeration system is supplied with a 9-foot cord and NEMA 5-20P plug for a 115V connection.
Stainless interior and exterior
Heavy-gauge stainless steel construction is used on the cabinet exterior front, sides, louver assembly, doors, interior, and door liners.
Technical Specifications
| Manufacturer model | RET232NUT-HHS |
|---|---|
| Cabinet type | Two-section Even-Thaw reach-in cabinet |
| Door configuration | Four half-height solid doors |
| Door style | Half-height solid |
| Net capacity | 36.36 cu. ft. |
| Overall width | 52 1/8 in. |
| Overall depth | 35 in. |
| Depth with door open 90 degrees | 55 3/4 in. |
| Overall height on included legs | 83 1/4 in. |
| Clear door width | 21 1/8 in. |
| Clear half-door height | 27 1/2 in. |
| Trayslides | 28 #1 trayslides, 14 per section |
| 18 x 26 in. pan capacity | 28 pans |
| 14 x 18 in. pan capacity | 56 pans |
| Refrigeration system | Top-mounted, self-contained |
| Refrigerant | R-450A |
| Electrical requirement | 115/60/1, NEMA 5-20P |
| Full-load amperage | 14 A |
| Compressor output | 1/2 HP |
| Power cord | 9 ft. cord with plug attached |
| Included legs | Four adjustable 6 in. stainless steel legs |
| Standard operating temperature | 37 to 41°F |
| Recommended top clearance | 12 in. |
| Intended use limitation | Thawing only; not for holding |
Installation and Purchasing Considerations
- Plan a finished footprint of 52 1/8 inches wide by 35 inches deep, with an overall height of 83 1/4 inches on the included 6-inch adjustable legs.
- Allow for a 55 3/4-inch depth when a door is open 90 degrees. The clear half-door opening height is 27 1/2 inches.
- Provide a 115/60/1 electrical connection for the attached NEMA 5-20P plug. The listed full-load amperage is 14A.
- Maintain 12 inches of top clearance where possible for performance and service access.
- This is a top-mounted, self-contained unit; no remote condenser connection is identified. Confirm the specified hinging when ordering, since hinging is designated at order placement.
- The cabinet includes trayslides, not food pans. Purchase pans separately if needed for the intended loading arrangement.
Choosing This Configuration
RET232NUT-HHS is the two-section, 52-inch-wide configuration with half-height solid doors. The related RET232NUT-FHS is identified as the full-height-solid-door version.
Choose this cabinet only when the intended task is thawing. It is not intended to serve as a refrigerated holding cabinet.
The published approximate thawing design basis is 300 pounds per section in 24 hours or less; actual loading practices should account for the product and operation.
Frequently Asked Questions
How many doors does the RET232NUT-HHS have?
This configuration has four half-height solid swing doors. The half-height format provides separate upper and lower access points in each of the two sections.
Are pans included with this Even-Thaw cabinet?
No pans are identified as included. The cabinet includes 28 #1 trayslides, and each pair can accommodate one 18 x 26 inch pan or two 14 x 18 inch pans.
What electrical connection does it require?
The unit is rated for 115/60/1 power, draws 14 full-load amps, and is equipped with a NEMA 5-20P plug on a 9-foot cord.
Can this cabinet be used to hold refrigerated food after thawing?
No. Traulsen identifies its Even-Thaw models as intended solely for thawing, not for use as holding cabinets.
