Description

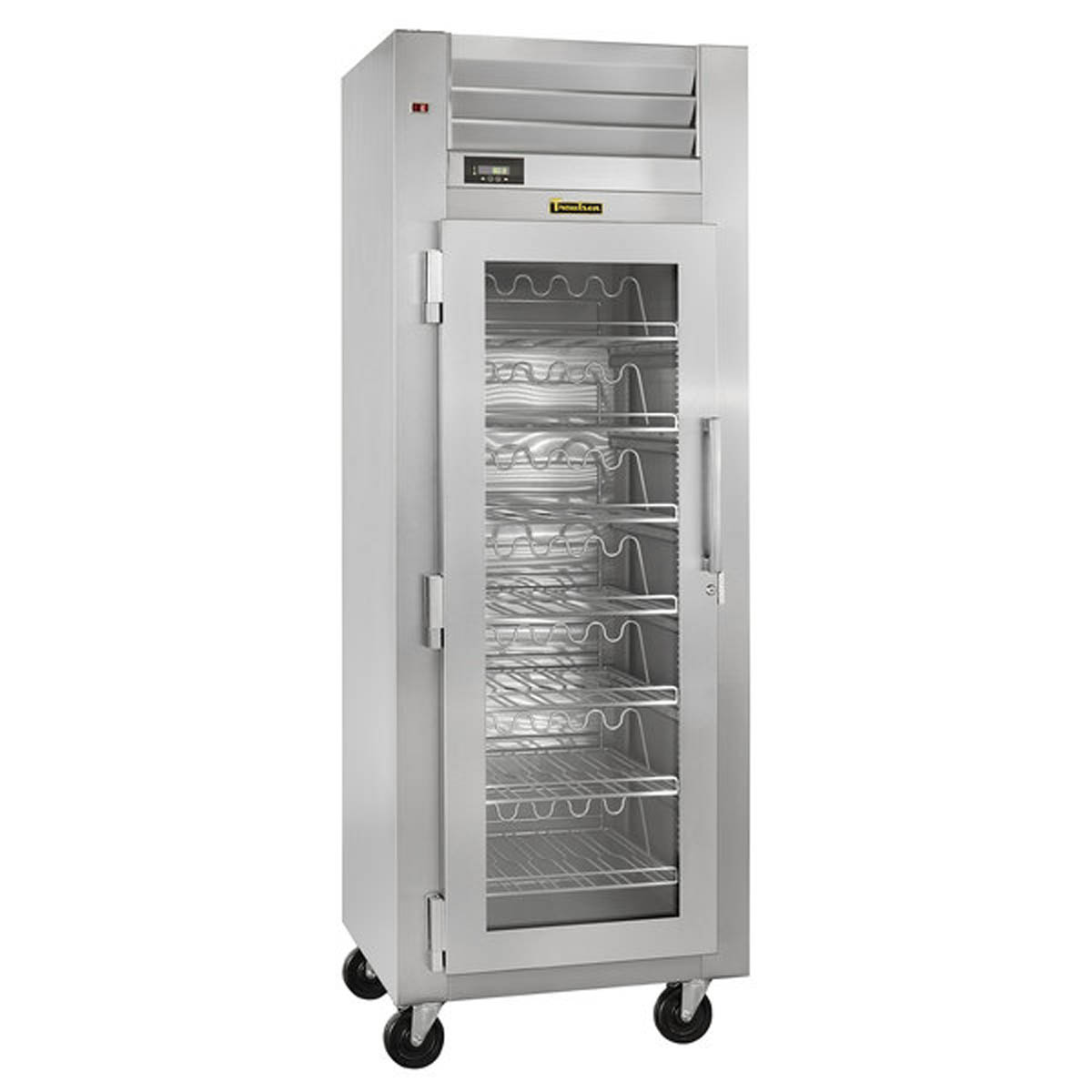

The Traulsen RH126W-WR01 is a one-section, self-contained wine refrigerator for displaying and storing wine at serving temperatures. Its full-height locking glass door, interior LED lighting, and stainless steel cabinet make bottle selection visible in bar, dining, and front-of-house settings.
This exact RH126W-WR01 configuration has a left-hinged door, seven supplied wine racks, and capacity for up to 77 bottles. The Smart Control is factory set for 53–57°F and can be adjusted for different wine temperatures.
Applications and Workflow
Suitable for restaurants, wine bars, hotel beverage service, tasting rooms, and front-of-house wine display where a single, glass-door wine cabinet is needed. This is a single-temperature wine refrigerator; buyers needing independently controlled storage zones should select equipment designed for that requirement.
Features and Practical Benefits
Wine-focused rack arrangement

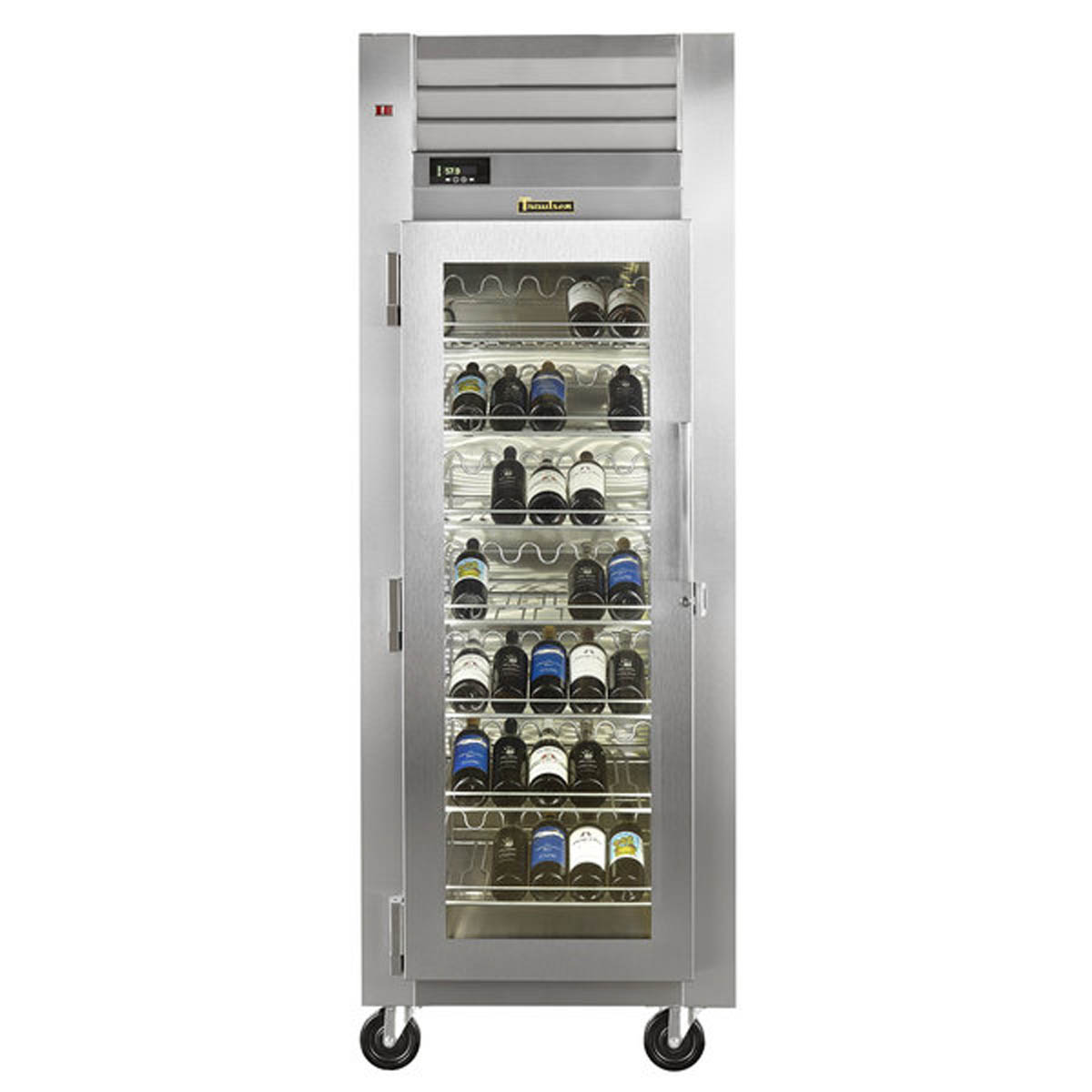

Seven standard wine racks accommodate up to 11 bottles each, for a stated section capacity of up to 77 bottles. Rack capacity can vary with bottle dimensions.
Visible, secure bottle presentation
The full-height glass door has a lock, while the interior LED lighting has an external on/off switch for illuminated selection and display.
Left-hinge workflow

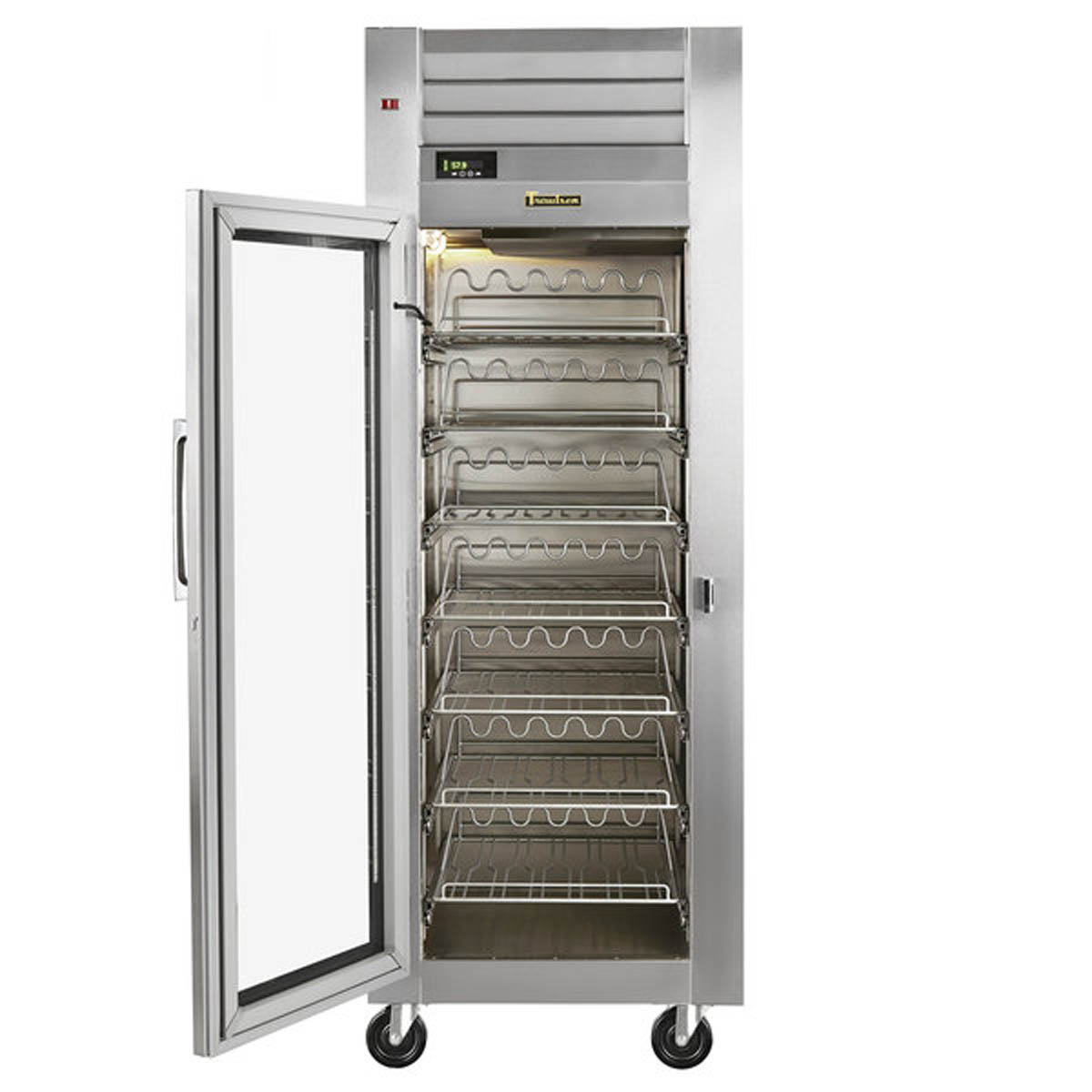

The RH126W-WR01 uses a left-hinged door. Its self-closing hinge stays open at 120°, helping staff load racks without holding the door.
Dedicated wine temperature control
The Smart Control with LED display is factory preset to 53–57°F and is adjustable for different wine temperatures.
Self-contained cabinet construction
The top-mounted refrigeration system is built into the cabinet, and the unit includes four 6-inch adjustable stainless steel legs.
Technical Specifications
| Manufacturer model | RH126W-WR01 |
|---|---|
| Configuration | One-section, self-contained wine refrigerator |
| Door configuration | Full-height glass door, hinged left |
| Net capacity | 18.79 cu. ft. |
| Bottle capacity | Up to 77 bottles |
| Standard racks | 7 |
| Maximum bottles per rack | 11 |
| Overall width | 29 7/8 in. |
| Overall depth | 29 9/16 in. |
| Depth with door open 90° | 50 13/16 in. |
| Overall height on 6 in. legs | 83 7/16 in. |
| Electrical connection | 115/60/1, NEMA 5-15P |
| Full load amperes | 9.2 A |
| Cord length | 9 ft. |
| Factory temperature setting | 53–57°F |
| Refrigerant | R-450A |
| Legs | Four 6 in. adjustable stainless steel legs |
Installation and Purchasing Considerations
- Plan a finished footprint of 29 7/8 in. wide by 29 9/16 in. deep and 83 7/16 in. high on the included 6 in. legs.
- Allow for the left-hinged door swing. At a 90° door opening, overall depth is 50 13/16 in.
- Provide a 115/60/1 electrical connection with a NEMA 5-15P receptacle. The unit includes a 9 ft. cord and plug.
- Maintain 12 in. of top clearance where possible for performance and service access.
- Confirm the route to the installation location accommodates the cabinet height and the final leg-adjusted placement.
Choosing This Configuration
This exact model is RH126W-WR01, the one-section version with a full-height glass door hinged on the left.
The listed 77-bottle capacity is a maximum based on up to 11 bottles per each of seven racks; bottle shape and dimensions affect actual count.
Casters, alternate bases, kickplates, finished backs, and exterior decor are options rather than standard inclusions.
Frequently Asked Questions
Which way does the RH126W-WR01 door hinge?
The RH126W-WR01 has a full-height glass door hinged on the left. Plan the installation so the left-side swing and 90° open-door depth do not obstruct traffic or adjacent equipment.
How many bottles and racks does this wine refrigerator hold?
It includes seven wine racks and holds up to 77 bottles, based on a maximum of 11 bottles per rack. Actual capacity varies with bottle dimensions.
What electrical service does this model require?
It requires 115/60/1 power and uses a NEMA 5-15P plug. A 9 ft. cord and plug are provided.
What temperature does it operate at?
The cabinet is factory preset for 53–57°F wine-serving temperatures. Its control is adjustable for different wine temperatures.
