Description

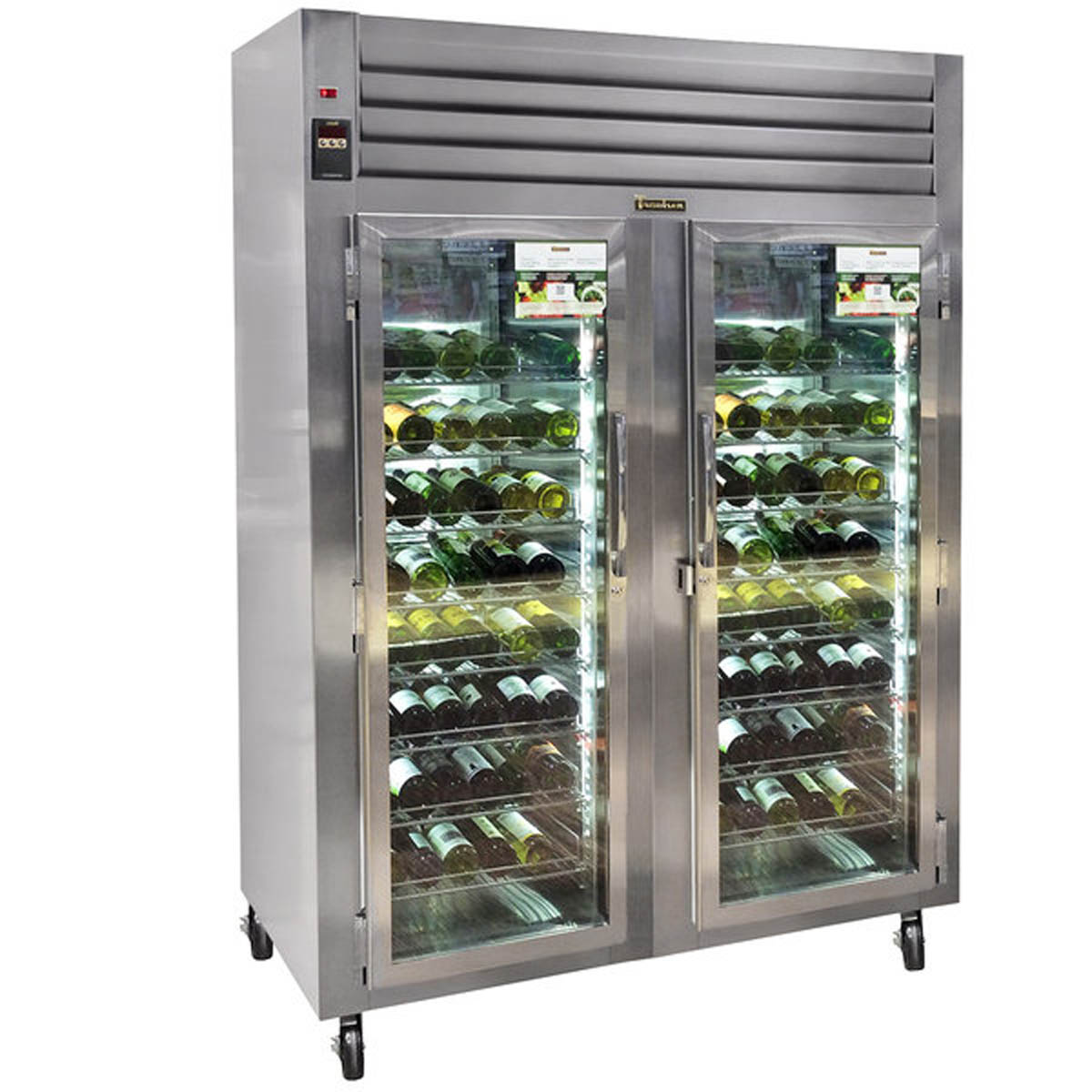

The Traulsen RH226W-WR01 is a self-contained, two-section reach-in wine refrigerator with full-height glass doors hinged left and right. Designed for wine storage and presentation, it combines a stainless steel cabinet with illuminated doors, locking access, and dedicated tilted wine racks for organized bottle display.
Its Smart Control is factory set for a 53-57°F wine-serving range and can be adjusted for different wine temperatures. Each section has seven wine racks and holds up to 77 bottles per section, for a maximum cabinet capacity of up to 154 bottles depending on bottle dimensions.
Applications and Workflow
A practical choice for restaurant bars, dining-room wine displays, beverage programs, and other commercial settings that need refrigerated wine storage with visible labels and controlled access. This is a single-temperature wine refrigerator operating in the 53-57°F range; it is not intended to provide separately controlled temperature zones.
Features and Practical Benefits
Two-section bottle organization
Seven wine racks are supplied in each section, with capacity of up to 77 bottles per section. The tilted rack design supports orderly label viewing and bottle access.
Glass-door display with controlled access
Full-height glass doors let staff and guests view the selection, while door locks help control access to stored wine.
Wine-focused temperature control
Smart Control with LED display is factory preset for 53-57°F and is adjustable for different wine temperatures.
Door operation suited to active service
The left/right hinged doors are self-closing and can stay open at 120 degrees, helping staff load or retrieve bottles without holding a door.
Self-contained top-mounted refrigeration
The refrigeration system is housed on the cabinet, avoiding a separate remote condenser installation.
Technical Specifications
| Manufacturer model | RH226W-WR01 |
|---|---|
| Configuration | Two-section reach-in wine refrigerator, self-contained |
| Door configuration | Full-height glass doors, hinged left/right |
| Net capacity | 40.52 cu. ft. |
| Overall width | 58 in. |
| Overall depth | 29 in. |
| Overall height | 83 1/4 in. on 6 in. legs |
| Depth with door open 90 degrees | 51 11/16 in. |
| Clear door width | 21 1/2 in. |
| Clear full-door height | 57 5/8 in. |
| Bottle capacity | Up to 77 bottles per section |
| Standard wine racks | 7 per section |
| Temperature range | 53-57°F, adjustable |
| Electrical | 115/60/1, NEMA 5-20P |
| Cord length | 9 ft. |
| Refrigeration location | Top-mounted |
| Refrigerant | R-450A |
Installation and Purchasing Considerations
- Plan a finished footprint of 58 inches wide by 29 inches deep and 83 1/4 inches high on the supplied 6-inch legs.
- Allow for a 51 11/16-inch overall depth when a door is open to 90 degrees. The two full-height glass doors are configured with left/right hinging.
- Provide 115/60/1 electrical service with a receptacle that accepts the factory NEMA 5-20P plug. A 9-foot cord and plug are provided.
- Leave 12 inches of clearance above the cabinet where possible for preferred performance and service access.
- This is a self-contained, top-mounted system. It does not require a separately installed remote condenser.
Choosing This Configuration
RH226W-WR01 is the two-section configuration with full-height glass doors hinged left/right.
Bottle capacity is based on up to 77 bottles per section; actual capacity changes with bottle dimensions.
Standard support is four adjustable 6-inch stainless steel legs. Casters, alternate bases, a kickplate, finished back, and exterior decor are listed as options rather than assumed included.
Frequently Asked Questions
How many wine bottles can the RH226W-WR01 hold?
It holds up to 77 bottles per section. With two sections, maximum capacity is up to 154 bottles, but the actual count depends on bottle dimensions.
What temperature does this wine refrigerator maintain?
The factory preset operating range is 53-57°F. Smart Control is adjustable for different wine temperatures, but this is a single-temperature cabinet rather than a dual-zone unit.
Which way do the doors swing?
This exact RH226W-WR01 configuration has two full-height glass doors with left/right hinging. Plan for 51 11/16 inches of overall depth with a door open 90 degrees.
What electrical connection is required?
The unit requires 115/60/1 power and is equipped with a NEMA 5-20P plug on a 9-foot cord.
