Description

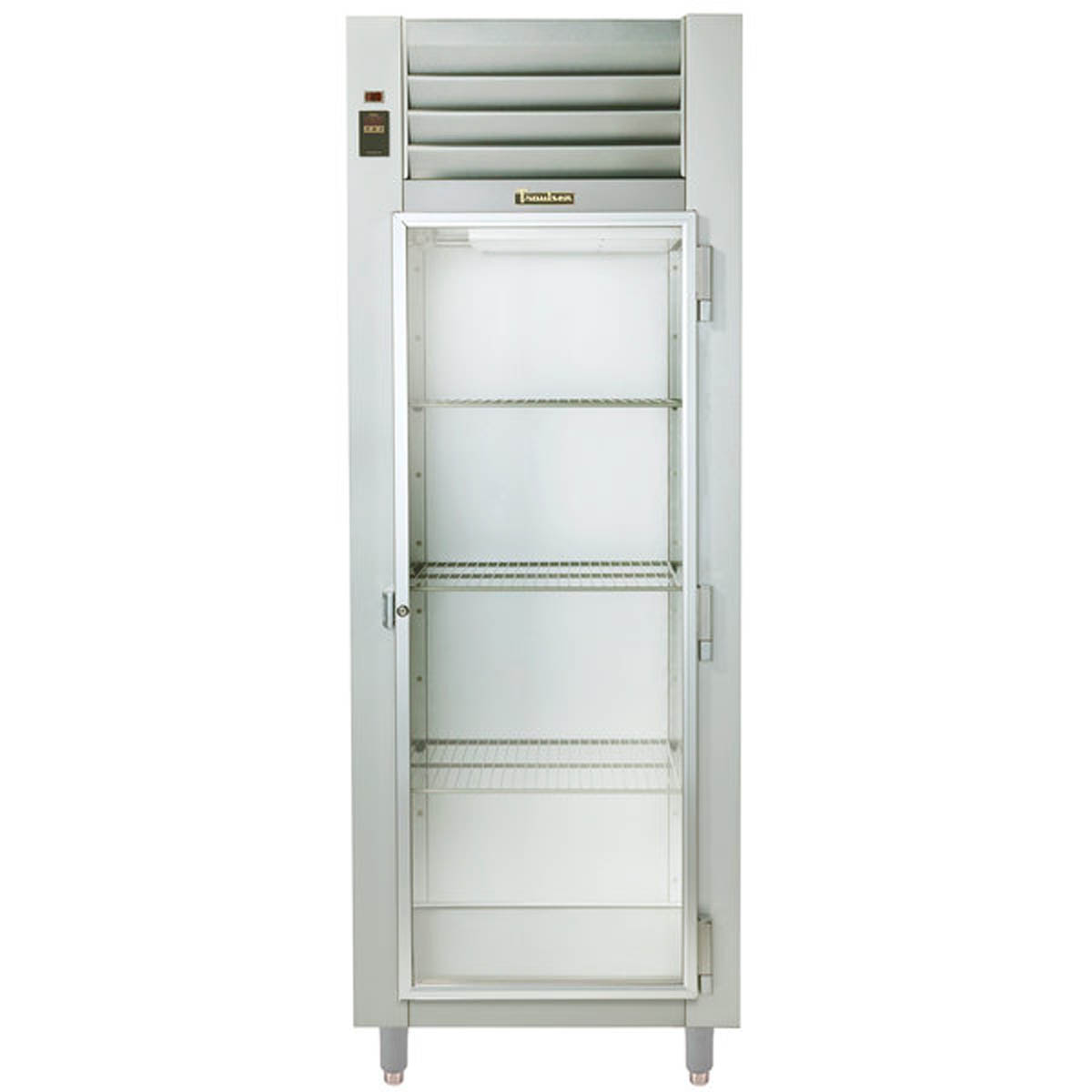

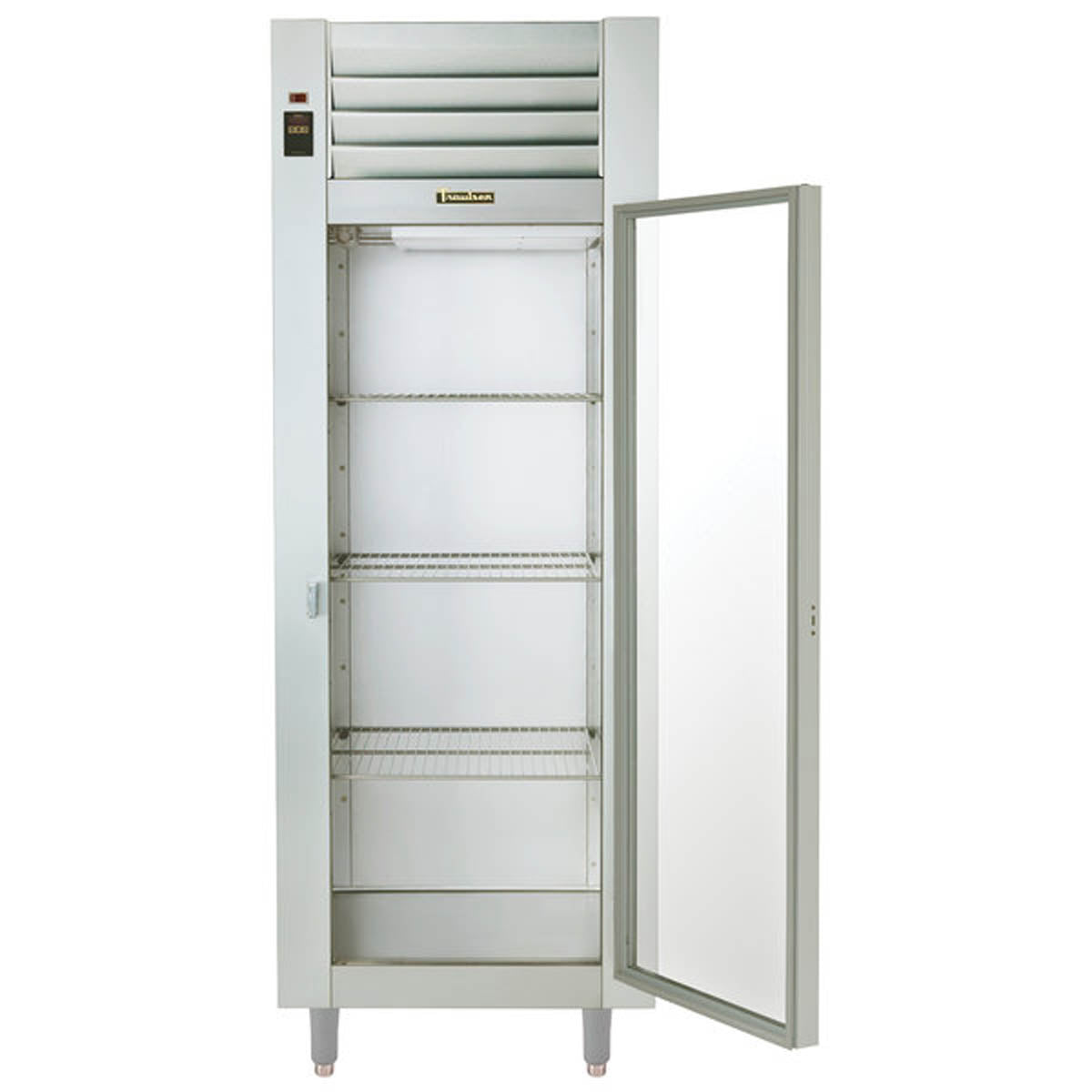

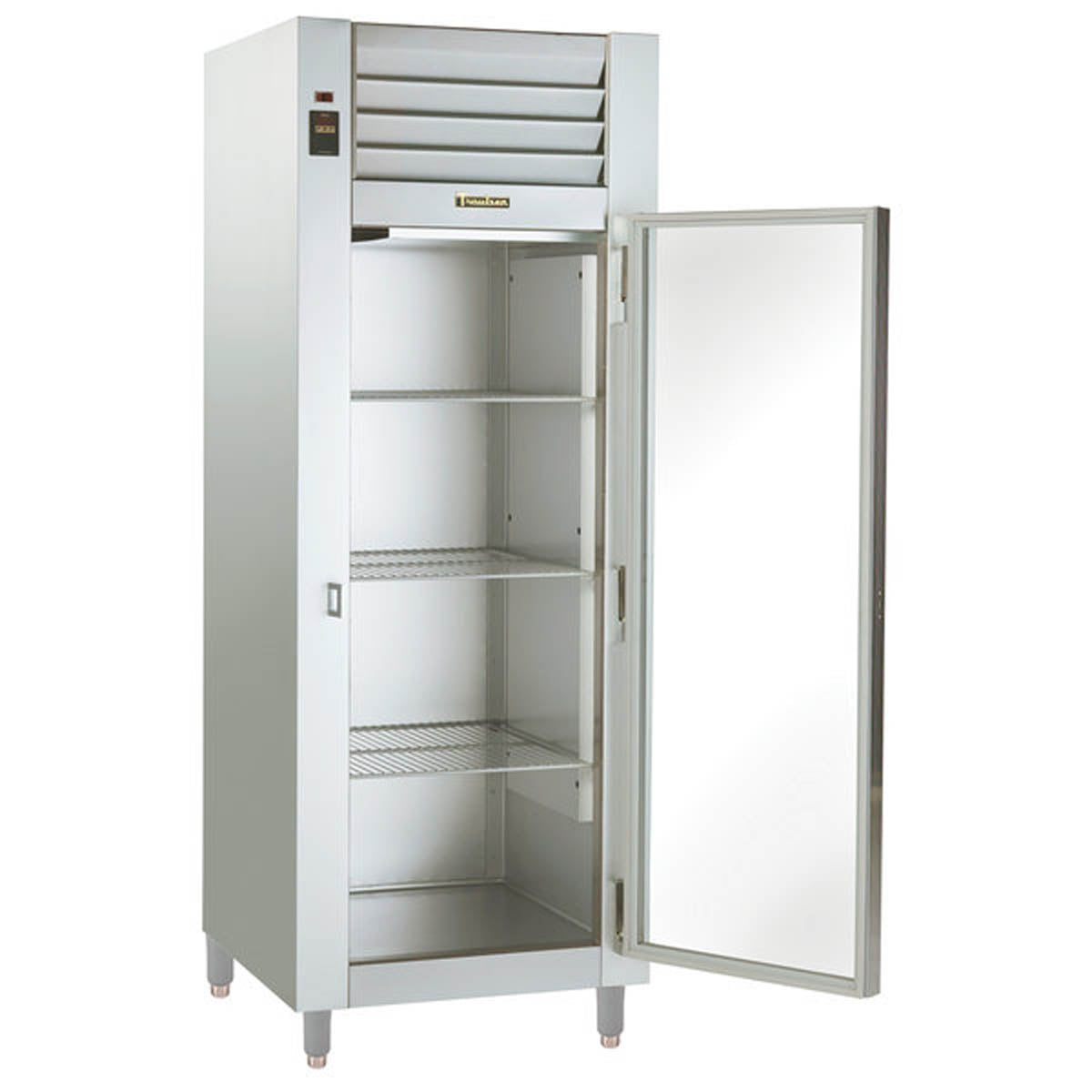

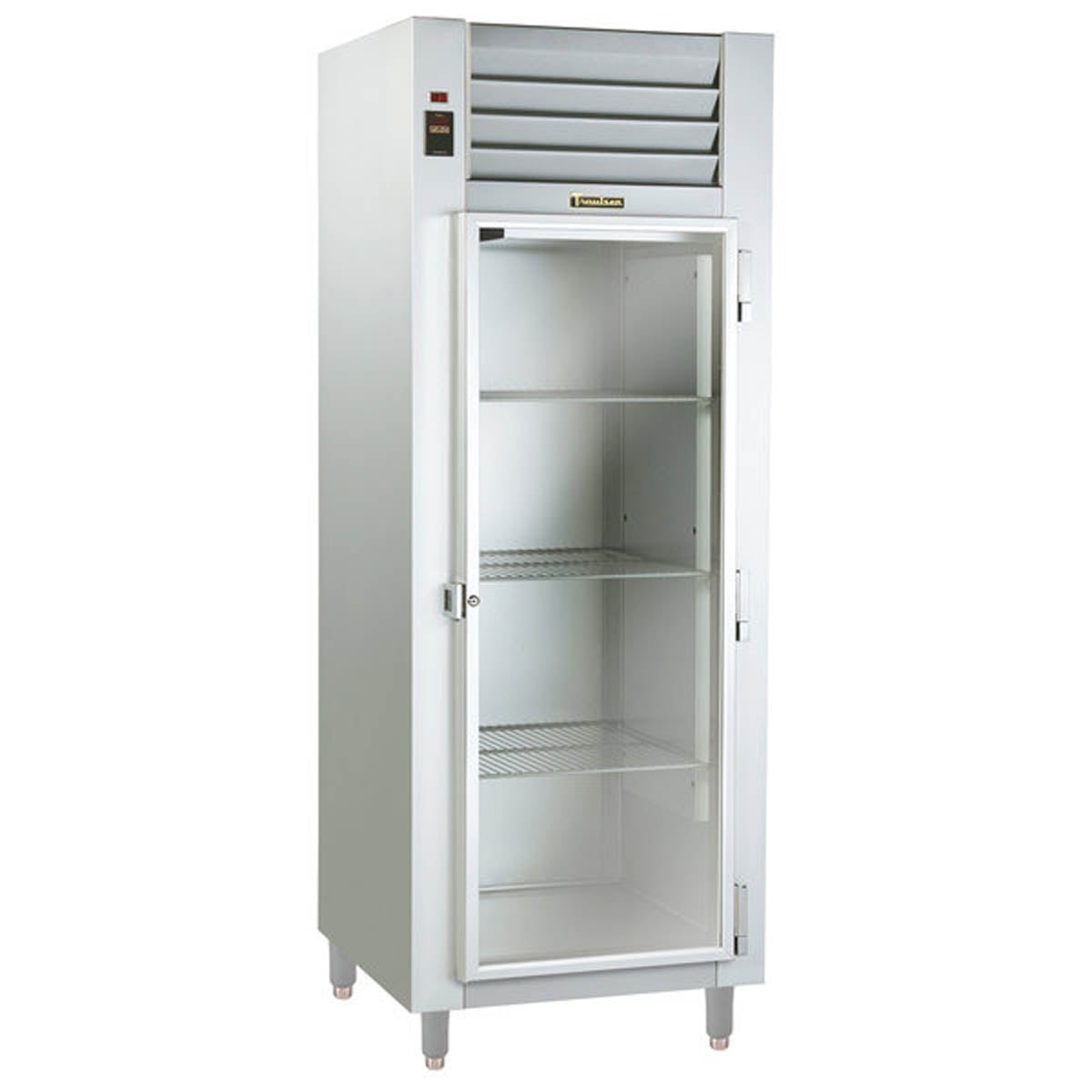

The Traulsen RHT132WUT-FHG is a 32-inch-deep, one-section reach-in refrigerator with a self-contained top-mounted refrigeration system and a full-height glass door. Its glass door supports at-a-glance product checks, while the Smart Control with LED display provides cabinet monitoring and controls.
This exact RHT132WUT-FHG configuration has one full-height glass door, standard right-side hinging, 23.87 cu. ft. of net capacity, and three factory-installed adjustable coated-wire shelves. It is supplied on four 6-inch adjustable stainless steel legs with a 9-foot cord and NEMA 5-15P plug.
Applications and Workflow
Suitable for commercial kitchens, prep areas, bakeries, cafeterias, and service operations that need refrigerated, upright storage with product visibility through a full-height glass door. This is a self-contained refrigerator, not a freezer, and it requires room for the door swing and top clearance for service access.
Features and Practical Benefits
Full-height glass-door access
The single full-height glass door lets staff view cabinet contents before opening the refrigerator. It is self-closing, stays open at 120 degrees, and includes a lock.
Organized one-section storage
Three adjustable, full-width coated-wire shelves are factory installed on shelf pins, providing configurable storage within the 23.87 cu. ft. cabinet.
Top-mounted self-contained refrigeration
The balanced R-450A refrigeration system is top mounted behind the louver assembly, keeping the refrigeration package above the food-storage area.
Built for commercial cleaning and use
The cabinet interior, exterior front, one-piece sides, and louver assembly are stainless steel. A magnetic snap-in door gasket is designed for removal during cleaning.
Technical Specifications
| Manufacturer model | RHT132WUT-FHG |
|---|---|
| Configuration | One-section reach-in refrigerator with full-height glass door |
| Net capacity | 23.87 cu. ft. |
| Overall width | 29 7/8 in. |
| Overall depth | 35 9/16 in. |
| Overall height on 6 in. legs | 83 7/16 in. |
| Depth with door open 90 degrees | 56 11/16 in. |
| Standard shelves | 3 adjustable coated-wire shelves |
| Refrigeration system | Self-contained, top-mounted |
| Refrigerant | R-450A |
| Operating temperature | 34 to 38°F |
| Electrical requirement | 115V / 60Hz / 1-phase |
| Plug | NEMA 5-15P |
| Full-load amperage | 7.3 A |
| Compressor | 1/3 HP |
| Standard hinging | Right hinged |
| Legs | Four 6 in. adjustable stainless steel legs |
| Power cord | 9 ft. |
| Preferred top clearance | 12 in. |
Installation and Purchasing Considerations
- Plan a finished footprint of 29 7/8 inches wide by 35 9/16 inches deep, with an overall height of 83 7/16 inches on the supplied 6-inch legs.
- Allow for a 56 11/16-inch overall depth when the door is open 90 degrees; verify aisle and adjacent-equipment clearance before placement.
- Provide 12 inches of top clearance where possible for optimum performance and service access.
- Connect to a 115V, 60Hz, single-phase receptacle matching the supplied NEMA 5-15P plug. The unit has a 9-foot cord.
- The standard hinge arrangement for the 132W full-height configuration is right hinged. Confirm the swing direction works for the intended location before ordering.
- Keep the top-mounted louver area accessible for routine service. The standard configuration is supplied with four adjustable 6-inch stainless steel legs, not casters.
Choosing This Configuration
This exact model is the RHT132WUT-FHG with one full-height glass door. The RHT132WUT-HHG is a different configuration with half-height glass doors.
The cabinet is supplied with three coated-wire shelves. Trayslides, additional shelves, stainless shelves, casters, and other support arrangements are listed as options rather than standard equipment.
This is the self-contained version. Remote refrigeration is referenced separately and is not established as part of this model's standard configuration.
Frequently Asked Questions
What electrical connection does the RHT132WUT-FHG use?
It is specified for 115V, 60Hz, single-phase power and is equipped with a NEMA 5-15P plug on a 9-foot cord.
How much space is needed in front of the refrigerator?
With the door opened 90 degrees, overall depth is 56 11/16 inches. Account for this swing clearance in addition to the 35 9/16-inch closed depth.
Are shelves included?
Yes. Three adjustable, coated-wire shelves are factory installed. Optional trayslides and additional or stainless steel shelves are separate selections.
Which way does the door hinge?
The standard hinging for the 132W full-height-door configuration is right hinged. Other hinging is identified as an available configuration, so confirm requirements before ordering.
