Description

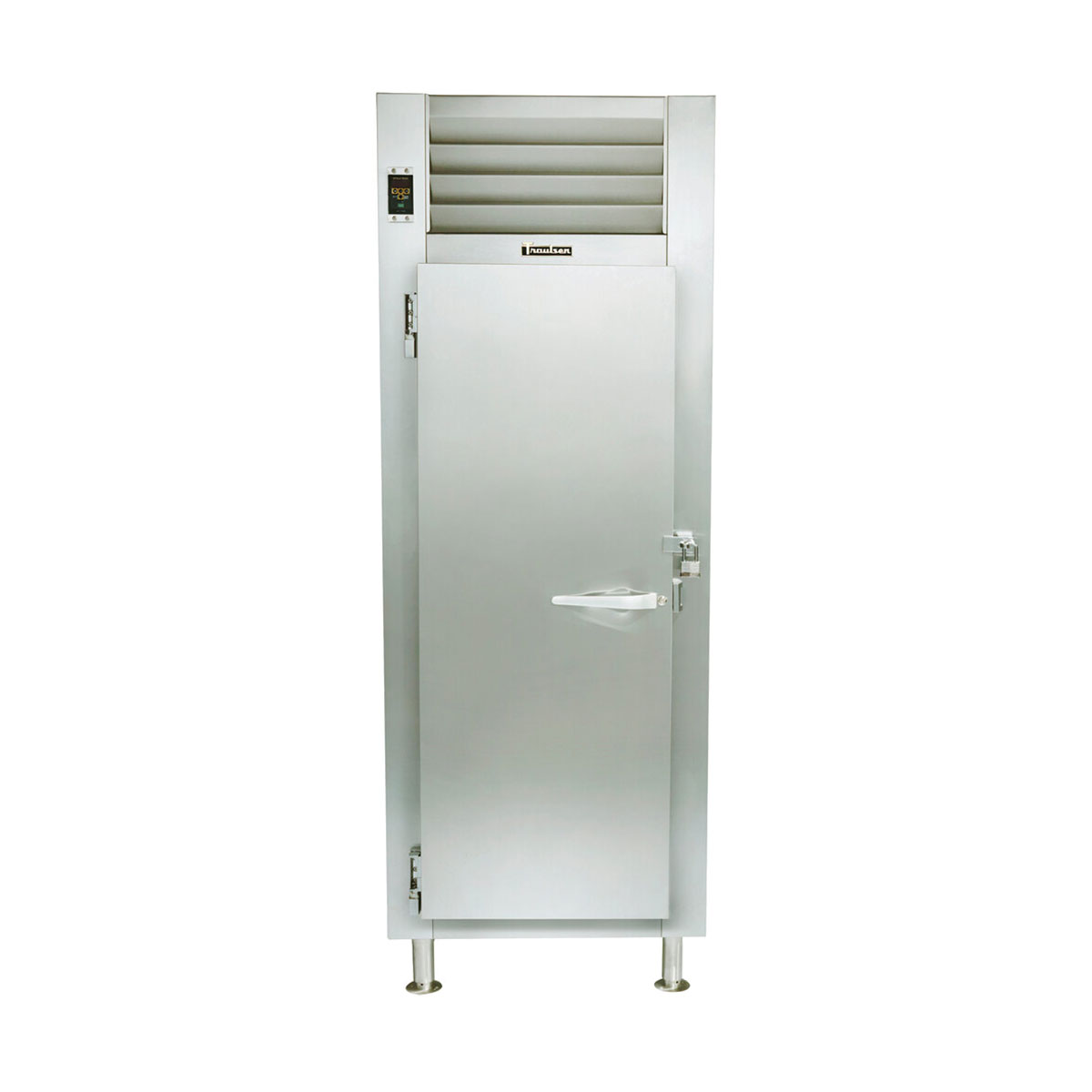

The Traulsen RL132N-COR01 is a one-section, 21.9 cu. ft. reach-in freezer configured for corrections applications. Its stainless steel cabinet, top-mounted self-contained refrigeration system, and full-height left-hinged solid door provide frozen storage in a compact 26-3/8-inch-wide footprint.
This COR01 configuration combines freezer storage with corrections-oriented cabinet details, including a protected control cover, refrigeration-system screen, safety screws, locking hasp, welded tray-slide frame, and flanged legs for floor mounting. The door is self-closing and can stay open at 120 degrees to support loading and unloading.
Applications and Workflow
Suitable for correctional foodservice operations that need a single-section reach-in cabinet for frozen inventory. The left-hinged door requires clear space on the left side for access. This is a freezer, not a refrigerator or heated holding cabinet, and its single compartment is intended for stationary reach-in storage rather than roll-in rack handling.
Features and Practical Benefits
Corrections-oriented cabinet package

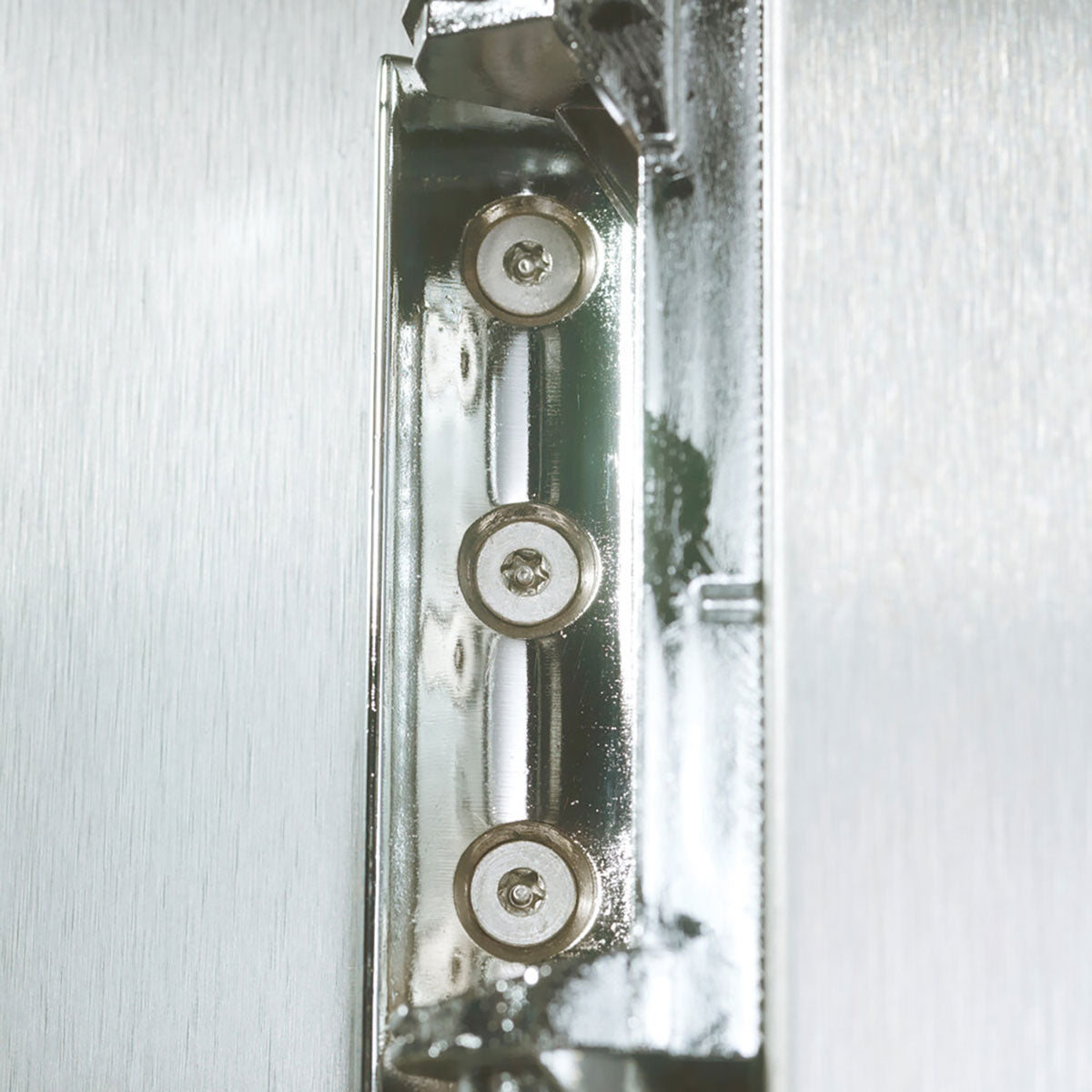

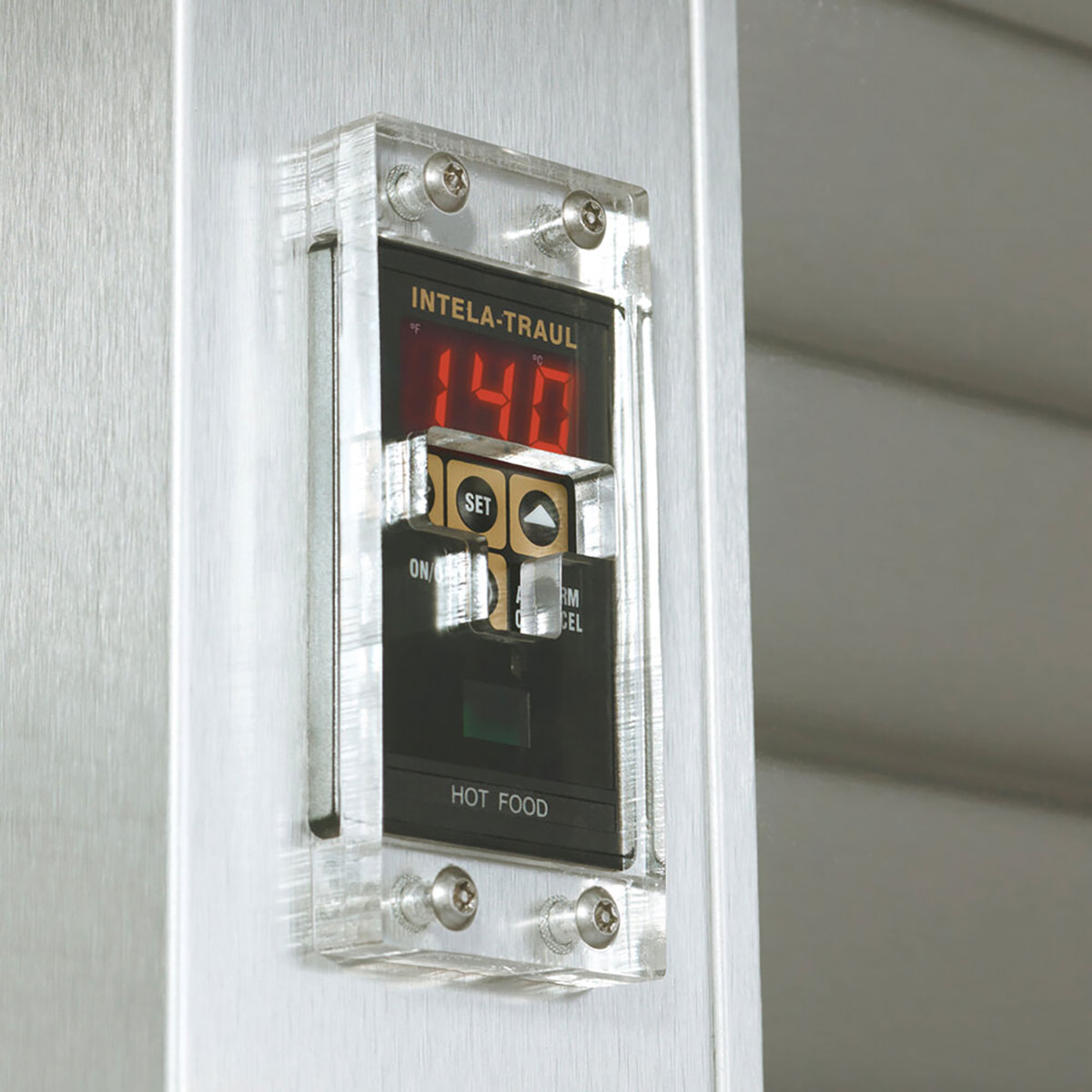

A Lexan control cover, stainless steel refrigeration screen, safety screws, and locking hasp help protect controls, components, and cabinet contents. A padlock for the hasp is supplied separately.

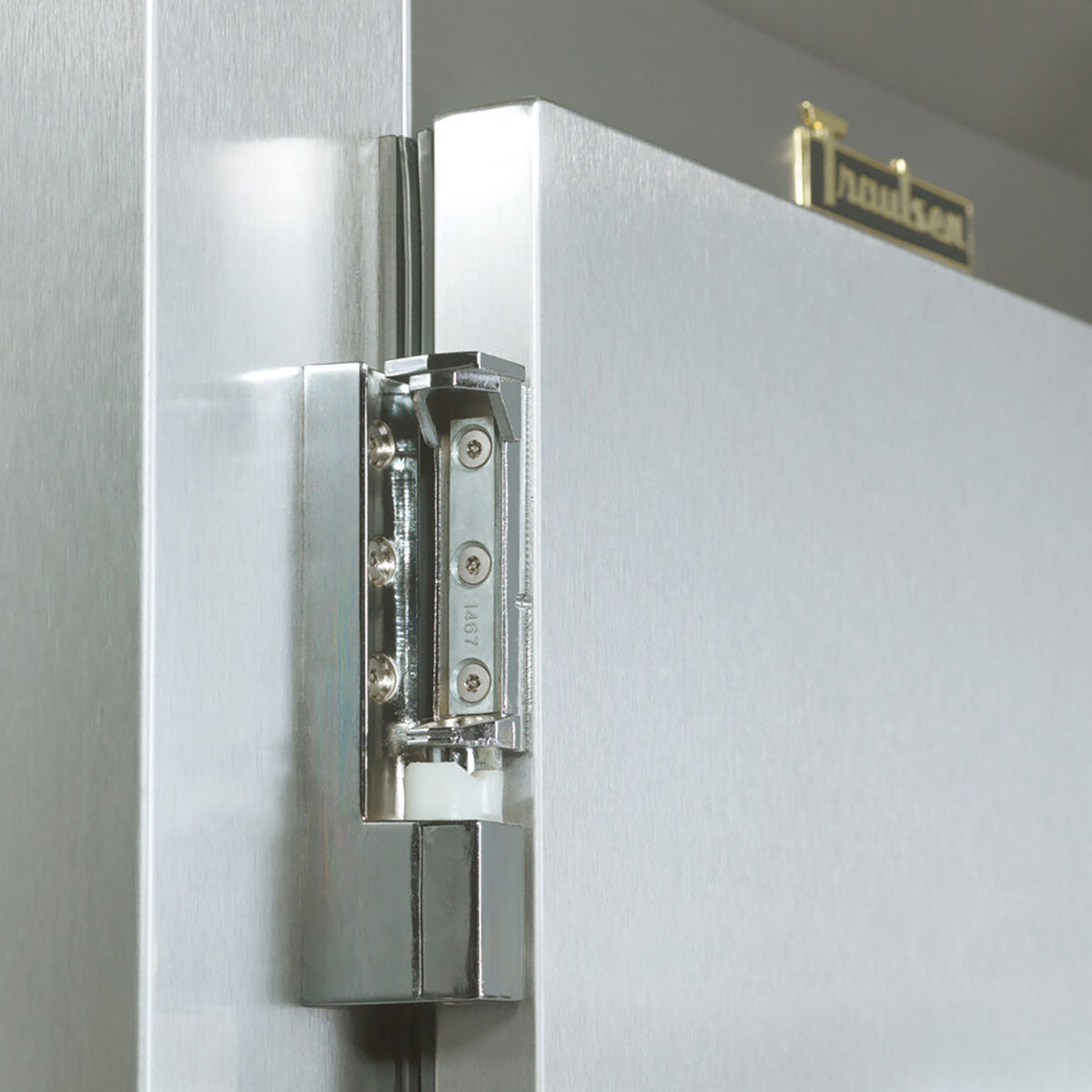

Left-hinged full-height door

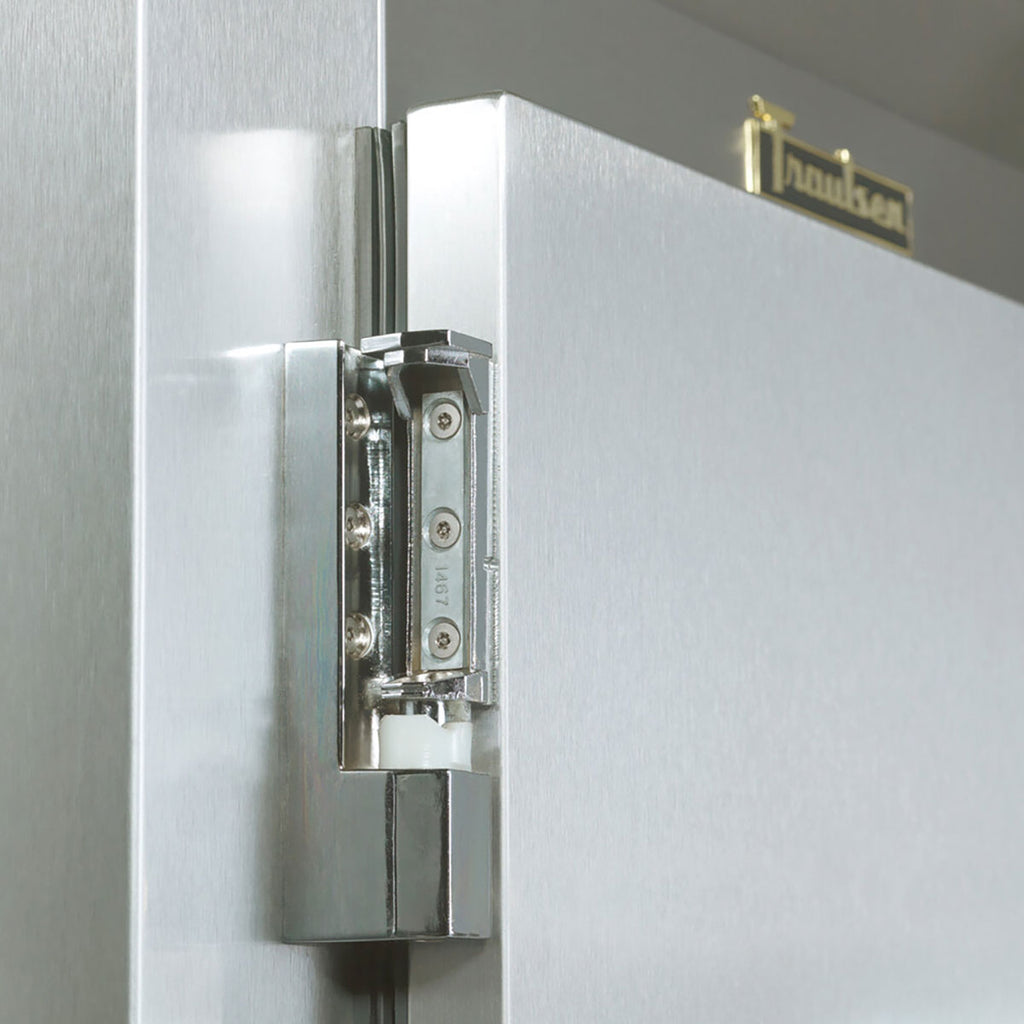

The COR01 model is specifically the left-hinged version of the 26-3/8-inch-wide one-section reach-in freezer. Its self-closing door stays open at 120 degrees when needed for loading.
Top-mounted self-contained freezer system
The refrigeration package is top mounted and self-contained, with a front-facing condenser and a supplied 9-foot cord and plug. No remote condenser is specified for this configuration.

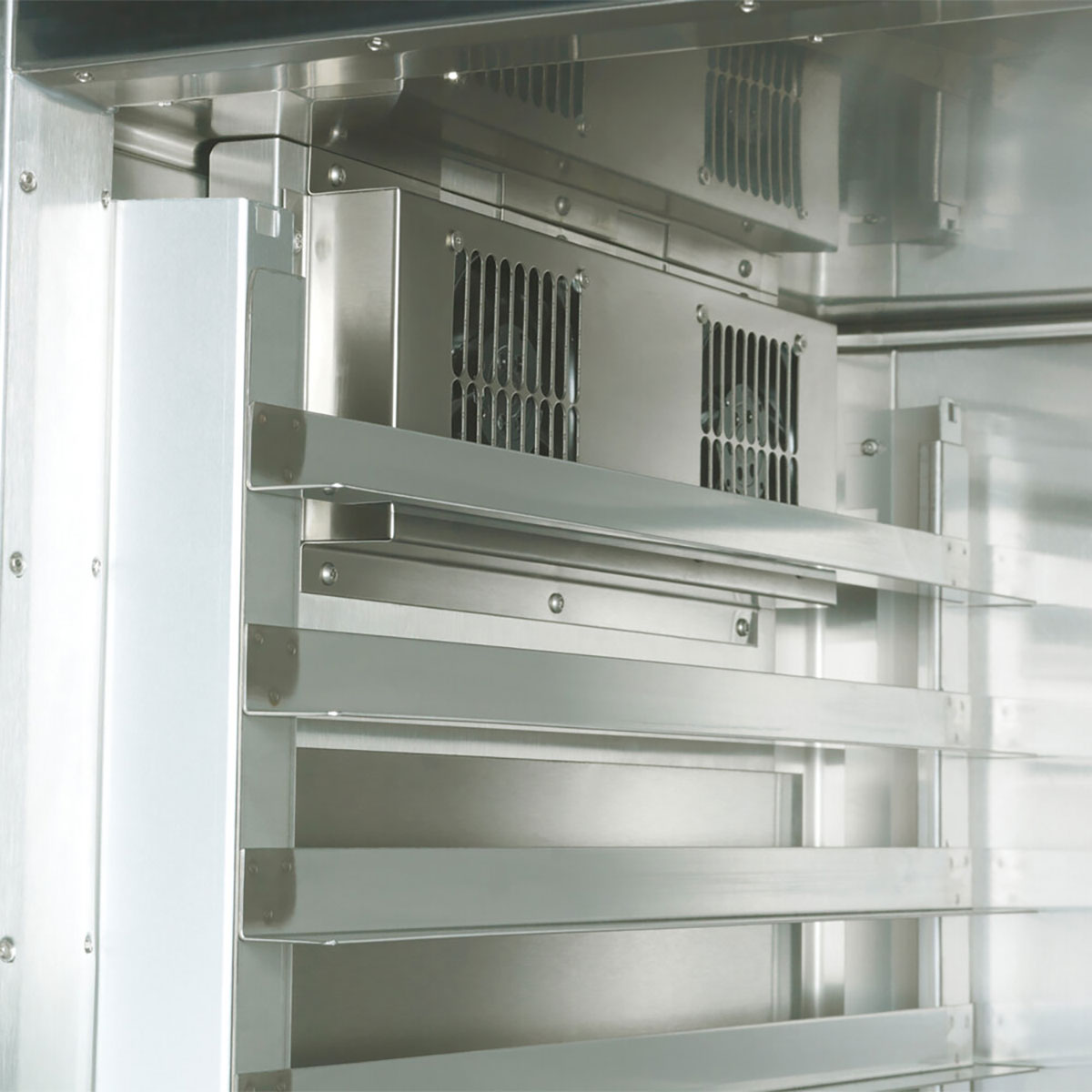

Organized interior support
Twelve pairs of universal tray slides are welded to a steel frame per section. They can accommodate stated pan formats, but pans are not identified as included.

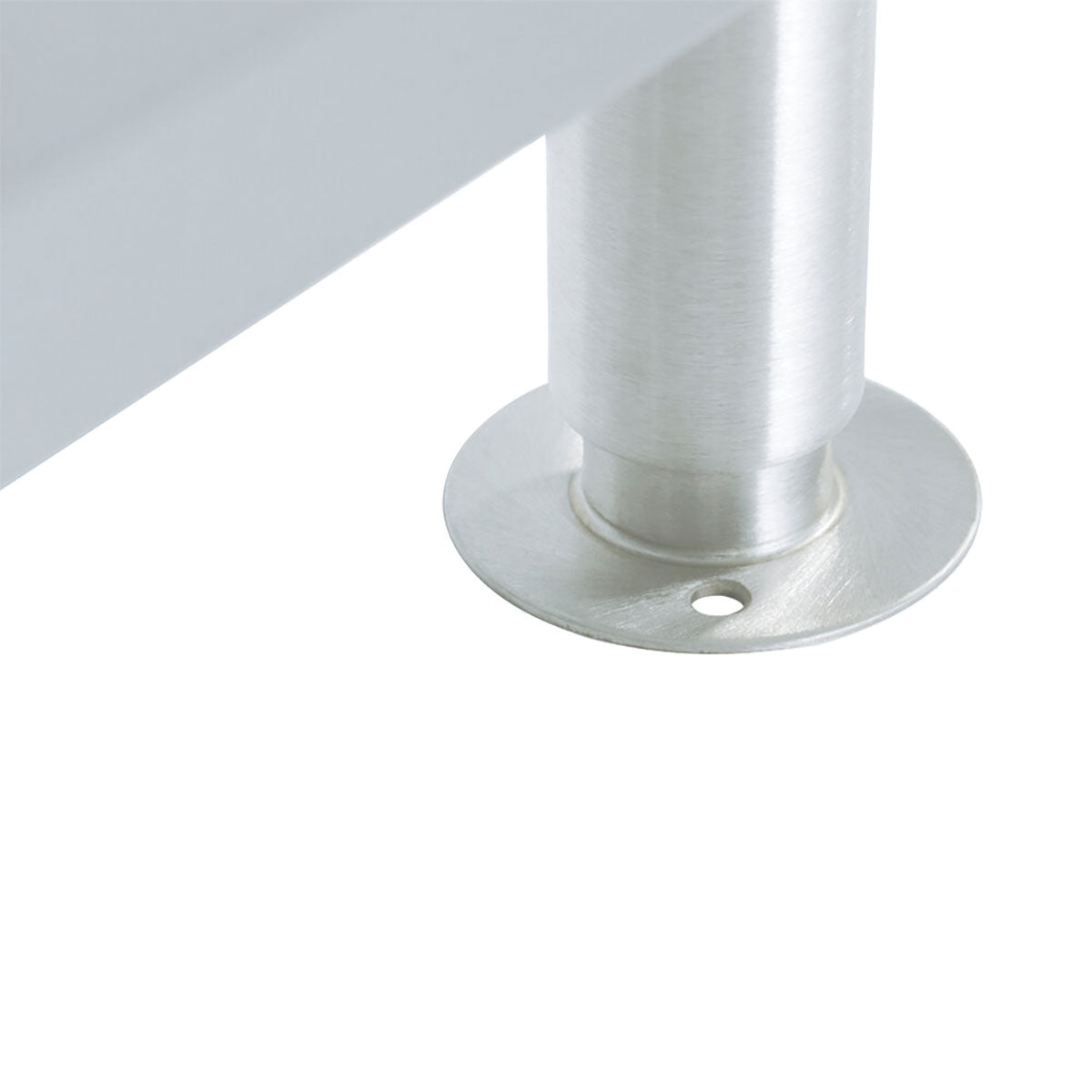

Floor-mounting provision
Four adjustable 6-inch stainless steel flanged legs are included for secure mounting to the floor on reach-in models.
Technical Specifications
| Manufacturer model | RL132N-COR01 |
|---|---|
| Product type | 1-section reach-in freezer |
| Door hinging | Left |
| Capacity | 21.9 cu. ft. |
| Width | 26-3/8 in. |
| Height | 83-1/4 in. |
| Depth | 35 in. |
| Refrigeration configuration | Top-mounted, self-contained |
| Electrical requirement | 115/60/1 |
| Amperage | 9.8 A |
| Refrigerant | R-404A |
| Compressor | 1/2 HP |
| Plug | NEMA 5-15P |
| Operating temperature | 0 to -5°F |
| Tray slides | 12 pairs per section |
| Legs | Four adjustable 6 in. stainless steel flanged legs |
| Preferred top clearance | 12 in. |
Installation and Purchasing Considerations
- Plan for a 26-3/8 in. W x 83-1/4 in. H x 35 in. D cabinet footprint, plus working room on the left for the door swing and loading access.
- Provide a 115/60/1 electrical connection. The unit is supplied with a 9-foot cord and NEMA 5-15P plug.
- Allow 12 inches of top clearance, which Traulsen identifies as preferred for performance and service access.
- This model has a top-mounted, self-contained refrigeration system; it does not require a separately located remote condenser.
- Use the included flanged legs when securing the cabinet to the floor. Confirm the site’s mounting method and any facility-specific requirements before installation.
Choosing This Configuration
RL132N-COR01 is the one-section, 26-3/8-inch-wide reach-in freezer with a left-hinged door.
The related RL132N-COR02 is the right-hinged version; verify the required door opening direction before ordering.
This cabinet is distinct from pass-through, roll-in, roll-through, refrigerator, and hot-food holding configurations shown in the corrections offering.

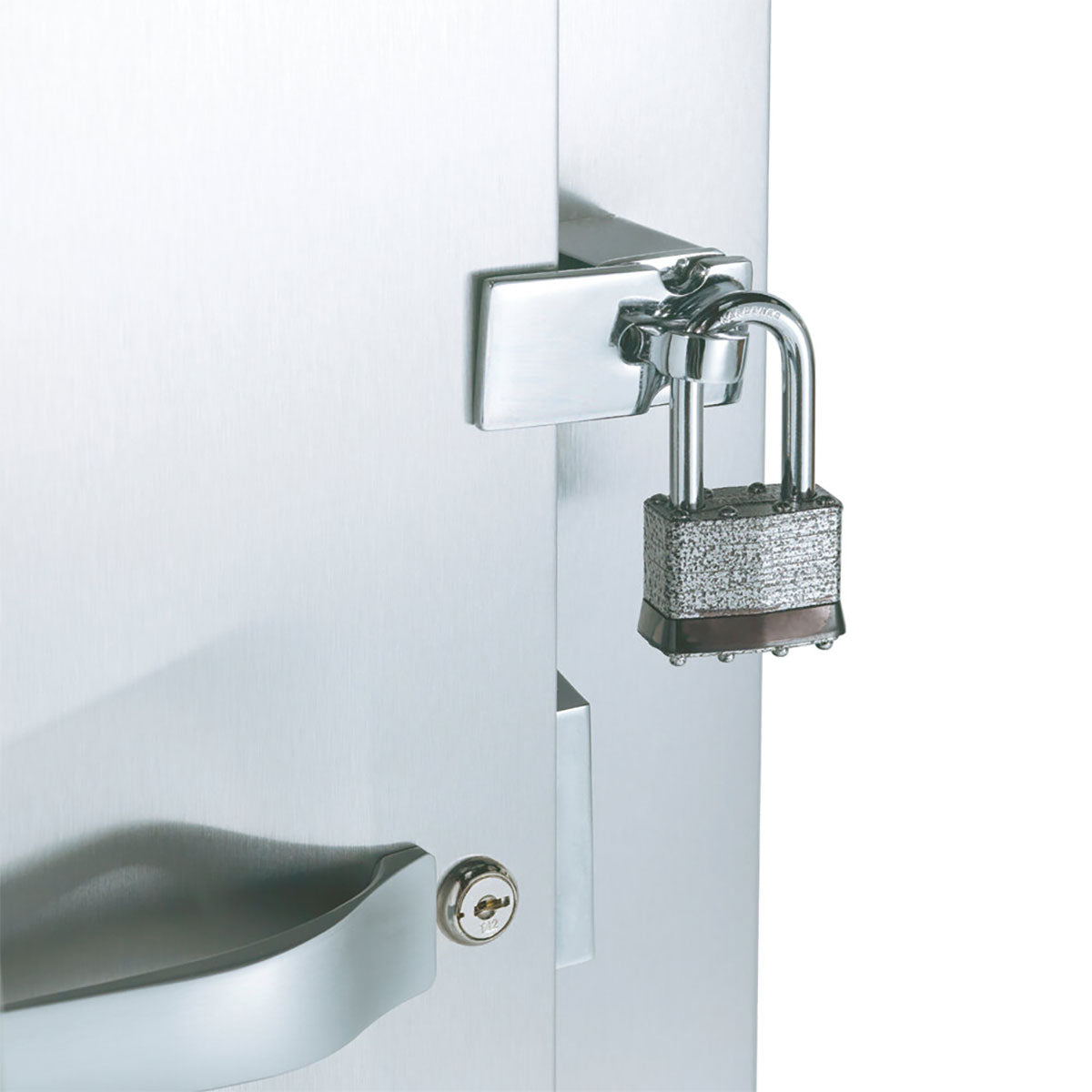

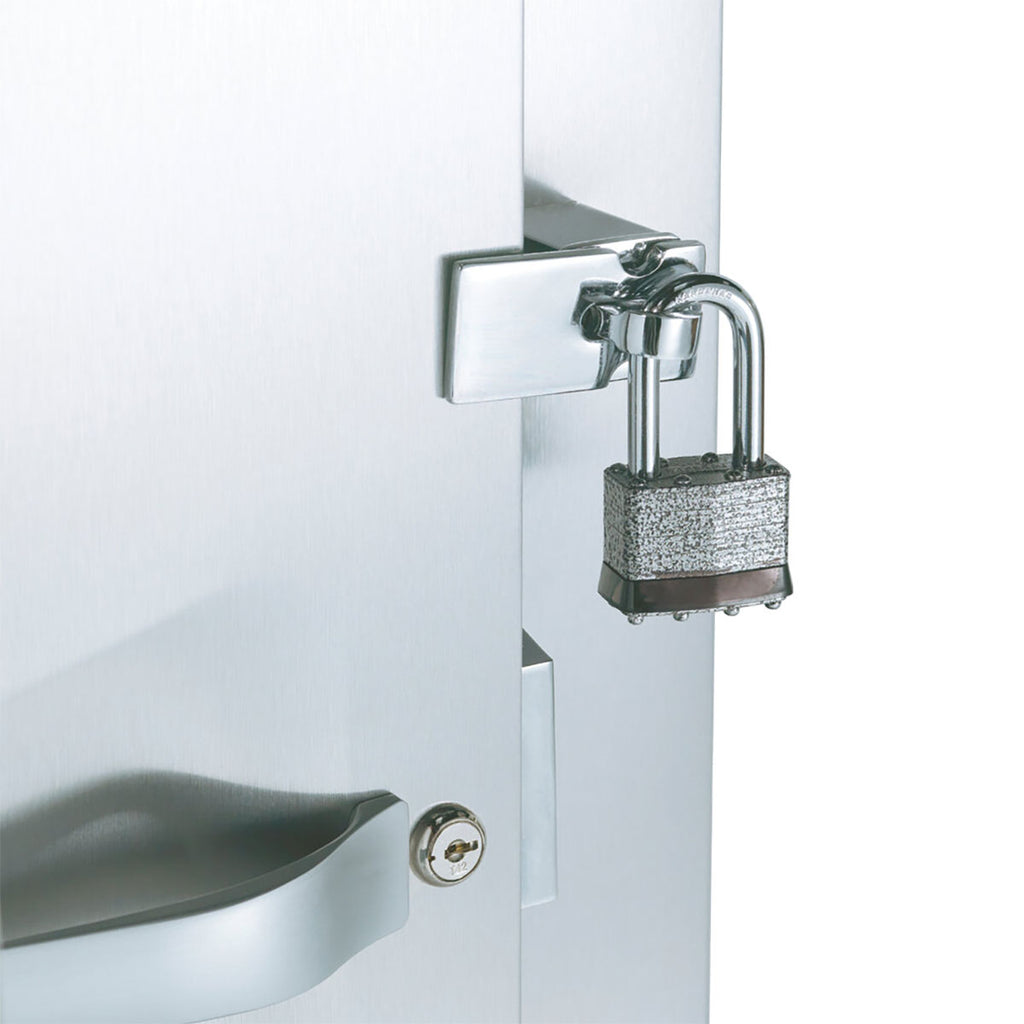

The locking hasp secures the door with a customer-supplied padlock. Tray slides are provided, but food pans are not specified as included.
Frequently Asked Questions
Which direction does the door open on RL132N-COR01?
RL132N-COR01 has left door hinging. Leave clear working space on the left side of the cabinet for opening and loading.
What electrical service does this freezer require?
The one-section reach-in freezer is rated 115/60/1, 9.8 amps, and uses a NEMA 5-15P plug. A 9-foot cord and plug are provided.
Does this freezer require a remote refrigeration system?
No. It uses a top-mounted, self-contained refrigeration system, so a separately located remote condenser is not specified.
Are pans and a padlock included?
The cabinet has 12 pairs of universal tray slides, but pans are not specified as included. The locking hasp accepts a padlock supplied by others.
