Description

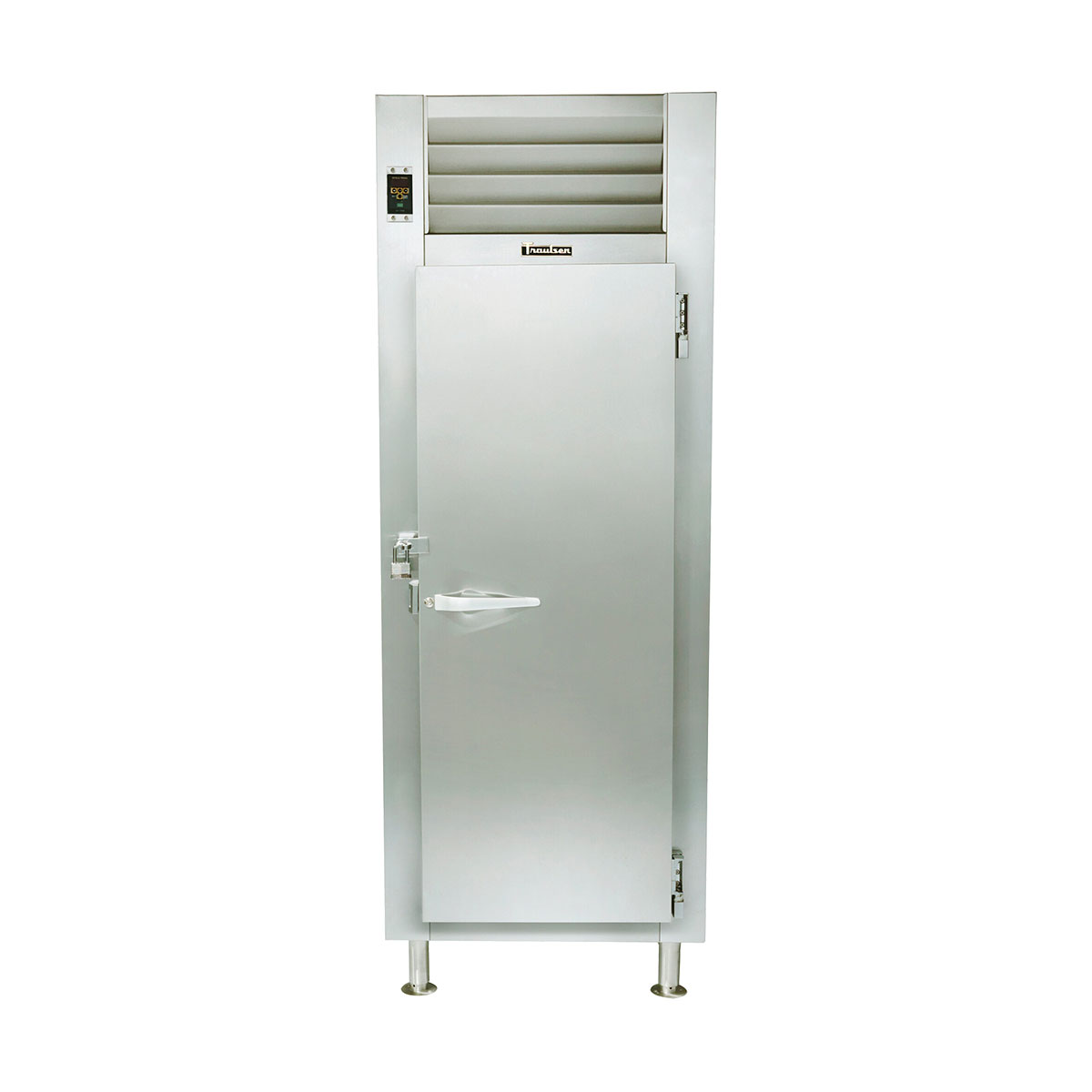

The Traulsen RL132N-COR02 is a one-section, 21.9 cu. ft. reach-in freezer built for corrections applications. Its narrow 26-3/8 in. cabinet, full-height solid door, stainless steel interior and exterior, and top-mounted self-contained refrigeration make it a practical choice where frozen storage and a compact footprint are required.
This exact configuration has a right-hinged door and a corrections feature package with a protected control cover, refrigeration-system screen, safety screws, locking hasps, and flanged legs for floor mounting. The microprocessor control provides a clear operating interface, while the self-closing door can remain open at 120 degrees during loading and unloading.
Applications and Workflow
Suitable for frozen-food storage in correctional kitchens, secure institutional foodservice areas, and other commercial operations needing a single-section reach-in freezer with security-focused cabinet features. This is a reach-in freezer, not a pass-thru, roll-in, refrigerator, or heated holding cabinet. Padlocks for the locking hasps are supplied separately.
Features and Practical Benefits
Corrections-focused cabinet protection

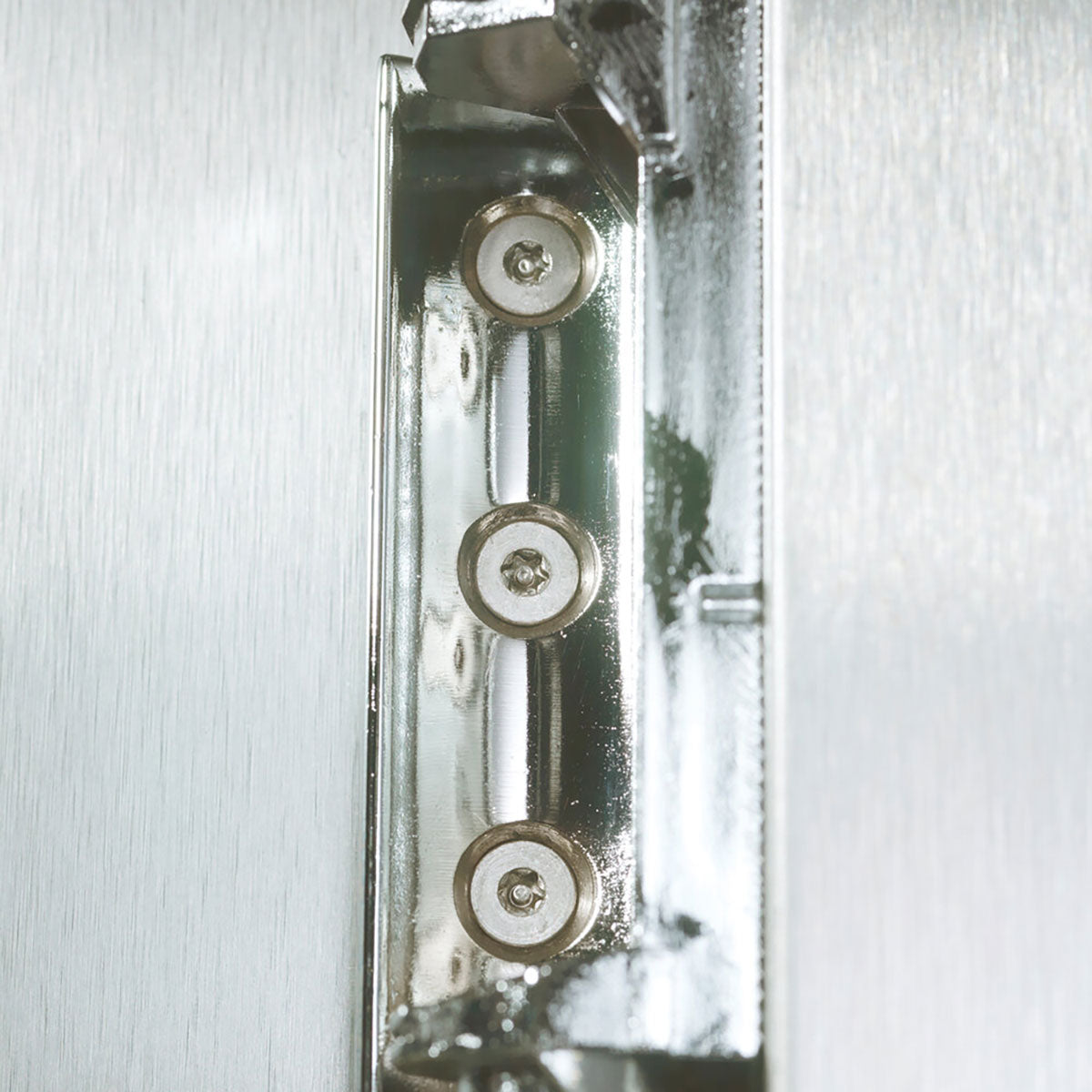

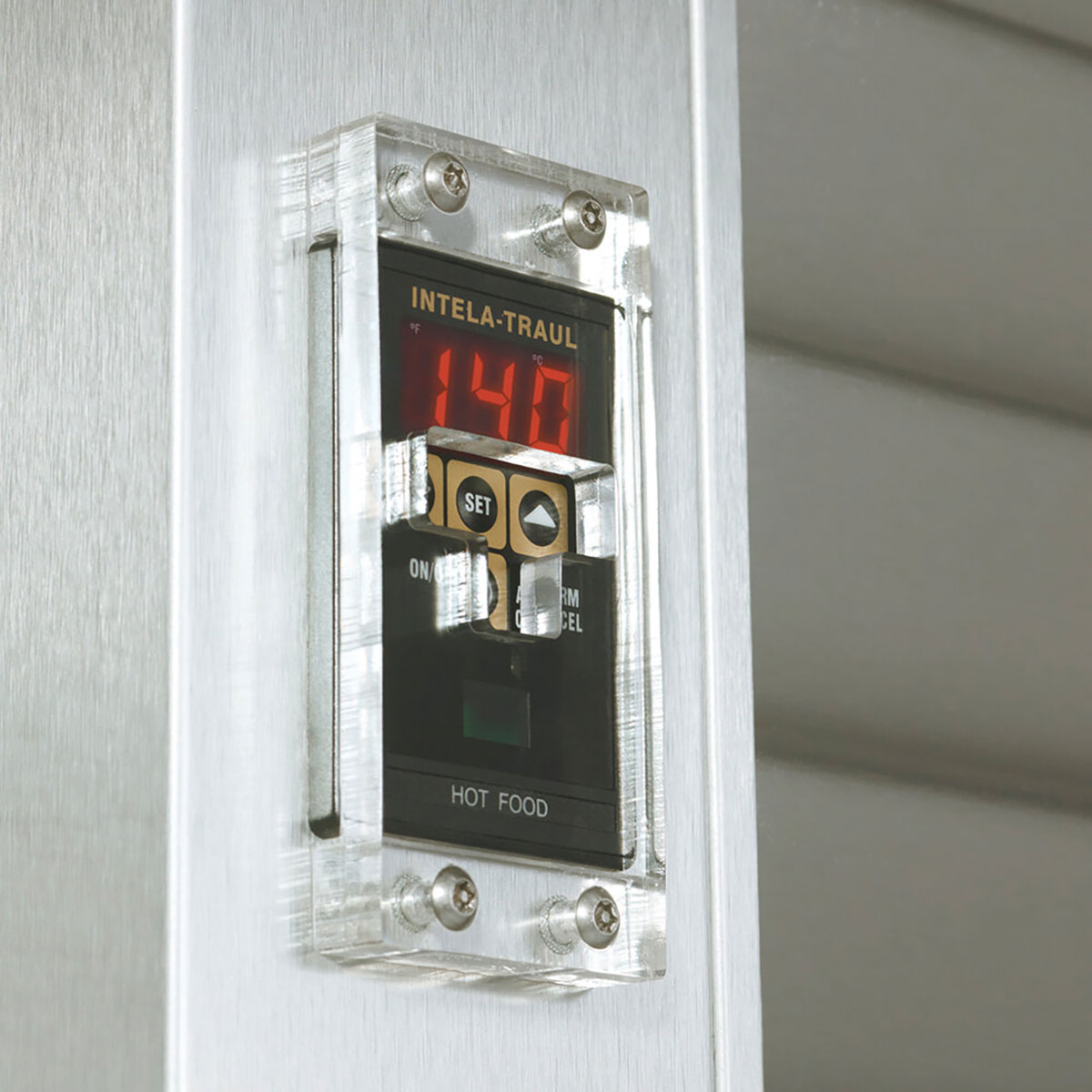

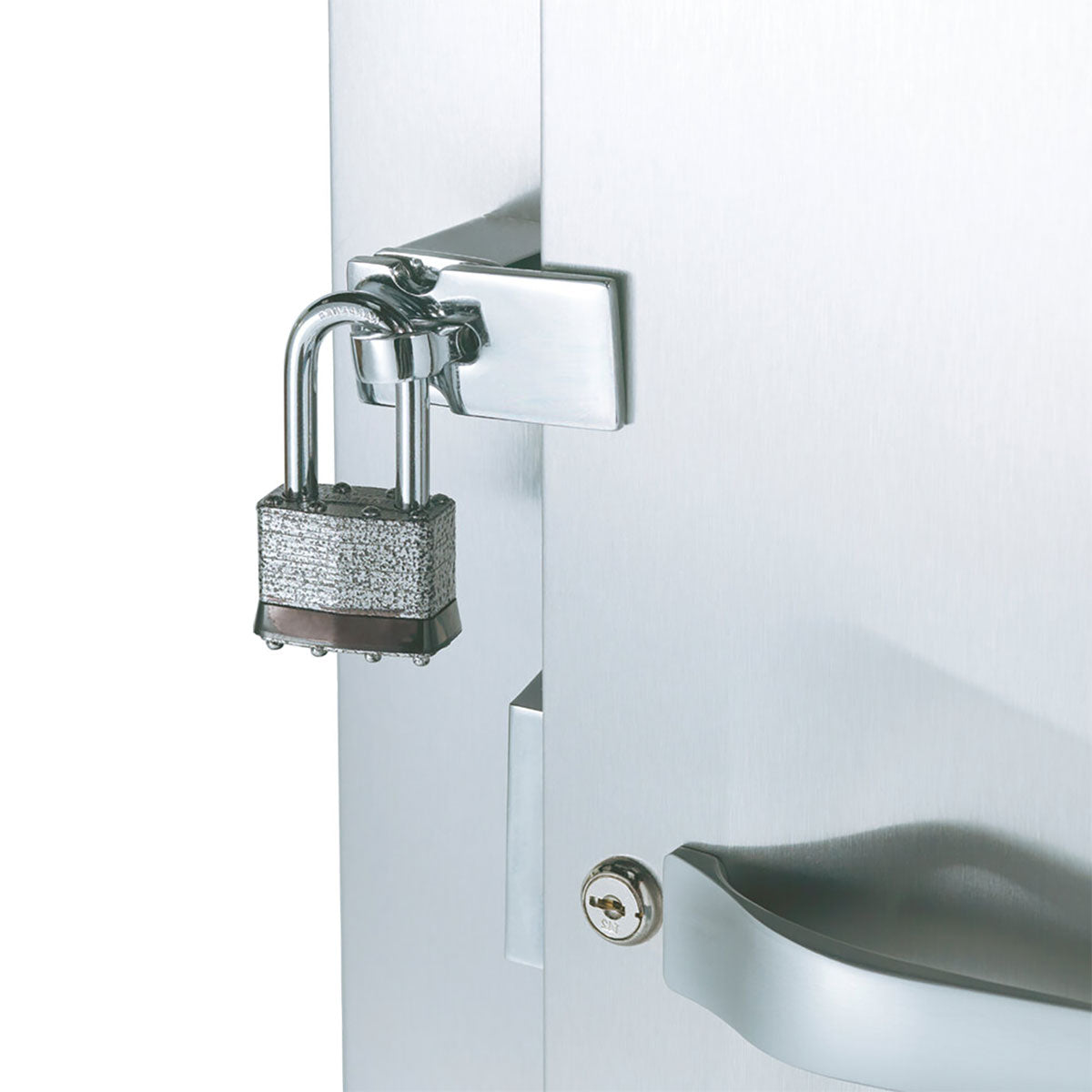

A Lexan control cover, stainless steel refrigeration screen, safety screws, and locking hasps help protect controls, components, and stored contents in secure environments.
Right-hinged full-height access
The RL132N-COR02 has one right-hinged, full-length solid door. Its self-closing design stays open at 120 degrees to support loading without holding the door manually.
Frozen-storage configuration
This one-section reach-in freezer uses a top-mounted, self-contained refrigeration system and is specified for a 0 to -5°F operating range.
Organized interior support

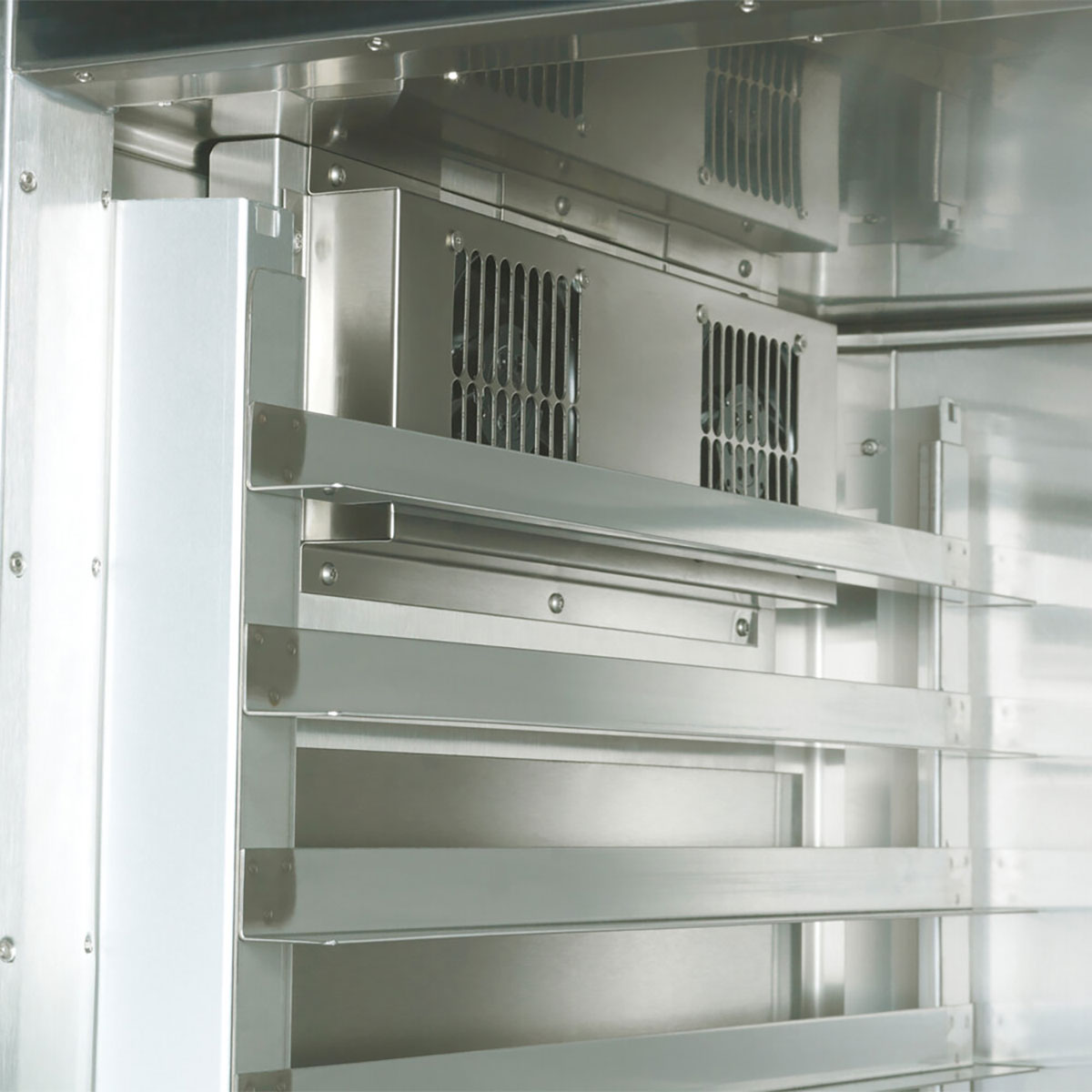

The reach-in interior has 12 pairs of universal tray slides per section, welded to a steel frame. They accommodate supported pan sizes, but pans are not stated as included.
Floor-mounting provision

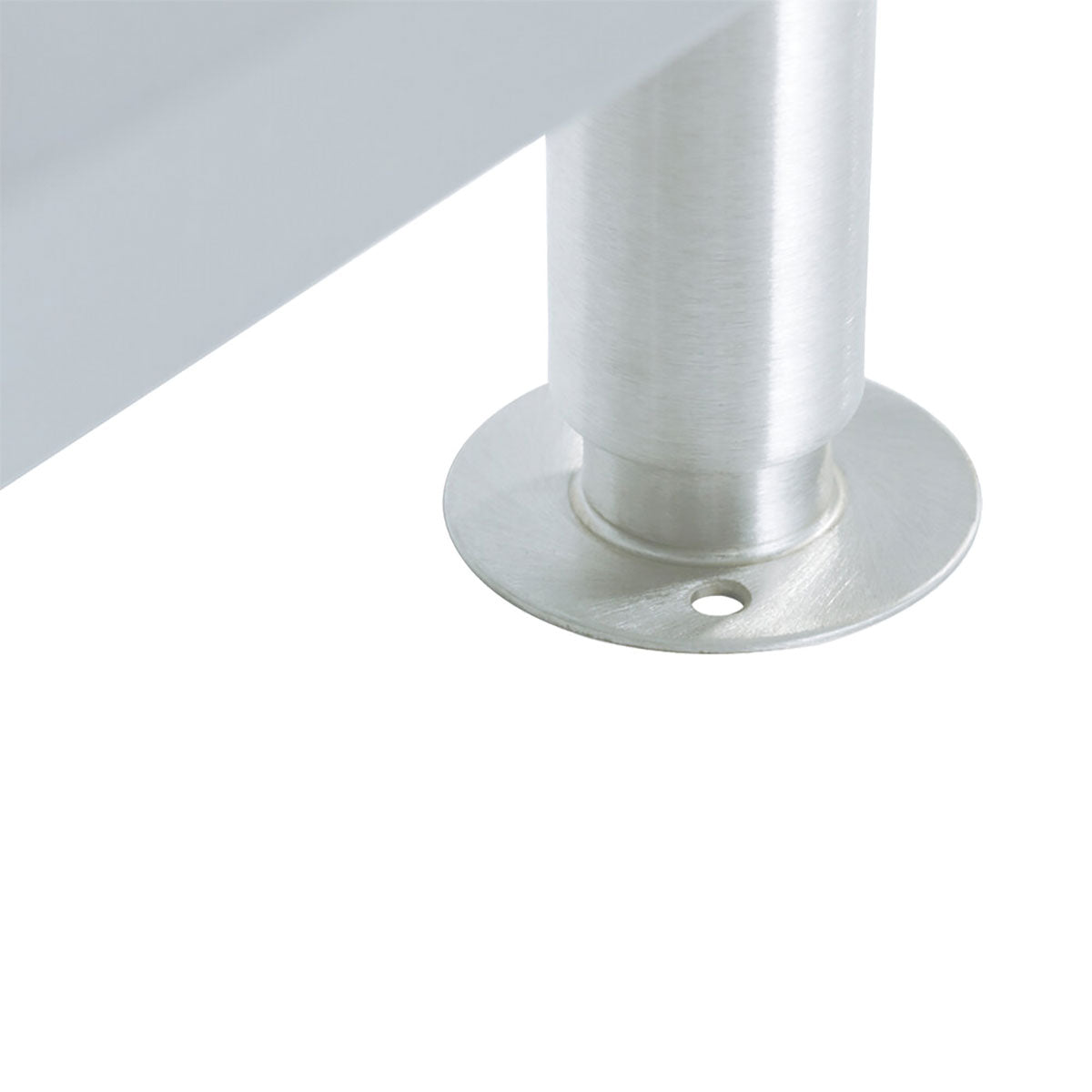

Included 6 in. stainless steel flanged legs are intended to allow secure mounting of this reach-in cabinet to the floor.
Technical Specifications
| Manufacturer model | RL132N-COR02 |
|---|---|
| Cabinet type | 1-section reach-in freezer |
| Door configuration | 1 full-height solid door, right hinged |
| Capacity | 21.9 cu. ft. |
| Overall width | 26-3/8 in. |
| Overall depth | 35 in. |
| Overall height | 83-1/4 in. |
| Refrigeration system | Top-mounted, self-contained |
| Electrical supply | 115/60/1 |
| Amperage | 9.8 A |
| Plug | NEMA 5-15P |
| Refrigerant | R-404A |
| Compressor | 1/2 HP |
| Standard operating temperature | 0 to -5°F |
| Cabinet construction | Stainless steel exterior and interior |
| Tray slides | 12 pairs per section |
| Legs | 4 adjustable 6 in. stainless steel flanged legs |
| Power cord | 9 ft. cord and plug |
| Preferred top clearance | 12 in. |
Installation and Purchasing Considerations
- Allow a footprint of 26-3/8 in. W x 35 in. D x 83-1/4 in. H, then verify the delivery path and overhead clearance before ordering.
- Provide a 115/60/1 electrical supply. The freezer draws 9.8 amps and is fitted with a NEMA 5-15P plug on a 9 ft. cord.
- Plan the installation around the right-hinged door swing. The door is self-closing and has a 120-degree stay-open position for loading.
- The refrigeration system is top-mounted and self-contained; no remote condenser connection is specified. Traulsen notes that 12 in. top clearance is preferred for performance and service access.
- Use the included flanged legs when the cabinet is being secured to the floor. Confirm the facility's mounting method and padlock requirements; padlocks are supplied by others.
Choosing This Configuration
RL132N-COR02 is the right-hinged version of the one-section, 26-3/8 in. wide reach-in freezer configuration. Confirm that a right-hand door is appropriate for the planned aisle and loading direction.
This model is a freezer with one full-height solid door. It is not the left-hinged RL132N-COR01, a two-section freezer, or a pass-thru model.
The cabinet includes tray-slide supports, but the documentation does not establish that food pans are supplied. Purchase pans separately if needed.
Frequently Asked Questions
Which way does the door hinge on the RL132N-COR02?
The single solid door is right hinged. Plan the cabinet location so the door can open into a clear loading area.
What electrical connection does this freezer require?
It requires 115/60/1 power, draws 9.8 amps, and uses a 5-15P plug. A 9 ft. cord and plug are provided.
What security-oriented features are included?
The corrections package includes a Lexan control cover, stainless steel refrigeration screen, safety screws, locking hasps, and flanged legs for secure floor mounting. Padlocks are supplied by others.
Can this freezer hold sheet pans or food pans?
It has 12 pairs of universal tray slides per section. The slides are described as accommodating one 18 x 26 in. pan, two 14 x 18 in. pans, or two 12 x 20 in. pans; pans themselves are not identified as included.
