Description

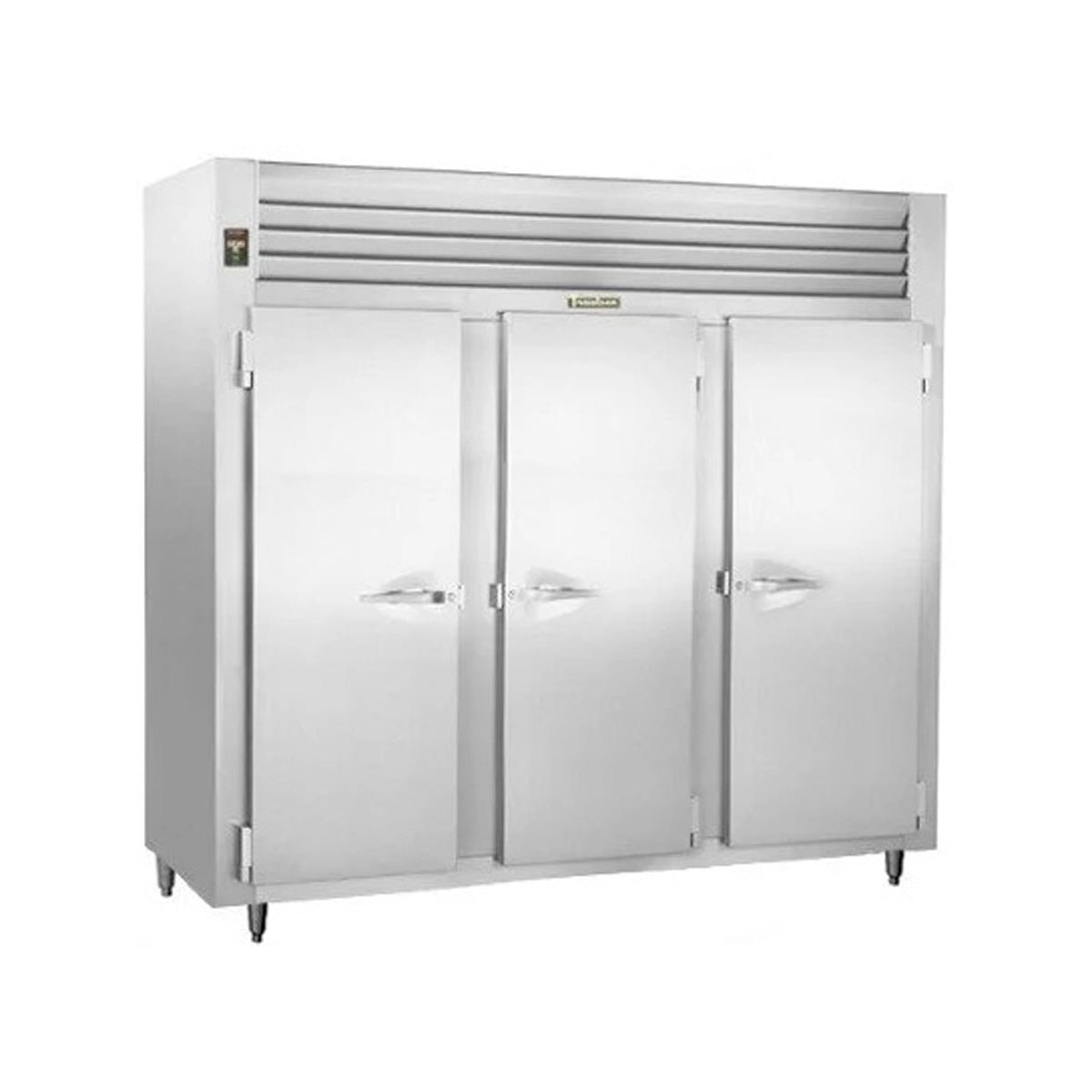

The Traulsen RLT332WUT-FHS is a three-section, self-contained reach-in freezer with 77.45 cu. ft. of storage. Its three full-height solid doors provide separate access to each section, while the top-mounted refrigeration system keeps the lower cabinet area available for product storage.
Built with stainless steel inside and out, this model includes nine adjustable coated-wire shelves—three per section—and automatically activated LED interior lights. Full-height doors self-close, stay open at 120 degrees for loading, and include locks. The standard door hinging is left/right/right.
Applications and Workflow
Use this freezer for organized bulk frozen-food storage in restaurant kitchens, institutional foodservice, commissaries, and other commercial back-of-house operations. It is a self-contained model with top-mounted refrigeration; it is not the remote-refrigeration version. Standard shelves are included, but pan slides and other interior arrangements are optional rather than standard.
Features and Practical Benefits
Three full-height storage sections
Three solid full-height doors divide the 77.45 cu. ft. cabinet into accessible sections, helping staff organize products by station, menu category, or inventory rotation.
Shelf capacity for organized storage
Nine adjustable coated-wire shelves are factory installed, with three shelves in each section. Each shelf has a recommended load limit of 225 lb.
Top-mounted self-contained refrigeration
The balanced R-448A refrigeration system is mounted at the top of the cabinet behind the louver assembly, preserving the cabinet’s lower storage space.
Door workflow features
The solid doors are self-closing, lockable, and stay open at 120 degrees. Standard hinging is left/right/right, so confirm the planned aisle and wall layout before ordering.
Service-minded cabinet details
A StayClear condenser coil, magnetic snap-in EZ-Clean door gaskets, automatic non-electric condensate evaporator, and Smart Control with LED display support routine operation and maintenance.
Technical Specifications
| Manufacturer model | RLT332WUT-FHS |
|---|---|
| Configuration | Three-section reach-in freezer with three full-height solid doors |
| Net capacity | 77.45 cu. ft. |
| Overall width | 86 1/8 in. |
| Overall depth | 35 1/8 in. |
| Overall height on included legs | 83 7/16 in. |
| Depth with door open 90 degrees | 56 11/16 in. |
| Clear door width | 20 15/16 in. |
| Clear full-door height | 57 9/16 in. |
| Standard shelves | 9 adjustable coated-wire shelves |
| Electrical service and plug | 208-230/115V, 60 Hz, single phase; NEMA L14-20P |
| Full-load amperage | 6.7 A |
| Refrigerant | R-448A |
| Refrigerant charge | 29 oz. |
| Compressor horsepower | 3/4 HP |
| Included leg height | 6 in. adjustable stainless steel legs |
| Standard door hinging | Left/right/right |
| Refrigeration system | Top-mounted, self-contained |
| Standard operating temperature | 0 to -5°F |
Installation and Purchasing Considerations
- Plan for an overall footprint of 86 1/8 in. wide by 35 1/8 in. deep and 83 7/16 in. high on the included 6 in. adjustable legs.
- Allow for a 56 11/16 in. overall depth when a door is open to 90 degrees. Each full-height door has a 20 15/16 in. clear width and a 57 9/16 in. clear opening height.
- Provide 12 in. of top clearance where possible for performance and service access.
- This unit requires 208-230/115V, 60 Hz, single-phase power and is equipped with a NEMA L14-20P plug on a 9 ft. cord. Verify the receptacle and electrical supply before delivery.
- The standard door hinging is left/right/right. Check door swing, aisle clearance, and access through the delivery path before installation.
Choosing This Configuration
This exact RLT332WUT-FHS configuration has three full-height solid doors. The half-height-door version has six doors and a different access pattern.
This is the self-contained, top-mounted refrigeration configuration. It should not be substituted for a remote model, which requires a separate remote refrigeration application.
The cabinet includes coated-wire shelves. Tray slides, additional shelves, casters, and other listed accessories are optional configurations and should not be assumed included.
Frequently Asked Questions
How many shelves are included with the RLT332WUT-FHS?
Nine adjustable coated-wire shelves are standard: three shelves per section. They are factory installed on shelf pins.
What electrical connection does this freezer use?
It uses 208-230/115V, 60 Hz, single-phase electrical service and includes a 9 ft. cord with a NEMA L14-20P plug.
How much clearance is needed when the doors are open?
The cabinet is 35 1/8 in. deep closed and 56 11/16 in. deep with a door open 90 degrees. Plan the aisle accordingly.
Is this the remote version of the three-door freezer?
No. The RLT332WUT-FHS is a self-contained model with a top-mounted refrigeration system. Remote versions are distinct configurations.
