Description

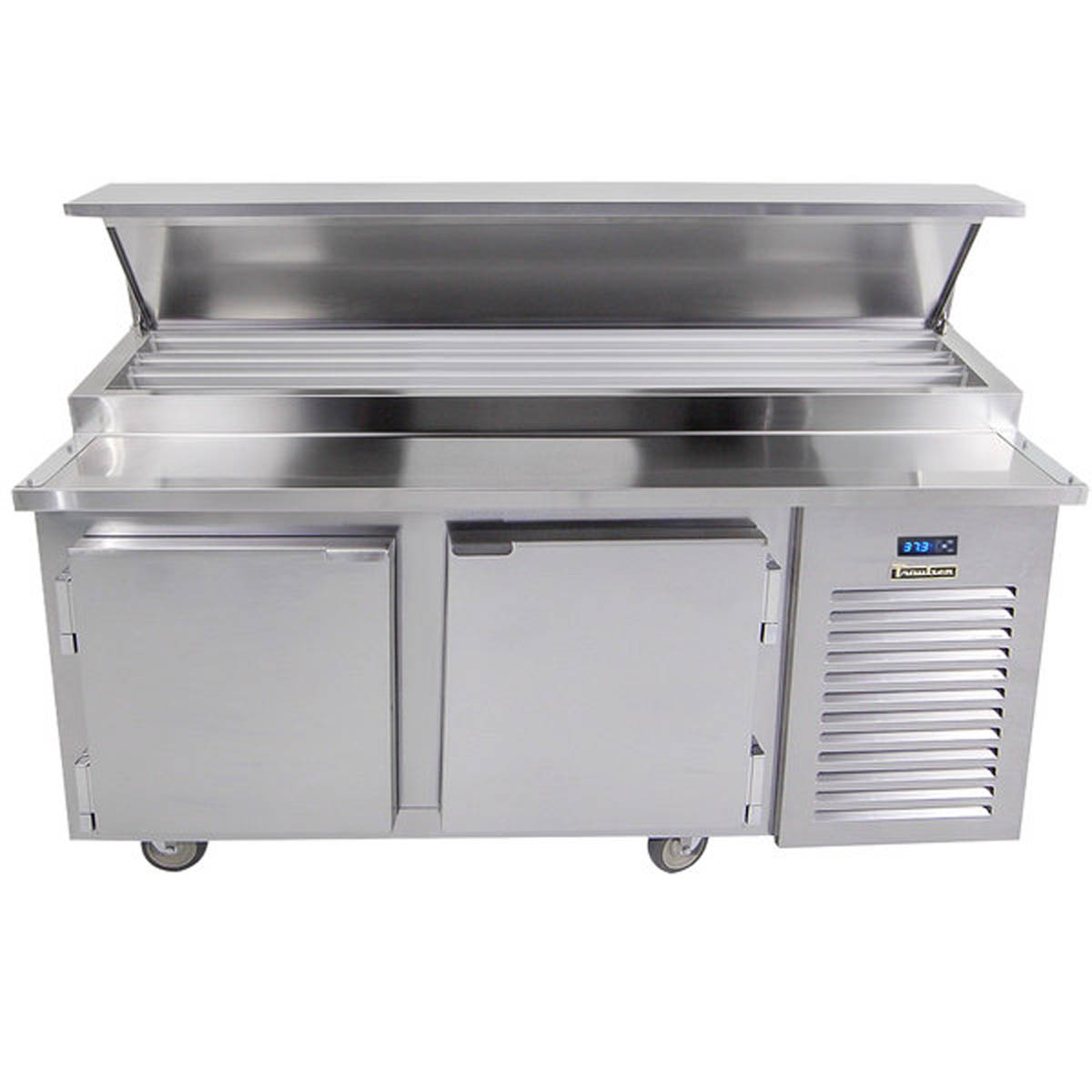

The Traulsen TB071SL3S is a 71-inch self-contained refrigerated prep table configured with a three-row glycol ingredient rail and two refrigerated cabinet doors. Its rail accommodates up to 30 1/6-size pans, making it suited to high-volume pizza topping, sandwich, and assembly workflows where a broad ingredient lineup must remain within reach.
This exact model has an 8-inch white poly cutting board, a stainless steel lift-off night cover, and four standard interior shelves. The pan rail accepts 1/3-, 1/6-, or 1/9-size pans up to 8 inches deep, but pans are supplied separately.
Applications and Workflow
Use this table for commercial pizza topping stations, deli sandwich lines, and other refrigerated ingredient-prep tasks that benefit from a 71-inch work area and 30 1/6-size pan positions. It is a three-row rail model, not the 20-pan two-row version; plan for separately purchased food pans.
Features and Practical Benefits
Three-row ingredient rail
The TB071SL3S is the 71-inch configuration designed for 30 1/6-size pans, giving operators three rows of organized ingredient access.
Glycol rail and cabinet cooling
A self-contained refrigeration system cools both the cabinet and raised ingredient rail through glycol chiller plates.
Built-in prep surface
This three-row model includes an 8-inch white poly cutting board for topping and assembly work directly in front of the rail.
Practical refrigerated storage
Two doors provide access to a 15.30 cu. ft. cabinet with four standard powder-coated shelves.
Workflow-minded door design
Self-closing doors have a 120-degree stay-open position to support loading and restocking.

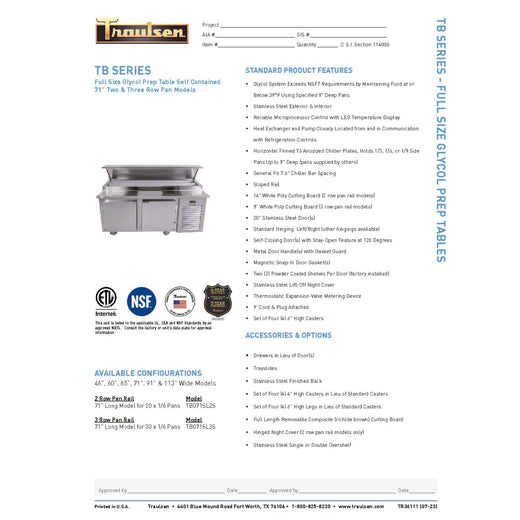

Technical Specifications
| Manufacturer model | TB071SL3S |
|---|---|
| Configuration | 71-inch, three-row glycol pan rail |
| 1/6-size pan capacity | 30 pans |
| Number of doors | 2 |
| Net capacity | 15.30 cu. ft. (433.2 L) |
| Overall width | 71 in. (180.0 cm) |
| Overall depth | 35 in. (88.9 cm) |
| Overall height | 42 in. (106.7 cm) |
| Height with lid open | 50 in. (127 cm) |
| Work surface height | 36 in. (91.4 cm) |
| Standard cutting board | 8-inch white poly |
| Standard shelves | 4 |
| Standard door hinging | Left-hand |
| Electrical service | 115/60/1 |
| Full-load amperage | 10 A |
| Attached cord length | 9 ft. |
| Refrigerant | R-450A |
| Base operating temperature | 34 to 38°F (1.1 to 3.3°C) |
| Standard casters | Four 6-inch-high casters |
Installation and Purchasing Considerations
- Allow a footprint of 71 inches wide by 35 inches deep. Overall height is 42 inches on the supplied 6-inch casters.
- The cutting board height is 36 inches. With the rail lid fully open, overall height reaches 50 inches; verify overhead clearance before positioning the table.
- This model is listed for 115/60/1 electrical service and has a factory-attached 9-foot cord. Confirm the final unit data plate and receptacle arrangement before installation.
- The standard door hinging is left-hand. Confirm door swing, service access, and the desired hinging before ordering or placing the table.
Choosing This Configuration
TB071SL3S is the 71-inch, two-door, three-row rail configuration with 30 1/6-size pan positions.
It differs from the TB071SL2S two-row configuration, which has 20 1/6-size pan positions and a deeper standard cutting board.
This unit is supplied with an 8-inch white poly cutting board and a lift-off night cover. Food pans are not included.
Drawers, tray slides, alternate bases, finished backs, overshelves, and other listed accessories are not part of the standard configuration unless specifically ordered.
Frequently Asked Questions
How many pans does the Traulsen TB071SL3S hold?
Its three-row rail is configured for 30 1/6-size pans. The rail can also accommodate 1/3-, 1/6-, or 1/9-size pans up to 8 inches deep; pans are purchased separately.
What are the dimensions of this prep table?
The TB071SL3S is 71 inches wide, 35 inches deep, and 42 inches high on standard 6-inch casters. Its work surface is 36 inches high.
What electrical service does it require?
The manufacturer lists 115/60/1 electrical service and a factory-attached 9-foot cord. Verify the data plate and receptacle arrangement for the delivered unit before installation.
How is this model different from the two-row 71-inch version?
This TB071SL3S has a three-row rail for 30 1/6-size pans and an 8-inch standard cutting board. The 71-inch two-row model is configured for 20 pans.
