Description

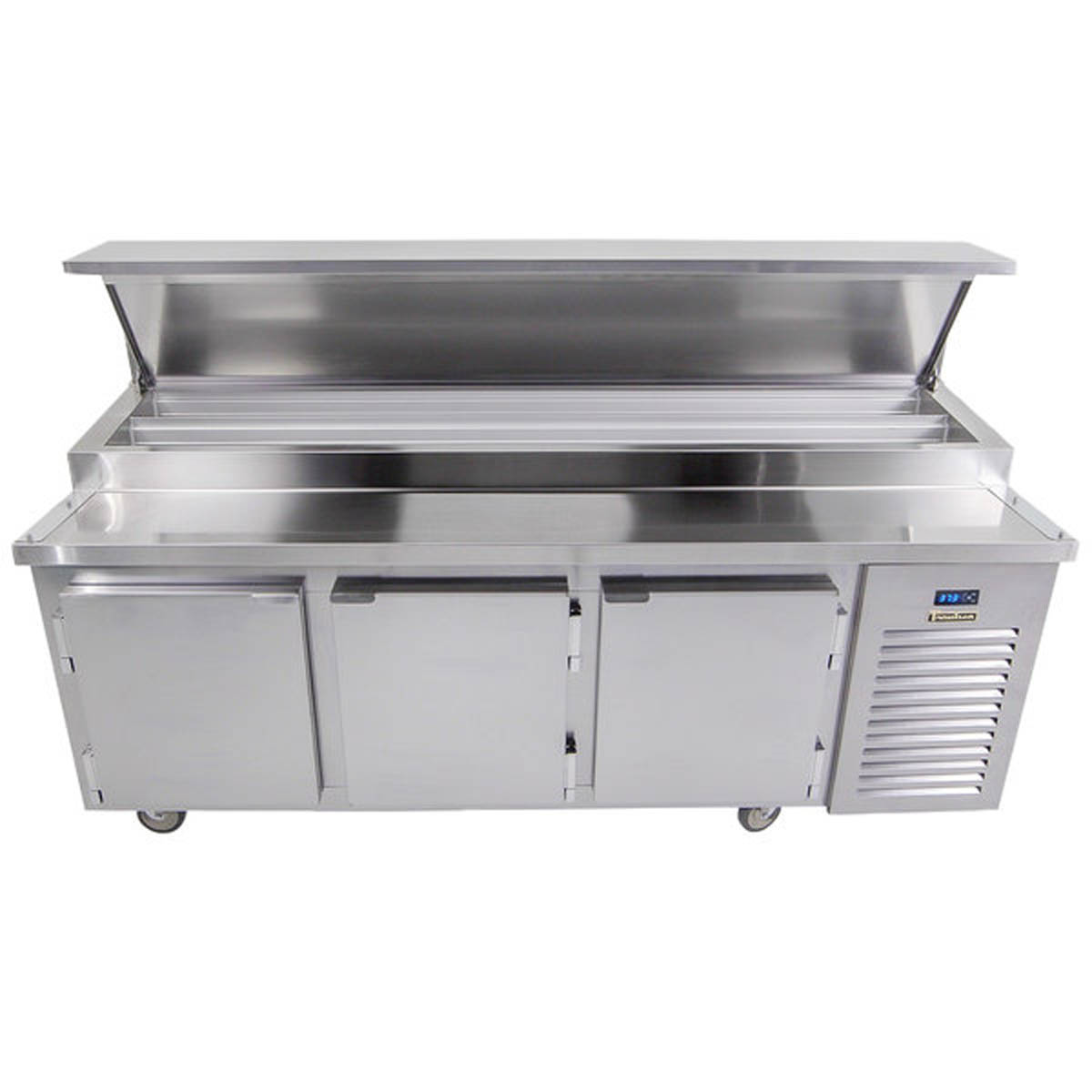

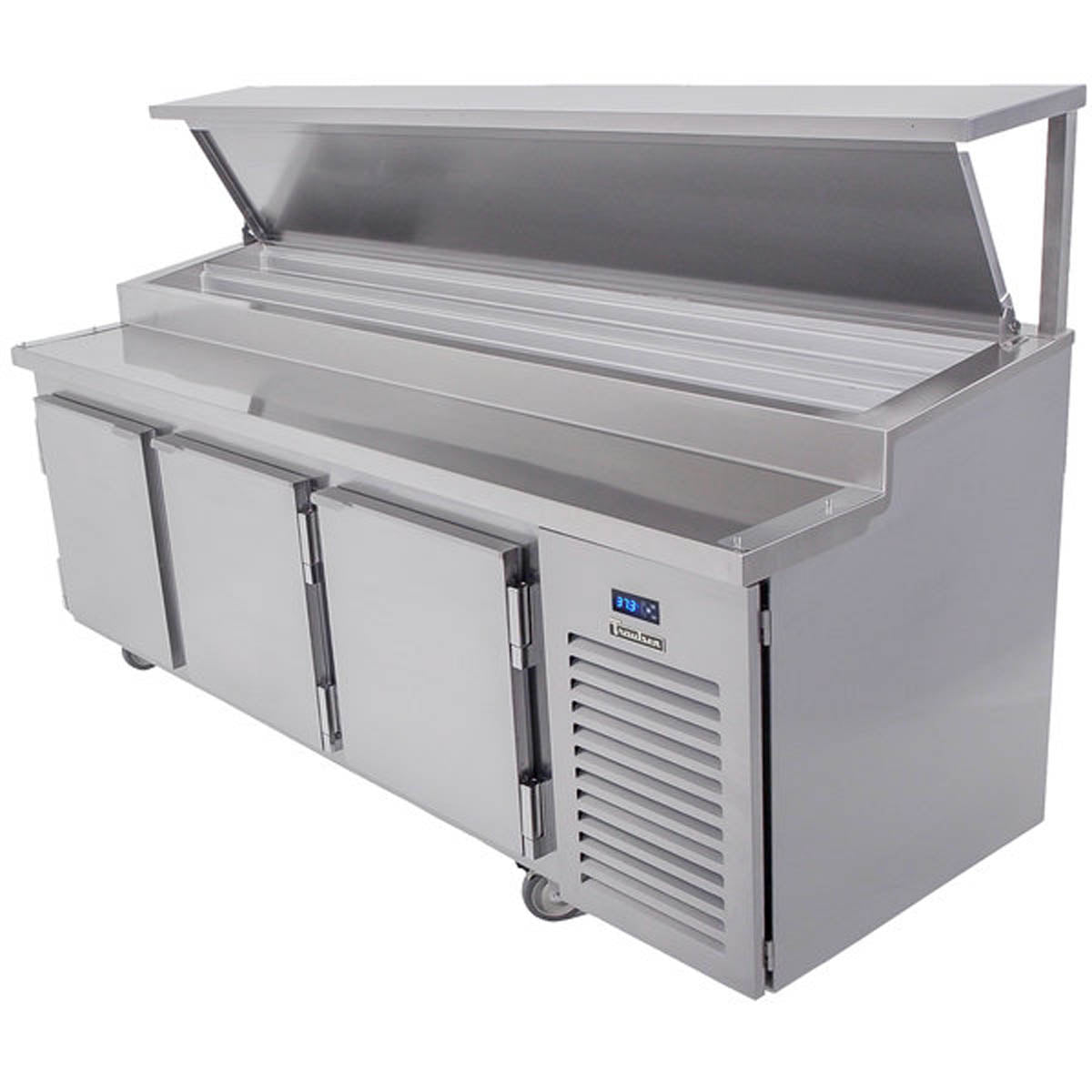

The Traulsen TB091SL3S is a 91-inch, self-contained refrigerated prep table built for pizza, salad, and sandwich assembly. Its three-row glycol pan rail accepts up to 39 sixth-size pans, while the sloped ingredient rail positions toppings toward the operator for a more direct assembly workflow.
This exact configuration has three stainless steel doors, six factory-installed shelves, and an 8-inch white poly cutting board. The glycol chiller plates cool both the cabinet and raised ingredient rail; pans are supplied separately. A stainless steel lift-off night cover is included.
Applications and Workflow
A practical fit for high-volume pizza lines, sandwich stations, salad assembly, and other operations that need a broad refrigerated ingredient rail with three undercounter storage sections. This is the three-row, 39-pan configuration—not the shallower two-row rail. Purchase compatible pans separately, and plan the electrical connection for its 115V NEMA 5-20P plug.
Features and Practical Benefits
Three-row ingredient rail
The raised rail accommodates 39 sixth-size pans up to 8 inches deep, providing a large topping layout across the 91-inch workstation.
Glycol proximity cooling
Anodized aluminum chiller plates cool around the pans, while the self-contained system also refrigerates the cabinet interior.
Three-door refrigerated storage
Three doors provide access to six standard powder-coated shelves, with two shelves installed per door.
Prep-ready work surface
An 8-inch white poly cutting board is standard on this three-row model, giving staff a dedicated assembly surface directly in front of the rail.
Serviceable daily access
Doors self-close and stay open at 120 degrees, and the standard stainless steel lift-off night cover protects the ingredient rail when not in use.
Technical Specifications
| Manufacturer model | TB091SL3S |
|---|---|
| Configuration | 91 in. three-row glycol prep table, self-contained |
| Overall width | 91 in. |
| Overall depth | 35 in. |
| Overall height | 42 in. |
| Height with lid open | 50 in. |
| Net capacity | 23.4 cu. ft. |
| Doors | 3 |
| Standard door hinging | Left/right/right |
| Clear door opening | 18.5 in. W x 21 in. H |
| Standard shelves | 6 |
| Pan capacity | 39 sixth-size pans |
| Work surface height | 36 in. |
| Electrical rating | 115V, 60Hz, single phase |
| Plug | NEMA 5-20P |
| Full-load amperage | 12 A |
| Power cord | 9 ft. cord and plug attached |
| Refrigerant | R-450A |
| Standard casters | 6 in. high, set of four |
| Cutting board | 8 in. white poly, standard for three-row rail |
Installation and Purchasing Considerations
- Allow a footprint of 91 inches wide by 35 inches deep; overall height is 42 inches on the supplied 6-inch casters.
- Provide a 115V, single-phase electrical connection with a NEMA 5-20P receptacle. The unit has a factory-supplied 9-foot cord and plug.
- Account for a 50-inch height when the lid is fully open, and allow door-swing space for the 120-degree stay-open position.
- The self-contained condensing components are accessed behind the louver panel. Keep this service area reachable after placement.
- This model’s standard door hinging is left/right/right. Verify that this door arrangement suits the planned aisle and workstation layout before ordering.
Choosing This Configuration
TB091SL3S is the 91-inch, three-door model with a three-row rail for 39 sixth-size pans.
The 8-inch white poly cutting board is the standard board for this three-row configuration; optional board extensions change overall depth.
Six shelves are standard. Pan inserts are not included and must be sourced separately.
This unit is self-contained; it is not the remote glycol refrigeration version.
Frequently Asked Questions
How many pans does the TB091SL3S hold?
The three-row rail holds 39 sixth-size pans. It is designed for 1/3-, 1/6-, or 1/9-size pans up to 8 inches deep, but pans are supplied separately.
What electrical connection does this model need?
This model is rated 115/60/1 with a 12-amp full-load rating and a factory-attached NEMA 5-20P plug on a 9-foot cord.
What is the difference between this model and the two-row 91-inch version?
The TB091SL3S has a three-row rail for 39 sixth-size pans and a standard 8-inch cutting board. The 91-inch two-row version is listed with capacity for 26 sixth-size pans.
Are interior shelves included?
Yes. The cabinet includes six standard powder-coated shelves, with two shelves per door.
