Description

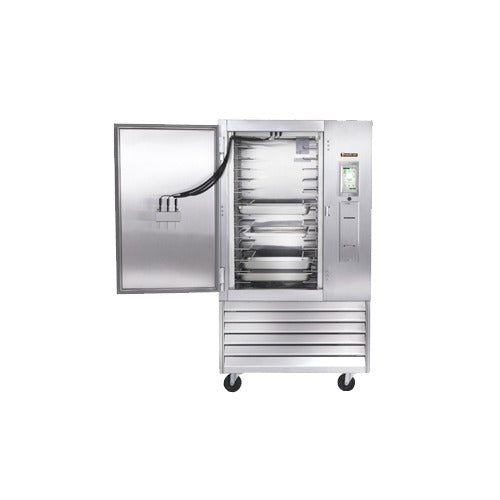

The Traulsen TBC13-50-LP is a self-contained, reach-in blast chiller with a 200 lb product capacity, thirteen universal tray slides, and a label printer configuration. Its right-hinged solid door, 6 in. casters, and combi-oven-compatible configuration make it suited to high-volume cook-chill workflows where pans need to move between production equipment and a dedicated rapid-chilling cabinet.
Operators can start cycles through the touch-screen controller in automatic or manual operation. Three removable food probes monitor product temperature, while the unit records cycle data for 90 days and includes an on-board cycle-data printer. The -LP suffix identifies the label-printer version; it should not be confused with the standard cycle-data printer.
Applications and Workflow
Suitable for commercial kitchens, commissaries, bakeries, and institutional production areas that need to rapidly chill products held in 18 in. x 26 in. sheet pans or 12 in. x 20 in. steam-table pans. This is a self-contained blast chiller, not a remote-condensing model; provide the required electrical connection and condensate drainage arrangement during installation.
Features and Practical Benefits
Label-printer configuration
The -LP model designation identifies the label-printer configuration, supporting labeled product handling alongside documented chill-cycle records.
High pan capacity in a single cabinet
Thirteen factory-installed universal tray slides accommodate up to thirteen 18 in. x 26 in. pans or twenty-six 12 in. x 20 in. pans.
Flexible cycle control
Touch-screen controls offer automatic and manual operation, with adjustable target temperatures from 40°F to -5°F or time-based cycles.
Probe-based cycle monitoring
Three removable food probes monitor cycle progress, and the controller retains cycle data for 90 days with an on-board cycle-data printer.
Service-conscious self-contained design
The dual refrigeration system has a front-facing condenser coil for access during routine cleaning and maintenance.
Technical Specifications
| Manufacturer model | TBC13-50-LP |
|---|---|
| Equipment type | Reach-in, self-contained blast chiller |
| Overall width | 41 in. |
| Overall depth | 35 in. |
| Overall height | 74 in. |
| Net capacity | 18.3 cu. ft. |
| Product capacity | 200 lb. |
| Tray slides | 13 universal type, factory installed |
| Pan capacity | 13 x 18 in. x 26 in. pans; 26 x 12 in. x 20 in. pans |
| Electrical service | 208-230/115V, 60 Hz, single phase |
| Plug | NEMA L14-20P, attached |
| Required circuit | 20 A |
| Refrigerant | R-448A |
| Hinge, supports and configuration | Right hinge, 6 in. casters, combi oven compatible |
| Label printer configuration | Included by -LP model designation |
| Food probes | Three removable probes |
| Cycle-data memory | 90 days |
| Adjustable target temperature range | 40°F to -5°F |
Installation and Purchasing Considerations
- Plan for an overall footprint of 41 in. W x 35 in. D x 74 in. H. The listed height is based on the standard 6 in. legs or casters.
- Connect to 208-230/115V, single-phase, 60 Hz power using the factory-attached NEMA L14-20P plug. A 20 A circuit is required.
- This configuration has a right-hinged door and 6 in. casters. Confirm aisle space for door operation and rolling the cabinet into its final location.
- The self-contained system requires a floor drain or an optional condensate evaporator for condensate removal. The evaporator is field installed when selected.
- Keep the front-facing condenser accessible for cleaning. Verify the final site layout and clearances before installation.
Choosing This Configuration
This exact TBC13-50-LP configuration is right hinged, supplied on 6 in. casters, and identified as combi oven compatible in the TBC13 configuration table.
The -LP suffix denotes the label-printer option. It is distinct from the standard on-board printer used for cycle-data records.
Pans are capacity references; the supplied information does not establish that sheet pans or steam-table pans are included.
A combi oven compatibility kit is listed as an accessory. The configuration is identified as combi oven compatible, but the supplied documentation does not establish that a separate kit is included.
Frequently Asked Questions
What pan sizes can the TBC13-50-LP hold?
It has thirteen universal tray slides and is rated for up to thirteen 18 in. x 26 in. pans or twenty-six 12 in. x 20 in. pans.
What electrical service does this blast chiller require?
It requires 208-230/115V, single-phase, 60 Hz power, uses a factory-attached NEMA L14-20P plug, and requires a 20 A circuit.
Does this model include a label printer?
Yes. The -LP suffix identifies the label-printer configuration. The cabinet also has a separate standard on-board printer for cycle-data records.
How is condensate handled?
Installation requires a floor drain or an optional automatic electric condensate evaporator. The optional evaporator is field installed.
