Description

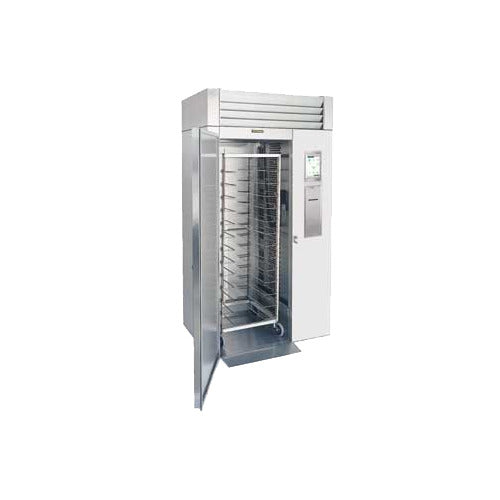

The Traulsen TBC1H-34 is a roll-in blast chiller configured with a left-hinged door and combi-oven compatibility. It accepts one roll-in rack, uses a touch-screen control for automatic or manual cycles, and provides three removable food probes to monitor product temperatures during chilling.
This model has a self-contained maintenance refrigeration system, but blast-chill operation requires connection to a separately provided, properly sized remote R-407A condensing unit. The cabinet includes an on-board cycle-data printer and USB-accessible 90-day data memory. A roll-in rack is not supplied as standard.
Applications and Workflow
Suitable for commercial kitchens that need to move a loaded roll-in rack into a blast chiller after batch cooking, including operations using a compatible combi-oven rack arrangement. Plan the installation as a remote-condensing-system project; this cabinet cannot perform blast chilling without the required remote condensing unit.
Features and Practical Benefits
One-rack roll-in workflow
The cabinet accommodates one roll-in rack, helping reduce handling when chilling large prepared batches.
Combi-oven-compatible configuration
TBC1H-34 is the left-hinged roll-in configuration identified as combi oven compatible. The published compatibility kit accommodates racks up to 31-1/2 inches wide, 37-7/16 inches deep, and 72 inches high.
Flexible cycle control
The touch-screen controller supports automatic or manual operation, with adjustable target temperatures or cycle times and four chill settings.
Documented cycle records
Three removable probes monitor cycles, while the integrated printer and USB port support retrieval of cycle information retained in memory for 90 days.
Remote blast-chill design
The unit is designed to connect to a remote R-407A condensing unit for blast-chill operation, allowing the condensing equipment to be planned separately from the cabinet location.
Technical Specifications
| Manufacturer model | TBC1H-34 |
|---|---|
| Cabinet type | Roll-in blast chiller |
| Door hinging | Left |
| Configuration feature | Combi oven compatible |
| Rack capacity | 1 roll-in rack |
| Standard maximum rack size | 27 in. W x 29 in. D x 72 in. H |
| Product capacity | 300 lb |
| Net capacity | 35.0 cu. ft. |
| Overall width | 48-1/2 in. |
| Overall depth | 37-5/8 in. |
| Overall height | 90-3/8 in. |
| Combi-kit cabinet depth | 44-1/2 in. |
| Electrical service | 115V, 60 Hz, single phase |
| Full-load amperage | 16.0 A |
| Required circuit | 20 A |
| Maintenance refrigerant | R-448A |
| Recommended remote chilling capacity | 18,700 BTU/hr |
| Remote refrigerant requirement | R-407A |
| Remote line connections | 7/8 in. suction; 1/2 in. liquid |
| Food probes | 3 removable probes |
| Cycle data memory | 90 days |
Installation and Purchasing Considerations
- Allow an overall cabinet footprint of 48-1/2 inches wide by 37-5/8 inches deep by 90-3/8 inches high for the base TBC1H cabinet. The published combi-oven compatibility kit increases cabinet depth to 44-1/2 inches.
- Provide a 115V, single-phase, 60 Hz electrical supply with a 20 A required circuit. The published electrical listing shows no plug, so confirm final field wiring requirements before installation.
- Provide a properly sized remote R-407A condensing unit for blast-chill operation. Published guidance specifies 18,700 recommended BTU/hr at the evaporator, with 7/8-inch suction and 1/2-inch liquid line connections.
- Plan condensate removal with a floor drain or an optional condensate evaporator. The evaporator is identified as a field-installed option.
- Confirm the rack or trolley dimensions before purchase. The standard roll-in arrangement accommodates one rack up to 27 inches wide by 29 inches deep by 72 inches high; racks are optional. The combi compatibility arrangement has different published maximum rack dimensions.
Choosing This Configuration
This exact TBC1H-34 configuration is left hinged, roll-in, and combi-oven compatible. Do not substitute it for a right-hinged or roll-thru cabinet where door swing and workflow differ.
A label printer is an option identified by the -LP suffix; this TBC1H-34 model is not identified as the label-printer version.
The remote condensing unit and roll-in rack are not standard supplied components. Include them separately in project planning as applicable.
Frequently Asked Questions
Does the TBC1H-34 include the remote condensing unit?
No. Blast-chill operation requires connection to an adequately sized remote condensing unit. The manufacturer identifies air-cooled and water-cooled R-407A remote condensing units as options.
What rack will fit in the standard roll-in cabinet?
The standard roll-in arrangement accommodates one rack with maximum dimensions of 27 inches wide by 29 inches deep by 72 inches high. The rack is not supplied standard.
What is different about the combi-oven-compatible arrangement?
The published combi-oven compatibility kit accommodates racks up to 31-1/2 inches wide by 37-7/16 inches deep by 72 inches high and increases cabinet depth to 44-1/2 inches. Confirm the final rack and installed depth for the project.
What electrical service does it require?
Published electrical data lists 115/60/1 power, 16.0 full-load amps, and a required 20 A circuit. The listing shows no plug.
