Description

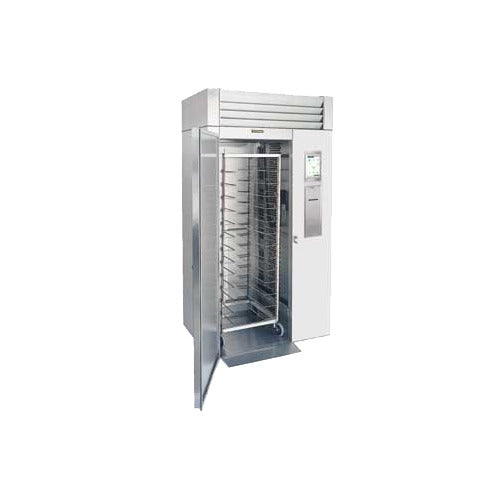

Traulsen TBC1H-34-LP Remote Blast Chiller
The Traulsen TBC1H-34-LP is a remote blast chiller. Plan controlled cooling of prepared foods around the model’s batch capacity and rack or pan configuration. Select the cabinet and refrigeration arrangement for the production volume and installation site. This configuration provides a 48.5 in. overall width.
This is a remote-refrigeration configuration. A separate, correctly sized condensing system and field installation are required; do not use the self-contained family specifications as a substitute for the remote installation requirements.
Batch capacity is a manufacturer rating for the specified loading and cycle conditions. Actual cooling performance depends on food type, starting temperature, container depth and loading. Follow the operating instructions when selecting cycles and positioning probes.
Model configuration and practical use
- Width: 48.5 in.
- Depth: 37.63 in.
- Height: 90.38 in.
- Hinge Location: left
- Chill Capacity (lbs): 300 lb
- Refrigeration: remote blast-chill refrigeration; see manufacturer requirements for onboard maintenance system
- Printer Configuration: label printer configuration
Technical specifications
| Manufacturer | Traulsen |
|---|---|
| Model / ordering code | TBC1H-34-LP |
| Width | 48.5 in. |
| Depth | 37.63 in. |
| Height | 90.38 in. |
| Installation Type | free standing |
| Type | Blast Chiller |
| Style | Roll-In |
| Refrigeration | remote blast-chill refrigeration; see manufacturer requirements for onboard maintenance system |
| Rack/Trolley Capacity | 1 |
| Special Features | combi oven compatible, with label printer |
| Hinge Location | left |
| Chill Capacity (lbs) | 300 lb |
| Printer Configuration | label printer configuration |
Installation and purchasing considerations
Check the delivery route and closed-cabinet footprint, then allow for doors or drawers to open and for staff to load food safely. Confirm the current model drawing, electrical data plate and ventilation or remote-system requirements before connection.
Frequently asked questions
How should I choose this configuration?
Choose the TBC1H-34-LP by matching its footprint and access layout to your station, then check the listed capacity and utility requirements. Confirm optional finishes, hinges, pans, tray slides or support packages on the order.
Is a separate refrigeration system required?
Yes. This catalog configuration uses remote refrigeration. Confirm the condensing-system selection and field installation requirements with the applicable manufacturer instructions.
