Description

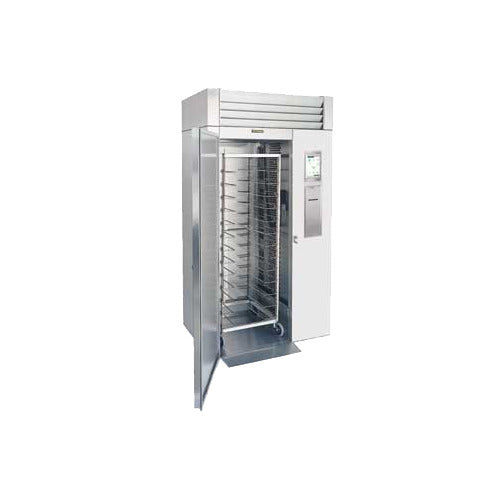

The Traulsen TBC1H-COR01 is a left-hinged roll-in blast chiller for moving larger prepared batches into a controlled chilling workflow on one mobile rack. This configuration is rated for up to 300 lb of product and accommodates one roll-in rack measuring up to 27 in. W x 29 in. D x 72 in. H. The rack is not supplied as standard equipment.
Touchscreen controls provide automatic or manual cycles using a product-temperature target or a timed cycle. Three removable food probes, an onboard cycle-data printer, USB access, and 90-day cycle-data memory support documented batch processing. A separately provided remote condensing unit is required for blast chilling; the cabinet also has a self-contained maintenance refrigeration system.
Applications and Workflow
Well suited to commissaries, catering kitchens, bakeries, healthcare foodservice, and other commercial production kitchens that transfer cooked batches on a roll-in rack. It is intended for a remote-refrigeration installation, not for locations needing a self-contained blast chiller or a cabinet supplied with its own rack and condensing unit.
Features and Practical Benefits
One-rack roll-in workflow
The cabinet accepts one roll-in rack, helping staff move a batch from production to the chiller without transferring every pan into fixed cabinet slides.
300 lb product capacity
A published 300 lb product capacity supports larger batch processing on a single rack.
Automatic or manual cycle control
The touchscreen supports automatic and manual operation, with adjustable product target temperatures or cycle times for different production routines.
Probe-based monitoring
Three removable food probes are provided to monitor product during probe-based cycles.
Built-in cycle documentation tools
An onboard cycle-data printer, USB port, and 90-day cycle-data memory provide ways to retain completed-cycle information.
Technical Specifications
| Brand | Traulsen |
|---|---|
| Model | TBC1H-COR01 |
| Configuration | Roll-in blast chiller |
| Hinge location | Left |
| Refrigeration configuration | Remote; refrigeration not included |
| Product capacity | 300 lb |
| Rack capacity | 1 roll-in rack |
| Maximum rack dimensions | 27 in. W x 29 in. D x 72 in. H |
| Overall dimensions | 48 1/2 in. W x 37 5/8 in. D x 90 3/8 in. H |
| Clear door opening | 27 1/4 in. W x 74 1/8 in. H |
| Electrical service | 115/60/1, no plug |
| Full-load amps | 16.0 A |
| Required circuit | 20 A |
| Recommended remote blast-chill load | 18,700 BTU/hr at evaporator |
| Remote refrigerant line connections | 7/8 in. suction; 1/2 in. liquid |
| Control operation | Automatic or manual touchscreen operation |
| Food probes | 3 removable probes |
| Cycle-data memory | 90 days |
| Construction | Stainless-steel exterior and interior |
Installation and Purchasing Considerations
- Allow for the cabinet's 48 1/2 in. W x 37 5/8 in. D x 90 3/8 in. H overall dimensions, plus a clear approach for loading the roll-in rack.
- This cabinet is left hinged. Confirm the factory door-swing drawing, aisle space, and the loaded rack travel path before setting the final location.
- Published TBC1H electrical data lists 115/60/1 power, 16.0 full-load amps, a required 20 A circuit, and no plug. Verify the unit data plate and local connection requirements before installation.
- Provide a suitably sized remote condensing unit for blast-chill operation; refrigeration equipment is not included with this cabinet. Published TBC1H guidance lists a recommended 18,700 BTU/hr load at the evaporator, with 7/8 in. suction and 1/2 in. liquid connections.
- Plan a condensate path to a floor drain, or evaluate the separately listed automatic electric condensate evaporator option. Coordinate piping, remote condensing equipment, and condensate routing before ordering.
- Confirm the incoming roll-in rack does not exceed 27 in. W x 29 in. D x 72 in. H, with wheels inboard of the frame. The rack is a separate accessory.
Choosing This Configuration
TBC1H-COR01 is the left-hinged, roll-in remote configuration. It is not a roll-thru cabinet for pass-through loading.
The remote condensing unit is separately supplied and installed; it is not included with this blast chiller.
A roll-in rack is not standard equipment. Confirm the rack dimensions and loading path as part of the equipment layout.
The cycle-data printer is listed as a standard feature. A label printer is separately listed as an option.
Frequently Asked Questions
Does the TBC1H-COR01 include a remote condensing unit?
No. This model requires connection to an adequately sized remote condensing unit for blast-chill operation, and the refrigeration equipment is not included.
What rack fits the TBC1H-COR01?
It accommodates one roll-in rack up to 27 in. W x 29 in. D x 72 in. H, with wheels inboard of the frame. The rack is not supplied as standard equipment.
What electrical service is listed for this unit?
Published TBC1H data lists 115/60/1 electrical service, 16.0 full-load amps, a required 20 A circuit, and no plug. Confirm the data plate before connection.
How are cycles monitored and documented?
The unit provides automatic or manual touchscreen operation, three removable food probes, an onboard cycle-data printer, USB access, and 90-day cycle-data memory.
