Description

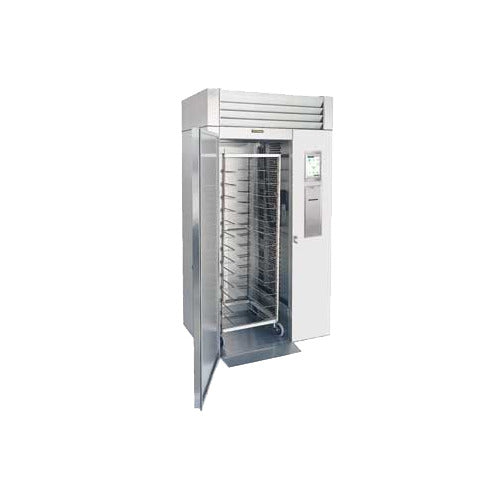

The Traulsen TBC1HR-1 is a roll-thru blast chiller with a self-contained maintenance refrigeration system and a remote condensing-unit requirement for blast-chill operation. It accommodates one roll-in rack and provides 300 lb of estimated product capacity for operations that move prepared food through a rack-based workflow.
A touch-screen controller supports automatic or manual cycles, adjustable target temperatures or cycle times, four chill settings, three removable food probes, an onboard cycle-data printer, USB access, and 90-day cycle-data memory. This model is the roll-thru TBC1HR-1 configuration; its rack is not supplied as standard equipment.
Applications and Workflow
Suitable for commissaries, production kitchens, catering kitchens, and other commercial operations that load product on a single roll-in rack and need a dedicated blast-chill station. Plan for a separately provided, adequately sized remote R-407A condensing unit for blast chilling; this cabinet is not a complete remote refrigeration system by itself.
Features and Practical Benefits
Rack-based roll-thru workflow
The cabinet accommodates one roll-in rack up to 27 in. wide x 29 in. deep x 72 in. high, helping operators transfer loaded product in and out without unloading individual pans.
Flexible cycle control
Automatic and manual operation allow cycles to be run by target temperature or time. Four available settings—Blast Chill, Speed, Energy Saving, and Delicate—support different product loads and workflows.
Cycle documentation tools
Three removable food probes monitor the cycle, while the onboard printer, USB port, and 90-day memory support retrieval of recorded cycle data.
Service-conscious cabinet construction
The stainless steel interior and exterior, EZ-Clean door gasket, and front-facing maintenance-system condenser coil support routine cleaning and service access.
Technical Specifications
| Manufacturer model | TBC1HR-1 |
|---|---|
| Configuration | Roll-thru blast chiller |
| Net capacity | 35.0 cu. ft. (991 L) |
| Overall width | 48 1/2 in. |
| Overall roll-thru depth | 41 1/4 in. |
| Overall height | 90 3/8 in. |
| Door-open depth at 90° | 96 1/4 in. |
| Clear door opening | 27 3/4 in. W x 74 1/8 in. H |
| Rack capacity | 1 roll-in rack |
| Estimated pan capacity | 13 pans, 18 in. x 26 in., or 26 pans, 12 in. x 20 in. |
| Product capacity | 300 lb (136.1 kg) |
| Electrical supply | 115/60/1; no plug |
| Full-load amps | 16.0 A |
| Required circuit | 20 A |
| Remote blast-chill requirement | Remote R-407A condensing unit required |
| Recommended blast-chill load | 18,700 BTU/hr |
| Remote line connections | 7/8 in. suction and 1/2 in. liquid |
| Food probes | 3 removable probes |
| Cycle-data memory | 90 days |
Installation and Purchasing Considerations
- Allow an overall footprint of 48 1/2 in. W x 41 1/4 in. D x 90 3/8 in. H for the roll-thru model. Verify the travel path and final placement before delivery.
- The listed electrical supply for the maintenance system is 115/60/1 with no plug supplied. Provide a 20 A circuit and three feed wires with ground.
- Provide a remote R-407A condensing unit sized for the stated blast-chill requirement. The specification lists a 7/8 in. suction-line connection and 1/2 in. liquid-line connection; coordinate final refrigeration installation with a qualified installer.
- Plan condensate removal with a floor drain or the separately available automatic electric condensate evaporator. The evaporator is field installed.
- A roll-in rack is not standard. Confirm that the rack to be used stays within the stated 27 in. W x 29 in. D x 72 in. H maximum dimensions.
Choosing This Configuration
This is the TBC1HR-1 roll-thru configuration, not a roll-in cabinet.
The -1 configuration is identified as FHL/RHL roll-thru in the manufacturer configuration table. Confirm the required door orientation with the order documentation and site layout.
The included onboard cycle-data printer is different from the optional label printer, which adds “-LP” to the device number.
Do not assume a rack, remote condensing unit, or automatic condensate evaporator is included; the manufacturer identifies these as separately available or site-provided items.
Frequently Asked Questions
Does the TBC1HR-1 include a roll-in rack?
No. The cabinet accommodates one rack up to 27 in. W x 29 in. D x 72 in. H, but the manufacturer states that racks are not supplied as standard.
Is a remote condensing unit required?
Yes. Blast-chill operation requires a separately provided, adequately sized remote R-407A condensing unit. The listed recommended blast-chill load is 18,700 BTU/hr at the evaporator.
What electrical service does the cabinet need?
The maintenance system is listed for 115/60/1 service, with no plug supplied. It requires a 20 A circuit and three feed wires with ground.
How much product can it chill?
The listed estimated product capacity is 300 lb. Rack capacities are identified as estimates and can vary with the rack and product arrangement.
