Description

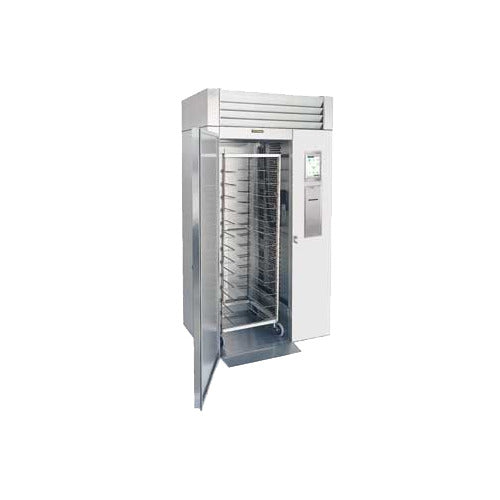

The Traulsen TBC1HR-COR01 is a roll-thru blast chiller designed to chill product loaded on one compatible roll-in rack. Its touchscreen supports automatic or manual operation, with four chill settings and three removable food probes for tracking product-temperature cycles. An on-board printer and 90-day cycle-data memory support documented batch workflows.
This is a remote-condensing configuration: the cabinet’s maintenance refrigeration system is not the complete blast-chill refrigeration package. Plan for an adequately sized remote R-407A condensing unit and qualified refrigeration installation. The cabinet accommodates one rack, but the rack is an optional accessory rather than standard equipment.
Applications and Workflow
Suitable for commissaries, production kitchens, bakeries, healthcare foodservice, and other operations that need to move batches through a blast-chill workflow on a roll-in rack. This model requires a separately provided remote condensing unit for blast-chill operation; it is not a plug-in, fully self-contained blast chiller. Confirm rack dimensions and refrigeration scope before purchase.
Features and Practical Benefits
Roll-thru rack workflow
The cabinet is configured for one roll-in rack, allowing a loaded rack to be moved into the chiller instead of transferring pans individually.
Flexible cycle control
Automatic and manual touchscreen operation lets staff run preset-style cycles or adjust target temperatures and cycle times for the product being chilled.
Four chill settings
Blast Chill, Speed, Energy Saving, and Delicate settings provide distinct operating selections for varying production workflows.
Cycle documentation tools
Three removable probes monitor product temperature, while the on-board printer and 90-day data memory support cycle recordkeeping.
Service-oriented cabinet design
Stainless steel interior and exterior construction and long-life door gaskets are intended for commercial production environments.
Technical Specifications
| Manufacturer model | TBC1HR-COR01 |
|---|---|
| Equipment type | Roll-thru blast chiller |
| Rack capacity | 1 roll-in rack |
| Maximum rack dimensions | 27 in. W x 29 in. D x 72 in. H |
| Product capacity | 300 lb |
| Pan capacity | 26 pans, 12 in. x 20 in. |
| Overall width | 48 1/2 in. |
| Overall depth, roll-thru model | 41 1/4 in. |
| Overall height | 90 3/8 in. |
| Clear door opening | 27 1/4 in. W x 74 1/8 in. H |
| Electrical service | 115/60/1 |
| Full-load amps | 16.0 A |
| Required circuit | 20 A |
| Remote condensing requirement | Adequately sized remote condensing unit required for blast-chill operation |
| Recommended blast-chill capacity | 18,700 BTU/hr |
| Remote refrigerant | R-407A |
| Suction-line connection | 7/8 in. |
| Liquid-line connection | 1/2 in. |
| Control modes | Automatic or manual |
| Chill settings | Blast Chill, Speed, Energy Saving, and Delicate |
| Food probes | 3 removable probes |
| Cycle-data memory | 90 days |
Installation and Purchasing Considerations
- Allow a footprint of 48 1/2 in. W x 41 1/4 in. D x 90 3/8 in. H for the roll-thru cabinet, then verify aisle and door-swing clearance at the installed location.
- Provide 115/60/1 electrical service with a 20 A required circuit for the maintenance refrigeration system; the specification lists no plug.
- This model requires connection to an adequately sized remote condensing unit for blast-chill operation. The manufacturer specifies R-407A for the remote condensing provision.
- Coordinate refrigerant piping with the refrigeration installer: the listed suction-line connection is 7/8 in. and liquid-line connection is 1/2 in.
- Provide a floor drain or select the optional condensate evaporator for condensate removal.
- Confirm the rack separately. The cabinet accepts one roll-in rack up to 27 in. W x 29 in. D x 72 in. H, with wheels inboard of the frame.
Choosing This Configuration
TBC1HR-COR01 is the roll-thru version of the TBC-series cabinet, rather than a roll-in-only configuration.
The cabinet accommodates one rack; a roll-in rack is not supplied as standard equipment.
A label-printer-equipped version is identified separately by an “-LP” suffix. This model includes the on-board cycle data printer described in the standard features, but no separate label printer is specified.
Do not confuse the maintenance refrigeration system with the remote blast-chill condensing equipment required for operation.
Frequently Asked Questions
Does the TBC1HR-COR01 include a remote condensing unit?
No. Blast-chill operation requires connection to an adequately sized remote condensing unit. The manufacturer identifies air-cooled and water-cooled remote condensing units as options.
Is a roll-in rack included with this blast chiller?
No rack is supplied as standard. This cabinet accommodates one optional roll-in rack with maximum dimensions of 27 in. wide, 29 in. deep, and 72 in. high.
What electrical service does the cabinet require?
The maintenance refrigeration system is specified for 115/60/1 power, 16.0 full-load amps, and a 20 A required circuit. No plug is listed.
How much product can it handle?
The TBC1HR family specification lists a 300 lb product capacity and capacity for up to 26 full-size 12 in. x 20 in. pans. Actual loading depends on the separately selected rack and product arrangement.
