Description

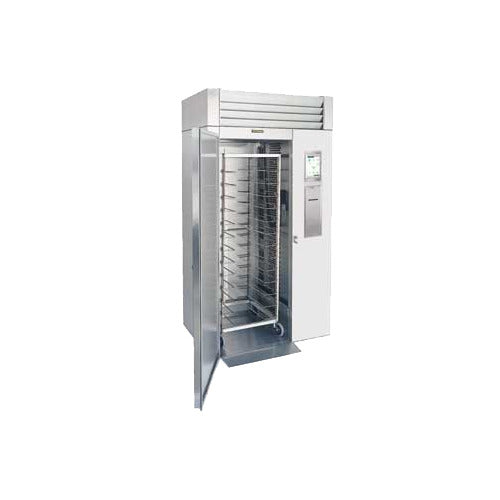

The Traulsen TBC2HR-2 is a double-depth, roll-thru blast chiller built to move loaded racks through a high-capacity chilling station. Its touch-screen controller supports automatic or manual cycles, selectable chill settings, product probes, cycle-data storage, USB export, and an onboard printer for documenting cycle activity.
This exact TBC2HR-2 configuration accepts two roll-in racks positioned front to back and has a 600 lb estimated product capacity. It is a remote-condensing installation: two appropriately sized remote R-407A condensing units are required for blast-chill operation and are not standard with the cabinet. Roll-in racks are optional rather than supplied with the unit.
Applications and Workflow
Suitable for commissaries, institutional kitchens, banquet production, and other high-volume operations that need to chill product loaded on mobile racks. The roll-thru arrangement supports a pass-through rack workflow. This model requires remote refrigeration infrastructure and is not a plug-in, self-contained blast chiller package.
Features and Practical Benefits
Two-rack roll-thru workflow
The cabinet accommodates two roll-in racks, loaded front to back, helping separate the loading and unloading sides of a rack-based production flow.
Flexible cycle control
The water-resistant touch screen offers automatic and manual operation, with adjustable product targets from 40°F to -5°F or time-based cycles.
Cycle documentation tools
Four removable food probes, an onboard cycle-data printer, a USB port, and 90-day cycle-data memory support recorded cycle management.
Remote-system planning clarity
Blast-chill operation requires two remote R-407A condensing units; account for this refrigeration scope during project planning.
Durable service-oriented cabinet
Stainless steel is used for the interior and exterior, while the maintenance-system condenser coils face forward for access.
Technical Specifications
| Manufacturer model | TBC2HR-2 |
|---|---|
| Configuration | Double-depth roll-thru blast chiller |
| Overall width | 48.5 in. |
| Overall depth, roll-thru model | 75.25 in. |
| Overall height | 90.38 in. |
| Clear door opening | 27.75 in. W x 74.125 in. H |
| Rack capacity | 2 roll-in racks |
| Maximum rack dimensions | 27 in. W x 29 in. D x 72 in. H |
| Estimated pan capacity | Up to 52 12 in. x 20 in. pans (26 per rack) |
| Product capacity | 600 lb. |
| Product target temperature range | 40°F to -5°F |
| Chill settings | Blast Chill, Speed, Energy Saving, Delicate |
| Food probes | 4 removable probes |
| Cycle-data memory | 90 days |
| Electrical supply | 208-230/115 V, 60 Hz, 1 phase |
| Required circuits | Two 20 A circuits |
| Feed wires with ground | Two 4-wire feeds |
| Remote condensing requirement | Two remote R-407A condensing units required for blast-chill operation |
| Recommended remote refrigeration load | Two 18,700 BTU/hr circuits |
| Refrigerant line connections | 7/8 in. suction; 1/2 in. liquid |
| Jobsite assembly | Ships in two cartons; assembly required |
Installation and Purchasing Considerations
- Plan a footprint of 48.5 in. W x 75.25 in. D x 90.38 in. H for the roll-thru model; confirm aisle space and door travel at both ends before final placement.
- The clear door opening is 27.75 in. W x 74.125 in. H. Rack dimensions must fit the stated maximum of 27 in. W x 29 in. D x 72 in. H, with wheels inboard of the frame.
- The unit ships in two cartons and requires jobsite assembly.
- Provide two remote R-407A condensing units sized for blast-chill operation. The manufacturer lists a recommended load of two 18,700 BTU/hr circuits at the evaporator and 7/8 in. suction plus 1/2 in. liquid connections.
- Electrical data calls for 208-230/115 V, 60 Hz, single-phase service with two 20 A required circuits and two 4-wire feeds with ground. No plug is listed; arrange hardwired installation by a qualified installer.
- Provide condensate removal through a floor drain or separately selected optional condensate evaporators. The manufacturer lists two automatic electric condensate evaporators as field-installed options.
Choosing This Configuration
TBC2HR-2 is the roll-thru configuration in the TBC series, not a single-side roll-in configuration.
The listed configuration uses front-hinged/right-hinged roll-thru doors; do not select this unit based on a single-door left- or right-hinge assumption.
This model does not include the two remote condensing units required for blast-chill operation.
Roll-in racks are not supplied as standard equipment. Verify rack dimensions and quantity separately.
A label-printer version is a distinct configuration identified with an added “-LP” suffix; this TBC2HR-2 listing is not identified as the label-printer version.
Frequently Asked Questions
Are roll-in racks included with the TBC2HR-2?
No. The cabinet accommodates two roll-in racks, but the manufacturer states that racks are not supplied as standard equipment. Racks must be selected separately and should not exceed 27 in. W x 29 in. D x 72 in. H with wheels inboard of the frame.
Does this blast chiller include its remote condensing units?
No. Blast-chill operation requires two remote R-407A condensing units. They are listed as accessories/options rather than standard included equipment.
What electrical service does this unit require?
The manufacturer lists 208-230/115 V, 60 Hz, single-phase power, with two 20 A required circuits and two 4-wire feeds with ground. A plug is not listed.
Can the TBC2HR-2 be used as a roll-through station?
Yes. TBC2HR-2 is the roll-thru model and accepts two racks positioned front to back. Plan access at both sides of the cabinet for the intended loading and unloading workflow.
