Description

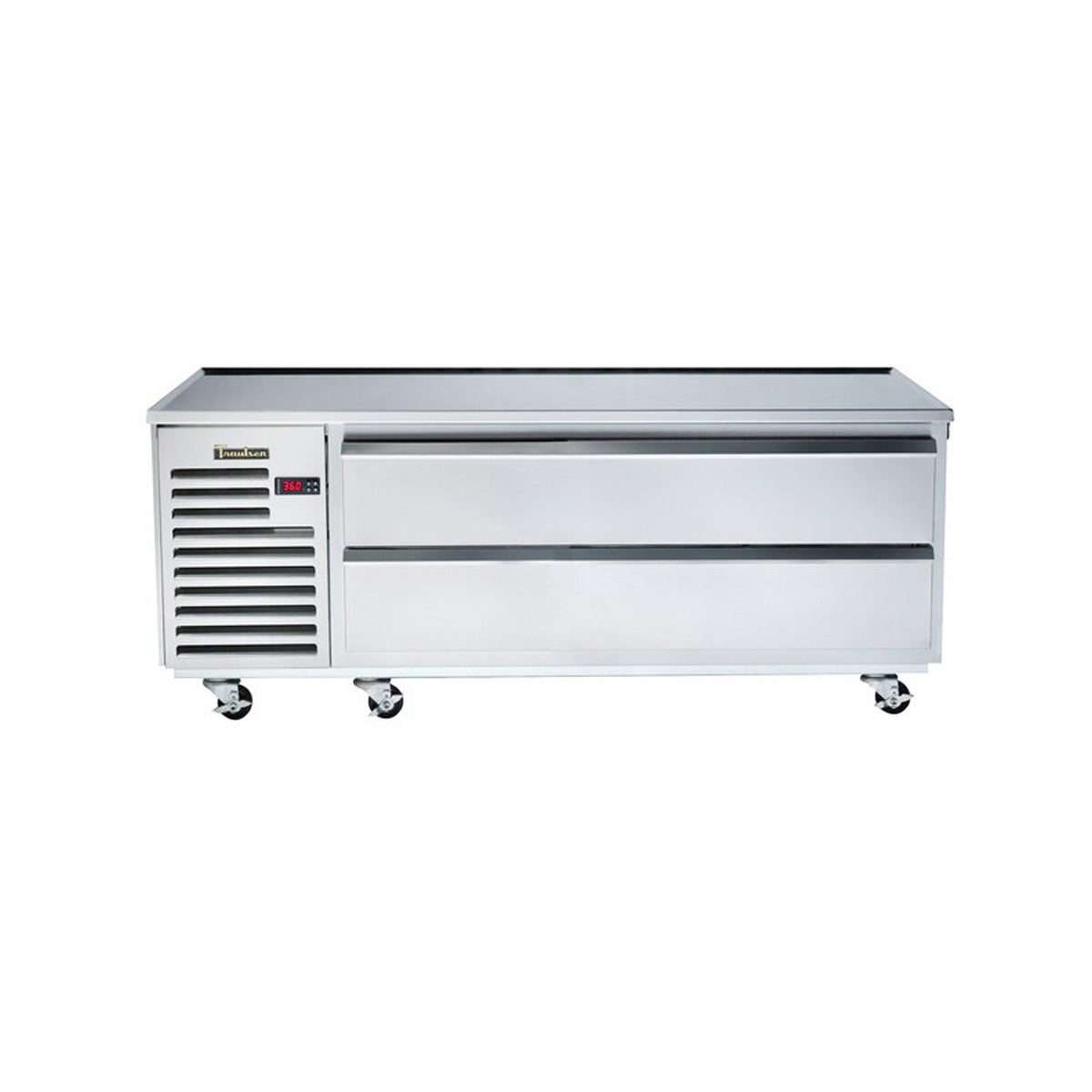

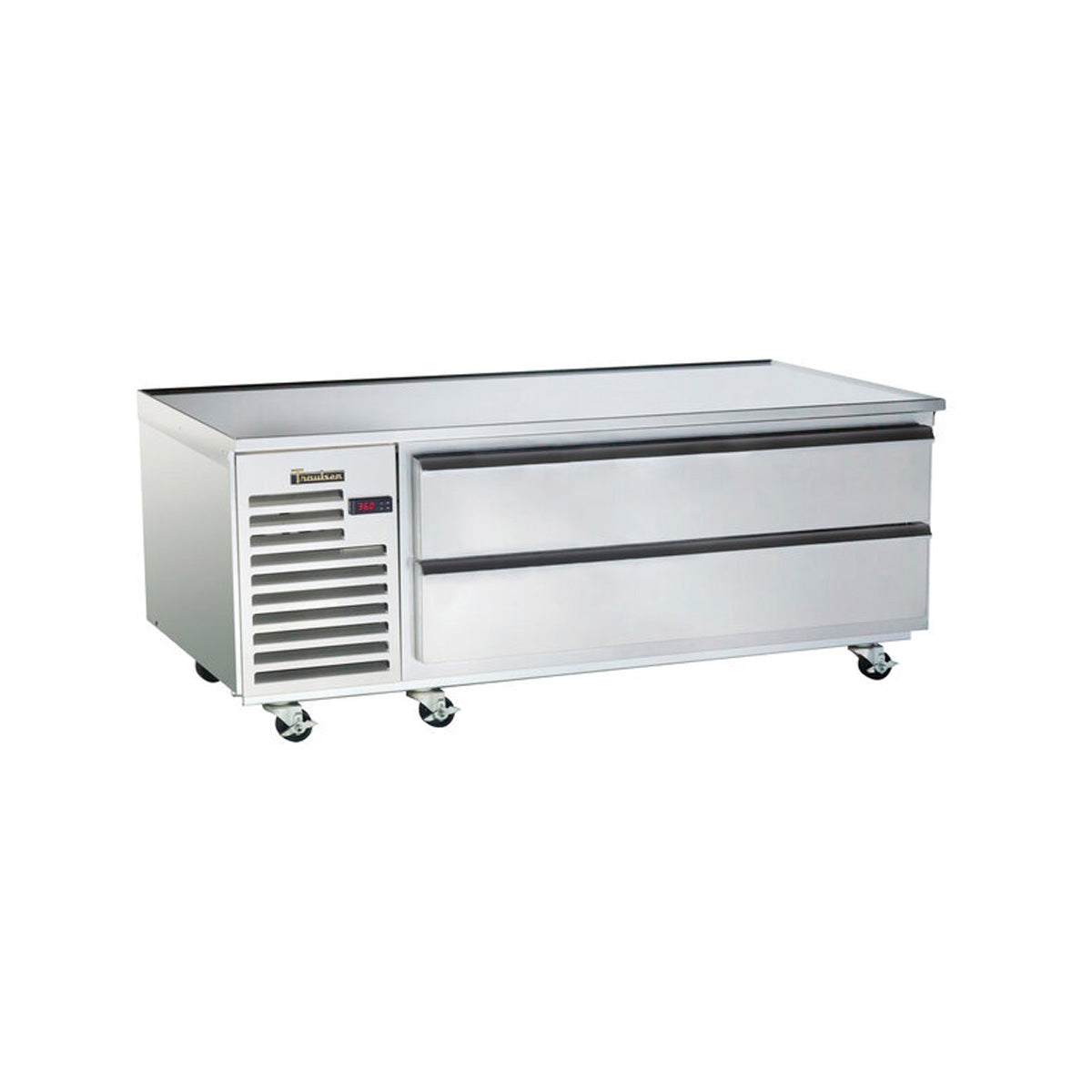

The Traulsen TE060LT is a 60-inch self-contained freezer chef base that combines below-counter frozen storage with a stainless steel marine-edge top for supporting countertop cooking equipment. Its two full-width drawers hold up to six 12 x 20 x 6 inch pans, helping keep frozen ingredients at the station where they are used.
This TE060LT configuration uses a left-side-mounted refrigeration system, hot-gas defrost, and a microprocessor control with LED temperature display. The drawers are self-closing and can remain open during loading, while the front-breathing design supports close-to-wall placement.
Applications and Workflow
Suitable beneath griddles, broilers, ovens, or other countertop equipment in commercial cooklines that need frozen ingredient storage at the point of preparation. Verify the supported equipment footprint and total load before installation; this model is a freezer base, not a refrigerated chef base. Pans are not supplied.
Features and Practical Benefits
Frozen storage at the cookline
Two drawers provide capacity for six 12 x 20 x 6 inch pans, arranged side by side, so ingredients can be staged below the work surface.
Equipment-supporting work top
The TE060LT has a 1,200 lb maximum top load capacity and a stainless steel top with a marine edge to help contain spills.
Accessible drawer workflow
Self-closing drawers include a stay-open feature for loading, and removable drawers, snap-in gaskets, and service access panels simplify routine cleaning and service access.
Practical tight-line installation
A front-breathing, self-contained refrigeration system is designed for zero-clearance installation, with the refrigeration system mounted on the left side.
Standard plug connection
The unit operates on 115/60/1 power and is equipped with a NEMA 5-15P plug, 9-foot cord, and cord retainer.
Technical Specifications
| Manufacturer model | TE060LT |
|---|---|
| Cabinet type | Self-contained freezer equipment stand |
| Overall width | 60 in. (152.5 cm) |
| Cabinet-only depth | 32 in. (81.3 cm) |
| Depth over handle | 34 3/16 in. (86.8 cm) |
| Depth with drawer open | 54 1/8 in. (137.5 cm) |
| Overall height on standard casters | 26 3/16 in. (66.5 cm) |
| Drawers per cabinet | 2 |
| Pan capacity | 6 pans, 12 x 20 x 6 in. |
| Pan orientation | Side by side |
| Maximum top load capacity | 1,200 lb (544 kg) |
| Electrical supply | 115/60/1 |
| Plug type | NEMA 5-15P |
| Full-load amperage | 8.7 A |
| Refrigerant | R-448A |
| Compressor horsepower | 1/2 HP |
| Standard operating temperature | -5 to 0°F (-20 to -17°C) |
| Standard mobility | Four 4 in. casters |
| Top style | Stainless steel top with drip guard (marine) edge |
Installation and Purchasing Considerations
- Allow a finished footprint of 60 inches wide by 34 3/16 inches deep over the handle and 26 3/16 inches high on the included 4-inch casters.
- Plan 54 1/8 inches of depth in front of the cabinet when a drawer is fully open; do not block the drawer travel path.
- Connect to a 115/60/1 electrical supply using the factory-equipped NEMA 5-15P plug. The supplied cord is 9 feet long and includes a cord retainer.
- The front-breathing refrigeration system supports zero-clearance installation. Keep the side, front, and rear service access panels reachable for maintenance.
- Confirm the countertop equipment and all product placed on top do not exceed the 1,200 lb maximum top load capacity.
Choosing This Configuration
This exact TE060LT is the 60-inch, two-drawer freezer configuration with a marine-edge top and left-side-mounted self-contained refrigeration.
It is distinct from refrigerated chef bases: the specified operating range is -5 to 0°F.
The cabinet accepts six 12 x 20 x 6 inch pans; pans are supplied by others.
Four 4-inch casters are standard. Stainless steel legs are an available alternative, rather than a standard inclusion.
Frequently Asked Questions
What is the frozen pan capacity of the TE060LT?
It accommodates six 12 x 20 x 6 inch pans in two drawers, arranged side by side. Pans are not included.
What electrical connection does this freezer chef base require?
It uses 115/60/1 power, draws 8.7 full-load amps, and comes equipped with a NEMA 5-15P plug on a 9-foot cord.
How much room is needed to open the drawers?
The cabinet depth over the handle is 34 3/16 inches, while the depth with a drawer open is 54 1/8 inches. Reserve the additional front clearance for drawer access.
Can this unit be installed close to a wall?
Yes. Its front-breathing refrigeration design is specified for zero-clearance installation. Service panels should still remain accessible.
