Description

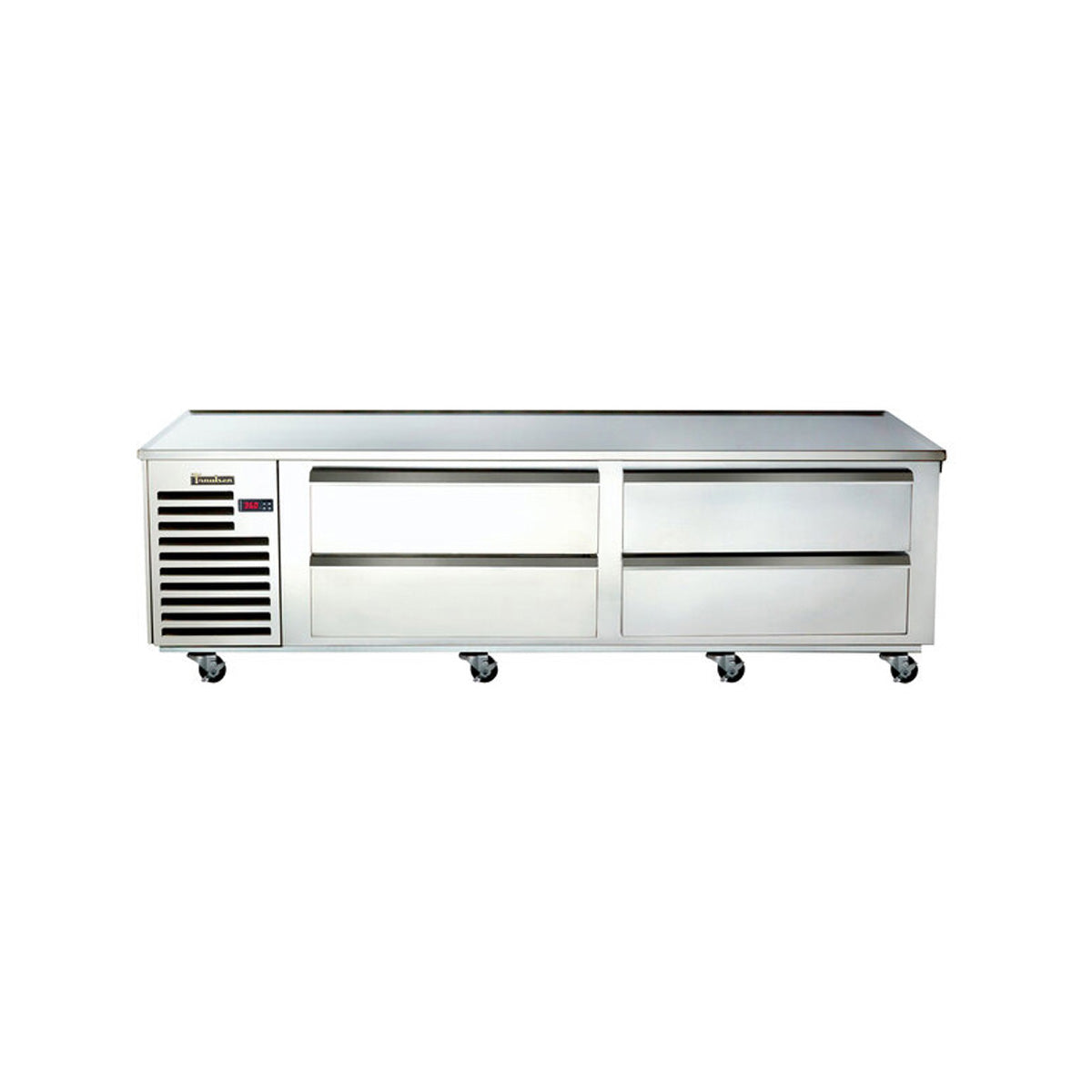

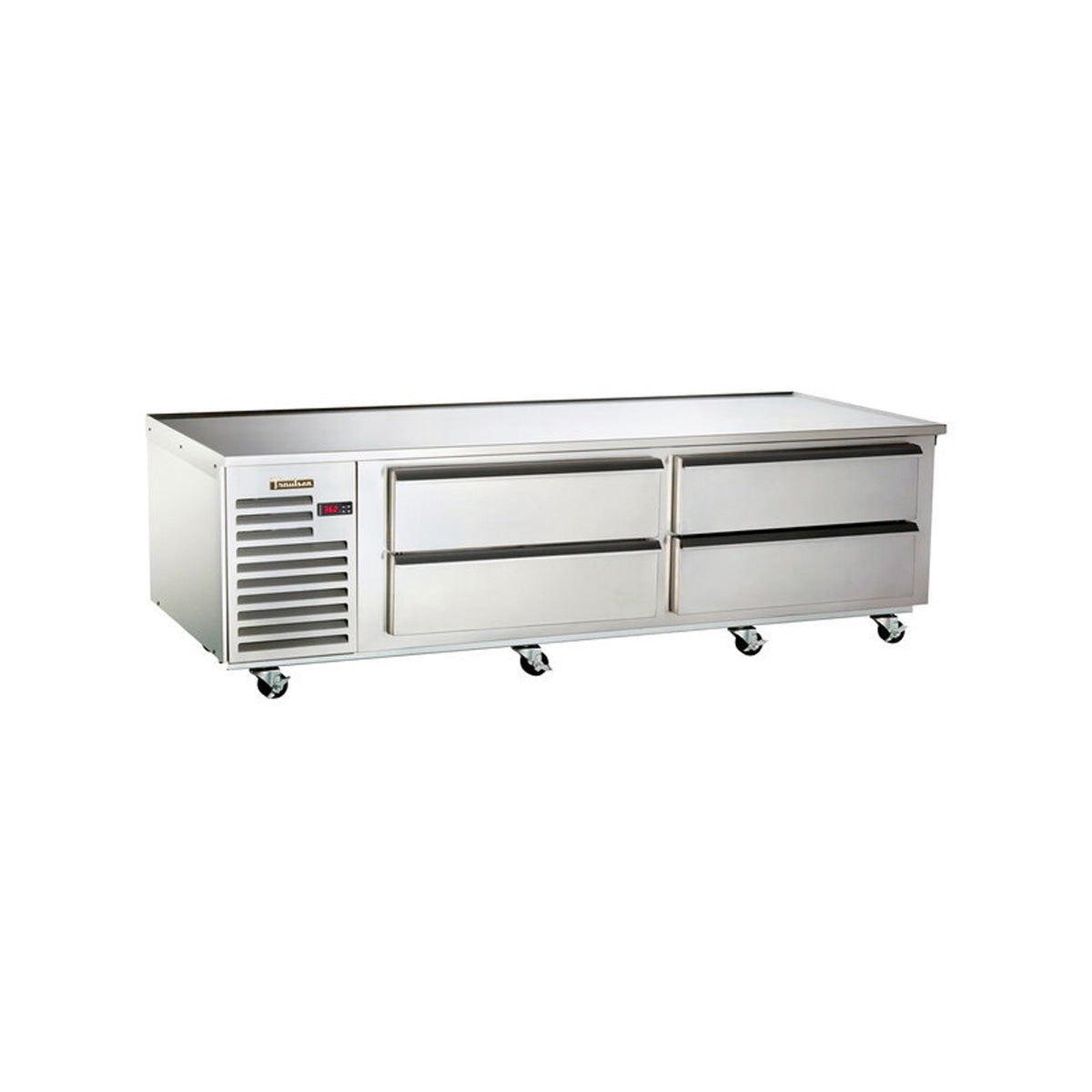

The Traulsen TE072LT is a 72-inch self-contained freezer chef base built to add frozen ingredient storage beneath countertop cooking equipment. Its stainless steel marine-edge top provides a contained work surface, while four drawers organize product in the two-section cabinet.
This exact TE072LT configuration has four self-closing drawers with a stay-open feature and accommodates up to eight full-size 12 x 20 x 6 inch pans. Pans are not supplied. The left-side refrigeration system is front-breathing, helping the unit fit into tight cookline layouts without rear ventilation clearance.
Applications and Workflow
Use this freezer chef base to support compatible countertop cooking equipment while keeping frozen ingredients directly below the station. It is suited to commercial cooklines that need a 72-inch work surface and four drawer zones. Verify the combined weight, footprint, heat output, and installation requirements of equipment placed on top; the base has a 1,200 lb maximum top-load capacity.
Features and Practical Benefits
Four organized freezer drawers
Four heavy-duty drawers provide separated frozen storage and accommodate up to eight full-size 12 x 20 x 6 inch pans. Each drawer is self-closing and can stay open during loading.
Cookline-ready work surface
The stainless steel top has a marine edge to help contain spills at the work surface. The cabinet is rated for a maximum 1,200 lb top load.
Tight-layout refrigeration design
A front-breathing, self-contained refrigeration system supports zero-clearance installation. The refrigeration system is mounted on the left side.
Straightforward electrical connection
The unit operates on 115/60/1 power, draws 11.2 full-load amps, and is equipped with a NEMA 5-15P plug and 9-foot cord.
Technical Specifications
| Manufacturer model | TE072LT |
|---|---|
| Configuration | 72-inch, four-drawer freezer equipment stand |
| Overall length | 72 in. (182.9 cm) |
| Cabinet depth | 32 in. (81.3 cm) |
| Depth over handle | 34 3/16 in. (86.8 cm) |
| Depth with drawer open | 54 1/8 in. (137.5 cm) |
| Overall height on 4-inch casters | 26 3/16 in. (66.5 cm) |
| Drawer quantity | 4 |
| Pan capacity | Up to 8 full-size 12 x 20 x 6 in. pans |
| Top load capacity | 1,200 lb (544 kg) |
| Electrical service | 115/60/1 |
| Plug | NEMA 5-15P |
| Full-load amperage | 11.2 A |
| Refrigerant | R-448A |
| Operating temperature | -5°F to 0°F (-20°C to -17°C) |
| Standard casters | Four 4-inch casters |
| Power cord | 9 ft |
Installation and Purchasing Considerations
- Allow a 72-inch-wide footprint. Cabinet depth is 32 inches; depth over the handle is 34 3/16 inches.
- Plan for 54 1/8 inches of depth when a drawer is fully open so staff can load and remove pans without blocking traffic.
- Overall height on the included 4-inch casters is 26 3/16 inches. Confirm this height works with the equipment and work surface planned above it.
- Connect the supplied NEMA 5-15P plug to a 115V, single-phase electrical supply. The unit draws 11.2 full-load amps and includes a 9-foot cord.
- The front-breathing design is intended for zero-clearance installation, but retain practical access to the side, front, and rear service panels. Do not block the front air path.
- Four 4-inch casters are standard. Six-inch stainless steel legs are an alternative option in lieu of casters; confirm the ordered base configuration before installation.
Choosing This Configuration
TE072LT is the 72-inch, four-drawer freezer version. It is not the 84-inch TE084LT configuration.
This is a freezer equipment stand with a stated operating range of -5°F to 0°F; it is not the refrigerated TE072HT version.
The marine-edge stainless steel top is standard on this model. A flat bullnose top with backsplash is identified as an option in the product family.
Pans are by others and should be purchased separately if needed.
Frequently Asked Questions
How many pans can the TE072LT hold?
The four-drawer configuration accommodates up to eight full-size 12 x 20 x 6 inch pans. Pans are not included.
What electrical connection does this freezer chef base use?
It uses 115/60/1 electrical service at 11.2 full-load amps and is equipped with a NEMA 5-15P plug and a 9-foot cord.
How much room is needed to open the drawers?
The cabinet depth is 32 inches, while the depth with a drawer open is 54 1/8 inches. Plan the aisle and adjacent equipment placement around the open-drawer dimension.
Can equipment be installed on top of the TE072LT?
Yes, the top has a maximum load capacity of 1,200 lb. Confirm the supported equipment's footprint, weight, heat output, and its own installation requirements before placing it on the base.
