Description

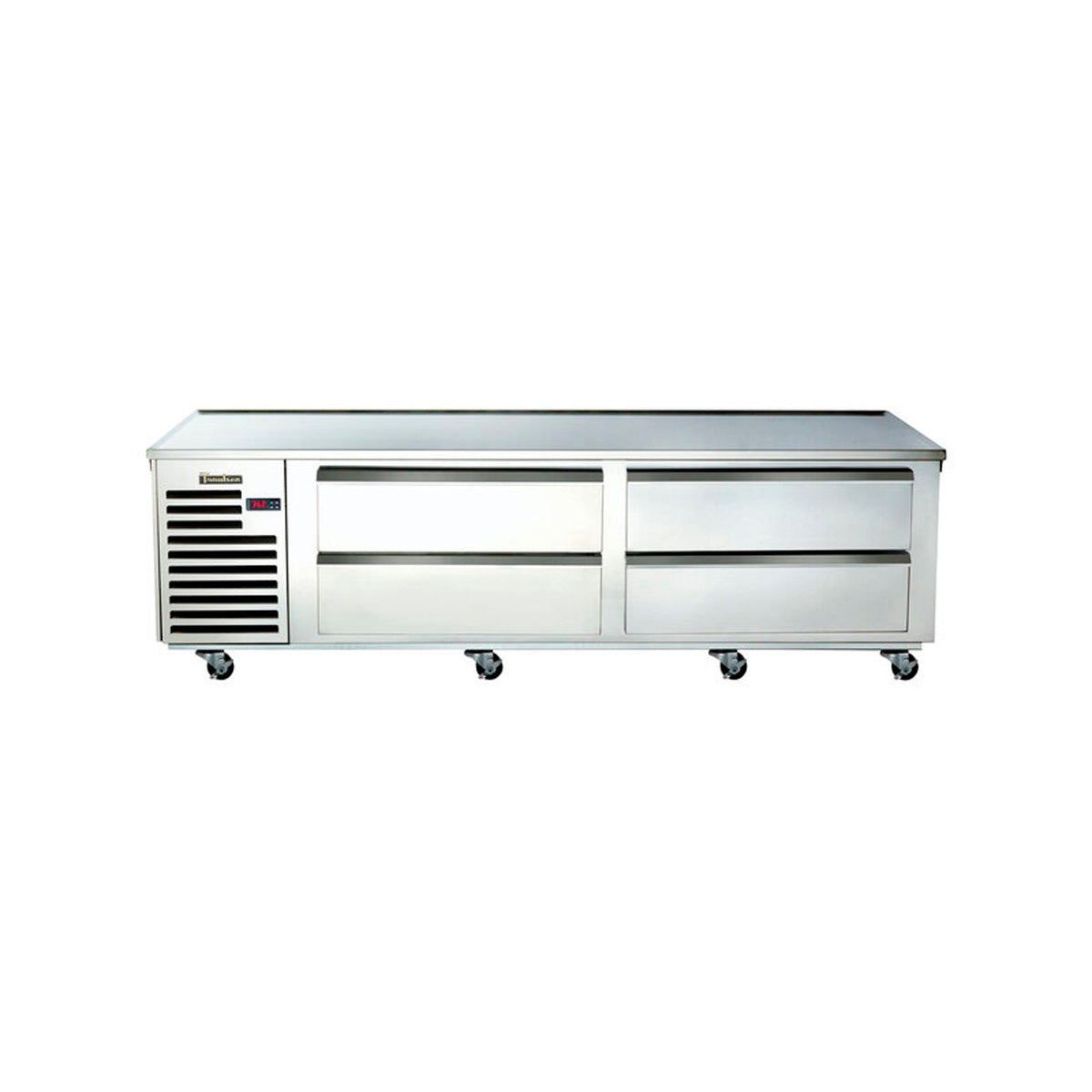

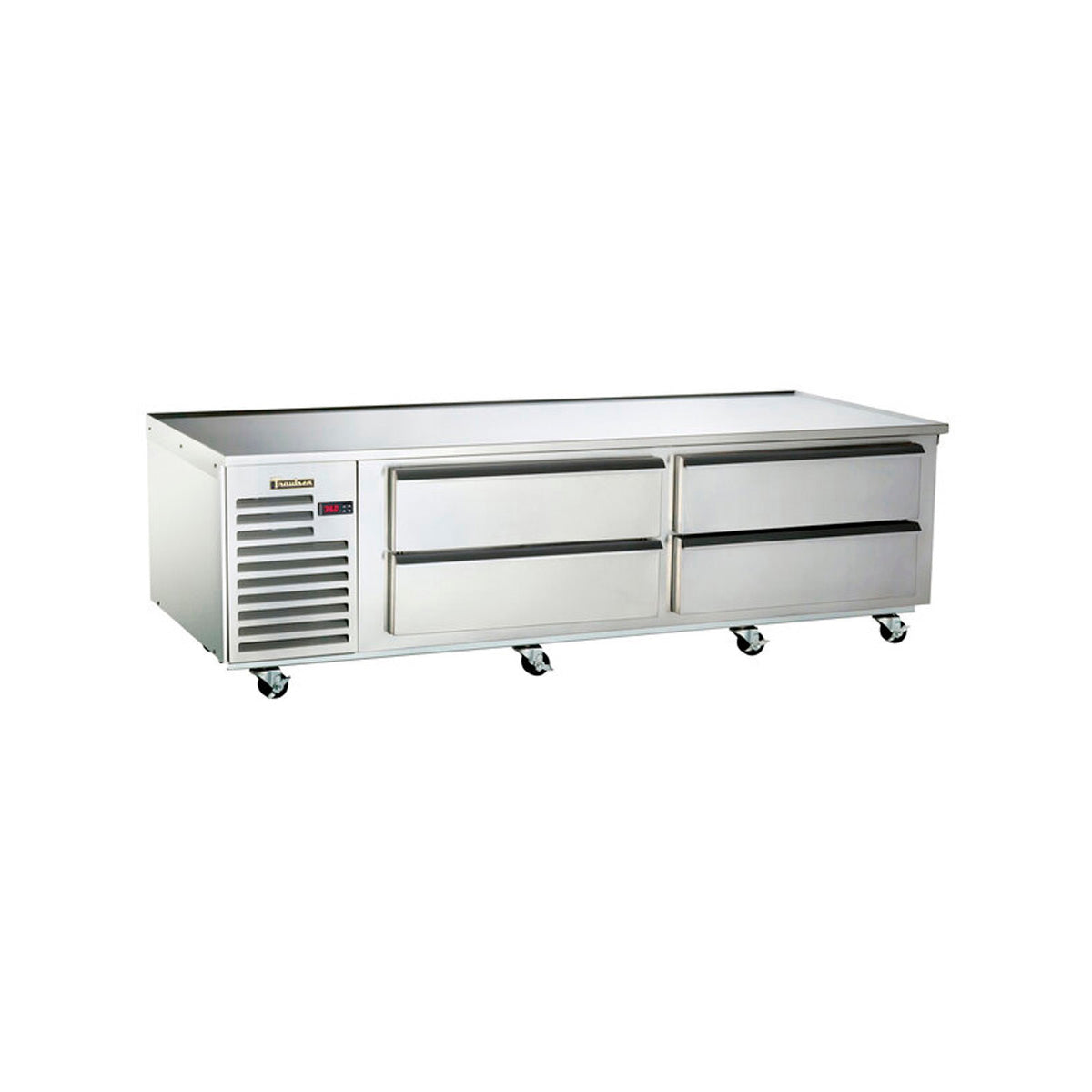

The Traulsen TE084LT is an 84-inch self-contained freezer chef base with four drawers and a stainless steel marine-edge work top. It combines frozen storage with a durable equipment stand, giving a cooking line a work surface above and pan storage below.
This two-section configuration holds up to eight 12 in. x 20 in. x 6 in. pans, which are purchased separately. Its left-side-mounted refrigeration system is front breathing for zero-clearance installation, while the drawers are self-closing and can remain open for loading or cleaning tasks.
Applications and Workflow
Suitable for commercial cook lines that need frozen ingredient storage directly below countertop cooking equipment. The top is rated for a maximum 1,500 lb load. This is a freezer base, with a stated operating range of -5°F to 0°F; select a refrigerated chef base instead when chilled rather than frozen storage is required.
Features and Practical Benefits
Four-drawer frozen storage
Four drawers accommodate up to eight full-size 12 in. x 20 in. x 6 in. pans, arranged side by side. Pans are not included.
Worktop support for line equipment
The 84-inch cabinet has a 1,500 lb maximum top load capacity for supporting appropriate countertop equipment.
Front-breathing refrigeration
The self-contained refrigeration system is mounted on the left side and uses a front-breathing design intended for zero-clearance installation.
Drawer access designed for busy prep

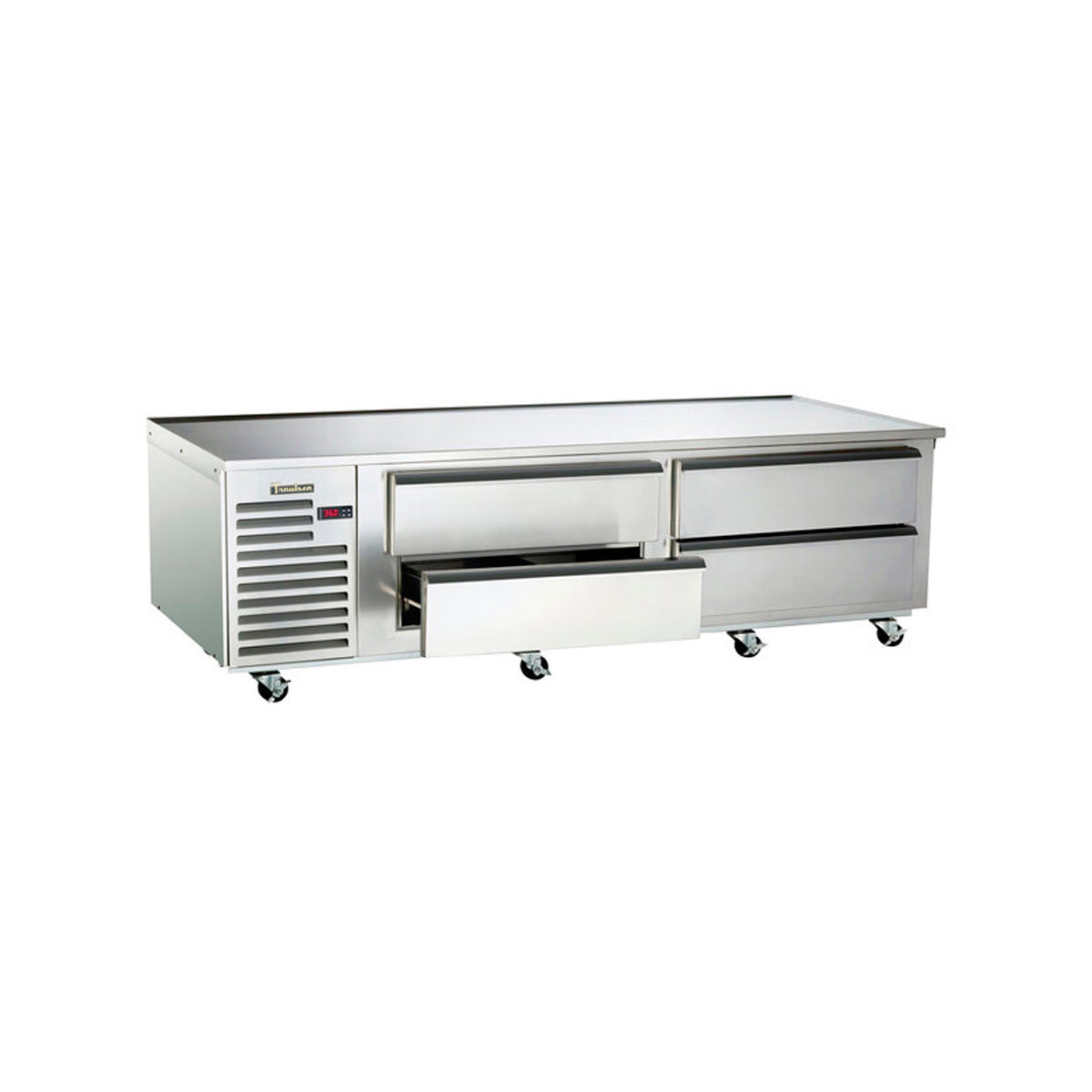

Self-closing drawers have a stay-open feature, heavy-gauge stainless steel slides, and removable construction for access during cleaning.
Service-conscious construction
A condenser filter helps protect the coil, and side, front, and rear access panels provide access for service and maintenance.
Technical Specifications
| Manufacturer model | TE084LT |
|---|---|
| Configuration | 84-inch, four-drawer freezer equipment stand |
| Overall length | 84 in. (213.4 cm) |
| Cabinet-only depth | 32 in. (81.3 cm) |
| Depth over handle | 34 3/16 in. (86.8 cm) |
| Depth with drawer open | 54 1/8 in. (137.5 cm) |
| Overall height on 4-inch casters | 26 3/16 in. (66.5 cm) |
| Drawer count | 4 |
| Pan capacity | 8 pans, 12 in. x 20 in. x 6 in. |
| Pan orientation | Side by side |
| Maximum top load capacity | 1,500 lb (680 kg) |
| Refrigeration system | Left-side-mounted, self-contained |
| Refrigerant | R-448A |
| Compressor capacity | 2,570 BTU/hr; 3/4 HP |
| Operating temperature | -5°F to 0°F (-20°C to -17°C) |
| Electrical requirement | 115/60/1 |
| Plug | NEMA 5-15P |
| Full-load amperage | 11.2 A |
| Cord | 9 ft with cord retainer |
| Exterior and interior | Stainless steel |
| Top style | Stainless steel with drip-guard marine edge |
| Standard mobility | Four 4-inch casters on adjustable caster system |
Installation and Purchasing Considerations
- Allow an 84 in. overall cabinet length and 32 in. cabinet-only depth. The depth is 34 3/16 in. over the handle.
- Plan for 54 1/8 in. total depth when a drawer is open; this is the key front working-clearance dimension.
- The unit is 26 3/16 in. high on its standard 4 in. casters. Verify finished work-surface height and whether the optional legs or alternate casters are needed before ordering.
- Connect to a 115/60/1 electrical supply using the supplied NEMA 5-15P plug and 9 ft cord. Full-load amperage is 11.2 A.
- The front-breathing design supports zero-clearance installation. Retain access to the side, front, and rear service panels, and include condenser-filter cleaning in the maintenance plan.
Choosing This Configuration
TE084LT is the 84-inch, four-drawer freezer configuration in the TE series; it is not the refrigerated TE084HT configuration.
This model is self-contained with refrigeration mounted on the left side. A right-side system location is not established for this exact standard configuration.
The standard top has a drip-guard marine edge. A flat bullnose top and backsplash are not standard features of this model.
The unit includes standard 4-inch casters. Stainless steel legs and other caster heights are optional selections, not included equipment.
Frequently Asked Questions
How many pans does the TE084LT hold?
It accommodates up to eight 12 in. x 20 in. x 6 in. pans side by side. Pans are supplied by others and are not included with the chef base.
What electrical connection does this freezer chef base need?
The TE084LT operates on 115/60/1 power, draws 11.2 full-load amps, and is equipped with a NEMA 5-15P plug and 9-foot cord.
How much aisle space is needed in front of the drawers?
The cabinet is 34 3/16 in. deep over the handle, and the depth becomes 54 1/8 in. with a drawer open. Plan the front aisle around the open-drawer dimension.
Can equipment be placed on top of this chef base?
Yes, the TE084LT has a stated maximum top load capacity of 1,500 lb. Confirm that the installed equipment footprint and local installation requirements are appropriate.
