Description

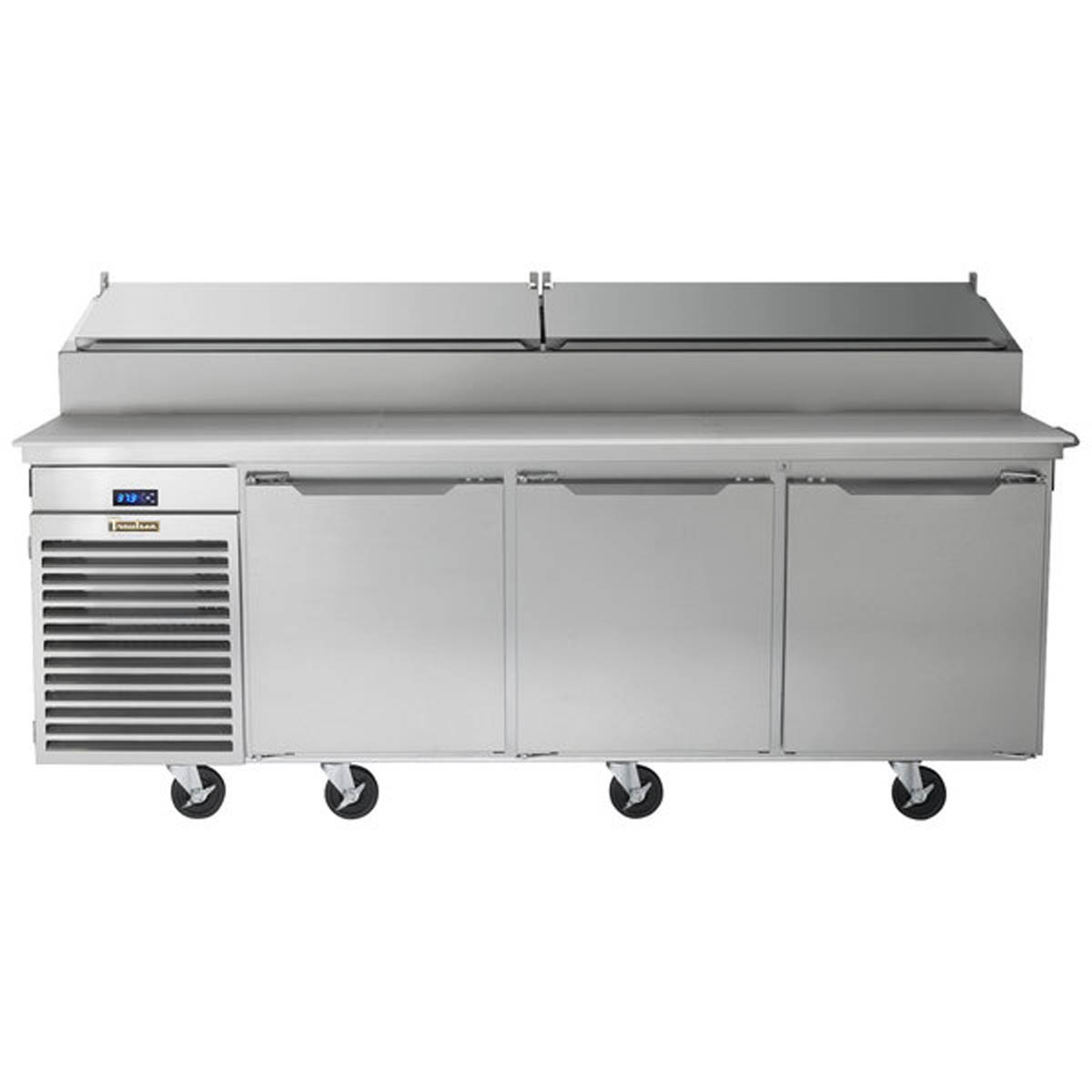

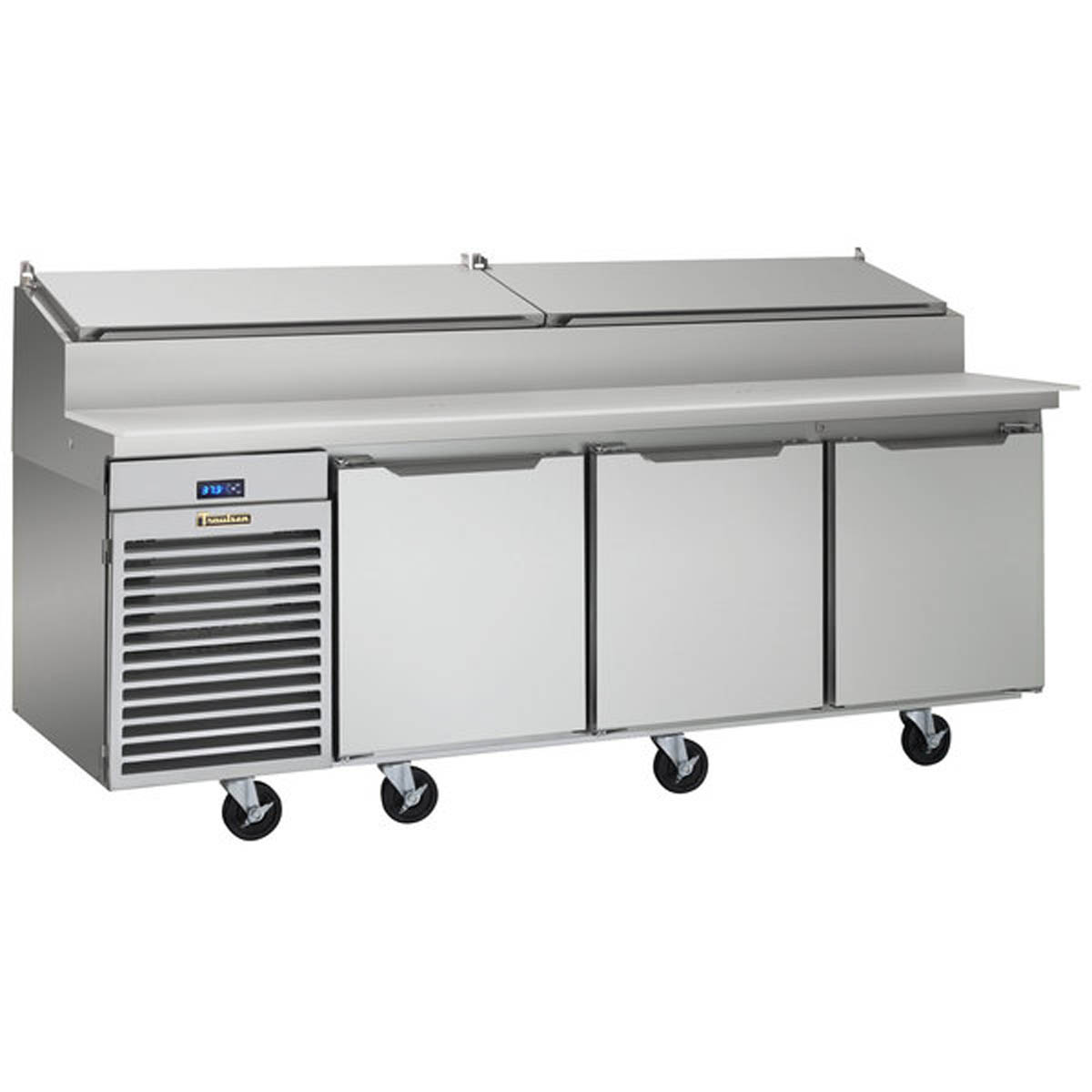

The Traulsen TS090HT is a 90-inch self-contained refrigerated pizza, salad, and sandwich prep table with three solid doors and a raised rail sized for 12 third-size pans. Its stainless steel interior and exterior support an organized prep station with refrigerated storage directly below the ingredient rail.

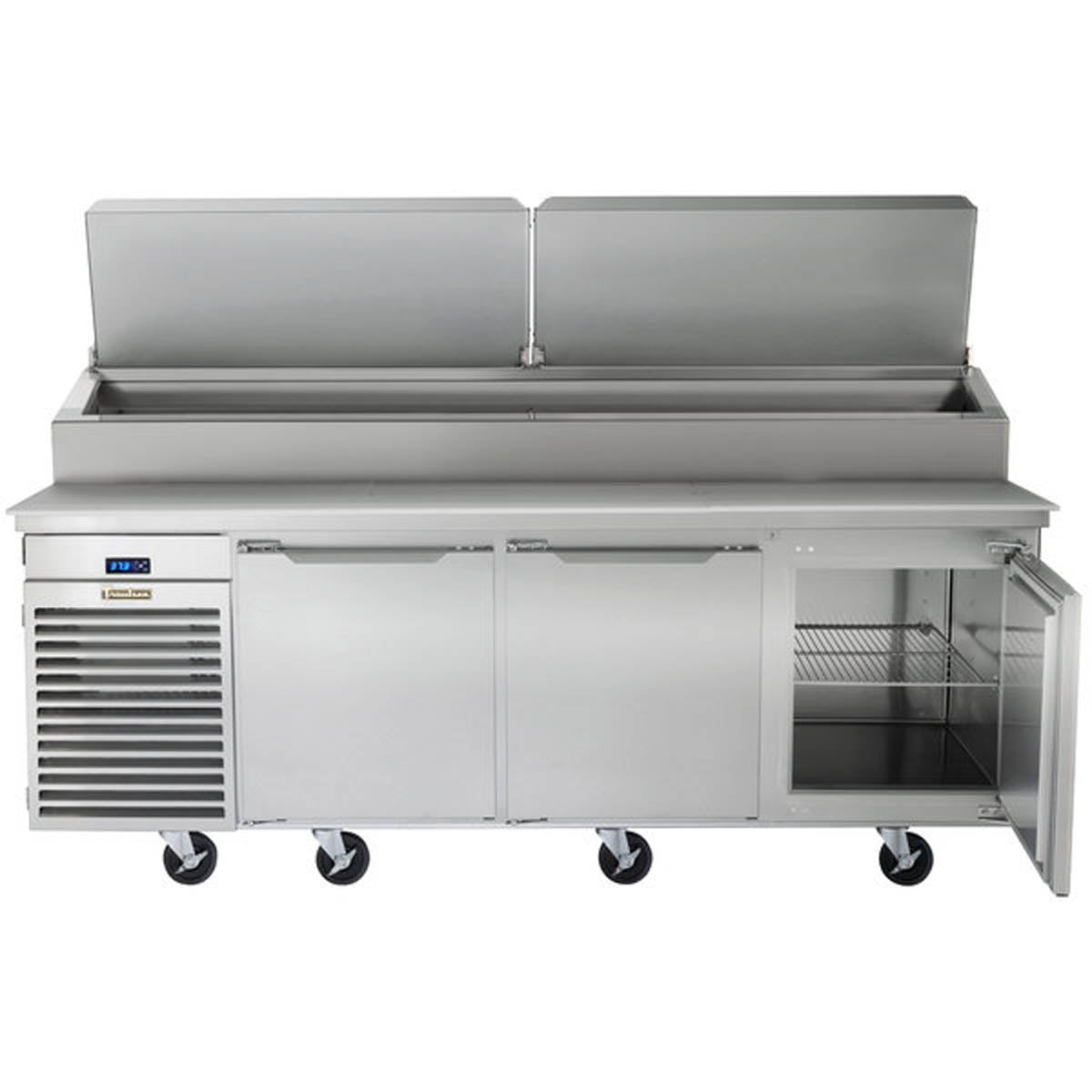

This three-door configuration provides six factory-installed wire shelves—two per door—and a 24.4 cu. ft. cabinet. The insulated lift-up rail cover has two open positions, while the microprocessor control provides an LED temperature display. Pans are supplied separately.
Applications and Workflow
Use the TS090HT as a high-capacity refrigerated assembly station for pizzerias, sandwich lines, delis, salad production, and other commercial kitchens that need ingredients accessible above refrigerated undercounter storage. It is designed for standard full-, half-, and third-size pans up to 6 inches deep; other pan sizes require adapter bars, which are supplied separately.
Features and Practical Benefits
12-pan ingredient rail
The raised rail accepts 12 third-size pans and can also accommodate standard full-, half-, and third-size pans up to 6 inches deep without adapter bars.
Three-door refrigerated storage
A 24.4 cu. ft. cabinet, three solid doors, and six wire shelves provide below-counter storage for backup ingredients and prep supplies.
Workflow-ready doors
Self-closing doors have a stay-open feature for loading, cleaning, and accessing stored product; the standard hinge arrangement is left/left/right.
Front-breathing self-contained system
The self-contained refrigeration system uses R-450A refrigerant and a front-breathing design intended for zero-clearance installation.
Service and cleaning access
Side, front, and rear access panels support equipment service, while the non-electric condensate evaporator and hot-gas defrost are built into the refrigeration system.
Technical Specifications
| Manufacturer model | TS090HT |
|---|---|
| Configuration | 90-inch, three-solid-door prep table |
| Pan capacity | 12 third-size pans |
| Net capacity | 24.4 cu. ft. (690.9 L) |
| Overall width | 90 in. (228.6 cm) |
| Overall depth | 36 in. (91.4 cm) |
| Overall height | 48 3/8 in. (122.9 cm) |
| Work-surface height | 35 9/16 in. (90.3 cm) |
| Number of doors | 3 |
| Standard door hinging | Left/left/right |
| Shelves | 6 wire shelves |
| Clear door opening | 18.7 in. W x 20.5 in. H |
| Electrical requirement | 115V/60Hz/1-phase |
| Plug type | NEMA 5-15P |
| Full-load amperage | 7.7A |
| Refrigerant | R-450A |
| Refrigerant charge | 21 oz. (595 g) |
| Compressor capacity | 1/2 HP |
| Standard operating temperature | 34°F to 38°F (1.1°C to 3.3°C) |
| Lid height, first open position | 59.8 in. overall |
| Lid height, fully open | 64.4 in. overall |
Installation and Purchasing Considerations
- Allow a 90-inch-wide by 36-inch-deep footprint; the listed overall depth includes the 2-inch rear removal standoff bracket.
- Overall height is 48 3/8 inches, with a 35 9/16-inch work-surface height. Verify overhead clearance before installation: the rail lid reaches 59.8 inches at its first open position and 64.4 inches fully open.
- Connect to a 115V, single-phase, 60 Hz electrical supply. The unit is equipped with a NEMA 5-15P plug and a 9-foot cord and plug.
- The front-breathing refrigeration design is specified for zero-clearance installation. Keep the side, front, and rear service access panels reachable for maintenance.
- Plan door swing around the standard left/left/right hinging. Doors are field rehingeable, but confirm the needed hinge arrangement when ordering.
Choosing This Configuration
This exact TS090HT configuration is the 90-inch, three-solid-door TS Series model with capacity for 12 third-size pans; smaller TS Series tables have different widths, door counts, and pan capacities.
Pans are not included. Standard full-, half-, and third-size pans can be used in the rail, while other pan sizes need separately supplied adapter bars.
The standard configuration has doors and wire shelves. Drawer substitutions, alternate hinging, alternative casters or legs, cutting boards, backs, and rail-cover styles are options rather than confirmed included equipment.
Frequently Asked Questions
How many ingredient pans does the TS090HT hold?
The raised ingredient rail holds 12 third-size pans. It also accommodates standard full-, half-, and third-size pans up to 6 inches deep; pans are supplied separately.
What electrical connection does this prep table require?
The standard electrical specification is 115V/60Hz/1-phase with a NEMA 5-15P plug. Full-load amperage is 7.7A, and a 9-foot cord and plug are provided.
How much refrigerated cabinet storage is provided?
The cabinet has 24.4 cu. ft. of net capacity. It includes three doors and six wire shelves, with two shelves factory installed per door.
Can the prep table be installed tightly between equipment?
Its front-breathing design is specified for zero-clearance installation. However, maintain practical access to the side, front, and rear service panels and allow clearance to open the rail lid and doors.
