Description

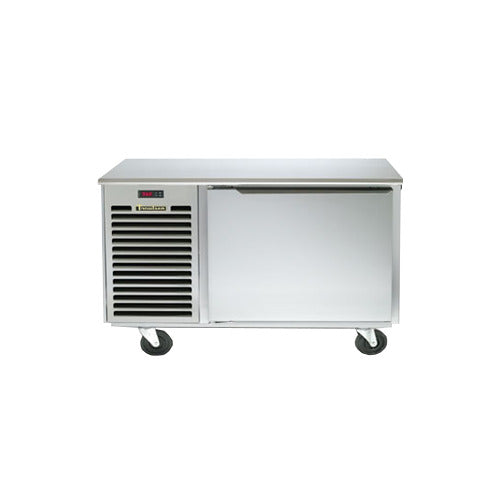

The Traulsen TU048QC is a 48-inch, one-door, self-contained undercounter quick chiller designed for chilled product cooling and refrigerated storage close to the prep line. Its microprocessor controller provides a three-digit LED display, while the refrigeration system is specified for a 31–35°F operating temperature range.
This TU048QC configuration has a 9.2 cu. ft. cabinet, two factory-installed wire shelves, right-hand door hinging that can be reversed in the field, and 6-inch adjustable stainless steel legs. The front-breathing cabinet supports zero-clearance installation, helping it fit under a counter where rear ventilation clearance is limited.
Applications and Workflow
Use this quick chiller in commercial kitchens, bakeries, delis, and prep areas that need undercounter refrigerated storage and product cooling near the work area. It is a one-door cabinet with two standard shelves; tray slides, extra shelves, casters, a door lock, alternate refrigeration location, and worktop configurations are options rather than standard equipment.
Features and Practical Benefits
Undercounter cooling and storage
The 48-inch cabinet provides 9.2 cu. ft. of refrigerated capacity while keeping chilled ingredients or prepared items at workstation height.
Front-breathing installation
A front-breathing refrigeration design is specified for zero-clearance installation, a practical advantage where space behind the cabinet is restricted.
Straightforward temperature monitoring
The standard microprocessor control includes a three-digit LED display and supports Fahrenheit or Celsius temperature display.
Flexible door workflow
The self-closing door also has a stay-open feature for loading, and its standard right-hand hinging can be field-reversed to suit the counter layout.
Service-oriented cabinet details
The unit includes a condenser filter and side, front, and rear access panels to support routine cleaning and service access.
Technical Specifications
| Manufacturer model | TU048QC |
|---|---|
| Configuration | 48-inch, 1-door undercounter quick chiller |
| Net capacity | 9.2 cu. ft. |
| Overall width | 48 in. |
| Overall depth | 36 in. |
| Overall height on 6-inch legs | 33 3/4 in. |
| Depth with door open 90 degrees | 60 13/16 in. |
| Clear door width | 23 in. |
| Standard shelves | 2 wire shelves |
| Electrical configuration | 115/60/1 |
| Plug type | NEMA 5-15P |
| Full-load amps | 12.0 A |
| Refrigerant | R-448A |
| Operating temperature | 31–35°F |
| Installation design | Front breathing for zero-clearance installation |
| Standard door hinging | Right hinged, field reversible |
| Standard legs | 6-inch high stainless steel legs |
Installation and Purchasing Considerations
- Plan for a 48-inch overall width, 36-inch overall depth, and 33 3/4-inch height on the supplied 6-inch legs. The door-open depth is 60 13/16 inches; maintain clear aisle space for loading and door operation.
- Connect the standard 115/60/1 electrical configuration to the supplied NEMA 5-15P plug. The specification lists 12.0 full-load amps and a 9-foot cord and plug.
- The front-breathing design is specified for zero-clearance installation. Keep the access panels reachable for maintenance and condenser-filter cleaning.
- The standard door is right hinged and field reversible. Confirm the selected swing before installation so the door can stay open without blocking adjacent equipment or traffic.
- If equipment placed on top weighs more than 100 lb or gives off more than 140°F to the top surface, specify the optional stainless steel worktop required for that use.
Choosing This Configuration
This exact TU048QC is the 48-inch, one-door TU Series undercounter quick chiller with a self-contained refrigeration system and 9.2 cu. ft. net capacity.
Two wire shelves are standard. Universal tray slides are listed as an option and should not be assumed to be included.
Left-hand refrigeration-system location is standard; relocation to the right side is an option.
Standard right-hand door hinging is field reversible. A door lock, casters, bullnose tops, and backsplash top are optional configurations.
Frequently Asked Questions
What electrical connection does the TU048QC use?
The listed standard configuration is 115/60/1 with a NEMA 5-15P plug, 12.0 full-load amps, and a supplied 9-foot cord and plug.
How much floor and door-swing space should I allow?
The cabinet is 48 inches wide by 36 inches deep. With the door open 90 degrees, the overall depth is 60 13/16 inches.
Are tray slides or pan supports included?
No tray-slide set is identified as standard. The standard interior arrangement is two wire shelves; universal tray slides are an optional accessory.
Can the door swing be changed?
Yes. The standard door is right hinged, and the manufacturer specifies that it is field reversible.
