Description

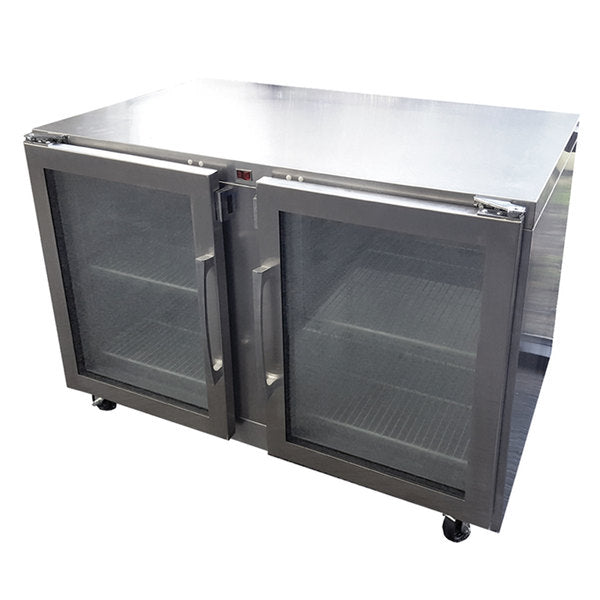

Traulsen UHG48LL-0420 Undercounter Refrigerator
The Traulsen UHG48LL-0420 is an undercounter refrigerator. Add enclosed refrigerated storage beneath a counter or alongside a preparation station. Door and drawer layouts serve different storage needs, so match this configuration to your containers and available access space. This configuration provides a 48 in. overall width, 13.5 cu. ft. of published storage capacity.
Match the refrigeration airflow path to the installation site. Keep condenser access available for cleaning and service, and use the factory drawing for the final opening and utility connections.
Model configuration and practical use
- Width: 48 in.
- Depth: 27.88 in.
- Height: 35.19 in.
- Capacity (cu. ft.): 13.5
- Door Type: glass door
- Door Quantity: 2
- Hinge Location: left / left
- Refrigeration: self-contained, rear mounted
- Compressor Style: front breathing
Technical specifications
| Manufacturer | Traulsen |
|---|---|
| Model / ordering code | UHG48LL-0420 |
| Width | 48 in. |
| Depth | 27.88 in. |
| Height | 35.19 in. |
| Size | 2 section |
| Access Type | doors |
| Door Type | glass door |
| Door Quantity | 2 |
| Refrigeration | self-contained, rear mounted |
| Compressor Style | front breathing |
| Exterior Finish | stainless steel & galvanized steel |
| Hinge Location | left / left |
| Refrigerant Type | R-290 |
| Capacity (cu. ft.) | 13.5 |
Installation and purchasing considerations
Check the delivery route and closed-cabinet footprint, then allow for doors or drawers to open and for staff to load food safely. Confirm the current model drawing, electrical data plate and ventilation or remote-system requirements before connection.
Frequently asked questions
How should I choose this configuration?
Choose the UHG48LL-0420 by matching its footprint and access layout to your station, then check the listed capacity and utility requirements. Confirm optional finishes, hinges, pans, tray slides or support packages on the order.
What clearance should I allow?
Allow space for loading, door swing or drawer extension, and access to the refrigeration system for maintenance. Use the exact factory drawing to establish the installation opening and airflow requirements.
