Description

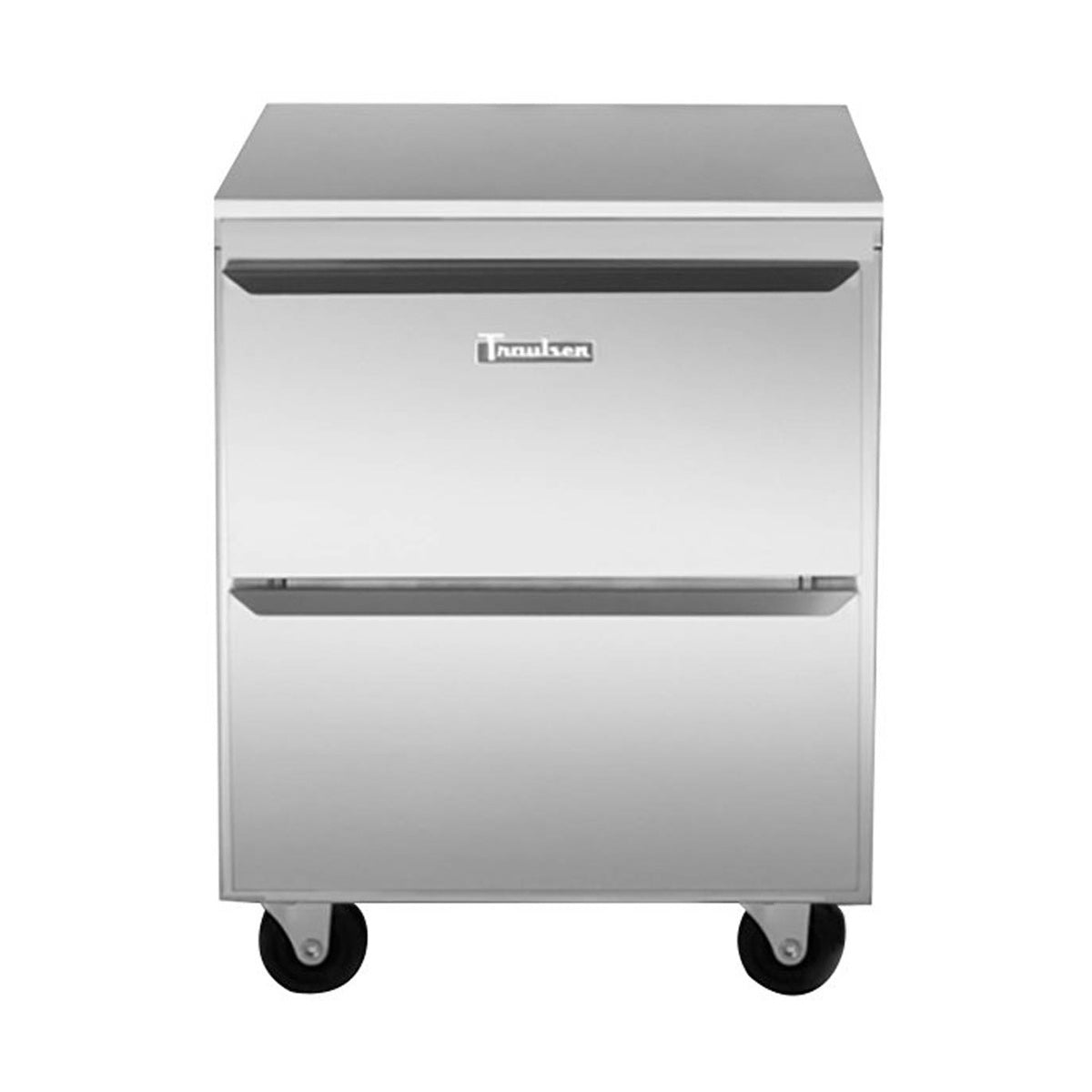

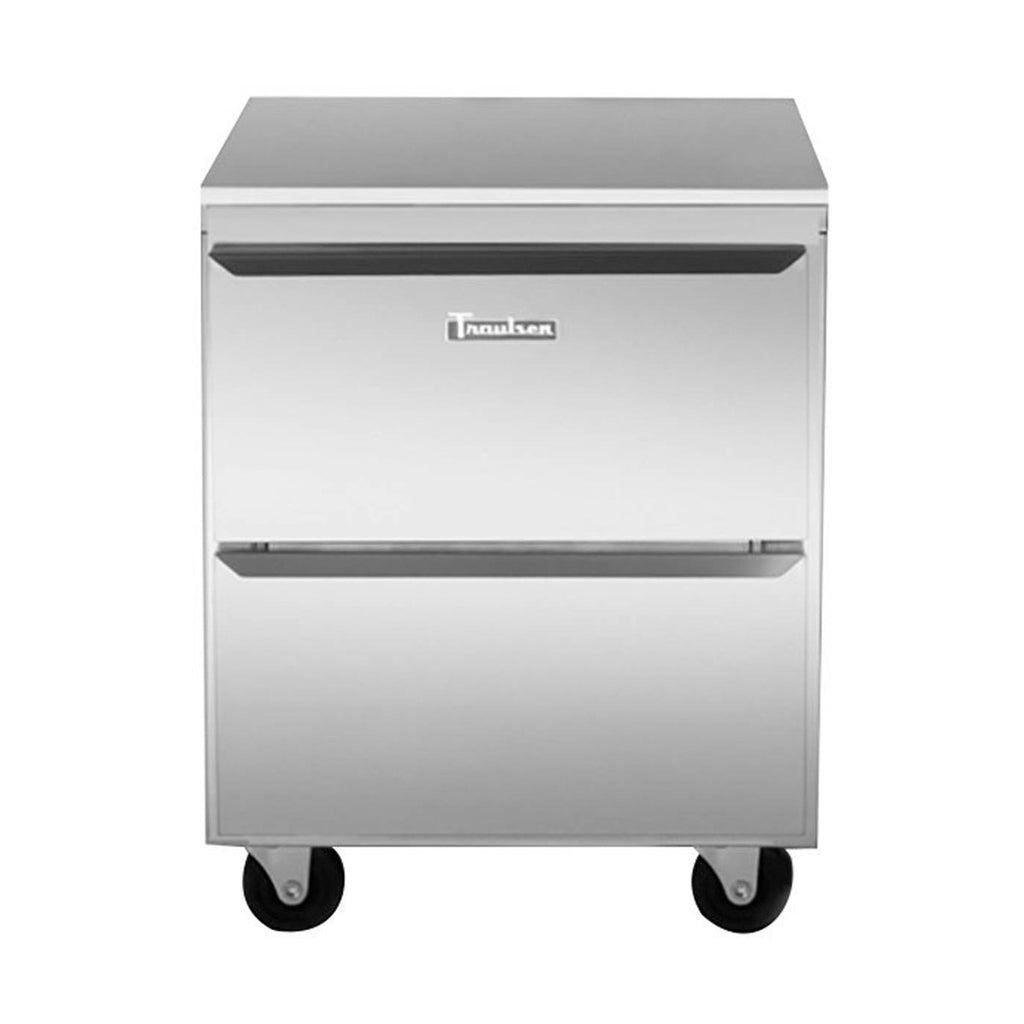

The Traulsen UHT27-D-SB is a 27-inch undercounter refrigerator with 2 drawers and 6.79 cu. ft. of net cabinet capacity. A compact 27-inch cabinet places a dedicated cold-storage point beside a small prep or beverage station. Drawer access makes it useful for organizing chilled ingredients in pans rather than arranging containers on interior shelves.
The manufacturer lists space for 6 one-sixth-size pans per drawer, or 12 across the cabinet. A self-contained, rear-mounted refrigeration system breathes from the front and uses R-290. Electronic controls provide a digital temperature display, with a published operating range of 34°F to 38°F. Confirm the pan package when ordering; capacity alone does not establish that pans are included.
Applications and Workflow
Useful for sandwich assembly, salad preparation, or other stations that portion refrigerated ingredients from organized pans. This unit provides enclosed refrigerated storage; it is not an open-top prep table with a cutting board or top pan rail.
Features and Practical Benefits
2 drawers for pan organization
The UHT27-D-SB supports 6 one-sixth-size pans per drawer. Separate drawers let a station organize ingredient groups without adopting the shelf layout of a door model.
Front-breathing refrigeration
The condenser airflow is taken through the front of the cabinet, supporting an undercounter installation without requiring a remote condenser. Keep the front airflow path accessible and follow the installation instructions.
Temperature display at the station
Electronic controls provide a digital readout so staff can reference cabinet temperature without opening the storage compartment.
Construction matched to the configuration
The -SB configuration is identified by the supplier as having stainless steel top, front, sides, and back.
Self-closing and stay-open drawers
The manufacturer describes drawers with both self-closing and stay-open features, allowing routine access and extended loading without a door swing.
Technical Specifications
| Manufacturer model | UHT27-D-SB |
|---|---|
| Overall width | 27 in. |
| Net cabinet capacity | 6.79 cu. ft. |
| Access arrangement | 2 drawers |
| One-sixth-size pans per drawer | 6 |
| Total one-sixth-size pan positions | 12 |
| Electrical supply | 115V, 60 Hz, single phase |
| Attached plug | NEMA 5-15P |
| Full-load current | 7.2 A |
| Refrigerant | R-290 |
| Exterior finish | stainless steel top, back, front, & sides |
Installation and Purchasing Considerations
- Allocate a 27-inch cabinet width and check the factory drawing for overall depth, height, and the chosen caster or leg package before fabricating an opening.
- Provide 115V, 60 Hz, single-phase power and a receptacle suitable for the attached NEMA 5-15P plug. Published full-load current is 7.2 amps. Verify the unit data plate and installation instructions.
- Keep enough space ahead of the cabinet for drawers to extend fully and for staff to remove loaded pans.
- Keep the front ventilation opening clear and retain access for condenser cleaning. The refrigeration system is self-contained, so a separate remote condensing unit is not required.
Choosing This Configuration
Choose this 2-drawer configuration when pan-based ingredient organization is the priority. A door version of the same width uses shelves and has a different interior arrangement; its published cabinet capacity should not be substituted for this model’s 6.79 cu. ft. rating.
The -SB configuration is identified by the supplier as having stainless steel top, front, sides, and back.
Confirm optional legs, casters, and the pan package on the order. Options listed for the UHT family are not automatically included in this exact drawer configuration.
Frequently Asked Questions
How many pans fit the UHT27-D-SB?
The published arrangement accommodates 6 one-sixth-size pans per drawer and 12 across 2 drawers. Verify pan dimensions and any included pan package before ordering.
Does it need a remote condensing unit?
No. The UHT27-D-SB has rear-mounted, front-breathing, self-contained refrigeration.
What electrical connection is required?
The selected manufacturer sheet lists 115V, 60 Hz, single-phase power, an attached NEMA 5-15P plug, and 7.2 full-load amps. Confirm the data plate before connection.
Is this a top-pan prep table?
No. Ingredients are stored in enclosed drawers. A top pan rail and cutting board are not established as part of this model.
