Description

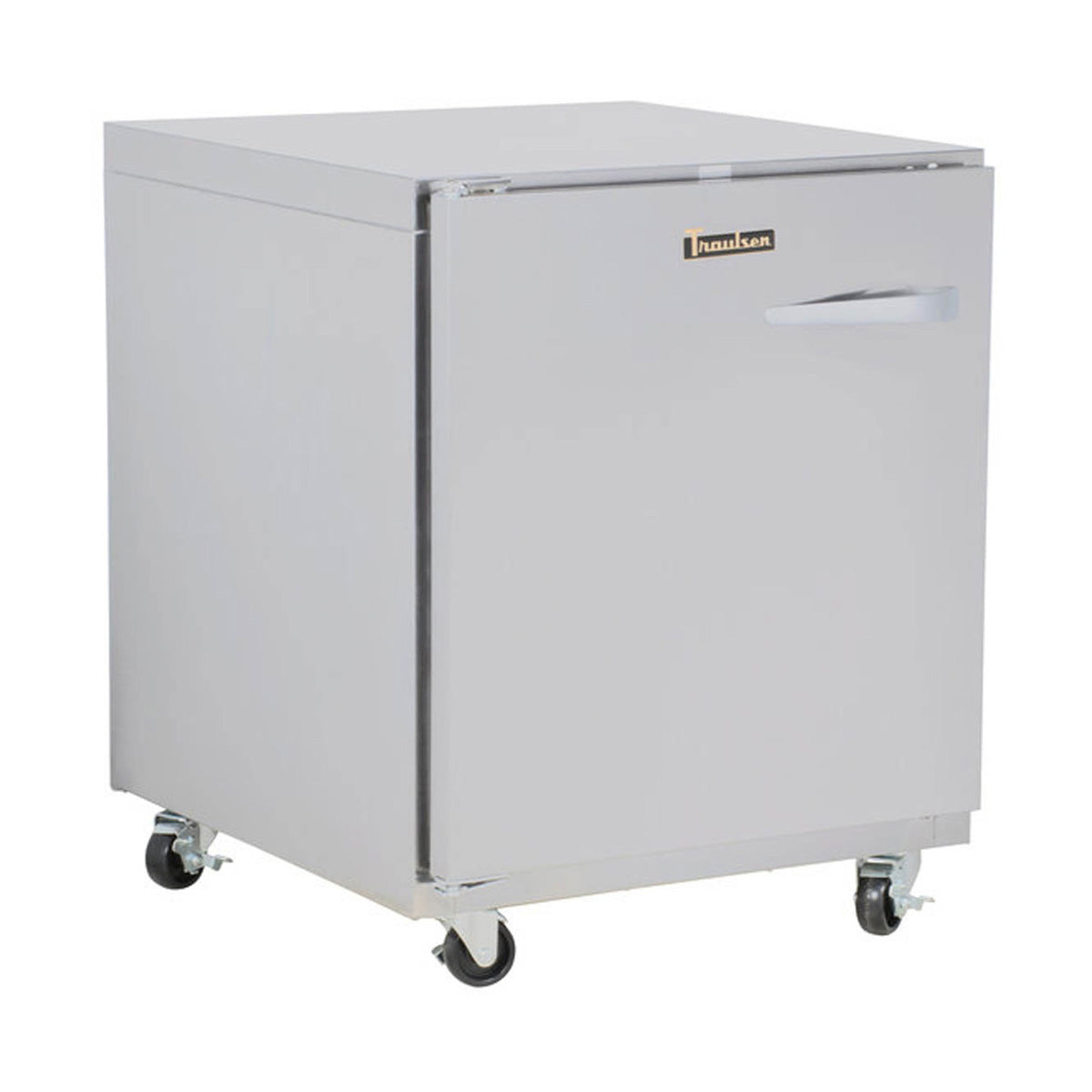

The Traulsen UHT27-L is a 27-inch compact undercounter refrigerator with one solid, left-hinged door. Its 7.35 cu. ft. cabinet provides refrigerated storage below a work surface, with two adjustable powder-coated wire shelves for organizing ingredients, beverages, or backup product.
This self-contained refrigerator uses a rear-mounted, front-breathing refrigeration system and electronic digital control. The door self-closes and stays open at 105 degrees for loading. It is designed for refrigerator operation at 34 to 38 degrees F, not frozen storage.
Applications and Workflow
Use the Traulsen UHT27-L at prep stations, bar service areas, cafes, or other commercial work zones that need compact refrigerated cabinet storage. Its left-hinged solid door should be selected only where the door swing suits the surrounding aisle, wall, and equipment layout. This model is a refrigerator, not a freezer.
Features and Practical Benefits
Left-hinged solid-door layout
The single solid door is left hinged, allowing the door swing to be planned around nearby counters and traffic paths.
Compact refrigerated capacity

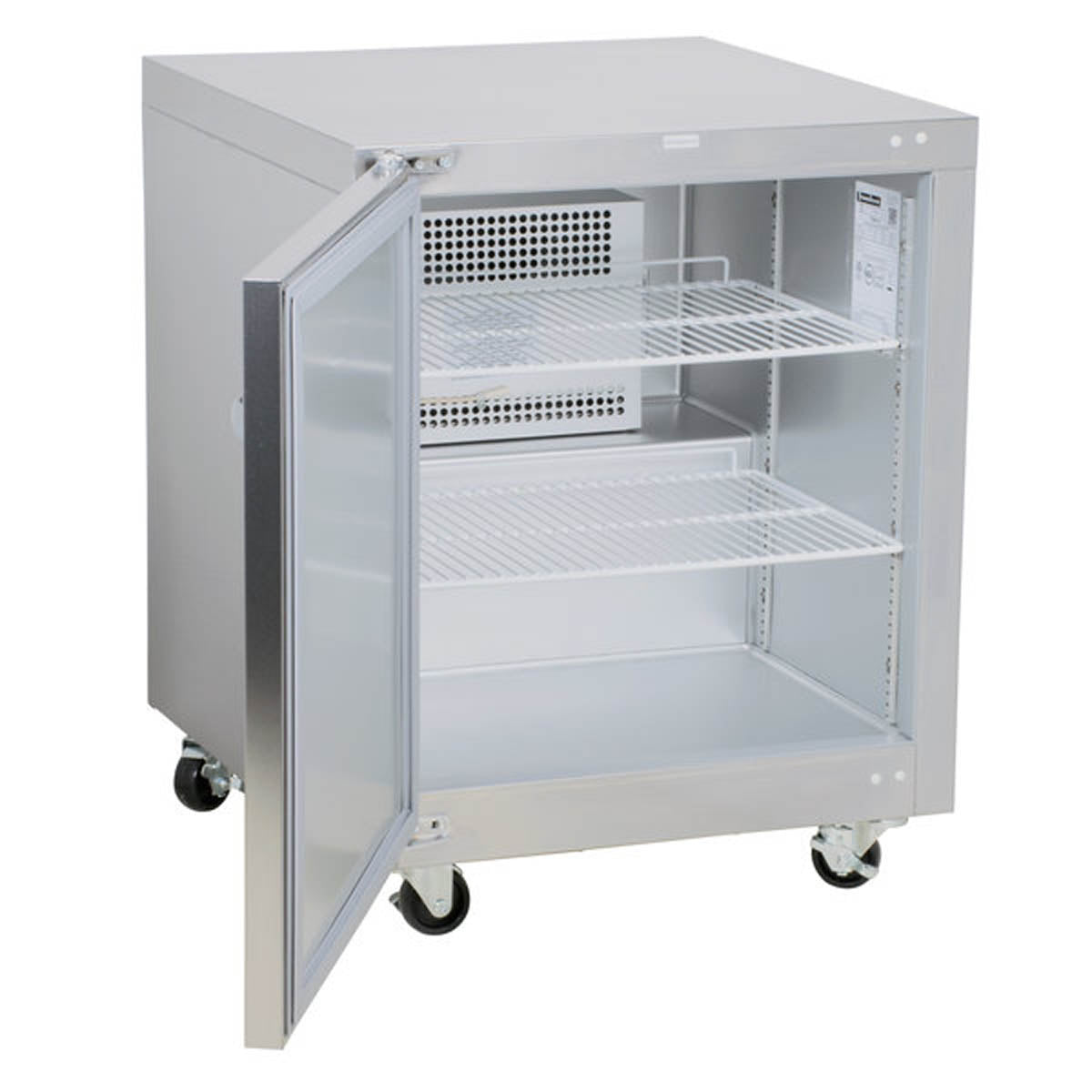

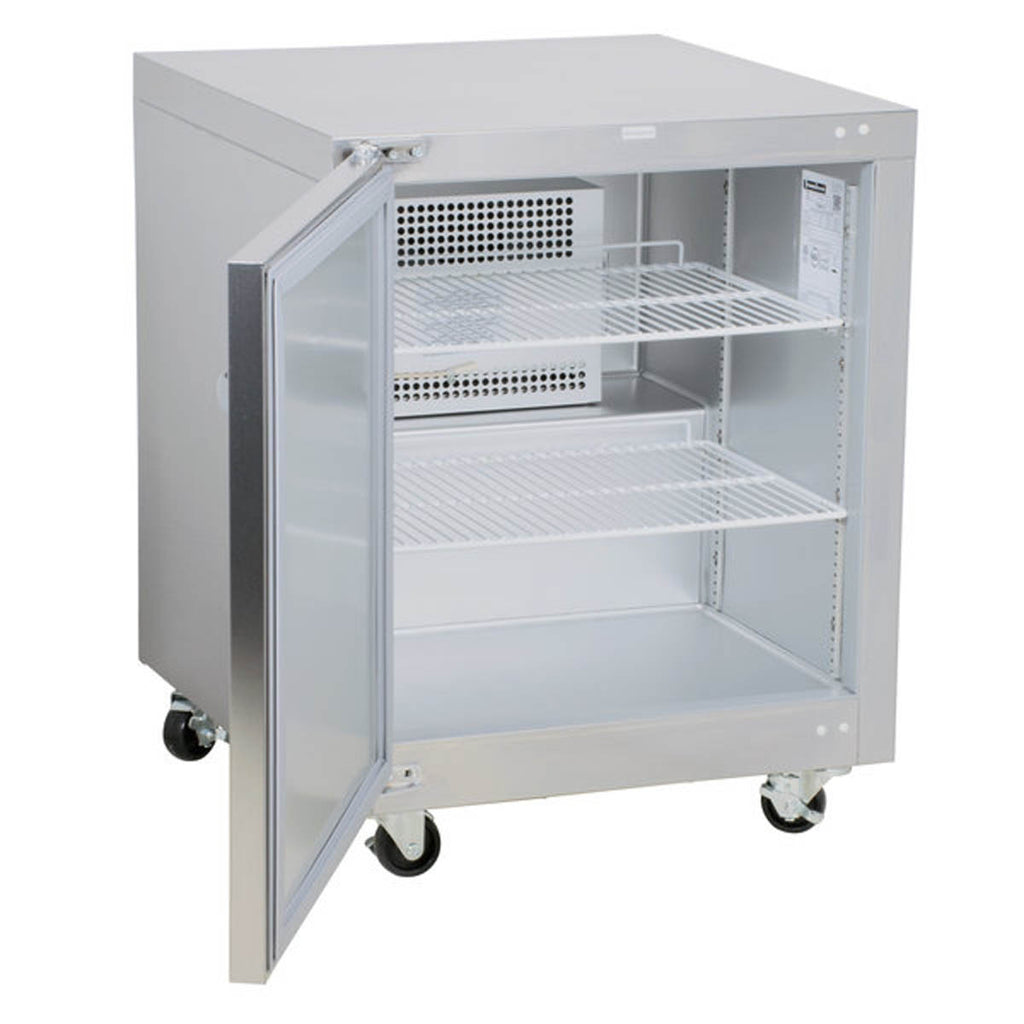

The 27-inch-wide cabinet provides 7.35 cu. ft. of net capacity with two standard powder-coated wire shelves.
Front-breathing self-contained cooling
The rear-mounted, self-contained refrigeration system breathes from the front, so no remote condenser connection is required.
Loading-friendly door operation
The door self-closes when released and can stay open at 105 degrees during loading or unloading.
Digital cabinet control
An electronic digital control supports monitoring of the stated 34 to 38 degrees F refrigerator operating range.
Technical Specifications
| Manufacturer model | UHT27-L |
|---|---|
| Door configuration | One solid door, left hinged |
| Net capacity | 7.35 cu. ft. (208 L) |
| Overall width | 27 in. (69 cm) |
| Overall depth | 31 15/16 in. (81.1 cm) |
| Overall height on 4 in. casters | 33 5/8 in. (85.4 cm) |
| Depth with door open 90 degrees | 55 3/8 in. (140.7 cm) |
| Clear door width | 25 13/16 in. (65.6 cm) |
| Clear door height | 27 1/16 in. (68.7 cm) |
| Number of shelves | 2 |
| Electrical rating | 115/60/1 |
| Full-load amperage | 7.2 A |
| Plug | NEMA 5-15P attached |
| Refrigerant | R-290 |
| Compressor rating | 1/5 HP |
| Standard operating temperature | 34 to 38 degrees F (1.1 to 3.3 degrees C) |
| Cord length | 8 ft. (2.4 m) |
| Standard casters | Four 4 in. casters |
Installation and Purchasing Considerations
- Allow a 27-inch-wide by 31 15/16-inch-deep footprint. Overall height is 33 5/8 inches on the included 4-inch casters.
- Plan for 55 3/8 inches of depth when the door is open 90 degrees. Confirm the left-side door swing will not obstruct an aisle, wall, or adjacent equipment.
- Connect to 115/60/1 power using the attached NEMA 5-15P plug. An 8-foot cord is provided.
- This is a self-contained, front-breathing refrigerator. It does not require a remote condenser connection; keep the front airflow path accessible.
Choosing This Configuration
This exact UHT27-L configuration has one solid, left-hinged door. The UHT27-R is a separate right-hinged configuration.
Two shelves are standard. Additional shelves, alternate casters, and legs are accessories and are not assumed to be included.
A stainless steel finished back is a factory-installed option identified by an -SB suffix; the base UHT27-L does not have that suffix.
Frequently Asked Questions
Which way does the UHT27-L door hinge?
Its single solid door is left hinged. Account for the left-side swing and the 90-degree open-door depth when planning the installation.
What electrical connection does this refrigerator require?
It is rated 115/60/1 and has an attached NEMA 5-15P plug on an 8-foot cord.
How much storage does the UHT27-L provide?
It has 7.35 cu. ft. of net capacity and includes two powder-coated wire shelves.
Can the UHT27-L be used as a freezer?
No. It is a refrigerator with a stated standard operating temperature of 34 to 38 degrees F.
