Description

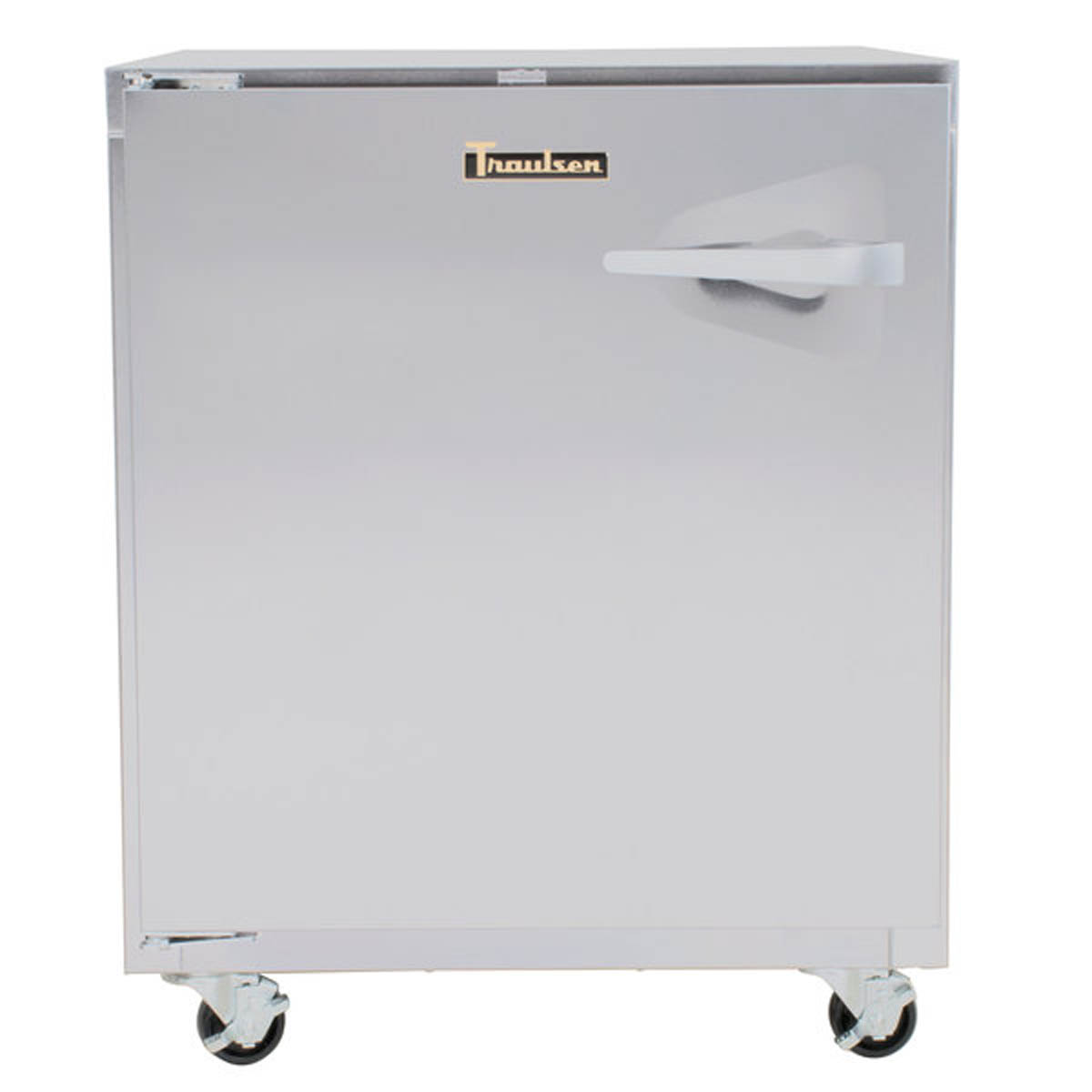

The Traulsen UHT27-L-SB is a compact 27-inch undercounter refrigerator with one left-hinged solid door and 7.35 cu. ft. of refrigerated cabinet capacity. Its self-contained, front-breathing refrigeration system is designed for placement under a work counter where a compact refrigerated ingredient or backup-storage station is needed.
This configuration includes a stainless steel finished back, identified by the -SB suffix. Inside, two adjustable powder-coated wire shelves provide organized storage, while the electronic digital control and LED display provide a clear temperature readout. The door self-closes and can remain open at 105 degrees during loading or cleaning.
Applications and Workflow
Suitable for commercial prep lines, bars, cafés, deli stations, and other foodservice work areas needing compact refrigerated storage beneath a counter. This is a refrigerator, not a freezer, with a stated operating range of 34 to 38 degrees F. The left-hinged door needs clear swing space in front of the cabinet.
Features and Practical Benefits
Front-breathing refrigeration
The self-contained refrigeration system breathes from the front, supporting zero-clearance installation at the sides and rear where permitted by the site layout.
Left-hinged solid-door access
A single solid door hinged on the left self-closes when released and has a 105-degree stay-open position for restocking and interior access.

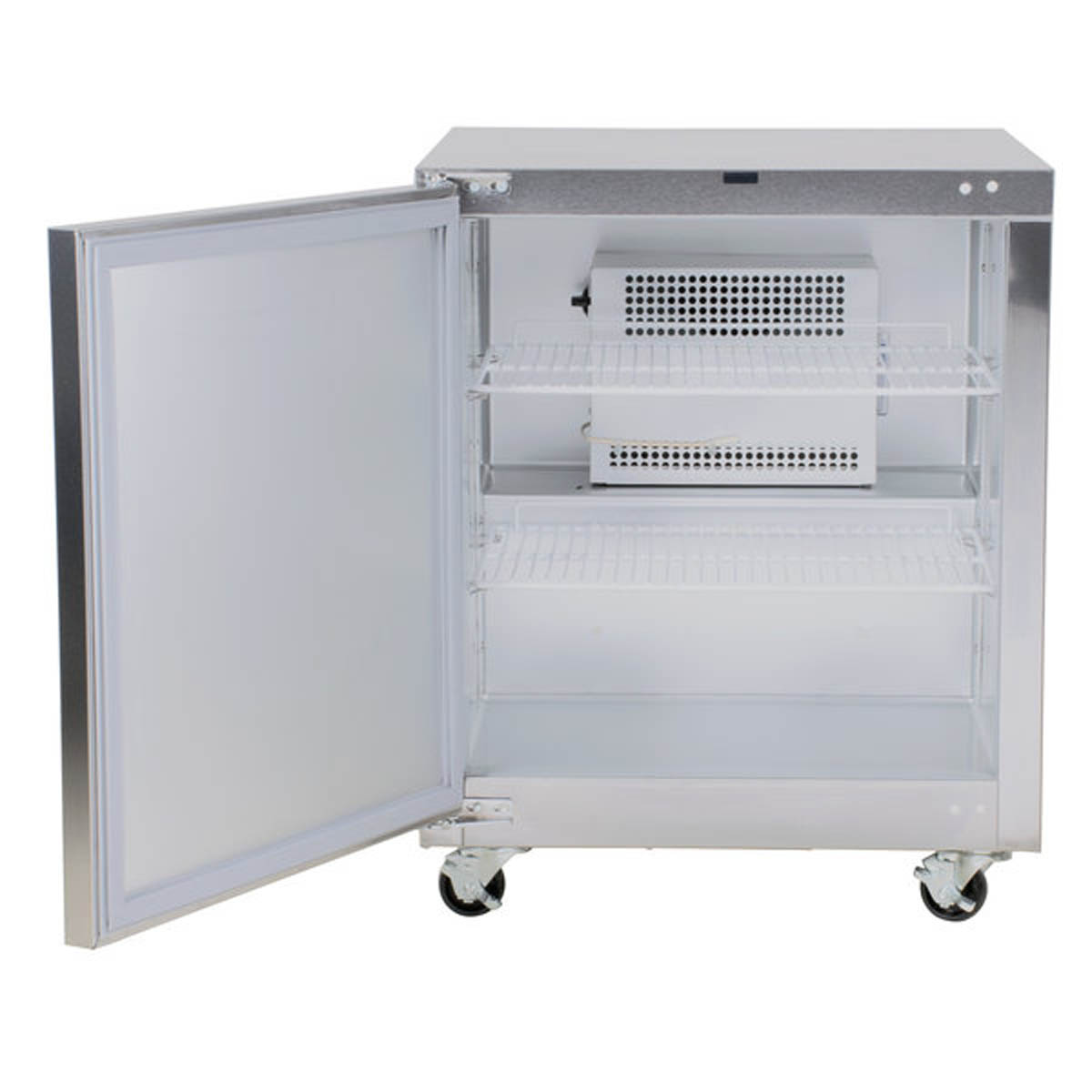

Organized adjustable storage
Two powder-coated wire shelves are supplied and mount on pilasters with 1/2-inch adjustment increments.

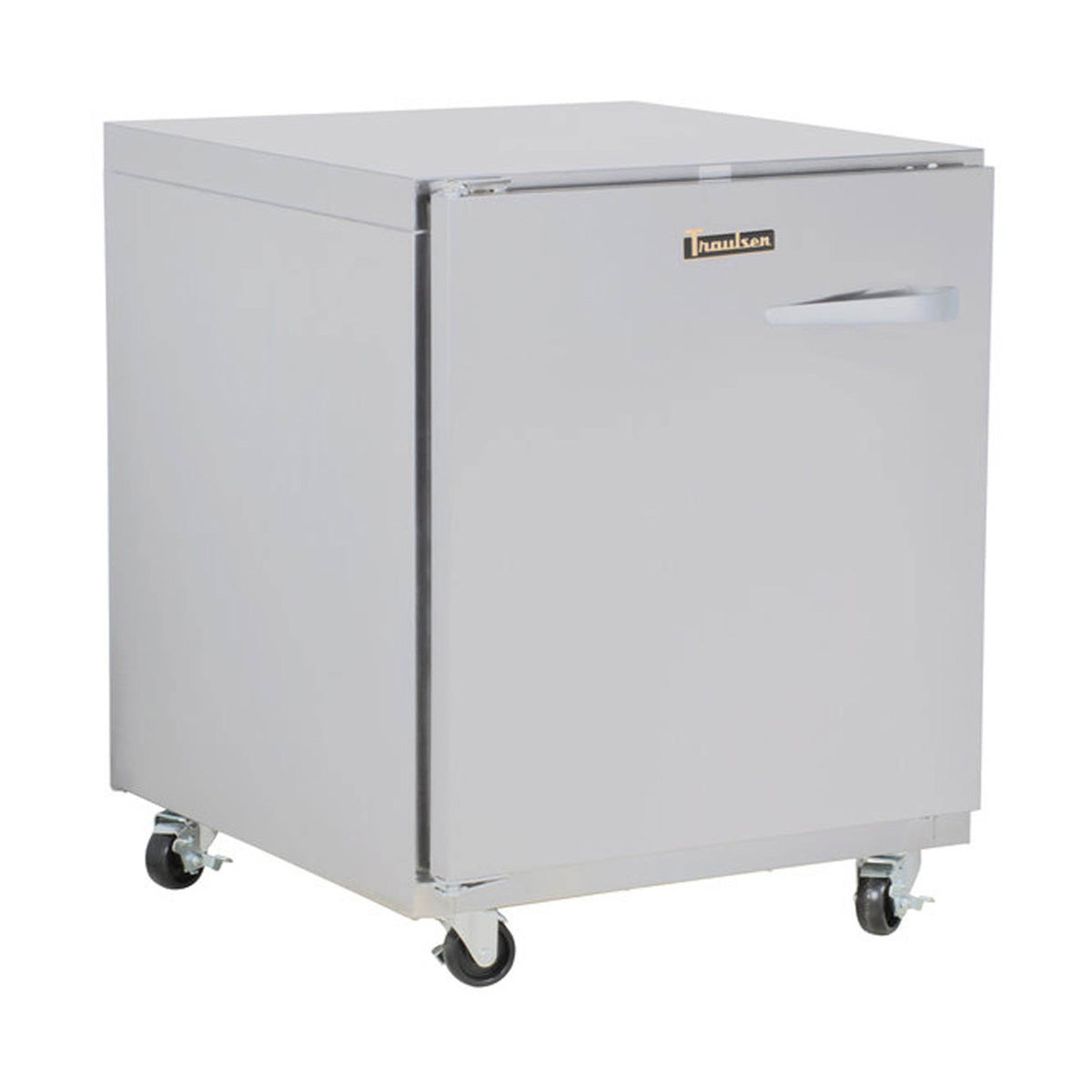

Compact stainless steel work-area footprint
The 27-inch-wide cabinet has stainless steel exterior front, sides, top, and door, plus the factory-installed stainless steel finished back indicated by the -SB suffix.
Digital cabinet control
An electronic digital control with a three-digit LED display supports visible temperature monitoring in Fahrenheit or Celsius.
Technical Specifications
| Manufacturer model | UHT27-L-SB |
|---|---|
| Cabinet type | Compact undercounter refrigerator, self-contained, solid door |
| Door configuration | One solid door, left hinged |
| Stainless steel finished back | Yes, factory installed |
| Net capacity | 7.35 cu. ft. (208 L) |
| Overall width | 27 in. (69 cm) |
| Overall depth | 31 15/16 in. (81.1 cm) |
| Overall height on supplied casters | 33 5/8 in. (85.4 cm) |
| Depth with door open 90 degrees | 55 3/8 in. (140.7 cm) |
| Clear door width | 25 13/16 in. (65.6 cm) |
| Clear door height | 27 1/16 in. (68.7 cm) |
| Number of shelves | 2 |
| Refrigerant | R-290 |
| Standard operating temperature | 34 to 38 degrees F (1.1 to 3.3 degrees C) |
| Electrical supply | 115/60/1 |
| Full-load amperage | 7.2 A |
| Plug | NEMA 5-15P attached |
| Cord length | 8 ft. (2.4 m) |
| Standard casters | Four 4 in. casters |
Installation and Purchasing Considerations
- Allow a 27-inch-wide by 31 15/16-inch-deep footprint; overall height is 33 5/8 inches on the supplied 4-inch casters.
- Plan front clearance for the left-hinged door. Cabinet depth with the door open 90 degrees is 55 3/8 inches.
- The front-breathing refrigeration system supports zero-clearance installation; keep the front air path accessible and do not block it with equipment or cabinetry.
- Connect the attached 8-foot cord with NEMA 5-15P plug to a 115/60/1 electrical supply. The listed full-load amperage is 7.2 A.
- Four 4-inch casters are standard. Confirm finished counter height and whether the supplied casters suit the planned work surface before installation.
Choosing This Configuration
UHT27-L-SB is the left-hinged, one-solid-door refrigerator configuration; it is not the right-hinged UHT27-R or a drawer cabinet.
The -SB suffix denotes the factory-installed stainless steel finished back.
Two wire shelves are standard. Additional shelves, alternate casters, legs, and a stainless steel top with backsplash are separate options rather than standard included equipment.
Frequently Asked Questions
What does the -SB suffix mean on the UHT27-L-SB?
The -SB suffix identifies the factory-installed stainless steel finished back. The underlying UHT27-L configuration is a left-hinged, one-solid-door compact undercounter refrigerator.
What electrical connection does this refrigerator use?
It operates on 115/60/1 power, draws 7.2 full-load amps, and is supplied with an 8-foot cord and NEMA 5-15P plug.
How much room is needed when the door is open?
With the door open 90 degrees, the unit measures 55 3/8 inches deep. Account for this swing area in front of the left-hinged door.
What storage is included inside?
The refrigerator includes two powder-coated wire shelves. They are adjustable on pilasters in 1/2-inch increments.
