Description

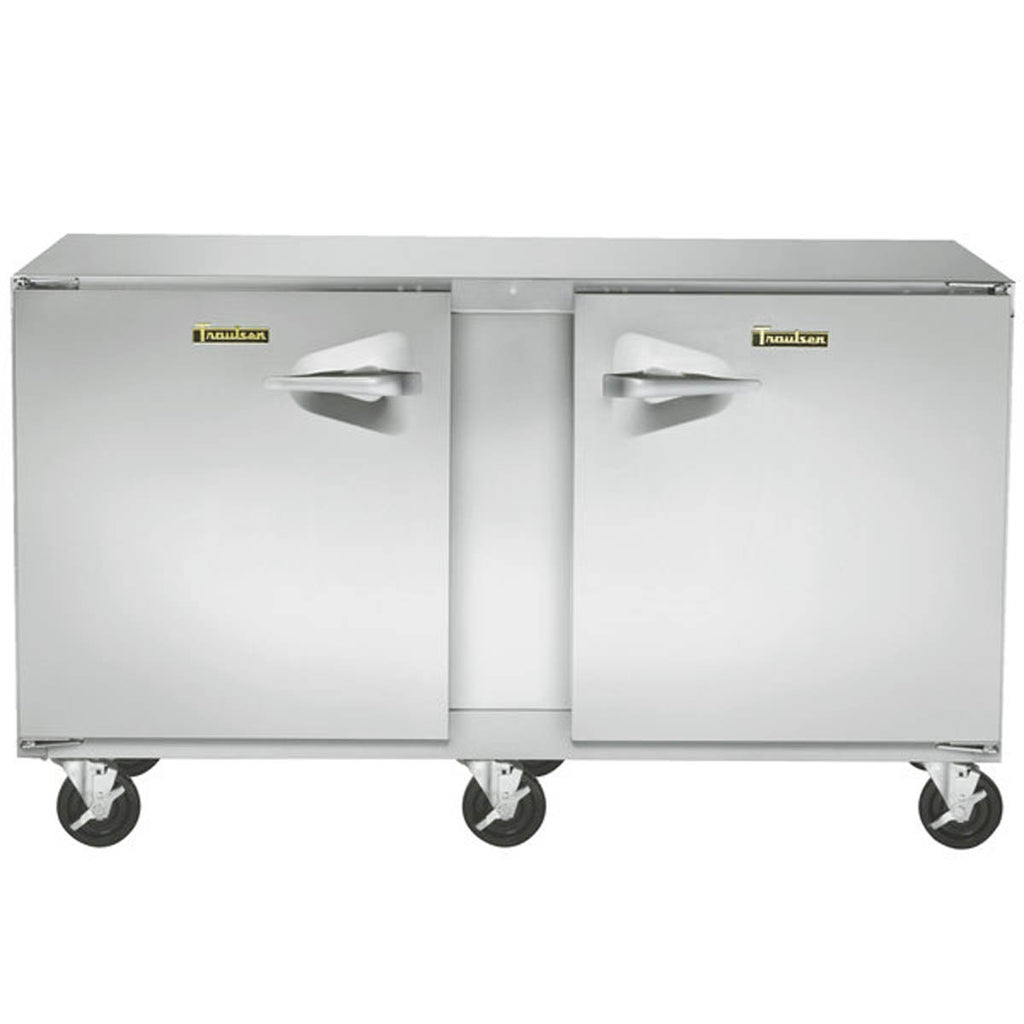

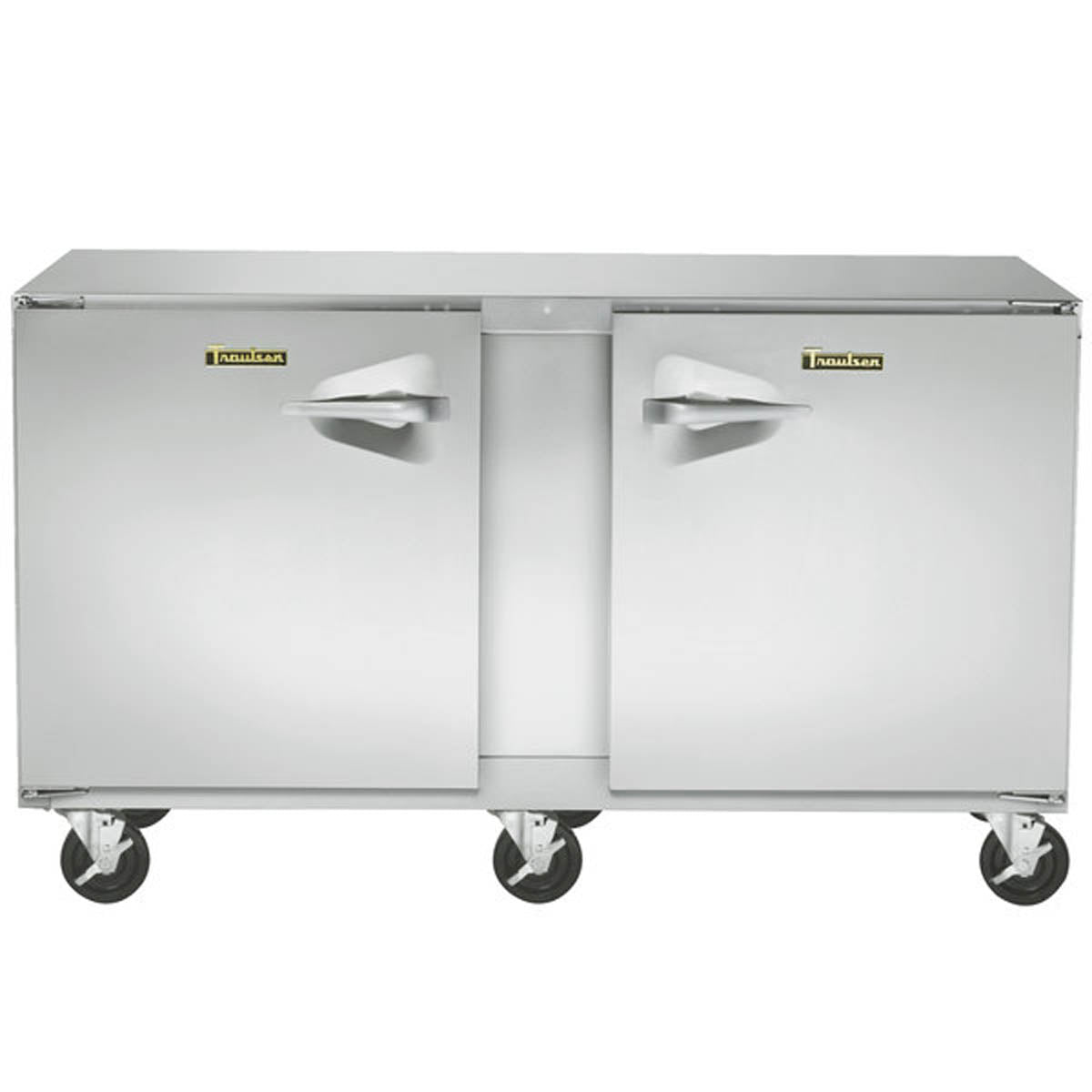

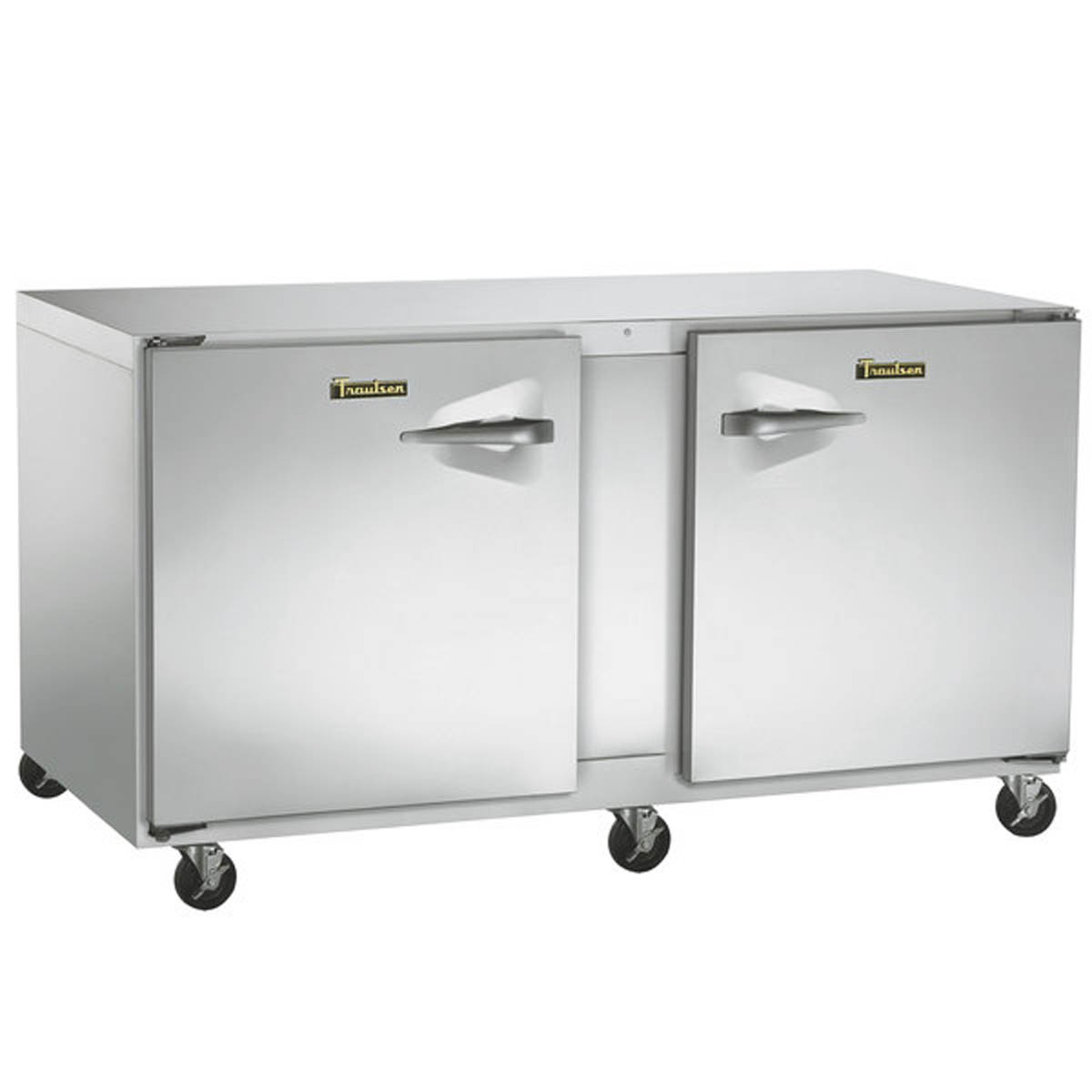

The Traulsen UHT60-LR is a 60-inch self-contained undercounter refrigerator designed to add refrigerated product storage beneath a work surface. Its front-breathing refrigeration system and electronic digital control support placement in a compact commercial kitchen layout while keeping ingredients accessible at the station.

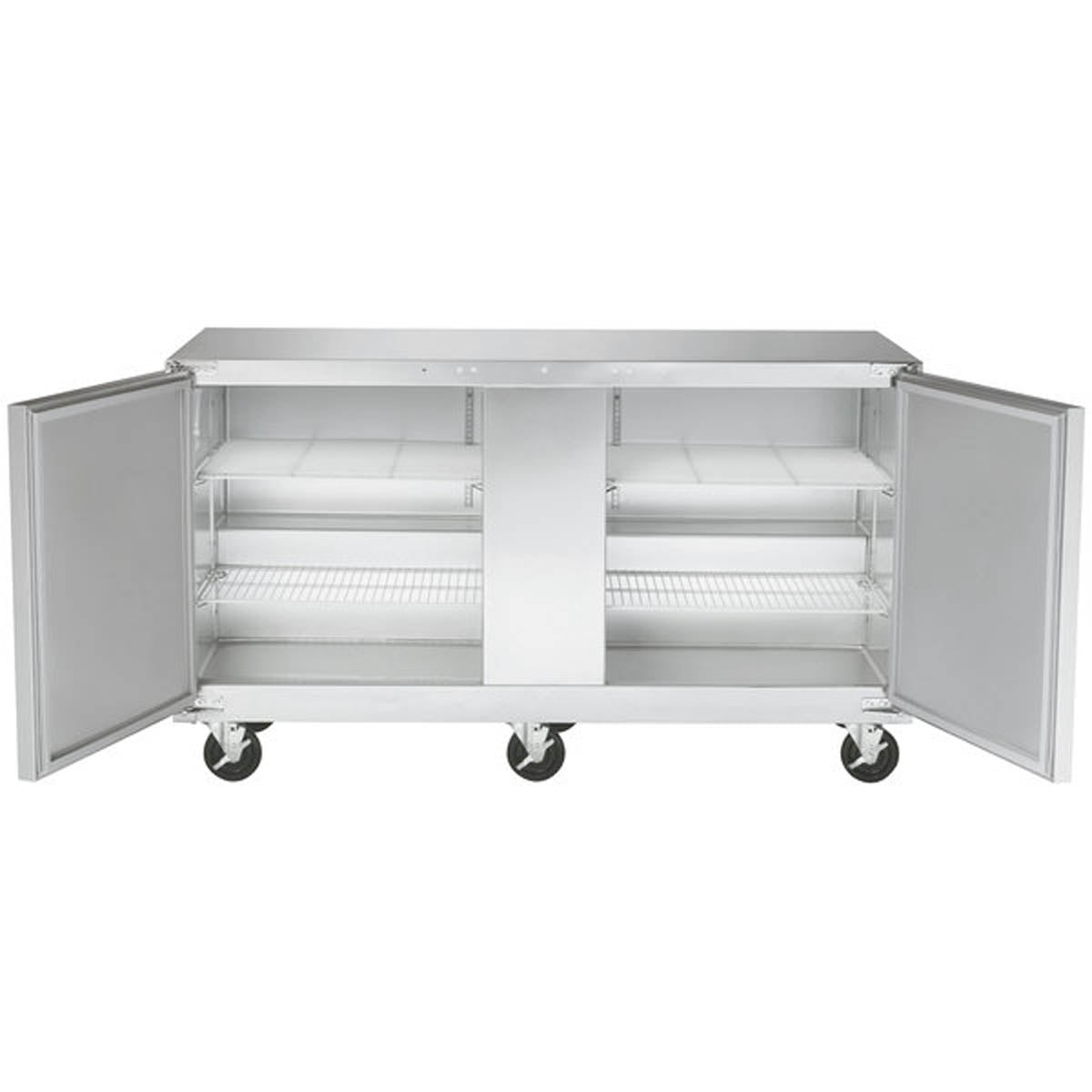

This exact UHT60-LR configuration has two solid doors with left/right hinging, 16.7 cu. ft. of net capacity, and four powder-coated wire shelves. Each door is self-closing and can remain open at 105 degrees for loading, prep, and cleaning access.
Applications and Workflow
Suitable for refrigerated ingredient storage at prep lines, cook lines, sandwich stations, bar support areas, and other commercial work areas needing a 60-inch undercounter cabinet. This is a refrigerator model with a 34 to 38°F operating range; it is not a freezer or a drawer configuration.
Features and Practical Benefits
Left/right solid-door layout
The UHT60-LR has two solid doors, with one left-hinged and one right-hinged, for a center-opening layout across the 60-inch cabinet.
Front-breathing self-contained refrigeration
The rear-mounted, self-contained refrigeration system breathes from the front, helping the cabinet fit under work counters without rear condenser clearance requirements stated for this model.
Organized shelf storage

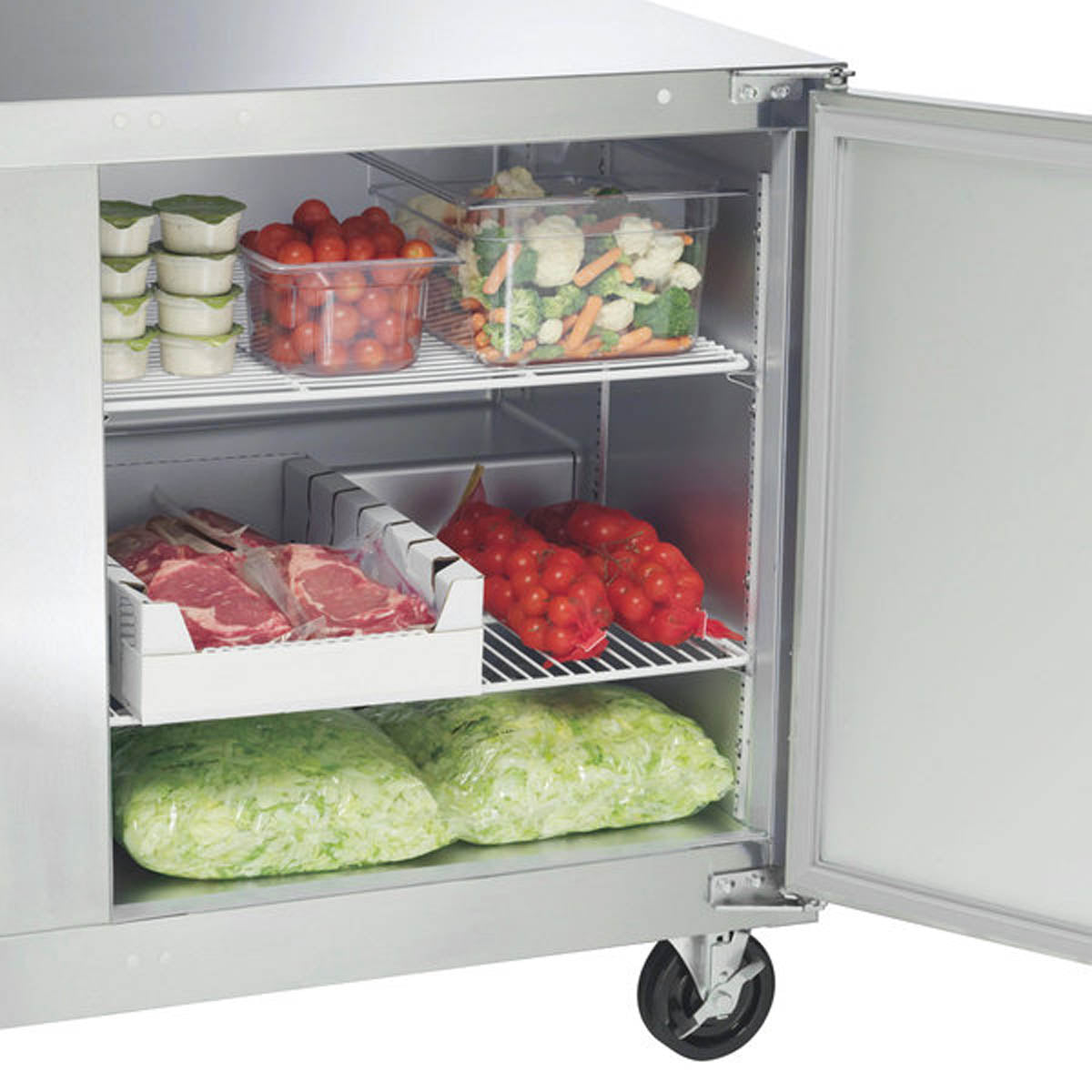

Four powder-coated shelves are supplied—two per door—and mount on pilasters for adjustable interior organization.
Practical door access
Doors self-close below 90 degrees and stay open at 105 degrees, supporting hands-free loading while helping avoid doors being left open during normal use.
Serviceable cabinet details
Stainless steel covers the exterior top, sides, and doors, while magnetic snap-in door gaskets are designed for removal during cleaning.
Technical Specifications
| Manufacturer model | UHT60-LR |
|---|---|
| Configuration | Two solid doors, left/right hinging |
| Net capacity | 16.7 cu. ft. (473 L) |
| Overall width | 60 in. (152 cm) |
| Overall depth | 32 in. (81.3 cm) |
| Overall height | 33 5/8 in. (85.4 cm) on 4 in. casters |
| Depth with doors open 90° | 55 3/8 in. (140.7 cm) |
| Clear door width | 25 13/16 in. (65.6 cm) |
| Clear door height | 27 1/16 in. (68.7 cm) |
| Number of doors | 2 |
| Number of shelves | 4 |
| Electrical requirements | 115/60/1 |
| Full-load amps | 7.2 A |
| Energy use | 1.2 kWh/24 hr |
| Plug | NEMA 5-15P attached |
| Refrigerant | R-290 |
| Refrigerant charge | 5 oz. (142 g) |
| Compressor capacity | 1/5 HP |
| Operating temperature | 34 to 38°F (1.1 to 3.3°C) |
| Cord length | 8 ft. (2.4 m) |
| Casters | Six 4 in. casters |
Installation and Purchasing Considerations
- Plan a 60-inch-wide by 32-inch-deep footprint. Overall height is 33 5/8 inches when supplied 4-inch casters are installed.
- Allow for door swing: the cabinet measures 55 3/8 inches deep with doors open 90 degrees. Each clear door opening is 25 13/16 inches wide by 27 1/16 inches high.
- Connect to a 115V, single-phase, 60 Hz electrical supply. The unit includes an 8-foot cord with a NEMA 5-15P plug; verify the nearby receptacle before delivery.
- The front-breathing, self-contained refrigeration system is rear mounted. Keep the front airflow area usable and follow the manufacturer’s installation instructions for final placement and service access.
- Six 4-inch casters are supplied. Optional legs, alternate caster heights, extra shelves, and a backsplash worktop are separate accessories rather than standard equipment.
Choosing This Configuration
UHT60-LR specifically denotes two solid doors with left/right hinging. It is distinct from left/left and right/right hinge versions in the same 60-inch family.
This model is a door cabinet, not a drawer cabinet. It is a refrigerator with a stated 34 to 38°F operating range, not a freezer.
The standard exterior back and bottom are galvanized steel. A stainless steel finished back is identified as a factory-installed option on models carrying an “-SB” suffix, so it should not be assumed for UHT60-LR.
Frequently Asked Questions
What door hinging does the UHT60-LR have?
It has two solid doors in a left/right arrangement: one left-hinged door and one right-hinged door.
How many shelves are included?
Four powder-coated shelves are included, with two shelves per door. They mount on pilasters and are adjustable.
What electrical connection does this refrigerator use?
It operates on 115/60/1 power and is equipped with an 8-foot cord and NEMA 5-15P plug.
How much clearance is needed when the doors are open?
With the doors open 90 degrees, overall depth is 55 3/8 inches. Account for this projection in aisle and workstation planning.
