Description

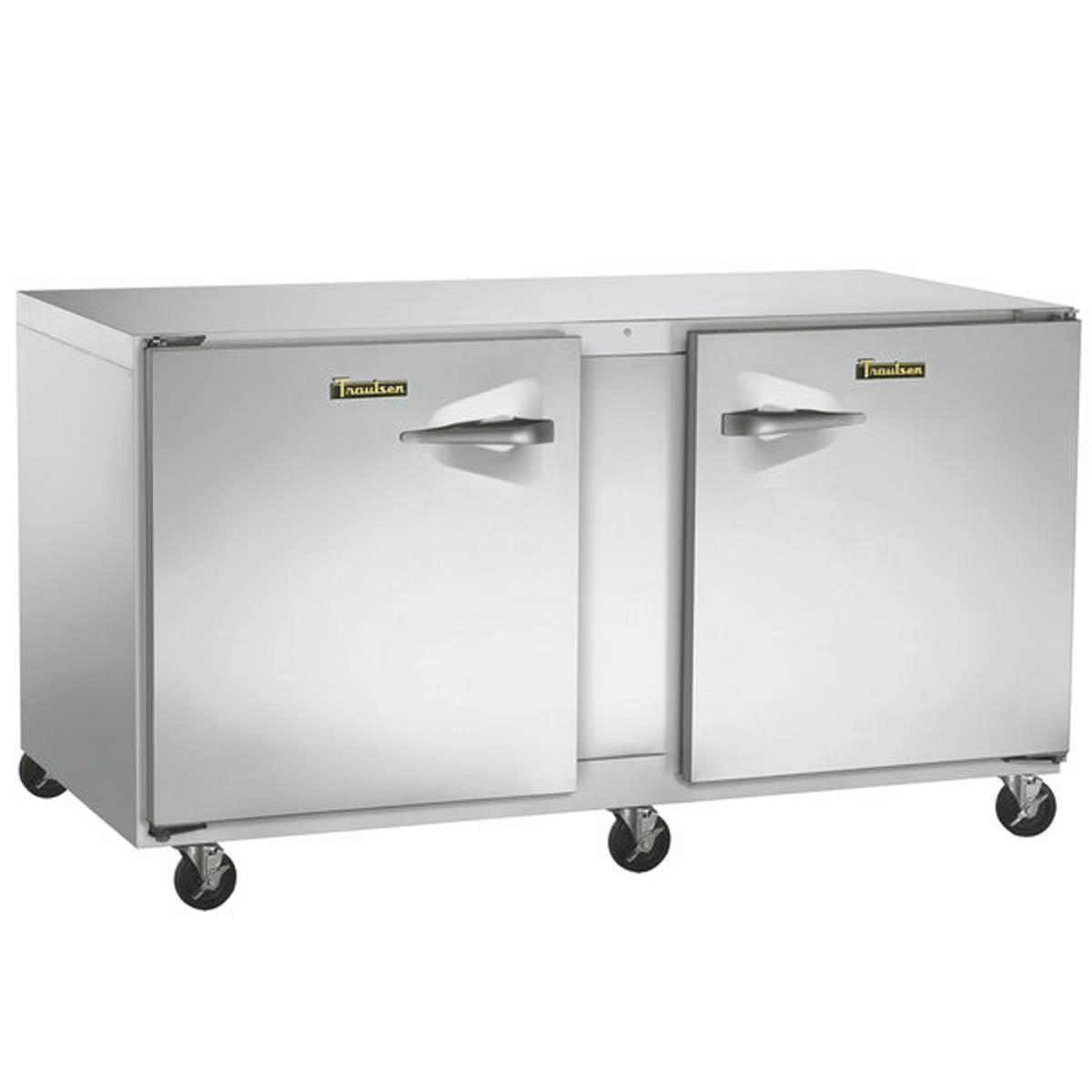

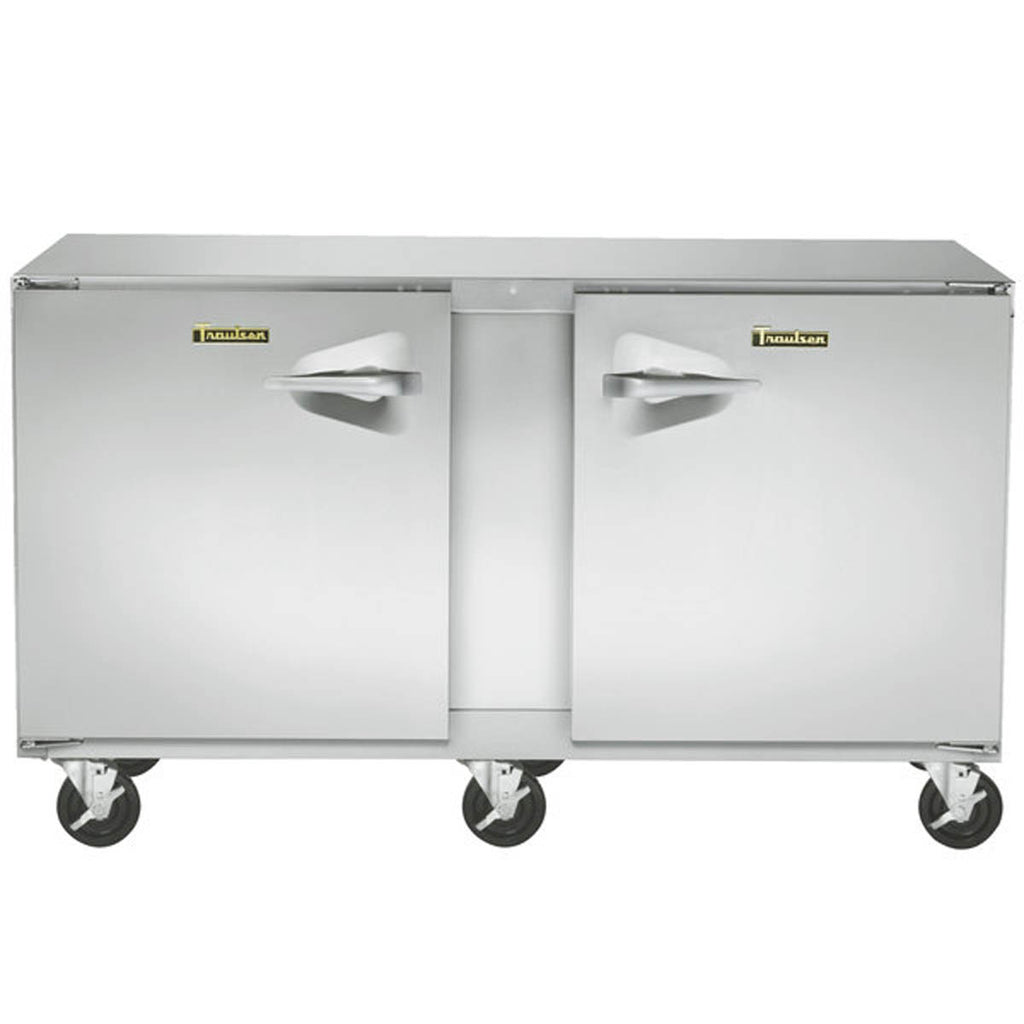

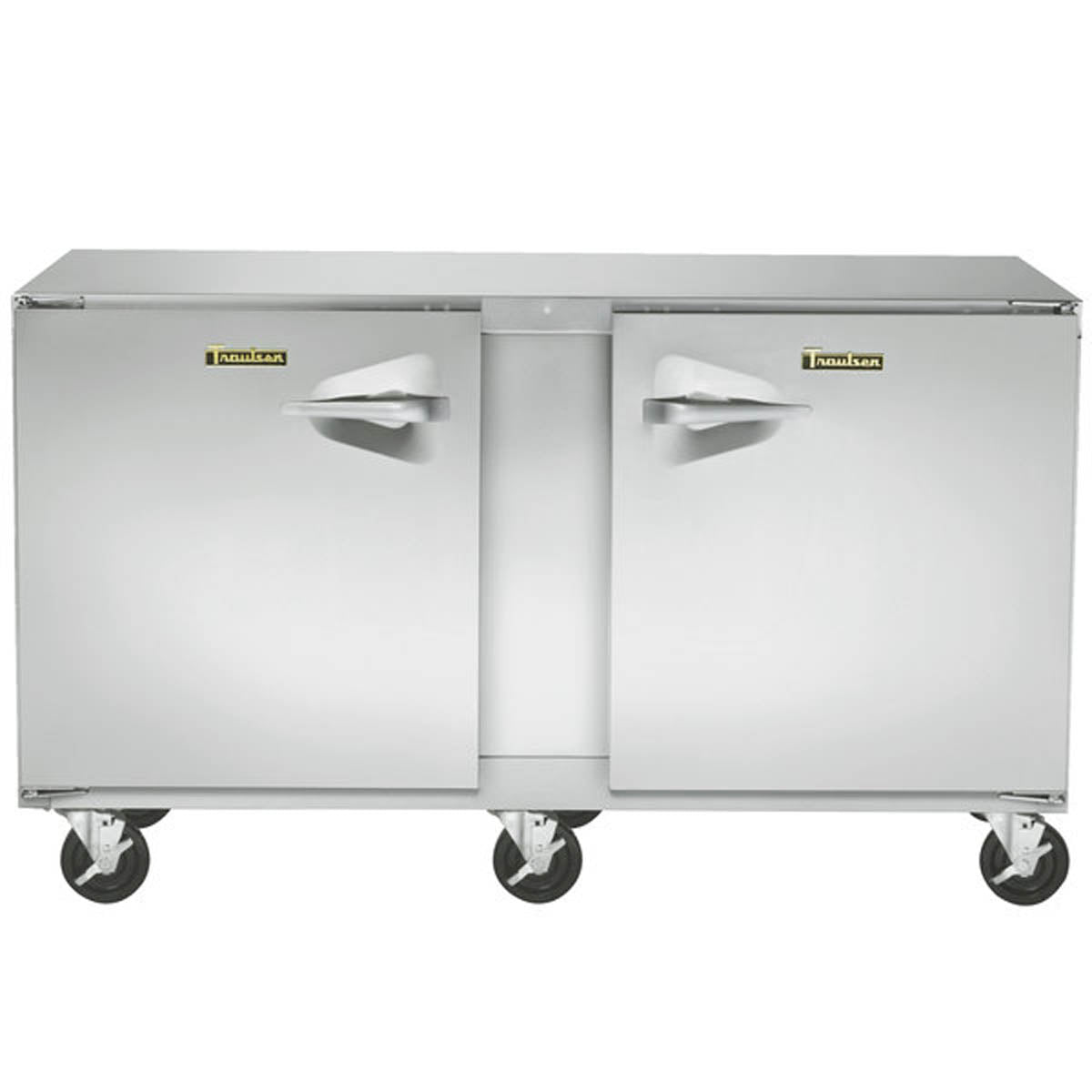

The Traulsen UHT60-LR-SB is a 60-inch compact undercounter refrigerator with two solid doors, left/right hinging, and a stainless steel finished back. Its front-breathing, self-contained refrigeration system allows the cabinet to fit into a counter-line workspace without requiring side or rear ventilation clearance for condenser airflow.
This two-section refrigerator provides 16.7 cu. ft. of refrigerated capacity and four adjustable powder-coated wire shelves, with two shelves behind each door. Self-closing doors stay open at 105 degrees for loading, while the electronic digital control supports the standard 34 to 38 degree F refrigerator operating range.
Applications and Workflow
Use this refrigerator beneath a prep counter, service counter, or cookline work surface where refrigerated ingredients need to remain close to the workstation. It is a refrigerator, not a freezer; select it for products intended for the 34 to 38 degree F operating range. Confirm that the 60-inch cabinet length, 32-inch depth, door-swing clearance, and 33 5/8-inch height on standard casters suit the planned location.
Features and Practical Benefits
Two-door access with left/right hinging
Two solid doors divide the cabinet into two accessible sections. The left/right hinge arrangement helps staff open each side independently, and each door has a stay-open position at 105 degrees for loading or shelf access.
Front-breathing refrigeration
The rear-mounted, self-contained refrigeration system breathes from the front, making the unit suited to tightly planned undercounter installations.

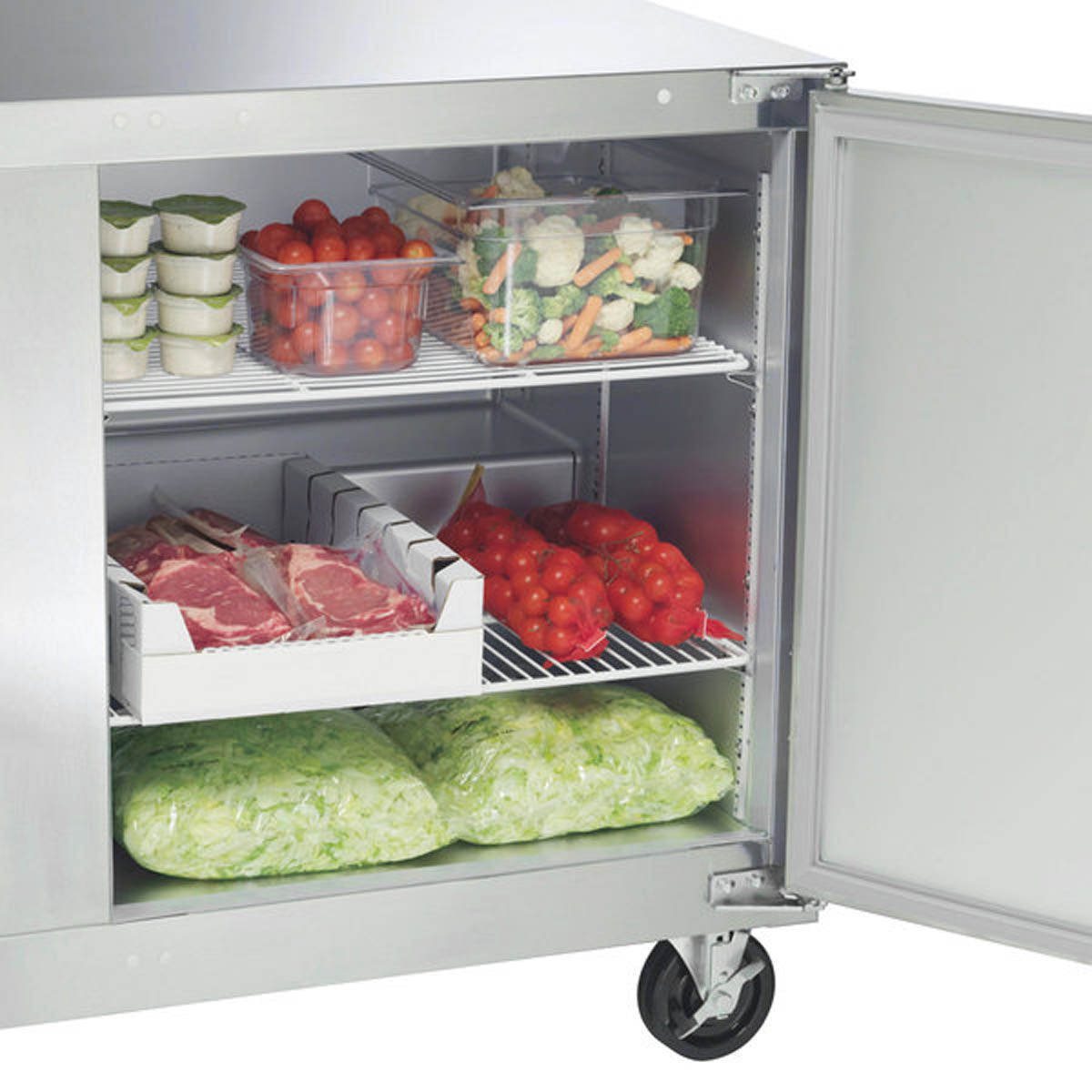

Organized adjustable storage

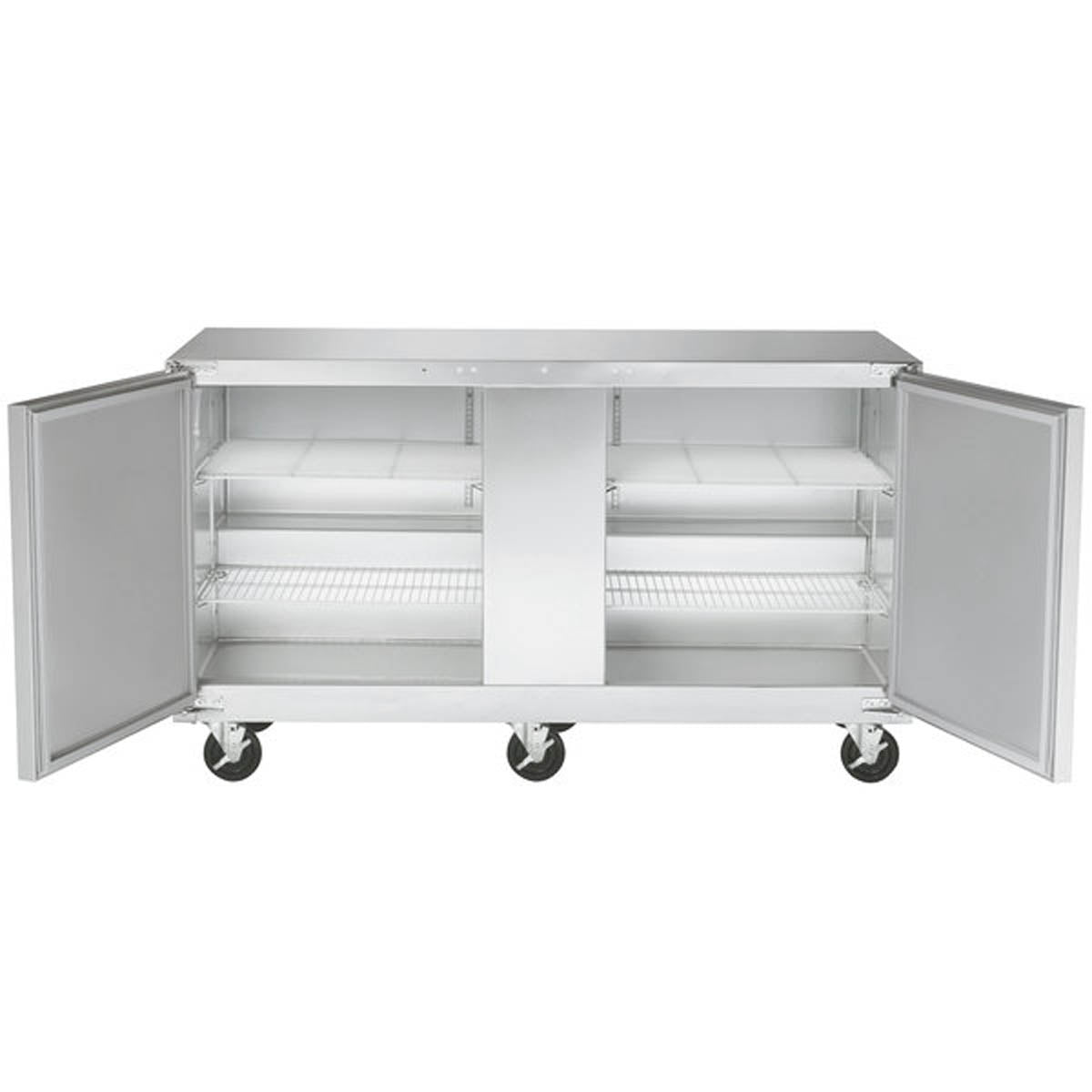

Four powder-coated wire shelves are standard, with two shelves per door on pilasters. Shelf positions adjust in 1/2-inch increments to accommodate changing product heights.
Serviceable cabinet details
An electronic digital controller, automatic non-electric condensate evaporator, and magnetic snap-in EZ-Clean door gaskets support everyday refrigerated storage workflows.
Stainless finished back
The -SB suffix identifies the stainless steel finished-back configuration, distinguishing this unit from the otherwise similar standard-back UHT60-LR.
Technical Specifications
| Manufacturer model | UHT60-LR-SB |
|---|---|
| Configuration | Two solid doors |
| Door hinging | Left/right |
| Finished back | Stainless steel |
| Net capacity | 16.7 cu. ft. (473 L) |
| Overall length | 60 in. (152 cm) |
| Overall depth | 32 in. (81.3 cm) |
| Depth with door open 90 degrees | 55 3/8 in. (140.7 cm) |
| Overall height on standard 4 in. casters | 33 5/8 in. (85.4 cm) |
| Clear door width | 25 13/16 in. (65.6 cm) |
| Clear door height | 27 1/16 in. (68.7 cm) |
| Shelf count | 4 |
| Electrical requirement | 115/60/1 |
| Plug type | NEMA 5-15P |
| Refrigerant | R-290 |
| Standard operating temperature | 34 to 38 degrees F (1.1 to 3.3 degrees C) |
| Standard casters | Six, 4 in. |
Installation and Purchasing Considerations
- Plan for a 60-inch overall cabinet length and 32-inch overall depth. Overall height is 33 5/8 inches when supplied with the standard 4-inch casters.
- Allow up to 55 3/8 inches of depth when either door is open 90 degrees. Each door opening has a 25 13/16-inch clear width and 27 1/16-inch clear height.
- The front-breathing, rear-mounted refrigeration system is self-contained. Keep the front airflow path accessible and do not obstruct the refrigeration intake or discharge area.
- Provide a 115/60/1 electrical supply for the attached NEMA 5-15P plug. The unit is supplied with an 8-foot cord.
- The standard configuration includes six 4-inch casters. Optional legs, alternate caster heights, extra shelves, and a backsplash worktop are separate accessories and should not be assumed included.
Choosing This Configuration
This exact UHT60-LR-SB configuration has two solid doors with left/right hinging and a stainless steel finished back.
The UHT60-LR without the -SB suffix is the comparable left/right-hinged version without the specified stainless finished-back option.
Left/left and right/right hinge arrangements are distinct configurations; verify the desired door swing before ordering.
This is a door model. Do not confuse it with drawer-style compact undercounter units.
Frequently Asked Questions
What does the -SB suffix mean on the UHT60-LR-SB?
The -SB suffix identifies the factory-installed stainless steel finished-back option.
How many shelves are included?
The standard interior arrangement includes four powder-coated wire shelves: two shelves behind each door. They mount on pilasters and are adjustable.
What electrical connection does this refrigerator use?
It operates on 115/60/1 power and is supplied with an attached NEMA 5-15P plug and 8-foot cord.
How much space is needed for an open door?
With a door open 90 degrees, the overall depth is 55 3/8 inches. Account for this aisle projection as well as access to the front-breathing refrigeration airflow.
