Description

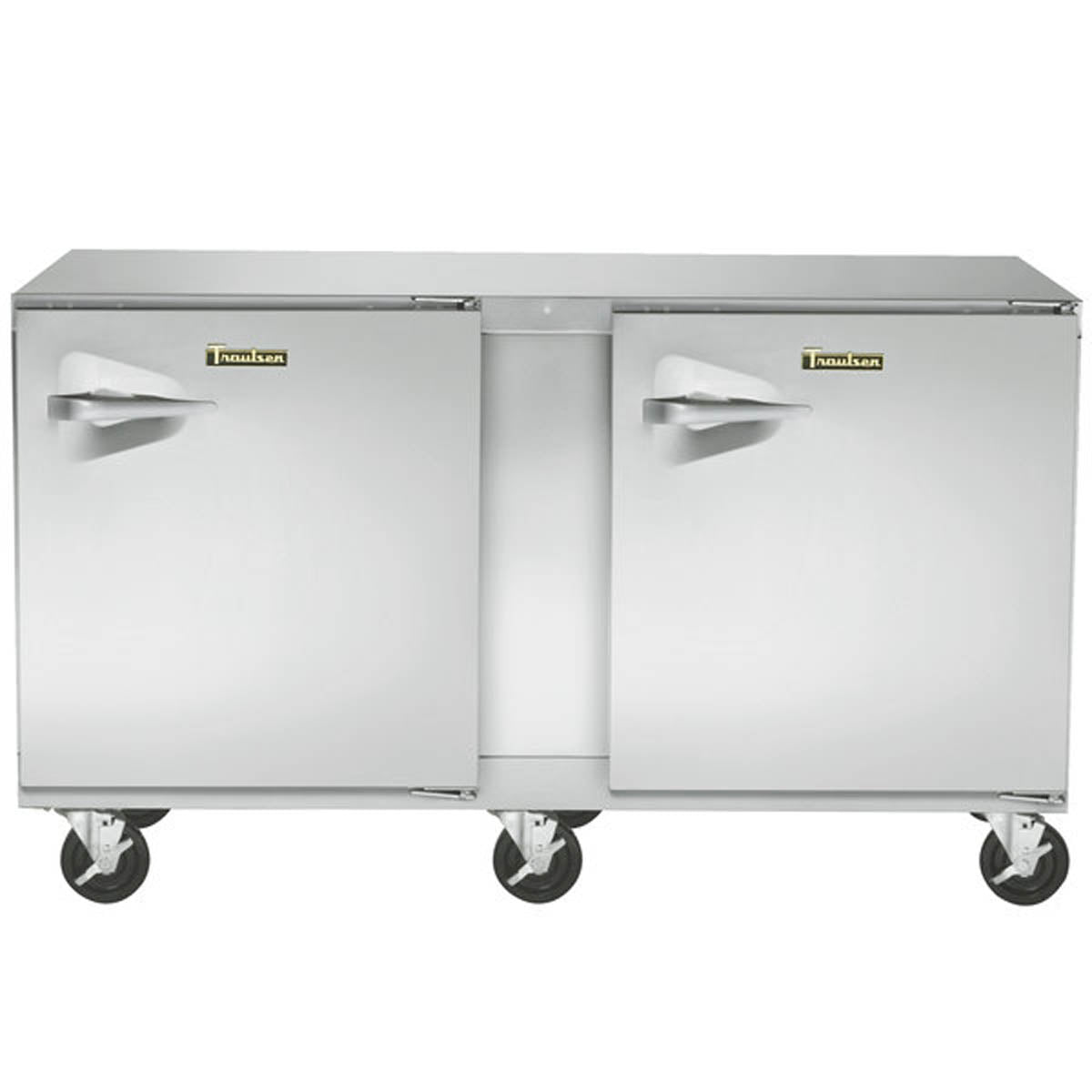

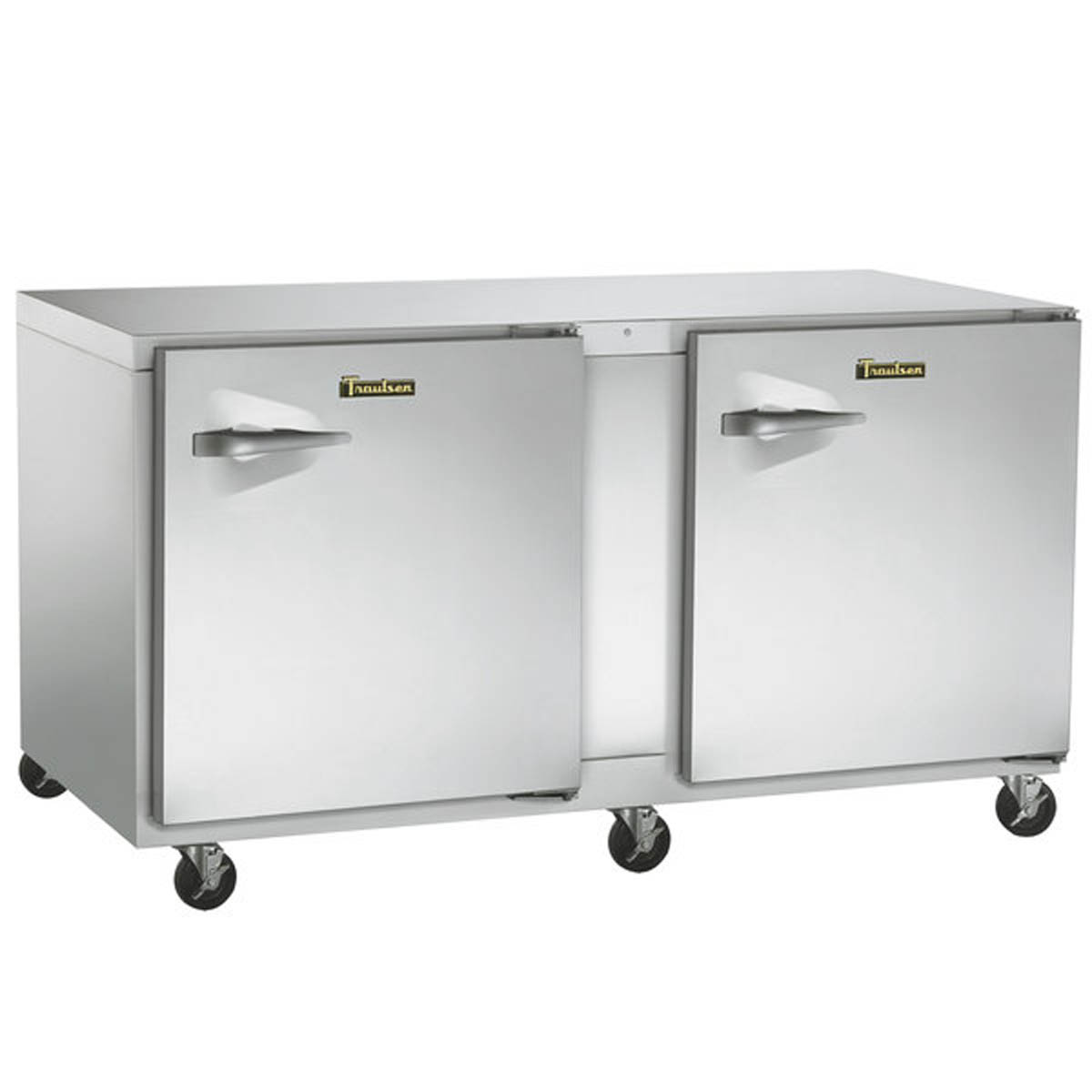

The Traulsen UHT60-RR is a 60 in. compact undercounter refrigerator with two solid doors, 16.7 cu. ft. of cabinet capacity, and a self-contained front-breathing refrigeration system. Its 34 to 38°F operating range suits refrigerated ingredient, beverage, and prepared-product storage at a prep line or under a work counter.

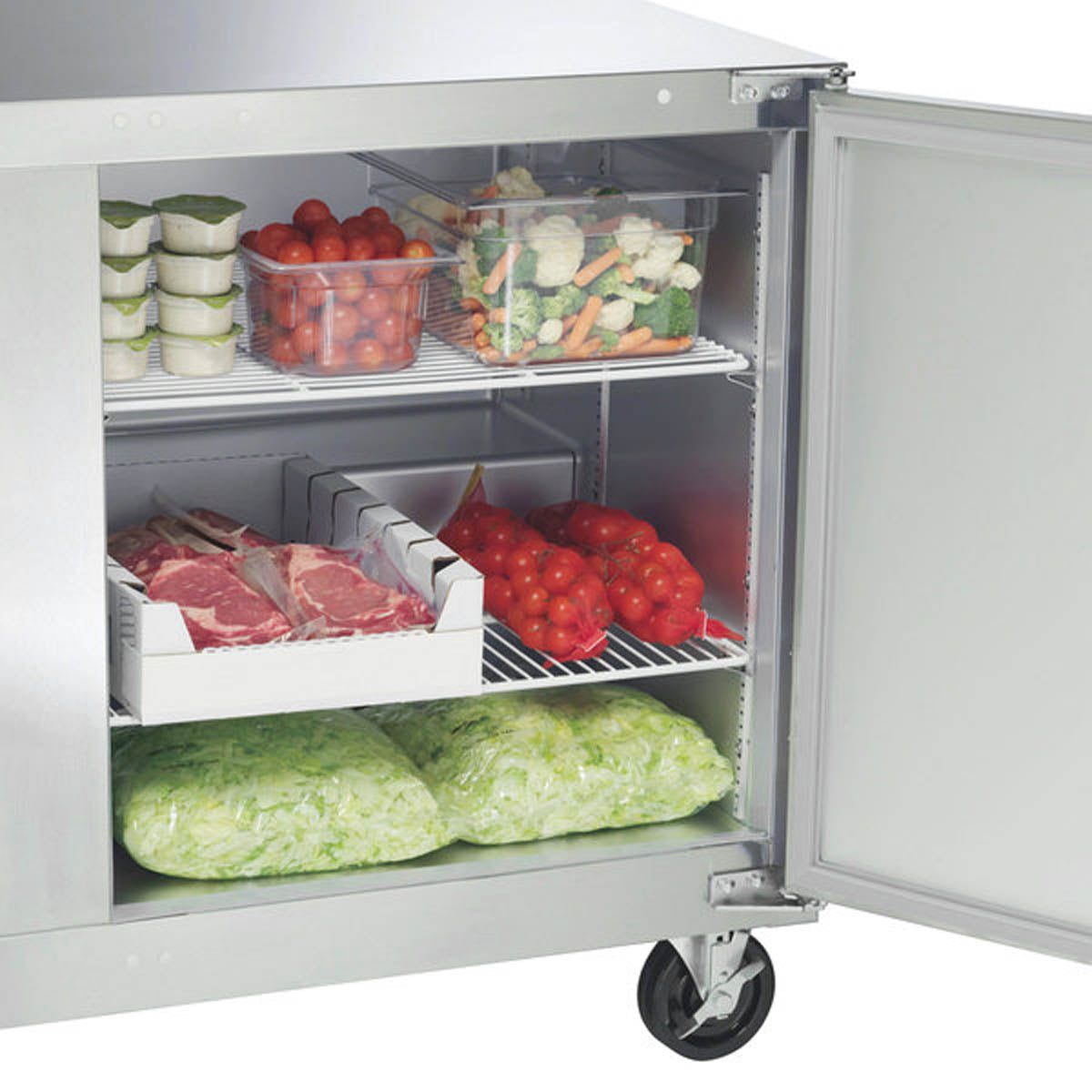

This exact configuration has two right-hinged doors, each self-closing and able to stay open at 105 degrees for loading. Four adjustable powder-coated shelves are supplied—two per door—and the cabinet rides on six 4 in. casters. Stainless steel covers the exterior top, sides, and doors, while the interior is anodized aluminum.
Applications and Workflow
Use this refrigerator for commercial kitchens, sandwich and salad prep areas, bars, cafés, and other workstations needing refrigerated storage below counter height. It is a refrigerator, not a freezer; specify it only where a 34 to 38°F refrigerated holding range is appropriate.
Features and Practical Benefits
Right/right door hinging
The UHT60-RR has two solid doors hinged on the right, helping buyers match the cabinet to the traffic flow and adjacent equipment at a specific installation location.
Front-breathing self-contained system
The refrigeration system is self-contained and front breathing, supporting undercounter placement without routing remote refrigeration lines.
Accessible shelf storage
Four powder-coated shelves are standard, with two shelves mounted on pilasters behind each door. Shelves can be adjusted in 1/2 in. increments.
Practical loading access
Doors self-close below 90 degrees and stay open at 105 degrees, giving staff hands-free access while loading or retrieving product.
Mobile undercounter footprint
Six 4 in. casters are included, and the cabinet measures 60 in. wide by 32 in. deep with an overall height of 33 5/8 in. on its standard casters.
Technical Specifications
| Manufacturer model | UHT60-RR |
|---|---|
| Configuration | Two solid doors, right/right hinging |
| Net capacity | 16.7 cu. ft. (473 L) |
| Overall width | 60 in. (152 cm) |
| Overall depth | 32 in. (81.3 cm) |
| Overall height on 4 in. casters | 33 5/8 in. (85.4 cm) |
| Depth with door open 90 degrees | 55 3/8 in. (140.7 cm) |
| Clear door opening width | 25 13/16 in. (65.6 cm) |
| Clear door opening height | 27 1/16 in. (68.7 cm) |
| Number of doors | 2 |
| Number of shelves | 4 |
| Standard casters | Six 4 in. casters |
| Electrical rating | 115/60/1 |
| Full-load amperage | 7.2 A |
| Plug type | NEMA 5-15P attached |
| Refrigerant | R-290 |
| Refrigerant charge | 5 oz. (142 g) |
| Compressor capacity | 1/5 HP |
| Operating temperature | 34 to 38°F (1.1 to 3.3°C) |
| Refrigeration system | Self-contained, rear-mounted, front breathing |
| Exterior construction | Stainless steel top, sides, and doors |
| Interior construction | Anodized aluminum |
Installation and Purchasing Considerations
- Allow a 60 in. wide by 32 in. deep footprint. Overall height is 33 5/8 in. on the supplied 4 in. casters; confirm the counter opening and finished work-surface height before purchase.
- Plan for 55 3/8 in. overall depth when either door is open 90 degrees. The clear opening for each door is 25 13/16 in. wide by 27 1/16 in. high.
- This model uses a self-contained, front-breathing refrigeration system. Confirm that the front air path remains unobstructed in the intended undercounter location.
- Provide 115/60/1 electrical service. A NEMA 5-15P plug and 8 ft. cord are supplied.
- Verify that right-hinged doors suit the installation: this UHT60-RR configuration differs from left/right and left/left hinging arrangements.
Choosing This Configuration
UHT60-RR is the two-solid-door, right/right-hinged version of the 60 in. UHT compact undercounter refrigerator platform.
The standard configuration includes four shelves and six 4 in. casters. Additional shelves, alternate caster heights, legs, and a backsplash worktop are separate accessory options.
A stainless steel finished back is a factory-installed option identified by an -SB model suffix; it is not established as part of the base UHT60-RR configuration.
Frequently Asked Questions
What door hinging does the Traulsen UHT60-RR have?
It has two solid doors with right/right hinging. Confirm that this door swing works with nearby aisles, walls, and equipment.
What are the cabinet dimensions?
The cabinet is 60 in. wide, 32 in. deep, and 33 5/8 in. high on standard 4 in. casters. With a door open 90 degrees, depth reaches 55 3/8 in.
What electrical connection is required?
The UHT60-RR is rated 115/60/1 and has an attached NEMA 5-15P plug with an 8 ft. cord.
How many shelves are included?
Four powder-coated shelves are standard: two behind each door. They mount on pilasters and adjust in 1/2 in. increments.
