Description

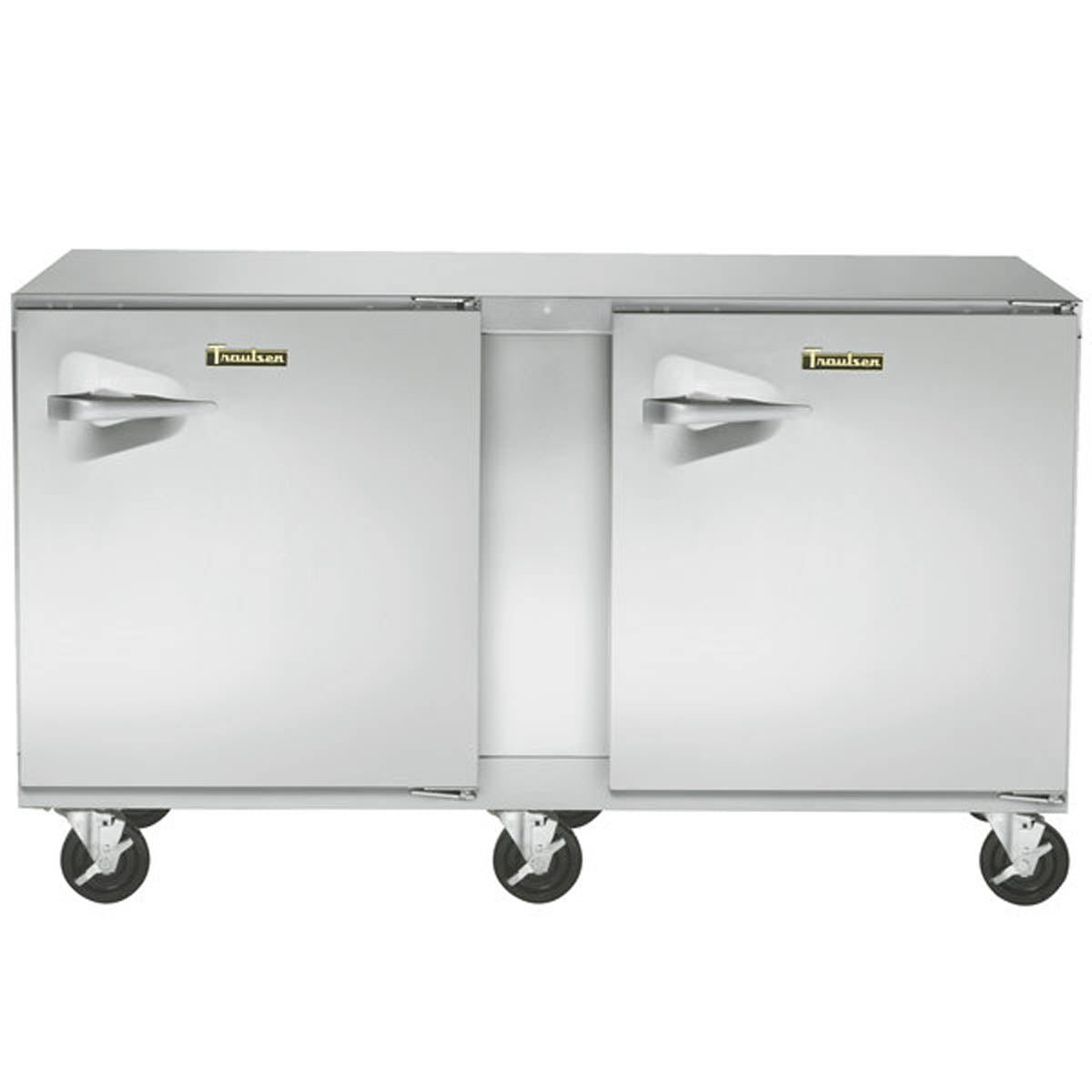

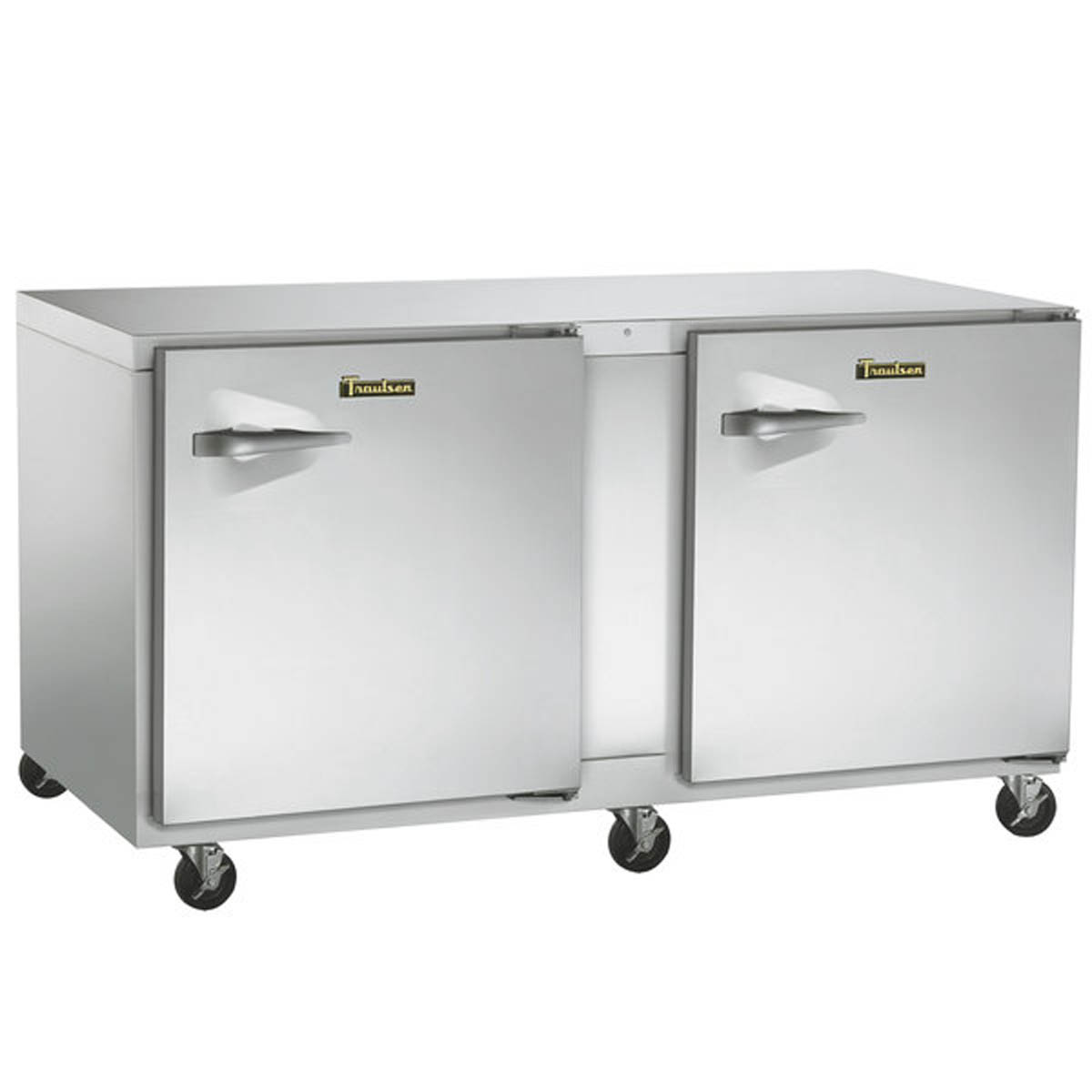

The Traulsen UHT60-RR-SB is a 60-inch, two-section undercounter refrigerator with two solid doors, both right-hinged. Its 16.7 cu. ft. cabinet provides refrigerated ingredient or prep-backup storage beneath a work counter while maintaining a 34°F to 38°F operating range.
This self-contained, rear-mounted refrigeration model uses a front-breathing design, allowing the cabinet to be placed flush at the sides and back. The -SB version adds a stainless steel finished back; it is distinct from the standard UHT60-RR configuration.
Applications and Workflow
Suitable for commercial prep lines, sandwich stations, bakeries, cafés, and other kitchens needing undercounter refrigerated storage with a work surface above. This is a refrigerator, not a freezer; its specified operating range is 34°F to 38°F.
Features and Practical Benefits
Right/right solid-door layout
Both doors are right-hinged, allowing staff to plan aisle and adjacent-equipment clearance around the door swing.
Front-breathing refrigeration
The rear-mounted, self-contained system breathes from the front, supporting flush side and rear placement where the front intake remains unobstructed.
Organized adjustable storage

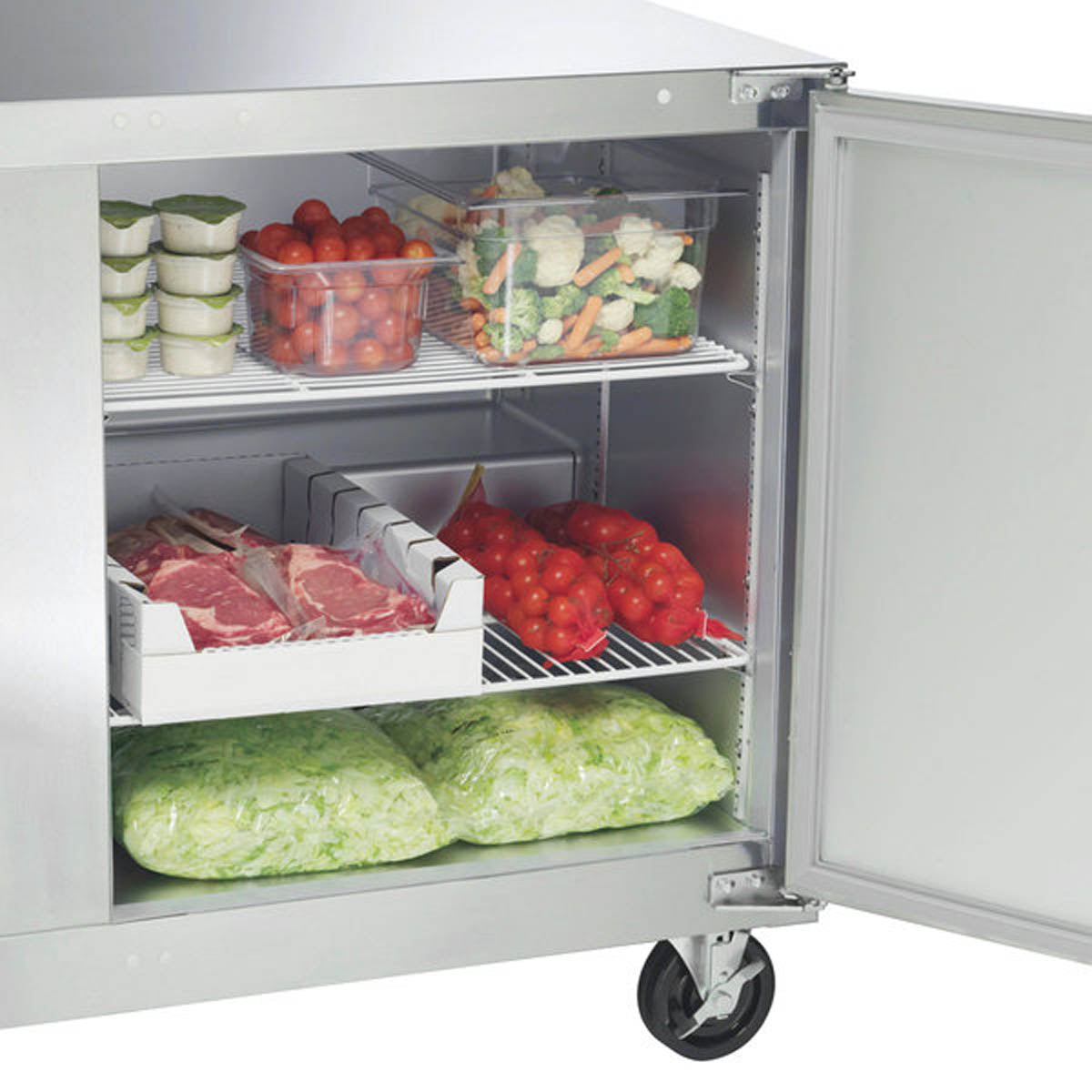

Four powder-coated shelves are supplied—two per door—and mount on pilasters for adjustable interior organization.
Serviceable door details
Self-closing doors hold open at 105 degrees for loading, while magnetic snap-in gaskets simplify routine gasket removal and cleaning.
Finished-back configuration
The -SB suffix identifies the factory stainless steel finished-back option, useful when the rear of the cabinet will be visible.
Technical Specifications
| Manufacturer model | UHT60-RR-SB |
|---|---|
| Cabinet configuration | Two-section undercounter refrigerator |
| Door configuration and hinging | Two solid doors, right/right hinging |
| Finished back | Stainless steel |
| Net capacity | 16.7 cu. ft. (473 L) |
| Overall length | 60 in. (152 cm) |
| Overall depth | 32 in. (81.3 cm) |
| Overall height on 4 in. casters | 33 5/8 in. (85.4 cm) |
| Depth with door open 90 degrees | 55 3/8 in. (140.7 cm) |
| Clear door width | 25 13/16 in. (65.6 cm) |
| Clear door height | 27 1/16 in. (68.7 cm) |
| Shelves | 4 total; two powder-coated shelves per door |
| Refrigeration system | Self-contained, rear-mounted, front-breathing |
| Refrigerant | R-290 |
| Operating temperature | 34°F to 38°F (1.1°C to 3.3°C) |
| Electrical requirement | 115/60/1 |
| Electrical plug | NEMA 5-15P attached |
| Power cord | 8 ft. (2.4 m) NEMA cord and plug |
| Full-load amps | 7.2 A |
| Compressor rating | 1/5 HP |
| Included casters | Six 4 in. casters |
Installation and Purchasing Considerations
- Allow a 60 in. overall cabinet length, 32 in. overall depth, and 33 5/8 in. overall height on the supplied 4 in. casters.
- Plan for 55 3/8 in. depth with a door open 90 degrees. Each door has a 25 13/16 in. clear opening width and 27 1/16 in. clear opening height.
- The front-breathing design is specified for zero-clearance installation at the sides and rear. Keep the front of the unit accessible and unobstructed for airflow and service.
- Connect to 115/60/1 electrical service using the attached NEMA 5-15P plug and 8 ft. cord. Confirm a suitable receptacle location before installation.
- The unit is supplied with six 4 in. casters. Verify floor conditions, final counter height, and door swing before positioning.
Choosing This Configuration
This exact UHT60-RR-SB configuration has two solid doors with right/right hinging and a stainless steel finished back.
The base UHT60-RR is the same right/right two-solid-door arrangement but does not establish the finished-back option denoted by -SB.
Do not select this refrigerator when frozen storage is required.
Frequently Asked Questions
What does the -SB suffix mean on the UHT60-RR-SB?
It identifies the factory stainless steel finished-back option.
Which way do the doors open?
This model has two solid doors with right/right hinging.
Can this undercounter refrigerator sit against a wall?
Its front-breathing design is specified for zero-clearance installation at the sides and rear. The front airflow area still needs to remain open.
What electrical connection does it need?
It operates on 115/60/1 power and is equipped with a NEMA 5-15P plug on an 8 ft. cord.
