Description

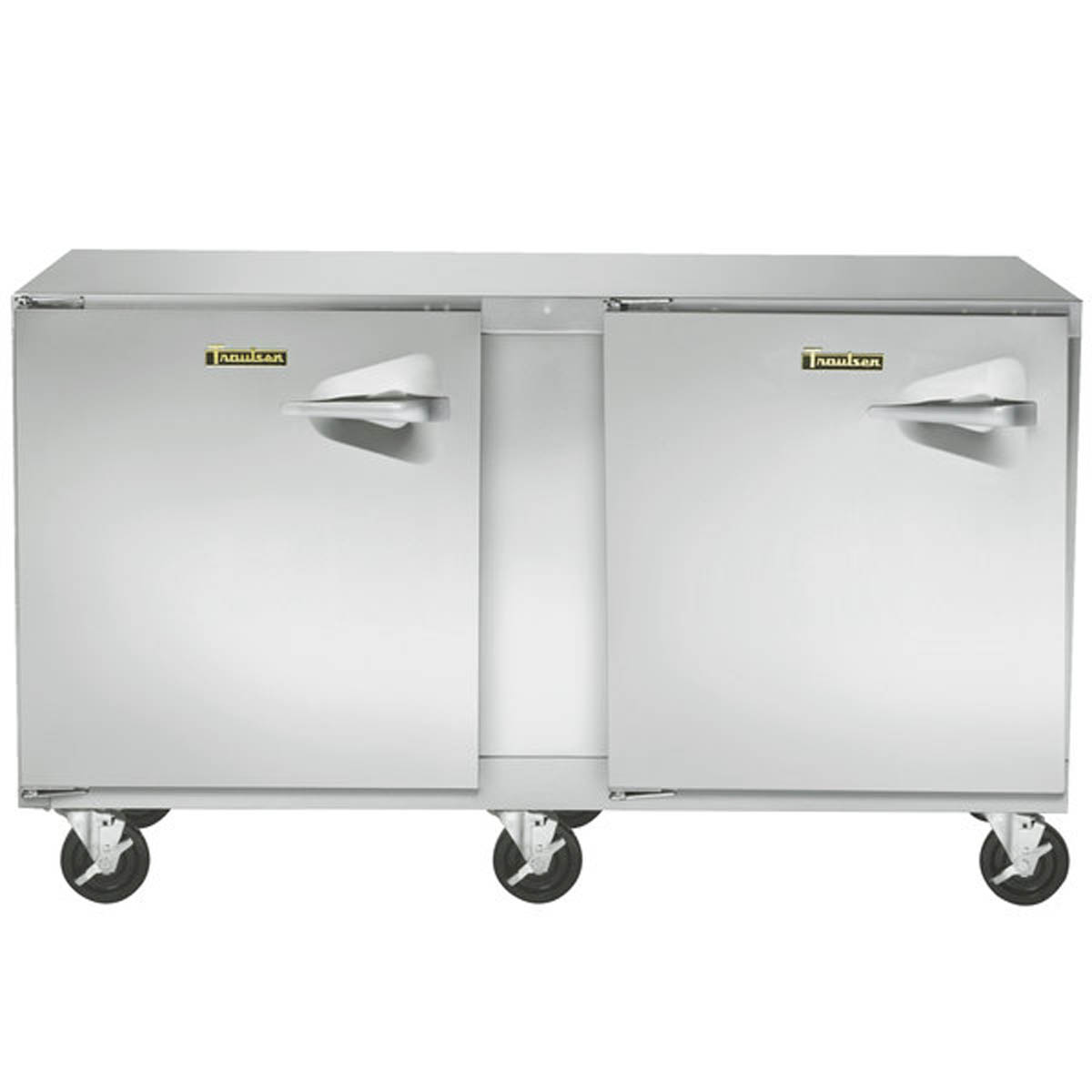

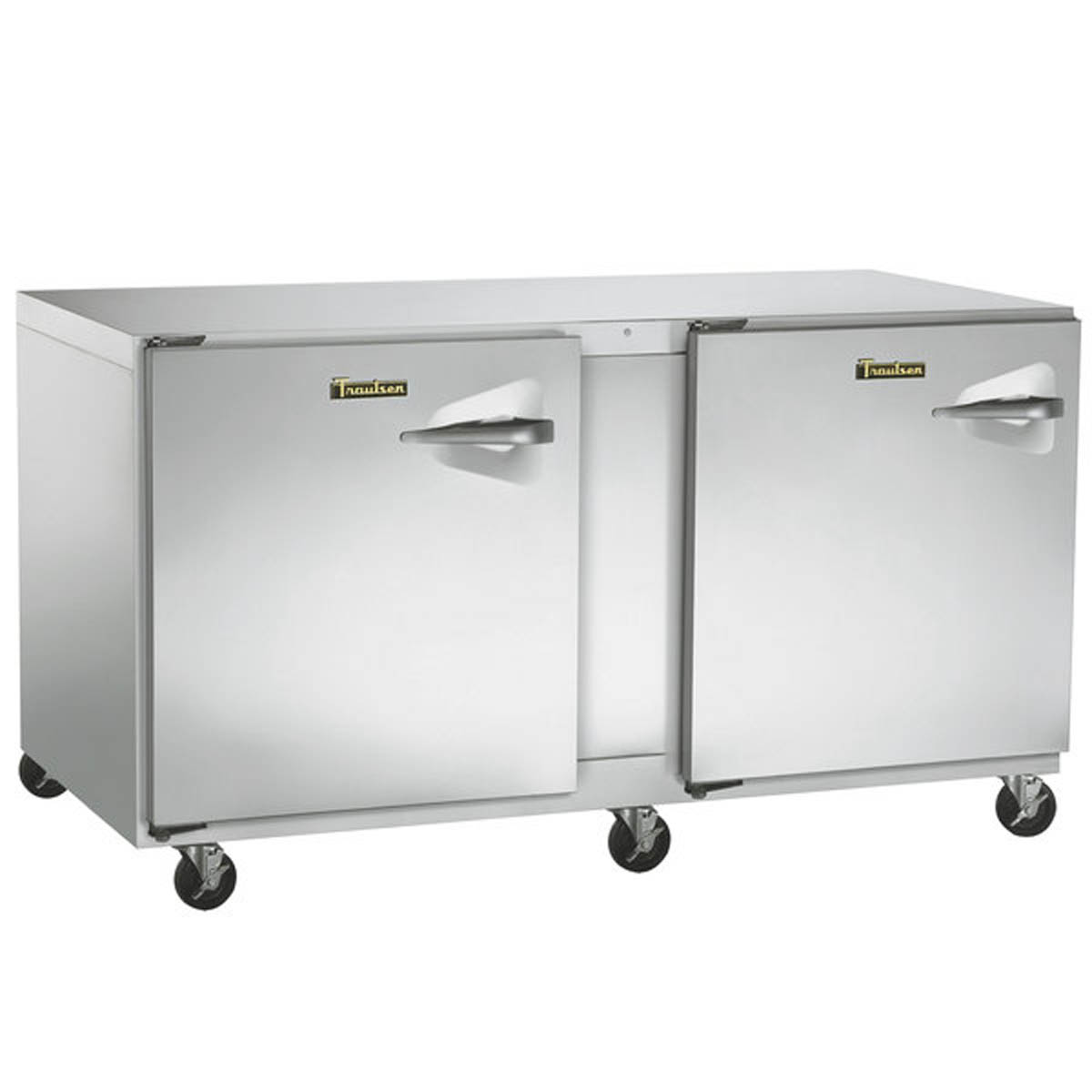

The Traulsen UHT72-LL is a 72-inch self-contained undercounter refrigerator configured with two solid doors and Left/Left hinging. Its front-breathing refrigeration system and 33 5/8-inch overall height on the supplied 4-inch casters make it suited to refrigerated ingredient, prep backup, or packaged-product storage beneath a work area.
This model provides 17.42 cu. ft. of net capacity and four adjustable powder-coated wire shelves—two per door. Electronic digital controls support a standard refrigerator operating range of 34°F to 38°F, while the self-closing doors can remain open at 105° for loading and unloading.
Applications and Workflow
Use the UHT72-LL in commercial prep lines, sandwich stations, bakery production areas, or back-of-house work areas that need undercounter refrigerated storage with a 72-inch footprint. This is a refrigerator, not a freezer, and it uses solid doors rather than drawers or glass display doors.
Features and Practical Benefits
Left/left solid-door configuration
The exact UHT72-LL configuration has two solid doors with Left/Left hinging, helping buyers coordinate door swing with the surrounding workstation.
Front-breathing self-contained refrigeration
A rear-mounted, front-breathing refrigeration system keeps the refrigeration package within the cabinet rather than requiring a remote condenser connection.

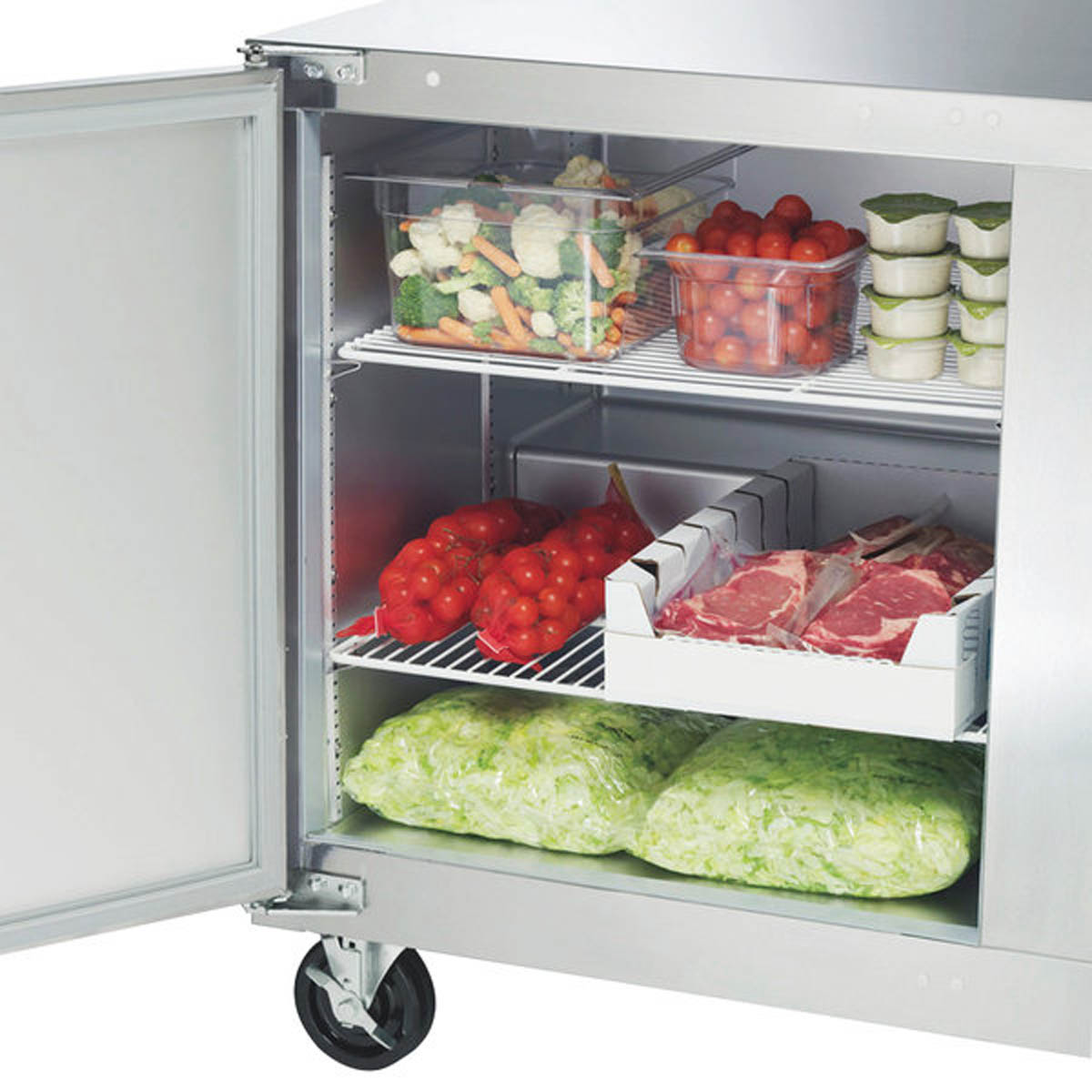

Four adjustable storage shelves
Two powder-coated wire shelves are supplied per door, mounted on pilasters and adjustable in 1/2-inch increments.
Designed for active prep workflow
Each door self-closes below 90° and stays open at 105°, allowing hands-free access while loading product or organizing the cabinet.
Digital temperature management
The electronic control includes a three-digit LED display and supports Fahrenheit or Celsius display selection.
Technical Specifications
| Manufacturer model | UHT72-LL |
|---|---|
| Configuration | Two solid doors, Left/Left hinging |
| Net capacity | 17.42 cu. ft. (494 L) |
| Overall length | 72 in. (183 cm) |
| Overall depth | 32 in. (81.3 cm) |
| Overall height on 4 in. casters | 33 5/8 in. (85.4 cm) |
| Depth with door open 90° | 60 3/8 in. (153.4 cm) |
| Clear door width | 30 13/16 in. (78.3 cm) |
| Clear door height | 27 1/16 in. (68.7 cm) |
| Number of doors | 2 |
| Number of shelves | 4 |
| Shelf area | 15.5 sq. ft. (1.43 m²) |
| Electrical service | 115/60/1 |
| Full-load amperage | 7.2 A |
| Energy use | 1.64 kWh/24 hr |
| Plug type | NEMA 5-15P |
| Refrigerant | R-290 |
| Refrigerant charge | 5 oz. (142 g) |
| Compressor rating | 1/5 HP |
| Refrigeration system | Rear mounted, front breathing, self-contained |
| Standard operating temperature | 34°F to 38°F (1.1°C to 3.3°C) |
| Cord length | 8 ft. (2.4 m) |
| Casters supplied | Six, 4 in. casters |
Installation and Purchasing Considerations
- Plan for a 72-inch overall cabinet length, 32-inch overall depth, and 33 5/8-inch overall height with the standard 4-inch casters installed.
- Allow for a 60 3/8-inch overall depth when a door is open 90°. Confirm this clearance will not obstruct aisles, adjacent equipment, or workstations.
- Connect the unit to 115/60/1 electrical service using its supplied 8-foot cord and NEMA 5-15P plug; verify that the installation location has a suitable receptacle.
- The refrigeration system is rear mounted and front breathing. Keep the front refrigeration area accessible for normal operation and service.
- This model is supplied with six 4-inch casters. Optional alternate-height casters, legs, extra shelves, and a backsplash worktop are separate accessories and require field installation where applicable.
Choosing This Configuration
UHT72-LL is the two-solid-door, Left/Left-hinged version in Traulsen's 72-inch UHT configuration list. It is not the Left/Right or Right/Right hinging arrangement.
The standard unit has an exterior top, sides, and doors in stainless steel, with galvanized steel used for the exterior back and bottom. A stainless finished back is identified by a separate -SB model suffix.
This refrigerator includes four shelves total. Do not select it when drawer access, freezer storage, or a supplied backsplash worktop is required.
Frequently Asked Questions
What is the door arrangement on the Traulsen UHT72-LL?
It has two solid doors with Left/Left hinging. The doors self-close below 90° and have a 105° stay-open position.
What temperature range does this refrigerator operate in?
The stated standard operating temperature for refrigerator models is 34°F to 38°F (1.1°C to 3.3°C).
How many shelves are included?
Four powder-coated wire shelves are included: two shelves per door. They mount on pilasters and adjust in 1/2-inch increments.
What electrical connection does the UHT72-LL use?
It is specified for 115/60/1 electrical service and includes an 8-foot cord with a NEMA 5-15P plug.
