Description

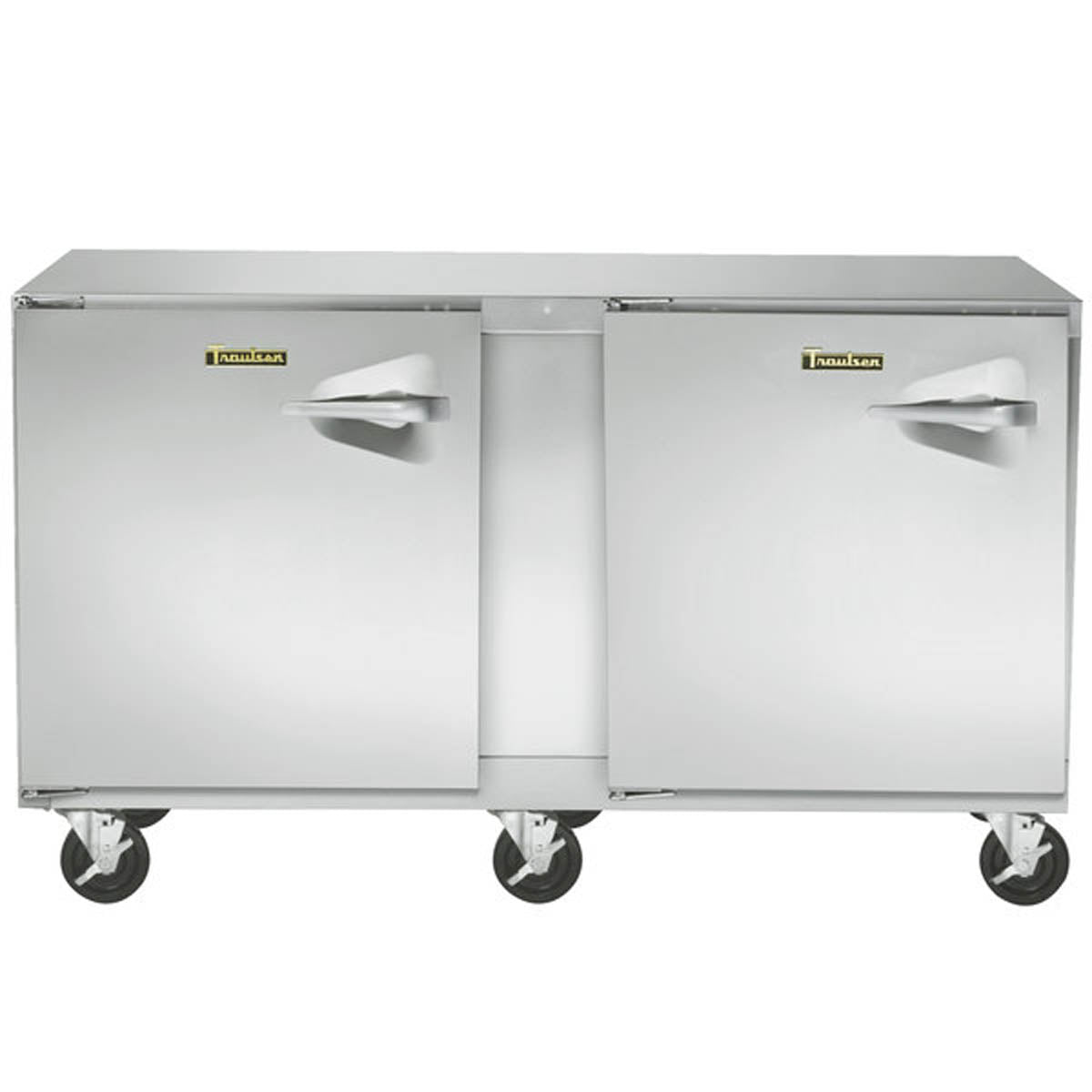

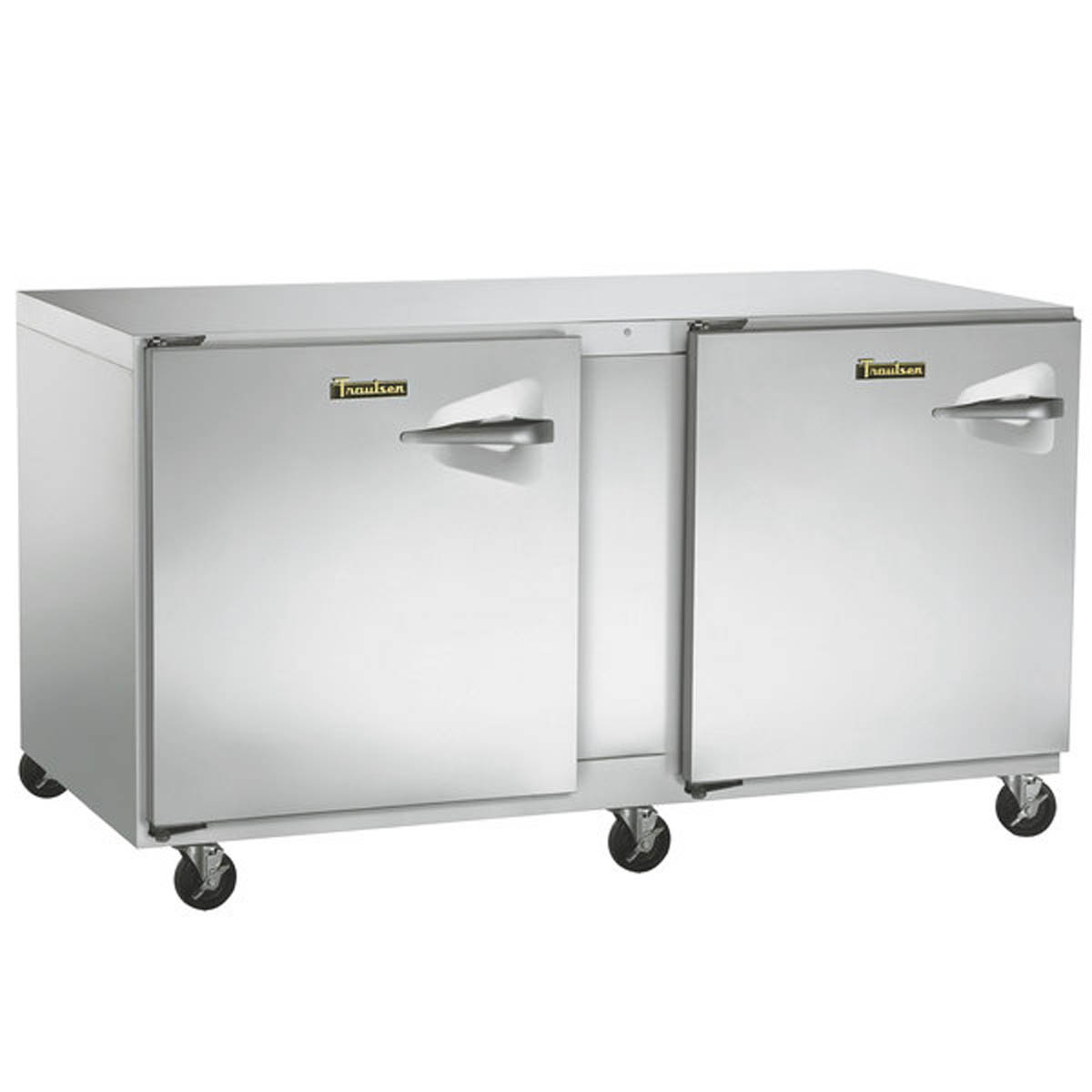

The Traulsen UHT72-LL-SB is a 72-inch compact undercounter refrigerator with two solid doors and a 17.42 cu. ft. interior. Its self-contained, front-breathing refrigeration system and work-height cabinet make it suited to refrigerated ingredient storage beneath a counter or work surface.
This configuration uses left/left door hinging and adds the factory-installed stainless steel finished-back option denoted by the -SB suffix. Four adjustable powder-coated wire shelves provide organized storage behind the two doors, while electronic digital controls support a 34°F to 38°F operating range.
Applications and Workflow
Use this refrigerator for refrigerated backup ingredients, prepped products, or packaged items at a commercial prep line, cookline, bar, deli, or service counter. The front-breathing design supports close installation at the cabinet sides and back, but the doors require clearance in front of the unit; allow for the 60 3/8-inch depth when a door is open 90 degrees. This is a refrigerator, not a freezer.
Features and Practical Benefits
Specified left/left door configuration
The UHT72-LL-SB has two solid doors in the left/left hinging configuration, helping buyers plan door swing around adjacent equipment and aisle space.
Finished for exposed placement
The -SB suffix identifies the factory-installed stainless steel finished back, a useful distinction when the rear of the cabinet will be visible.
Front-breathing self-contained refrigeration
The refrigeration system is rear mounted and front breathing, allowing close placement at the sides and back without a remote condenser connection.
Organized adjustable storage

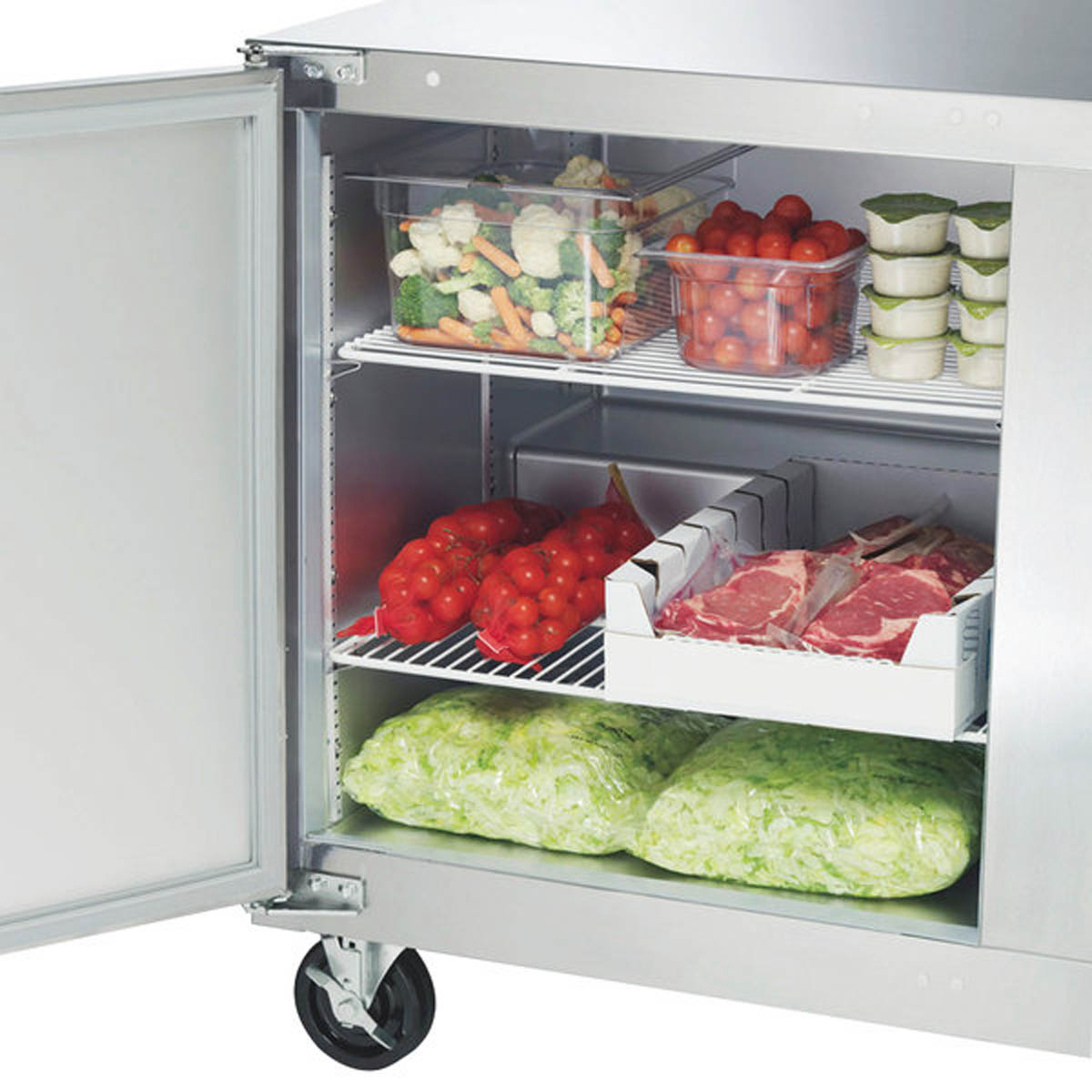

Four powder-coated wire shelves are standard—two per door—and mount on pilasters with adjustable positions.
Easy-access door operation
Each door is self-closing and includes a stay-open position at 105 degrees to support loading and unloading.
Technical Specifications
| Manufacturer model | UHT72-LL-SB |
|---|---|
| Cabinet type | Compact undercounter refrigerator, self-contained, solid door |
| Door configuration | Two solid doors, left/left hinging |
| Finished back | Stainless steel finished back |
| Net capacity | 17.42 cu. ft. (494 L) |
| Overall width | 72 in. (183 cm) |
| Overall depth | 32 in. (81.3 cm) |
| Depth with door open 90 degrees | 60 3/8 in. (153.4 cm) |
| Overall height on 4-inch casters | 33 5/8 in. (85.4 cm) |
| Clear door width | 30 13/16 in. (78.3 cm) |
| Clear door height | 27 1/16 in. (68.7 cm) |
| Number of shelves | 4 |
| Shelf area | 15.5 sq. ft. (1.43 m²) |
| Refrigerant | R-290 |
| Electrical supply | 115/60/1 |
| Full-load amps | 7.2 A |
| Energy use | 1.64 kWh/24 hr |
| Plug | NEMA 5-15P attached |
| Operating temperature | 34°F to 38°F (1.1°C to 3.3°C) |
| Standard mobility base | Six 4-inch casters |
Installation and Purchasing Considerations
- Confirm the installation footprint of 72 inches wide by 32 inches deep by 33 5/8 inches high on the supplied 4-inch casters.
- Plan clear space in front of the cabinet for door access. Overall depth becomes 60 3/8 inches with a door open 90 degrees.
- This is a front-breathing, self-contained unit; no remote condenser connection is specified. Keep the front airflow area accessible for operation and service.
- A NEMA 5-15P plug is attached. Provide a 115/60/1 electrical connection and verify the circuit can accommodate 7.2 full-load amps.
- The standard base includes six 4-inch casters. Alternative casters, legs, additional shelves, and a backsplash worktop are separate accessories or options, not assumed included.
Choosing This Configuration
This exact UHT72-LL-SB configuration is a two-solid-door refrigerator with left/left hinging and a stainless finished back.
Do not substitute it for the UHT72-LR or UHT72-RR configurations when door swing direction matters.
The cabinet is a refrigerator with a 34°F to 38°F standard operating range; it is not a freezer model.
The stainless finished-back feature is identified by the -SB suffix. The listed backsplash worktop is an optional field-installed accessory, not standard equipment.
Frequently Asked Questions
What does the -SB suffix mean on the UHT72-LL-SB?
The -SB suffix identifies the factory-installed stainless steel finished-back option.
How much space is needed in front to open the doors?
The cabinet depth is 32 inches closed and 60 3/8 inches with a door open 90 degrees. Plan the front aisle accordingly.
What electrical connection does this refrigerator use?
It operates on 115/60/1 power, draws 7.2 full-load amps, and is equipped with a NEMA 5-15P plug.
How many shelves are included?
The standard arrangement includes four powder-coated wire shelves, with two shelves behind each door. They mount on adjustable pilasters.
