Description

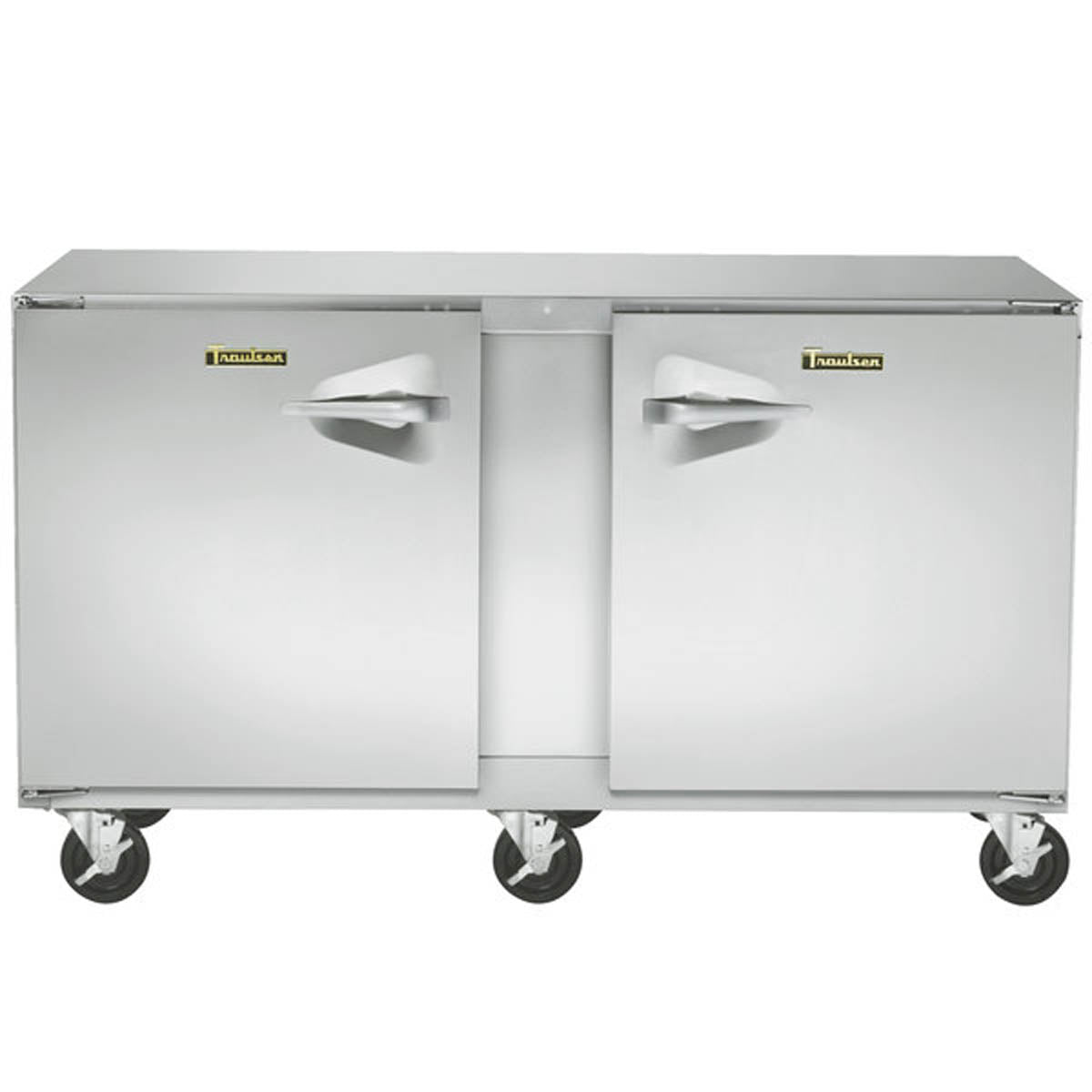

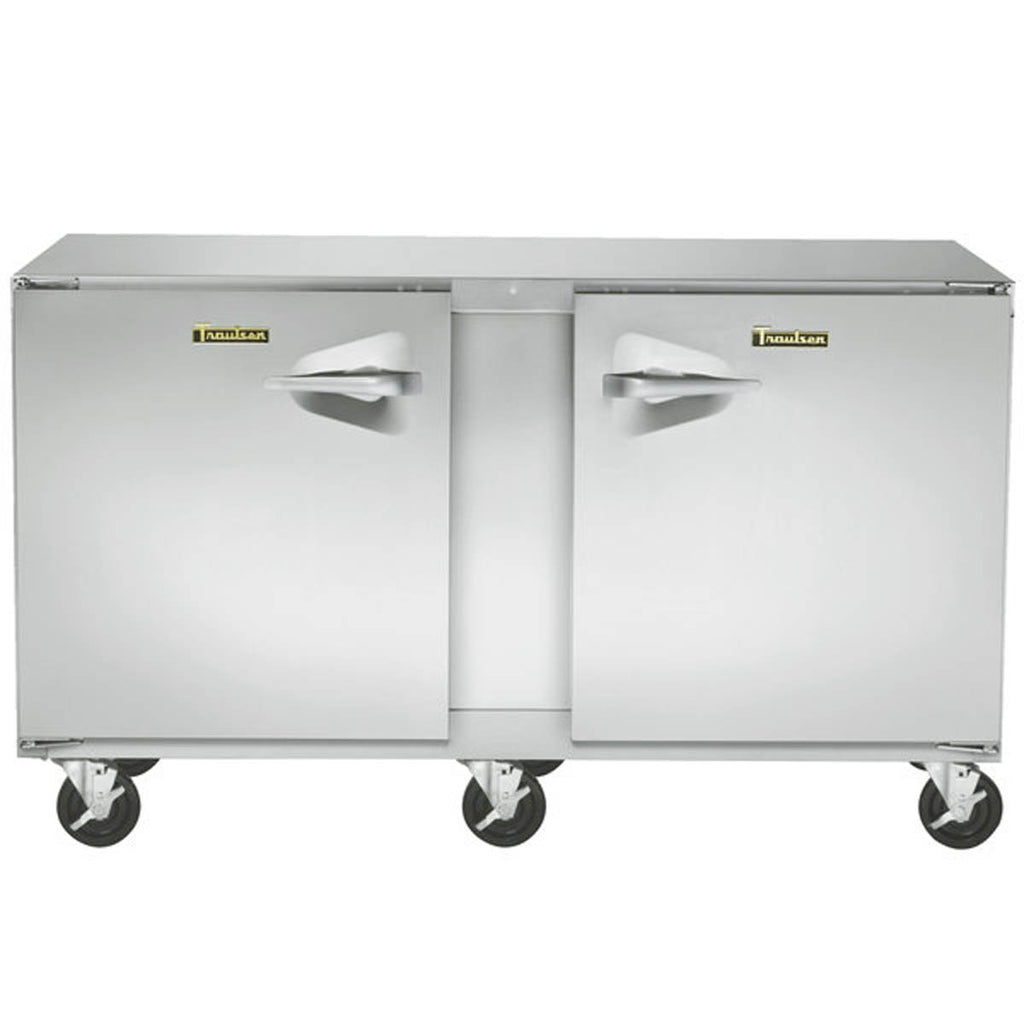

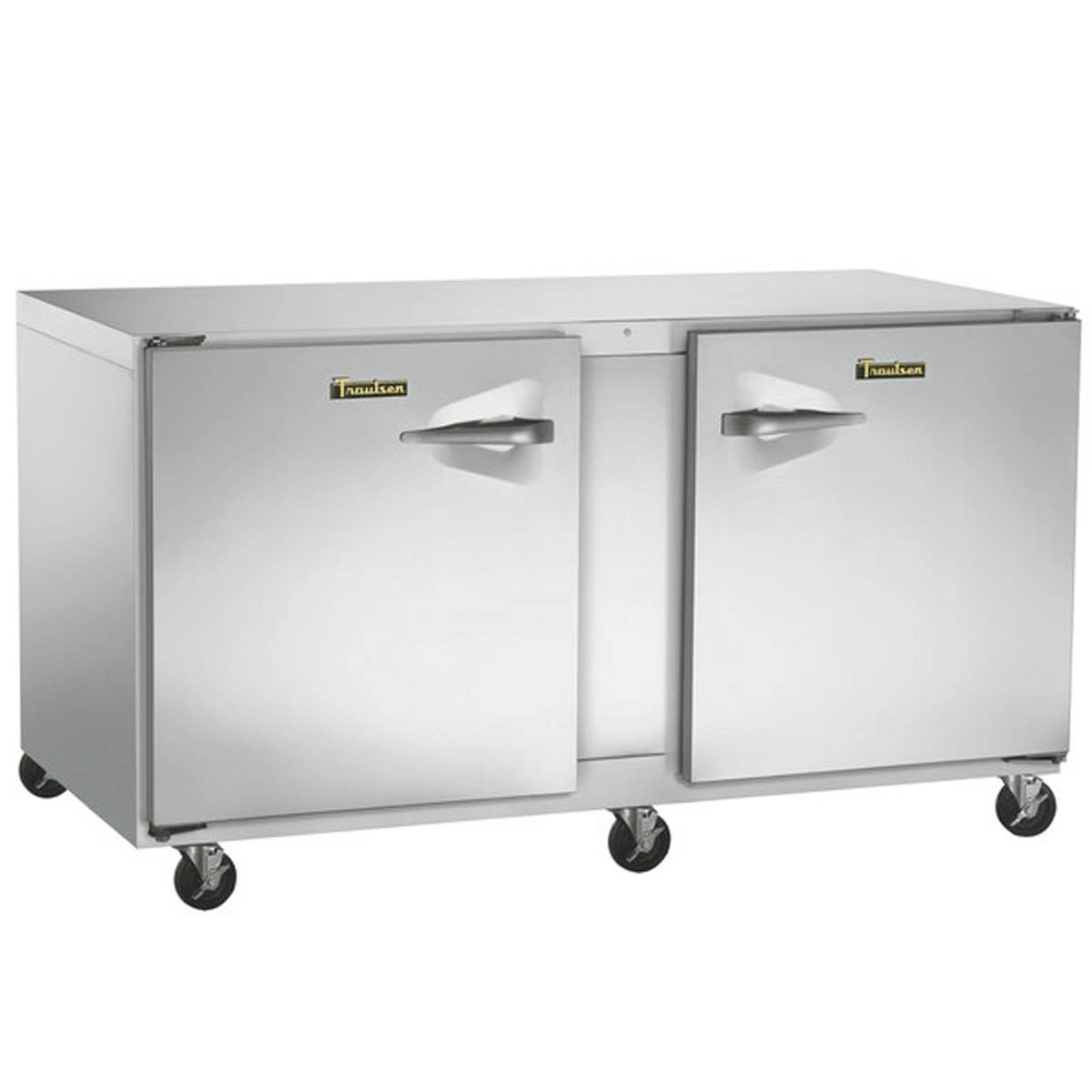

The Traulsen UHT72-LR is a 72-inch self-contained undercounter refrigerator configured with two solid doors: a left-hinged door and a right-hinged door. Its front-breathing refrigeration system supports placement under a work counter while keeping refrigerated ingredients and packaged product close to the prep line.
This two-section refrigerator provides 17.42 cubic feet of net capacity and four adjustable powder-coated wire shelves. Stainless steel covers the top, sides, front, and doors, while the anodized aluminum interior is designed for everyday commercial kitchen use.
Applications and Workflow
Use the UHT72-LR as refrigerated storage beneath a prep counter, cook line, beverage station, or other commercial work surface where a two-door cabinet is preferred. This is a refrigerator, with a standard operating range of 34 to 38°F; it is not a freezer. Account for the door swing depth when locating the unit in an aisle or against adjacent equipment.
Features and Practical Benefits
Left/right door configuration
The exact UHT72-LR configuration has two solid doors with left/right hinging, allowing the doors to open away from the center.
Front-breathing, self-contained refrigeration
The refrigeration system is self-contained and front breathing, eliminating the need to connect this model to a remote condenser.
Organized refrigerated storage

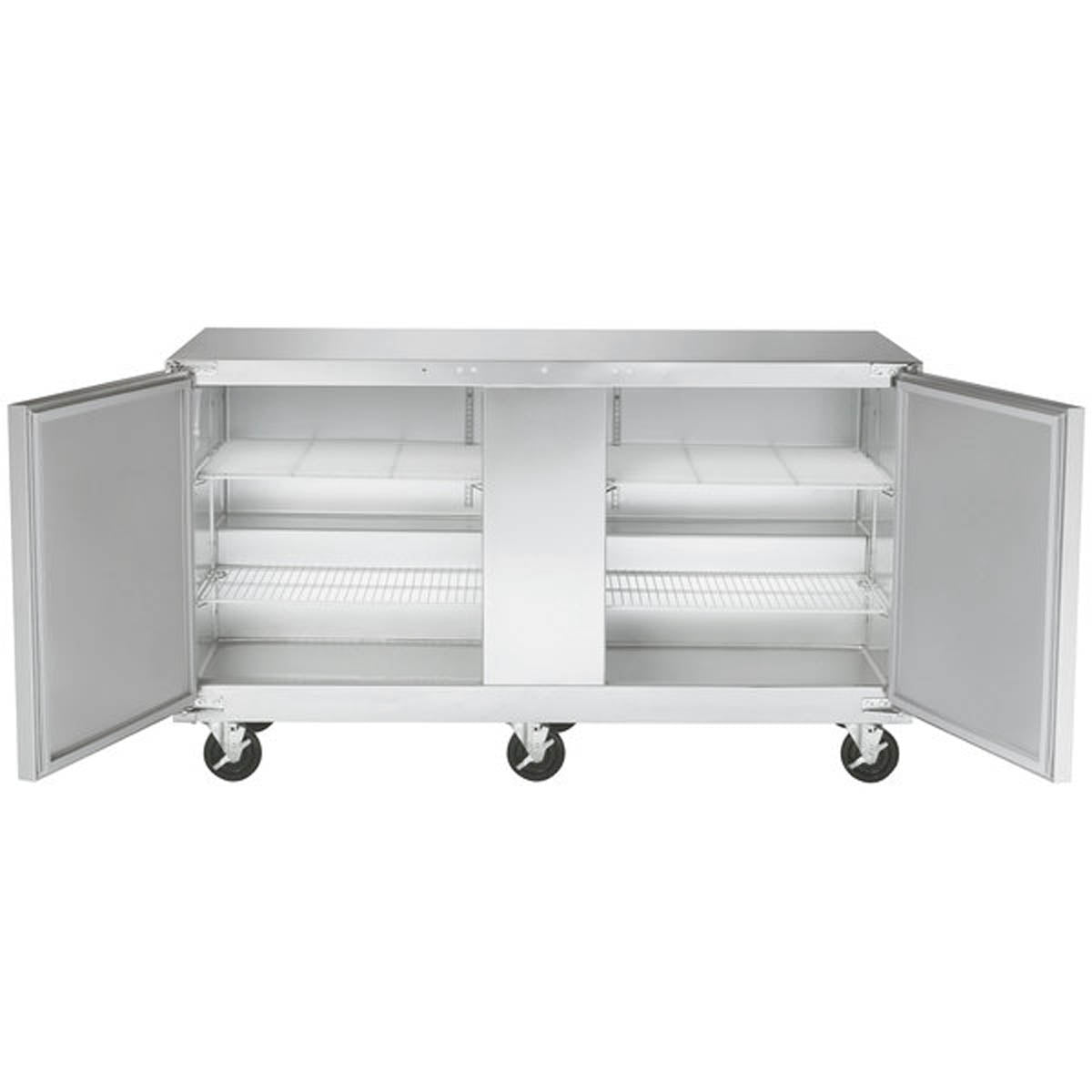

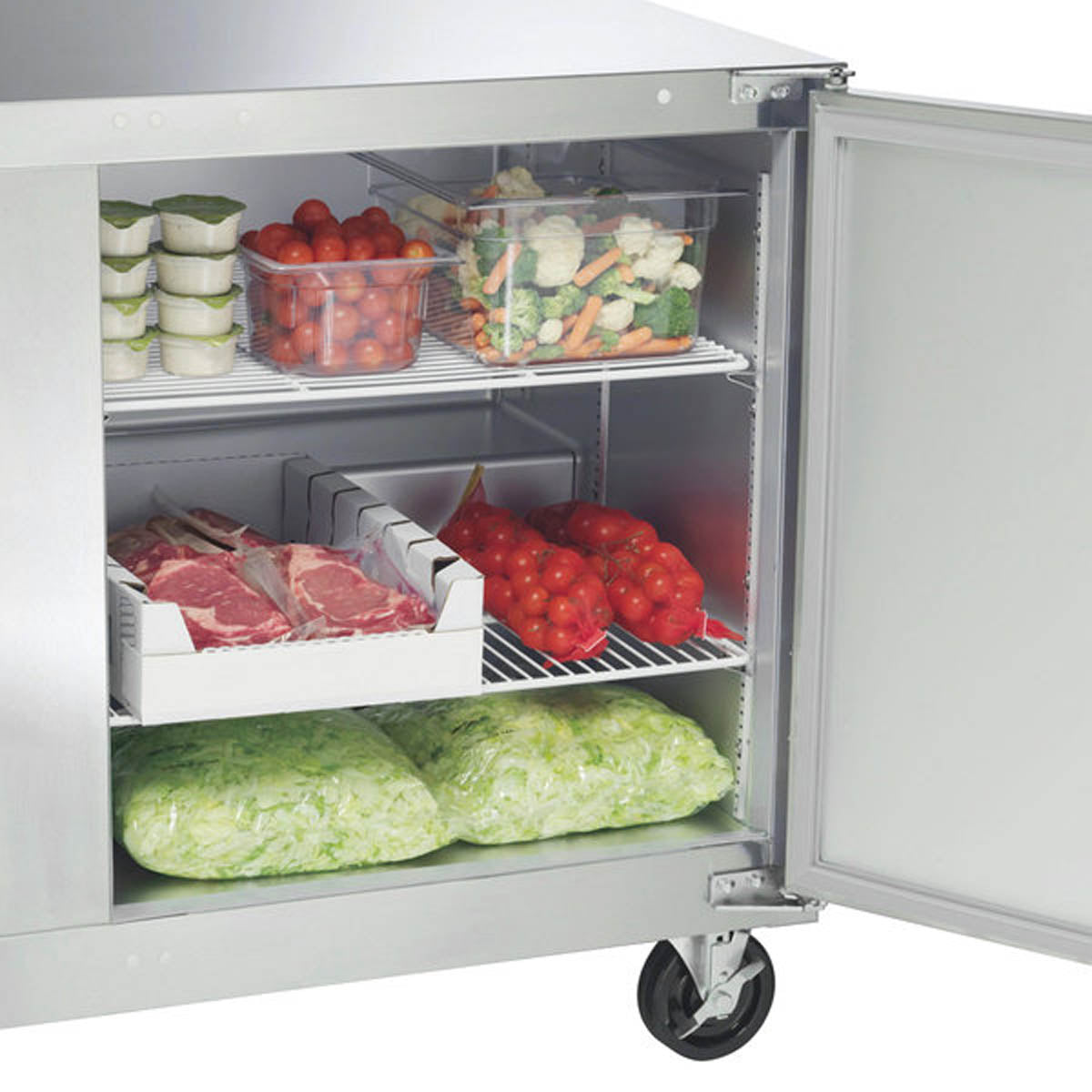

Four powder-coated wire shelves are supplied—two per door—and mount on pilasters for adjustable shelf placement.
Work-ready cabinet construction
The cabinet has a stainless steel exterior top, sides, and doors with an anodized aluminum interior and door liners.
Convenient door operation
Each door is self-closing and can remain open at 105 degrees, helping during loading, unloading, and prep.
Technical Specifications
| Manufacturer model | UHT72-LR |
|---|---|
| Configuration | Two solid doors, left/right hinging |
| Net capacity | 17.42 cu. ft. (494 L) |
| Overall width | 72 in. (183 cm) |
| Overall depth | 32 in. (81.3 cm) |
| Overall height | 33 5/8 in. (85.4 cm) on 4 in. casters |
| Depth with door open 90° | 60 3/8 in. (153.4 cm) |
| Clear door width | 30 13/16 in. (78.3 cm) |
| Clear door height | 27 1/16 in. (68.7 cm) |
| Number of doors | 2 |
| Number of shelves | 4 |
| Shelf area | 15.5 sq. ft. (1.43 m²) |
| Refrigeration system | Self-contained, rear-mounted, front breathing |
| Refrigerant | R-290 |
| Refrigerant charge | 5 oz. (142 g) |
| Compressor | 1/5 HP, 1,680 BTU/hr |
| Electrical service | 115/60/1 |
| Full-load amps | 7.2 A |
| Energy use | 1.64 kWh/24 hr |
| Plug type | NEMA 5-15P |
| Power cord | 8 ft. (2.4 m) cord and plug |
| Standard operating temperature | 34 to 38°F (1.1 to 3.3°C) |
| Standard casters | Six 4 in. casters |
Installation and Purchasing Considerations
- Allow a 72-inch-wide by 32-inch-deep footprint; the cabinet height is 33 5/8 inches on the supplied 4-inch casters.
- Plan a 60 3/8-inch overall depth with either door open 90 degrees. Verify this swing space will not obstruct aisles, counters, or adjacent equipment.
- Connect to a 115/60/1 electrical supply. The refrigerator is equipped with a NEMA 5-15P plug on an 8-foot cord.
- The front-breathing, rear-mounted self-contained system does not require remote refrigeration piping. Keep the front air path accessible for operation and service.
- Six 4-inch casters are standard. Optional legs, alternate-height caster kits, extra shelves, and a backsplash worktop are separate accessories, not standard inclusions.
Choosing This Configuration
This exact UHT72-LR model is the 72-inch two-solid-door refrigerator with left/right hinging.
UHT72-LL and UHT72-RR versions have different door hinging. Select this LR version only when its opposing left/right door swing suits the installation.
A stainless steel finished back is a factory-installed option identified by an -SB suffix; it is not established as standard on UHT72-LR.
The listed shelf package is four shelves total. Do not assume optional extra shelves, legs, alternate casters, or backsplash worktops are included.
Frequently Asked Questions
What is the door hinging on the Traulsen UHT72-LR?
It has two solid doors in a left/right hinge arrangement.
How much room is needed when a door is open?
The unit measures 60 3/8 inches deep with a door open 90 degrees. Plan this clearance in front of the refrigerator.
What electrical connection does this refrigerator use?
It operates on 115/60/1 power and includes an 8-foot cord with a NEMA 5-15P plug.
How many shelves are included?
Four powder-coated wire shelves are standard: two shelves per door. They mount on pilasters and can be adjusted.
