Description

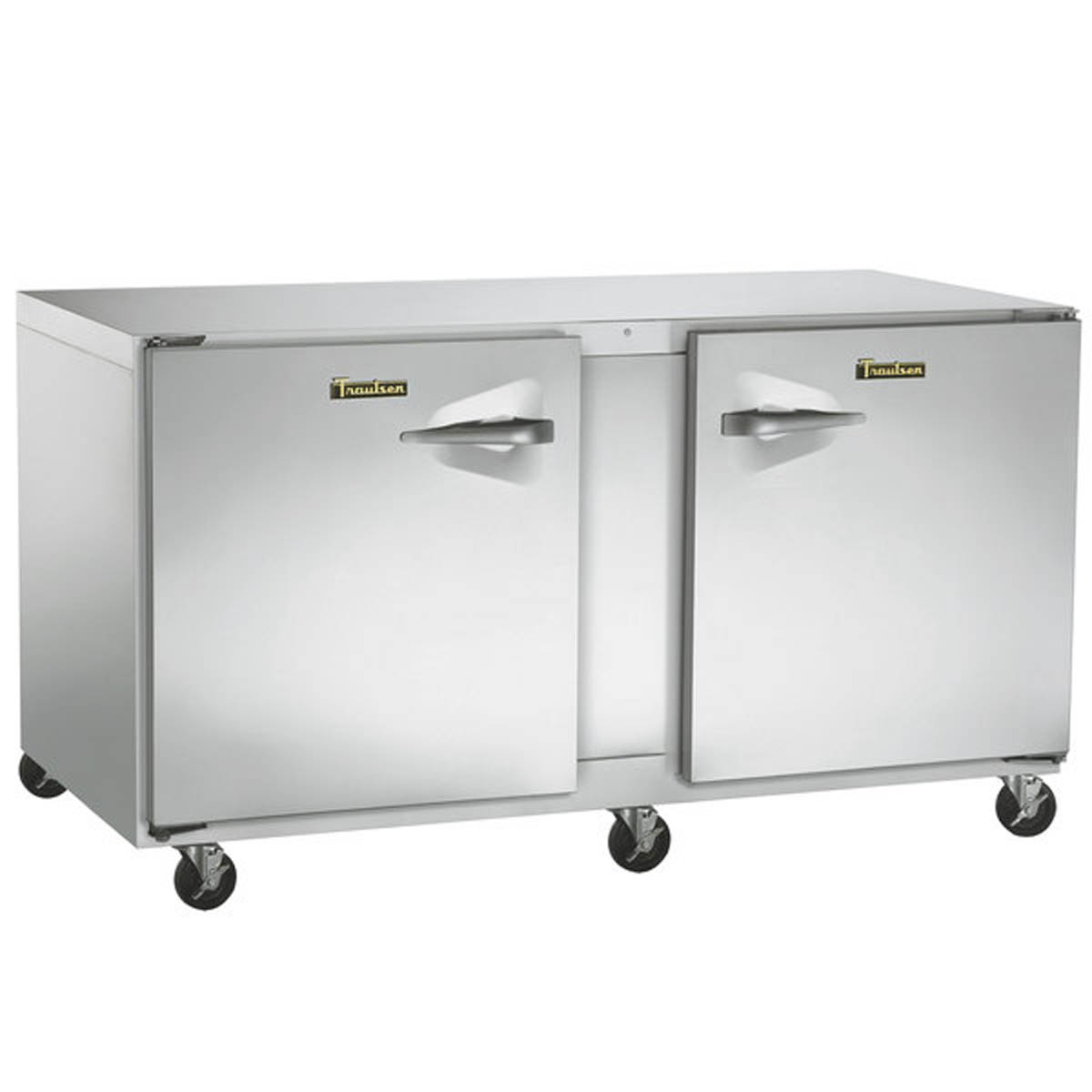

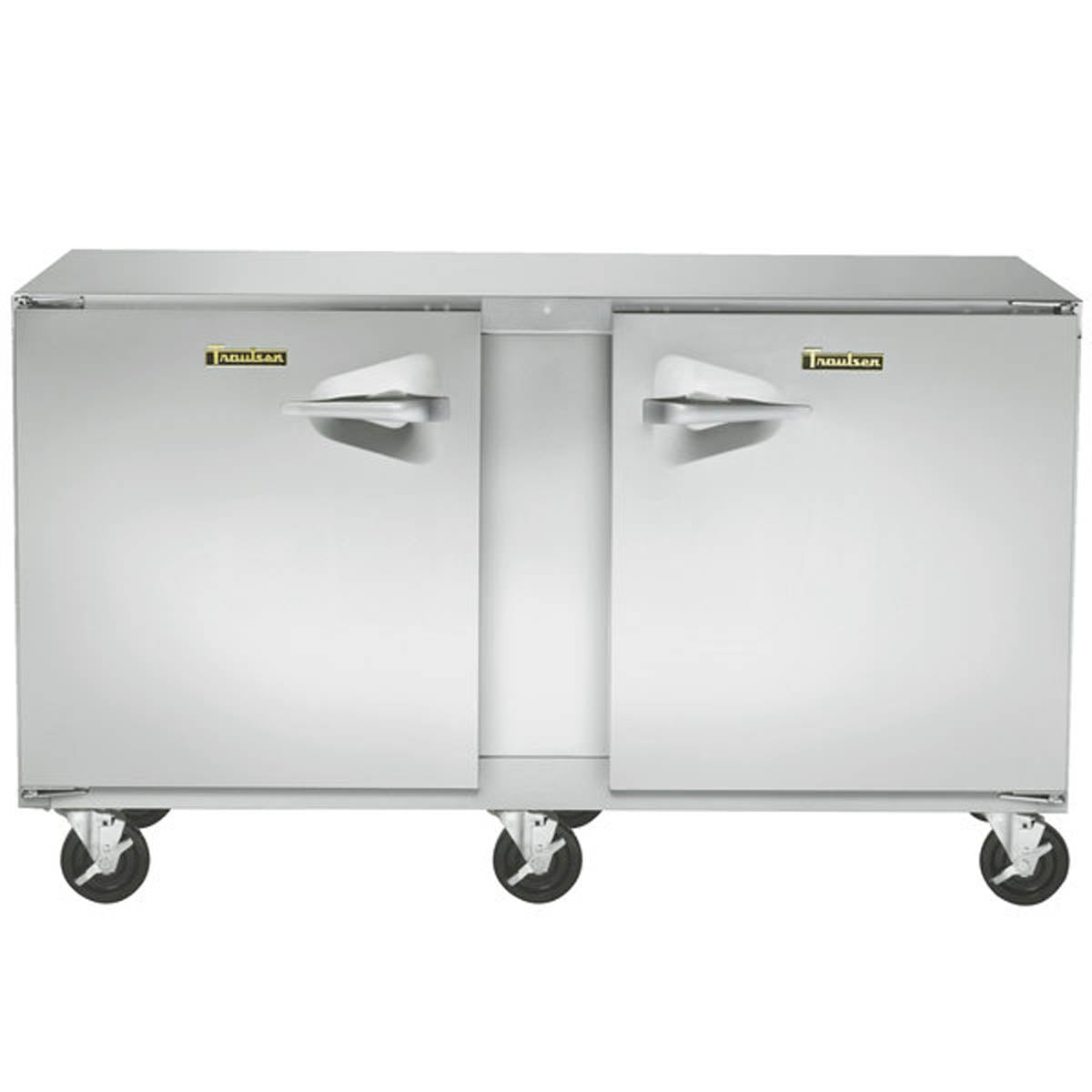

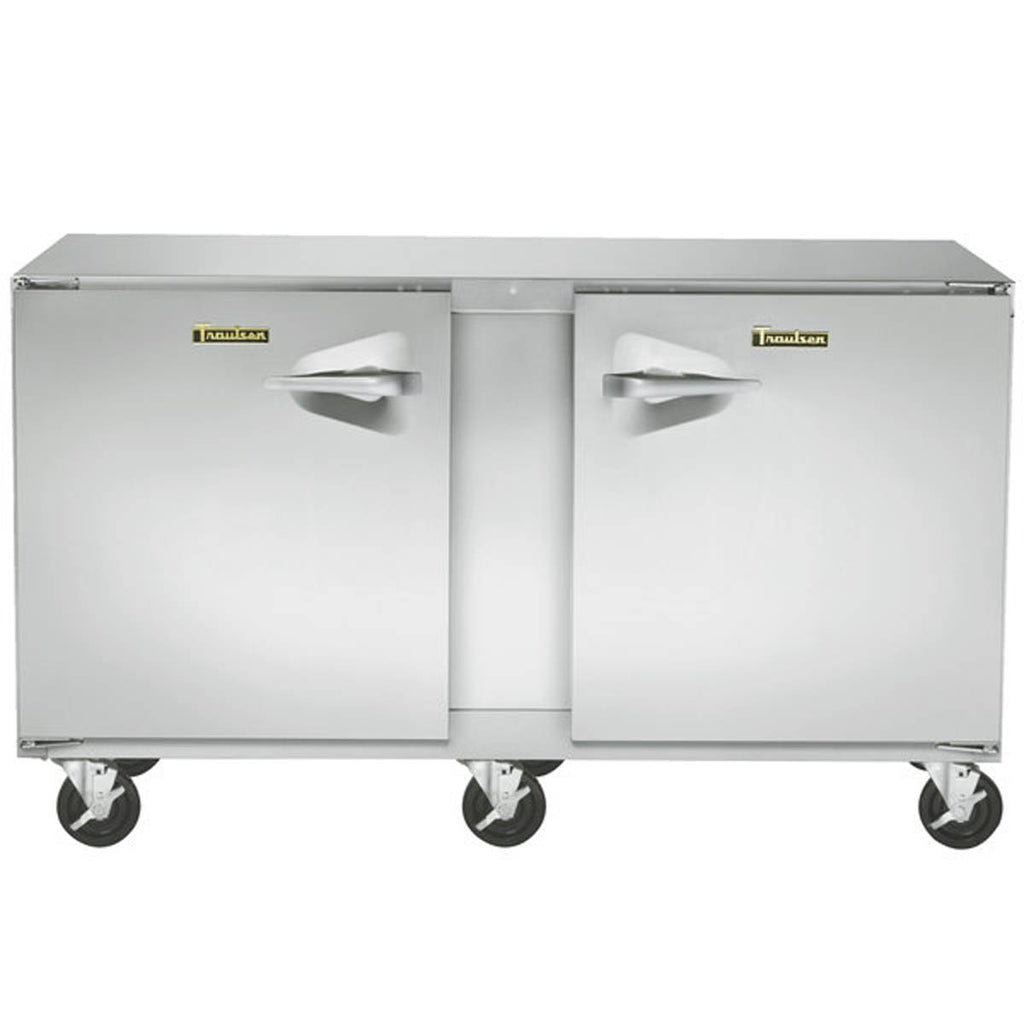

The Traulsen UHT72-LR-SB is a 72-inch self-contained undercounter refrigerator with two solid doors, a left/right door swing, and a stainless steel finished back. Its front-breathing refrigeration system is suited to built-in counter-line placement where rear ventilation clearance is not required.
This two-section cabinet provides 17.42 cu. ft. of refrigerated storage and four adjustable powder-coated wire shelves—two per door. Electronic digital controls, self-closing doors, and stay-open positioning at 105° support frequent ingredient access during prep and service.
Applications and Workflow
Use this refrigerator beneath a prep counter, cook line, beverage station, or other commercial work surface requiring refrigerated storage within arm’s reach. It is a refrigerator designed for a 34°F to 38°F operating range, not a freezer. Confirm the 72-inch cabinet length, 32-inch overall depth, door-swing space, and available 115V receptacle before ordering.
Features and Practical Benefits

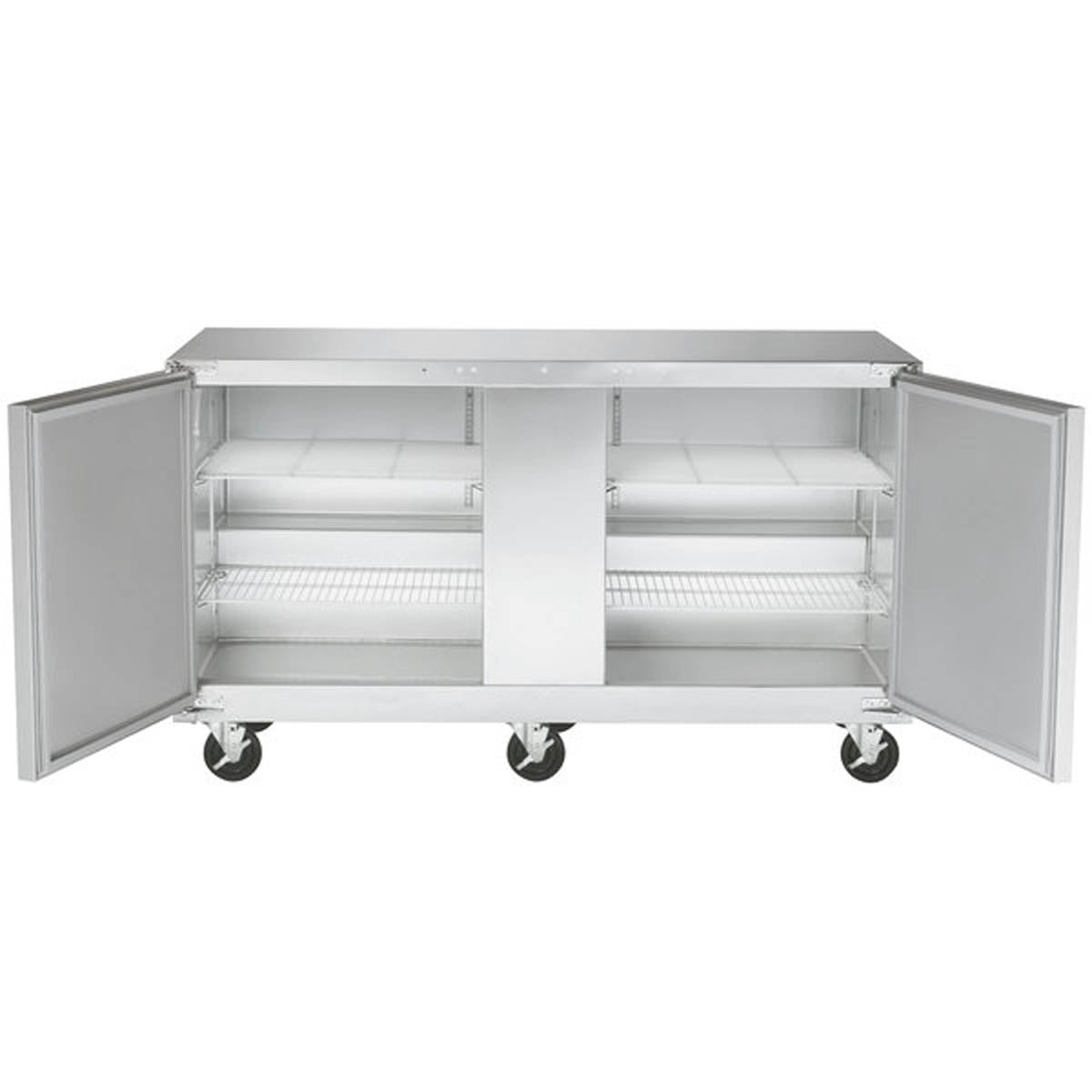

Left/right two-door access
The UHT72-LR configuration has two solid doors with left/right hinging, allowing staff to open either side independently. Each door self-closes and can remain open at 105° for loading or cleaning.
Front-breathing refrigeration
Its rear-mounted, front-breathing self-contained refrigeration system supports zero-clearance installation at the back, helping the cabinet fit into tight undercounter layouts.

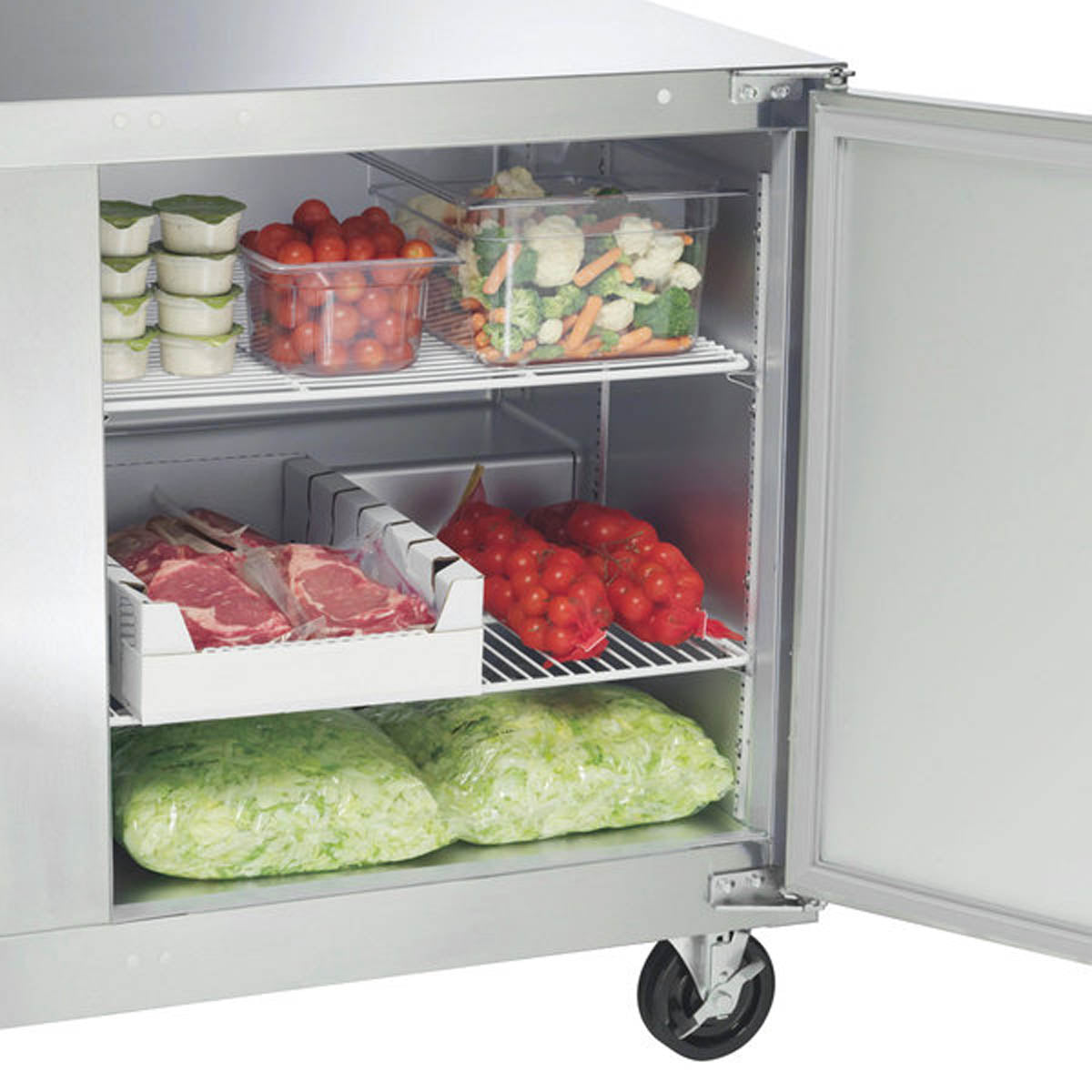

Adjustable organized storage
Four powder-coated wire shelves are standard, with two shelves per door. Pilaster mounting allows shelf adjustment in 1/2-inch increments.
Durable work-area construction
The cabinet has a stainless steel exterior top, sides, and doors, plus an anodized aluminum interior and door liners. The -SB suffix identifies the factory-installed stainless steel finished back.
Ready for standard power
The refrigerator operates on 115/60/1 power and includes an attached 8-foot NEMA 5-15P cord and plug.
Technical Specifications
| Manufacturer model | UHT72-LR-SB |
|---|---|
| Cabinet configuration | Two solid doors, left/right hinging |
| Finished back | Stainless steel, factory installed |
| Net capacity | 17.42 cu. ft. (494 L) |
| Overall length | 72 in. (183 cm) |
| Overall depth | 32 in. (81.3 cm) |
| Overall height on supplied 4 in. casters | 33 5/8 in. (85.4 cm) |
| Depth with door open 90° | 60 3/8 in. (153.4 cm) |
| Clear door width | 30 13/16 in. (78.3 cm) |
| Clear door height | 27 1/16 in. (68.7 cm) |
| Number of doors | 2 |
| Number of shelves | 4 |
| Electrical service | 115/60/1 |
| Full-load amps | 7.2 A |
| Power connection | NEMA 5-15P plug attached |
| Cord length | 8 ft. (2.4 m) |
| Refrigerant | R-290 |
| Refrigerant charge | 5 oz. (142 g) |
| Refrigeration system | Rear-mounted, front-breathing, self-contained |
| Operating temperature | 34°F to 38°F (1.1°C to 3.3°C) |
| Standard casters | Six 4 in. casters |
Installation and Purchasing Considerations
- Plan for a 72-inch overall cabinet length, 32-inch overall depth, and 33 5/8-inch height on the supplied 4-inch casters.
- Allow space in front of the cabinet for doors: the cabinet measures 60 3/8 inches deep with a door open 90°. Each door has a 30 13/16-inch clear width.
- The front-breathing system permits zero-clearance installation at the rear. Keep the front airflow path unobstructed and maintain access for normal cleaning and service.
- Connect to a 115V, single-phase electrical supply using the attached NEMA 5-15P plug and 8-foot cord. Verify the receptacle location before positioning the unit.
- Six 4-inch casters are standard on this 72-inch model. Alternative casters, legs, extra shelves, and a backsplash worktop are separately specified options, not standard inclusions.
Choosing This Configuration
This exact UHT72-LR-SB model is the two-solid-door, left/right-hinged 72-inch refrigerator with a factory-installed stainless steel finished back.
The base UHT72-LR is the same left/right two-door configuration; the -SB suffix distinguishes this model by its stainless steel finished back.
Do not substitute left/left or right/right hinge configurations when the workflow requires one left-hinged and one right-hinged door.
This is a door cabinet with shelves, not a drawer cabinet. Pans are not identified as included with this model.
Frequently Asked Questions
What does the -SB suffix mean on the UHT72-LR-SB?
The -SB suffix indicates the factory-installed stainless steel finished back. The underlying UHT72-LR configuration has two solid doors with left/right hinging.
Can this refrigerator be installed against a rear wall?
Yes. The front-breathing, self-contained refrigeration design is specified for zero-clearance installation. Do not obstruct airflow at the front of the unit.
What electrical connection does this model use?
It uses 115/60/1 electrical service and is equipped with an attached NEMA 5-15P plug and 8-foot cord.
How much shelving is included?
The refrigerator includes four powder-coated wire shelves total, arranged as two shelves per door. They mount on pilasters and are adjustable.
