Description

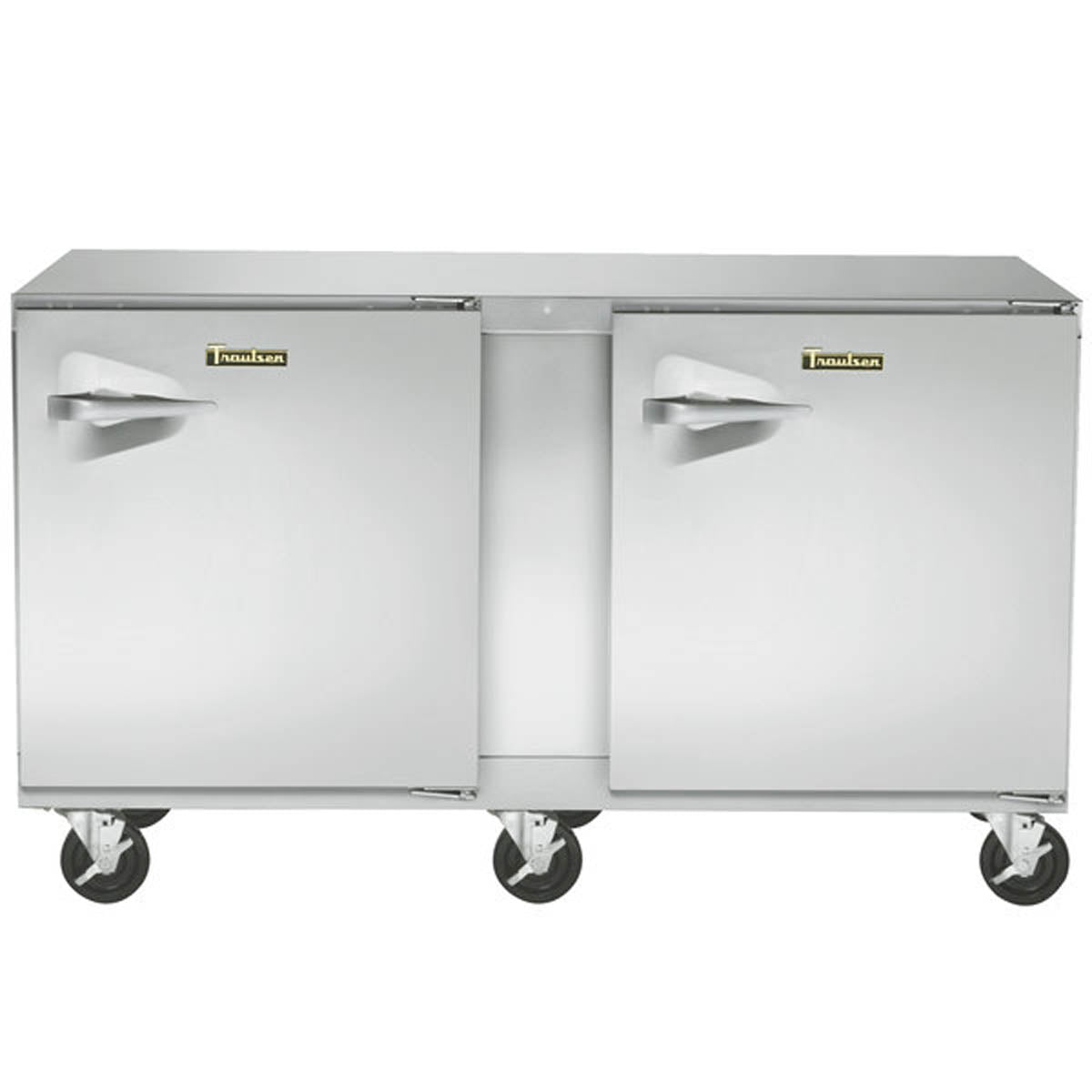

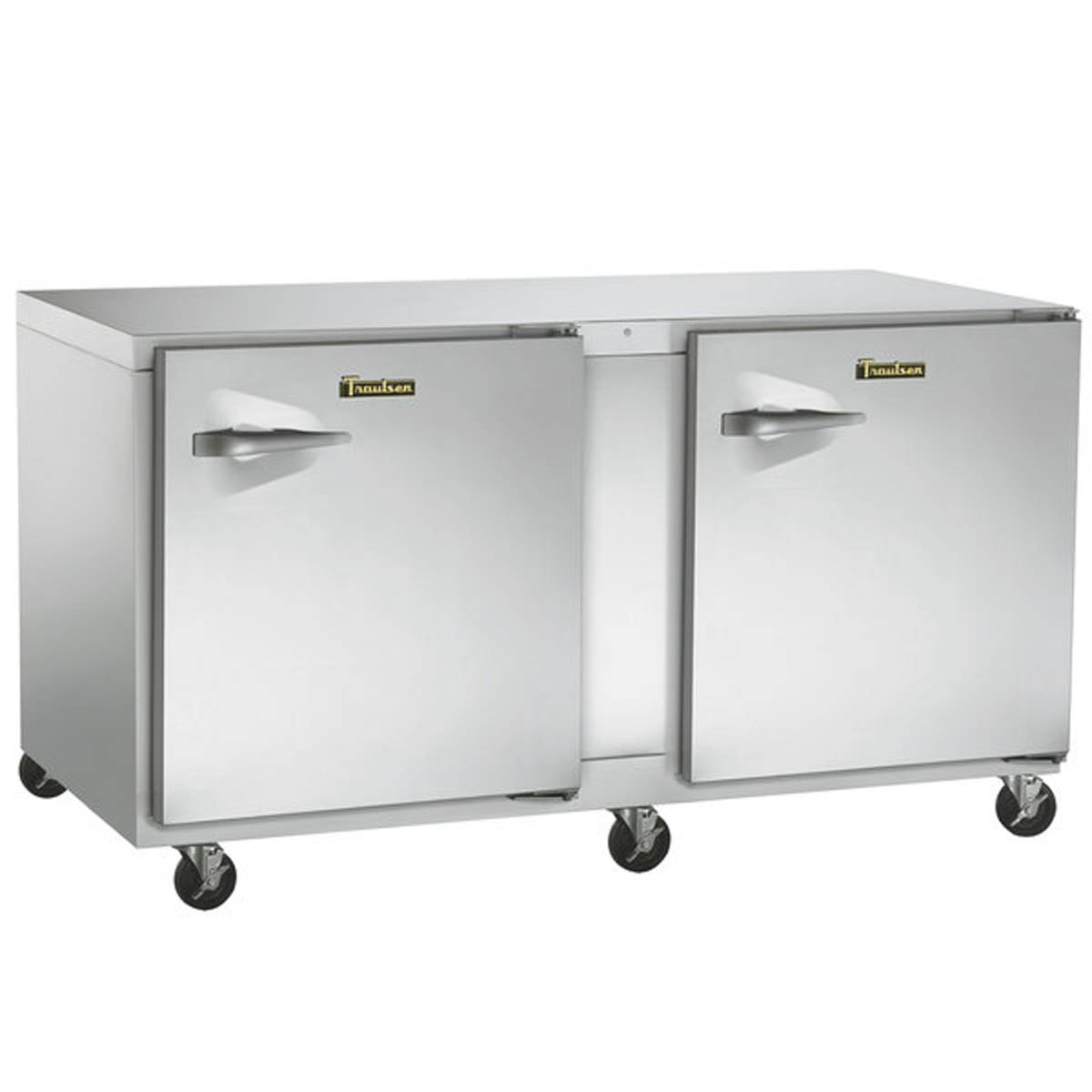

The Traulsen UHT72-RR is a 72-inch self-contained undercounter refrigerator with two solid doors, a 17.42 cu. ft. cabinet, and right/right door hinging. Its front-breathing refrigeration system supports placement where rear ventilation clearance is limited, while the stainless steel exterior top, sides, and doors suit busy commercial prep areas.
Four adjustable powder-coated shelves provide organized refrigerated storage behind the two doors. The electronic digital control, interior-mounted thermometer, automatic non-electric condensate evaporator, and magnetic snap-in EZ-Clean gaskets help make daily temperature monitoring and cabinet upkeep more straightforward.
Applications and Workflow
Use this refrigerator for refrigerated ingredient, beverage, or backup product storage beneath a commercial work area in restaurants, delis, cafeterias, and similar foodservice operations. This is a solid-door refrigerator configuration with a 34°F to 38°F operating range; it is not a freezer or a drawer cabinet.
Features and Practical Benefits
Right/right solid-door configuration
UHT72-RR has two solid doors with right/right hinging, allowing buyers to plan the opening direction before locating the cabinet under a counter.
Front-breathing self-contained system
The refrigeration system breathes from the front, allowing zero-clearance installation at the rear according to the manufacturer’s compact-undercounter literature.

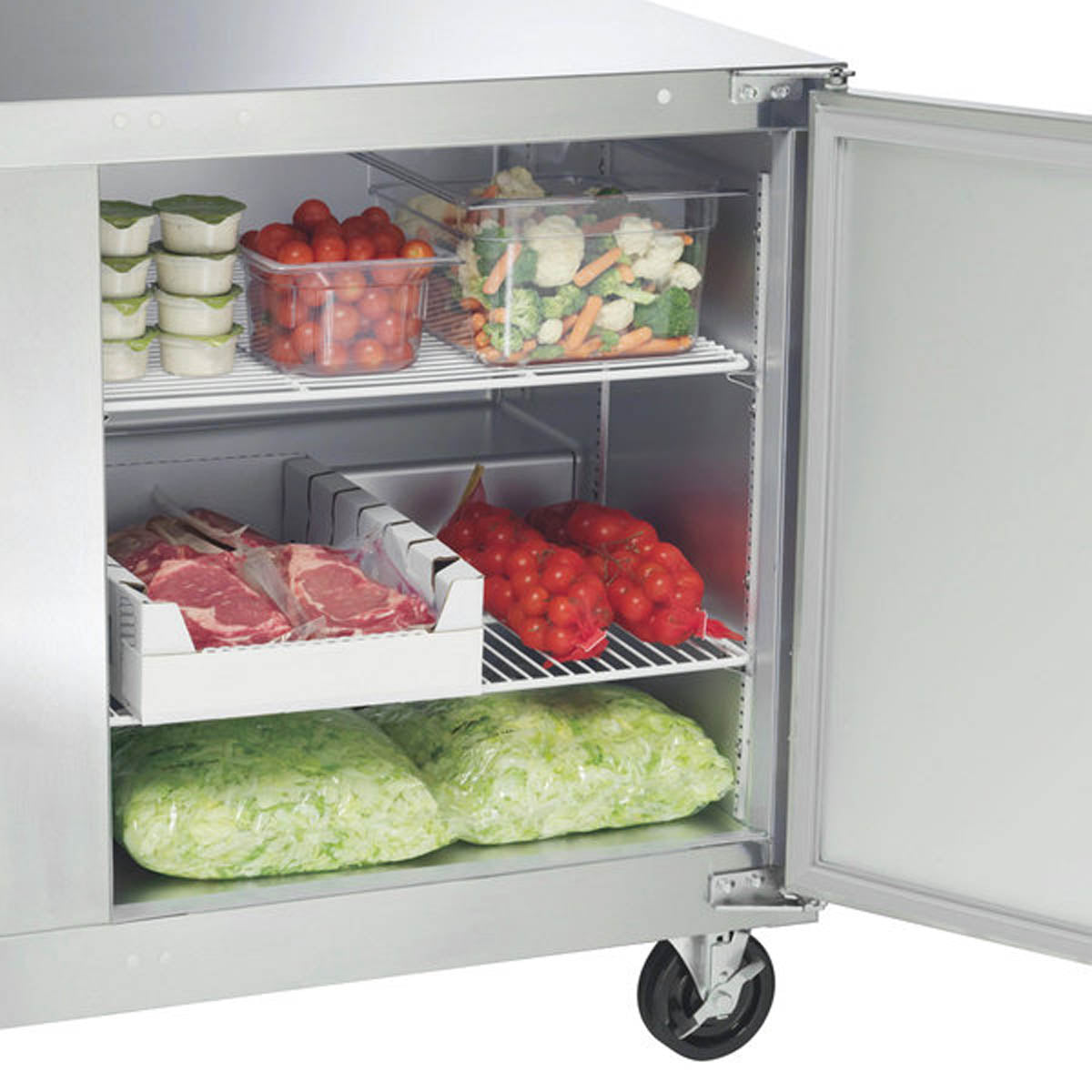

Organized adjustable storage
Four powder-coated shelves are supplied—two per door—and mount on pilasters for adjustable cabinet organization.
Built for frequent access
Each door is self-closing and has a stay-open position at 105 degrees, supporting loading and unloading without holding the door open.
Digital temperature management
An electronic digital control with LED display and an interior-mounted thermometer provide at-a-glance cabinet temperature monitoring.
Technical Specifications
| Manufacturer model | UHT72-RR |
|---|---|
| Cabinet type | Self-contained solid-door undercounter refrigerator |
| Door configuration | Two solid doors, right/right hinging |
| Net capacity | 17.42 cu. ft. (494 L) |
| Overall width | 72 in. (183 cm) |
| Overall depth | 32 in. (81.3 cm) |
| Overall height on supplied 4 in. casters | 33 5/8 in. (85.4 cm) |
| Depth with door open 90° | 60 3/8 in. (153.4 cm) |
| Clear door width | 30 13/16 in. (78.3 cm) |
| Clear door height | 27 1/16 in. (68.7 cm) |
| Number of shelves | 4 |
| Exterior construction | Stainless steel top, sides, and doors |
| Interior construction | Anodized aluminum interior |
| Refrigeration system | Front-breathing, self-contained, rear-mounted |
| Refrigerant | R-290 |
| Operating temperature | 34°F to 38°F (1.1°C to 3.3°C) |
| Electrical service | 115/60/1 |
| Full-load amps | 7.2 A |
| Energy use | 1.64 kWh/24 hr |
| Plug | NEMA 5-15P attached |
| Power cord | 8 ft. (2.4 m) |
| Standard casters | Six 4 in. casters |
Installation and Purchasing Considerations
- Allow a 72-inch-wide by 32-inch-deep footprint. Overall height is 33 5/8 inches on the supplied 4-inch casters.
- Plan service and aisle space for door operation: cabinet depth is 60 3/8 inches with a door open 90 degrees.
- This model uses 115/60/1 electrical service and includes an 8-foot cord with a NEMA 5-15P plug.
- The front-breathing design permits zero-clearance installation at the rear; keep the front airflow area accessible rather than blocking it with equipment or stored goods.
- A set of six 4-inch casters is standard. Optional alternate-height caster kits, 6-inch legs, extra shelves, and a backsplash worktop are separate accessories, not standard equipment.
Choosing This Configuration
This exact UHT72-RR configuration has two solid doors with right/right hinging. It is distinct from left/right and left/left hinge arrangements.
The standard exterior has stainless steel top, sides, and doors; a stainless steel finished back is identified by the separate -SB model suffix.
The cabinet is supplied with doors and shelves, not drawers. Do not select this model when drawer access or frozen storage is required.
Frequently Asked Questions
What is the door hinging on the UHT72-RR?
It has two solid doors with right/right hinging.
How much shelving is included?
The standard interior includes four powder-coated wire shelves total: two shelves per door. They are mounted on pilasters and can be adjusted.
What electrical connection does this refrigerator use?
It operates on 115/60/1 power and is supplied with an 8-foot cord and NEMA 5-15P plug.
Can this refrigerator be installed against a rear wall?
Its front-breathing system is specified for zero-clearance installation. Maintain access to the front airflow area and account for the 60 3/8-inch depth needed when a door is open 90 degrees.
