Description

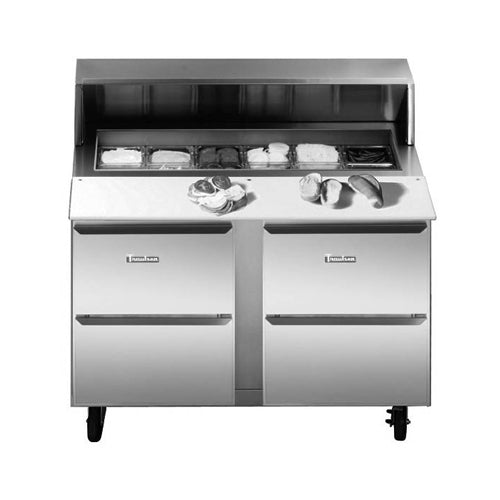

The Traulsen UPT7230-DD combines a 30-position top ingredient rail, a 8-inch-deep cutting board, and 4 drawers in a 72-inch preparation station. One-sixth-size top pans keep ingredients beside the assembly surface, while the enclosed refrigerated base provides storage within the same workstation.
The refrigerated base provides 8 one-sixth-size pans per drawer. The full-length white nylon cutting board is reversible. Rear-mounted, front-breathing, self-contained refrigeration uses R-290, and an electronic control provides a digital cabinet-temperature display. This is a refrigerated preparation unit for sandwich, salad, and deli workflows, rather than a plain undercounter cabinet or frozen-storage unit.
Applications and Workflow
Useful for commercial sandwich assembly, salad preparation, and deli service that organize ingredients across 30 top pan positions. Choose the rail capacity around the ingredient assortment and the 72-inch cabinet around the available line space. The cutting board and refrigerated base support preparation and backup storage at one station.
Features and Practical Benefits
30-position ingredient rail
The top accommodates 30 one-sixth-size pan positions. This number describes the top rail; the drawer pan arrangement below is a separate capacity.
8-inch preparation surface
A reversible white nylon cutting board extends along the front of the ingredient rail. Different pan-count configurations can use different board depths, so compare both the rail and the work surface.
4-drawer storage layout
The manufacturer lists 8 one-sixth-size pans per drawer. Match that layout to the ingredient groups kept as backup stock.
Self-contained refrigeration
The rear-mounted system requires no separate remote condensing unit. Front ventilation and condenser access should remain clear for normal operation and service.
Ordered exterior configuration
The standard configuration uses a galvanized exterior back/bottom arrangement with stainless steel front, sides, cover, and access panels.
Technical Specifications
| Manufacturer model | UPT7230-DD |
|---|---|
| Overall width | 72 in. |
| Top rail capacity | 30 one-sixth-size pan positions |
| Cutting board depth | 8 in. |
| Cutting board material | Reversible white nylon |
| Base access | 4 drawers |
| Drawer pan arrangement | 8 one-sixth-size pans per drawer |
| Electrical supply | 115V, 60 Hz, single phase |
| Attached plug | NEMA 5-15P |
| Full-load current | 7.2 A |
| Refrigerant | R-290 |
Installation and Purchasing Considerations
- Confirm space for a 72-inch station and the 8-inch-deep cutting board. Check the current factory drawing for complete overall depth, height, and the selected support package.

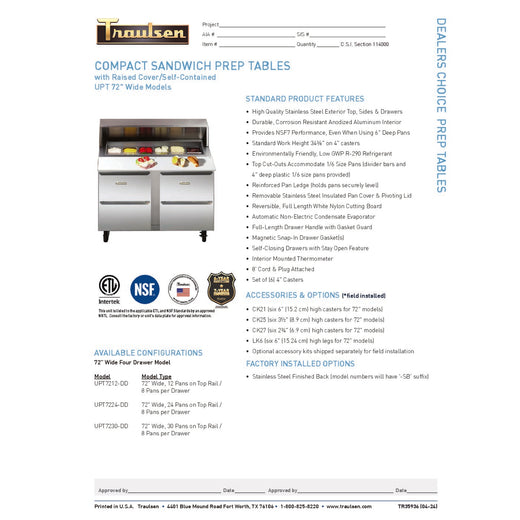

- Provide 115V, 60 Hz, single-phase power and a suitable NEMA 5-15P receptacle. The reviewed manufacturer sheet lists 7.2 full-load amps; confirm the unit data plate before connecting power.
- Allow for full drawer travel and removal of loaded pans from the front of the station.
- Check the pan-cover operating envelope and overhead clearances on the exact unit drawing. Keep the cover accessible for operation and cleaning.
- Leave front airflow and service access clear. Verify the delivered top-pan package, dividers, and any drawer pans or optional accessories on the order.
Choosing This Configuration
UPT7230-DD pairs 30 top pan positions with a 8-inch-deep cutting board. A different pan-count model of the same width can change the amount of working surface; width alone does not establish an equivalent configuration.
Choose the drawer base for pan-organized backup ingredients. Door models instead provide shelf storage.
The standard configuration uses a galvanized exterior back/bottom arrangement with stainless steel front, sides, cover, and access panels.
Frequently Asked Questions
How many top pans fit the UPT7230-DD?
The top rail has 30 positions for one-sixth-size pans. This top capacity is separate from the refrigerated base arrangement.
What storage is available below the work surface?
The base has 4 drawers with 8 one-sixth-size pans per drawer.
How deep is the cutting board?
The manufacturer’s model table lists a 8-inch-deep reversible white nylon cutting board for this pan configuration.
Does it require remote refrigeration?
No. It uses rear-mounted, self-contained refrigeration with front airflow. The reviewed electrical specification is 115V, 60 Hz, single phase, with a NEMA 5-15P plug.
