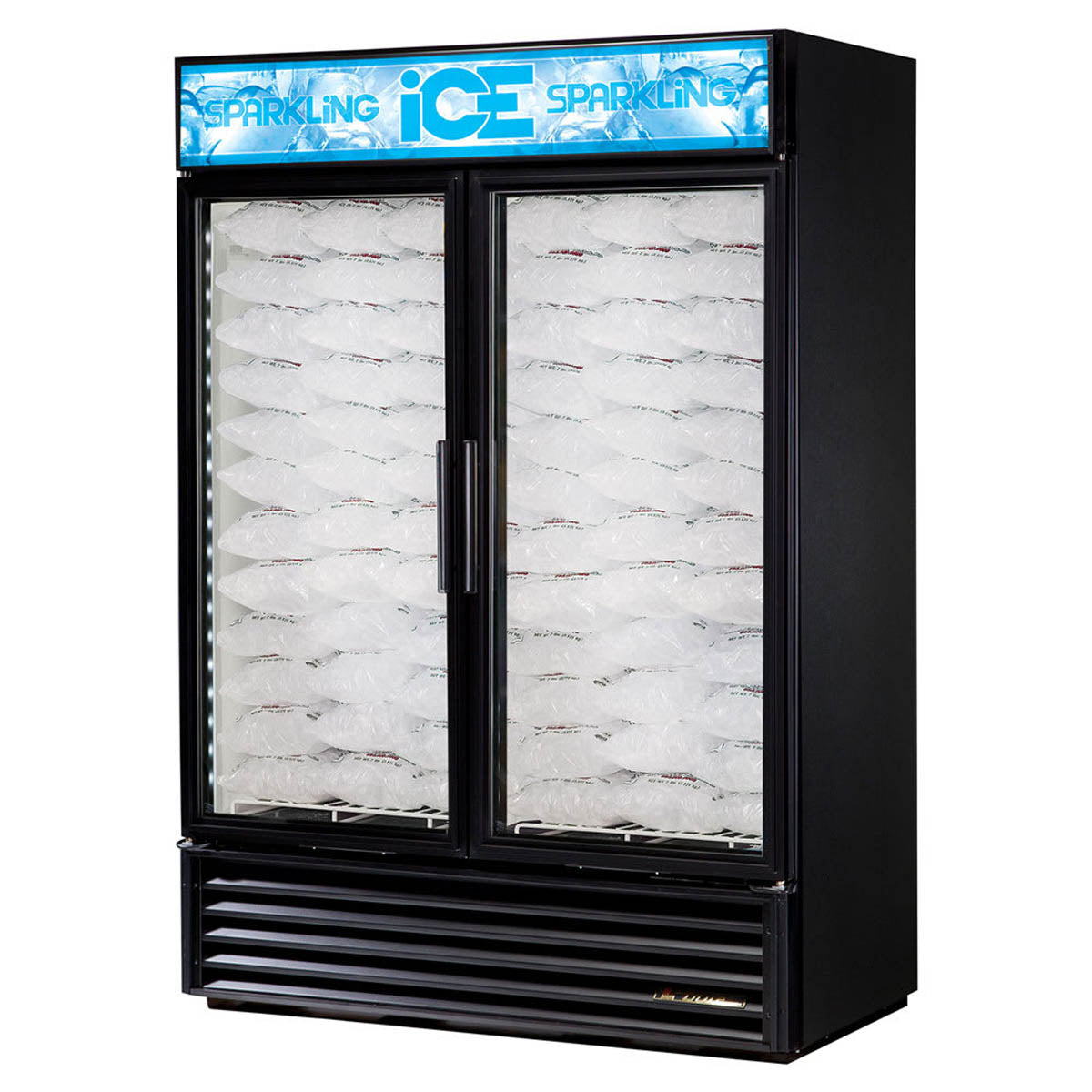

True GDIM-49NT-HC~TSL01 54" 2-Door Glass Swing Door Ice Merchandiser, 20-25°F, Holds 117 Ice Bags, R290, 115V
A glass door ice merchandiser that holds 117 bags of ice at 20°F to 25°F.
The True GDIM-49NT-HC~TSL01 is a 54-1/8" wide glass door ice merchandiser with 2 self-closing triple-pane glass swing doors. Its bottom-mounted R290 system holds 20°F to 25°F. An interior floor rack and backguard keep ice bags out of the airflow, and the cabinet holds 117 bags of ice, 8 lb. each, with LED interior lighting and an illuminated sign panel. It plugs into a dedicated 115V, 15 amp outlet with the included NEMA 5-15P cord.
Measure every doorway and turn on the delivery path; the smallest outside dimension is the 29-7/8" cabinet depth.
A factory-balanced, self-contained R290 system holds 20°F to 25°F.
Holds 117 bags of ice, 8 lb. each. A floor rack and backguard keep bags out of the airflow, and anti-fog film on the triple-pane glass limits condensation.
Natural R290 hydrocarbon refrigerant with zero ozone depletion potential.
Safety-shielded LED interior lighting spreads light evenly through the cabinet. An illuminated exterior sign panel is standard.
2 self-closing triple-pane glass swing doors with a torsion-type closure. Magnetic gaskets come off without tools for cleaning. Exterior: black powder-coated cold rolled steel.
A dedicated 115V, 15 amp outlet. The unit draws 7.0 A and comes with a 9 ft. cord and NEMA 5-15P plug.
The cabinet is 29-7/8" deep, 54-1/8" wide and 78-5/8" tall. Add 1-5/8" for door handles. Measure the doorway and every turn on the way in.
True rates the GDIM-49NT-HC~TSL01 to hold 20°F to 25°F.
True rates it for 117 bags of ice, 8 lb. each.
Yes. True products carry our Best Price Guarantee. Found it lower? Send us the lower price with a quote request or call us, and we will match it.
Specs
| Manufacturer | True Manufacturing |
|---|---|
| Model Number | GDIM-49NT-HC~TSL01 |
| Series | GDIM Glass Door Ice Merchandiser |
| Quantity | 1/Each |
| Shipping Weight | 455 lb. |
| Version | True Standard Look Version 01 |
| Width | 54-1/8 Inches |
| Depth | 29-7/8 Inches |
| Height | 78-5/8 Inches |
| Depth Note | Add 1-5/8" for door handles |
| Voltage | 115 Volts |
| Hertz | 60 Hz |
| Phase | 1 |
| Amps | 7.0 Amps |
| Plug Type | NEMA 5-15P |
| Cord Length | 9 ft. |
| Circuit | Dedicated 15 Amp Outlet |
| Temperature Range | 20 - 25 Degrees F |
| Refrigerant | R290 (Hydrocarbon) |
| Horsepower | 1/2 HP |
| Compressor Location | Bottom Mount |
| System | Self-Contained, Capillary TubeECM Evaporator and Condenser Fan MotorsEpoxy-Coated Evaporator |
| Doors | 2 Glass Swing Doors, Self-ClosingTriple-Pane Glass |
| Floor Racks | 2 Interior Floor Racks and Backguard, Keep Ice Bags off the Airflow Path |
| Ice Capacity | 117 Bags, 8 lb. Each |
| Exterior | Black Powder-Coated Cold Rolled Steel |
| Interior | White Aluminum LinerStainless Steel Floor |
| Insulation | Foamed-In-Place High Density Polyurethane |
| Legs | Leg Levelers |
| Lighting | LED Interior Lighting |
| Signage | Illuminated Sign Panel |

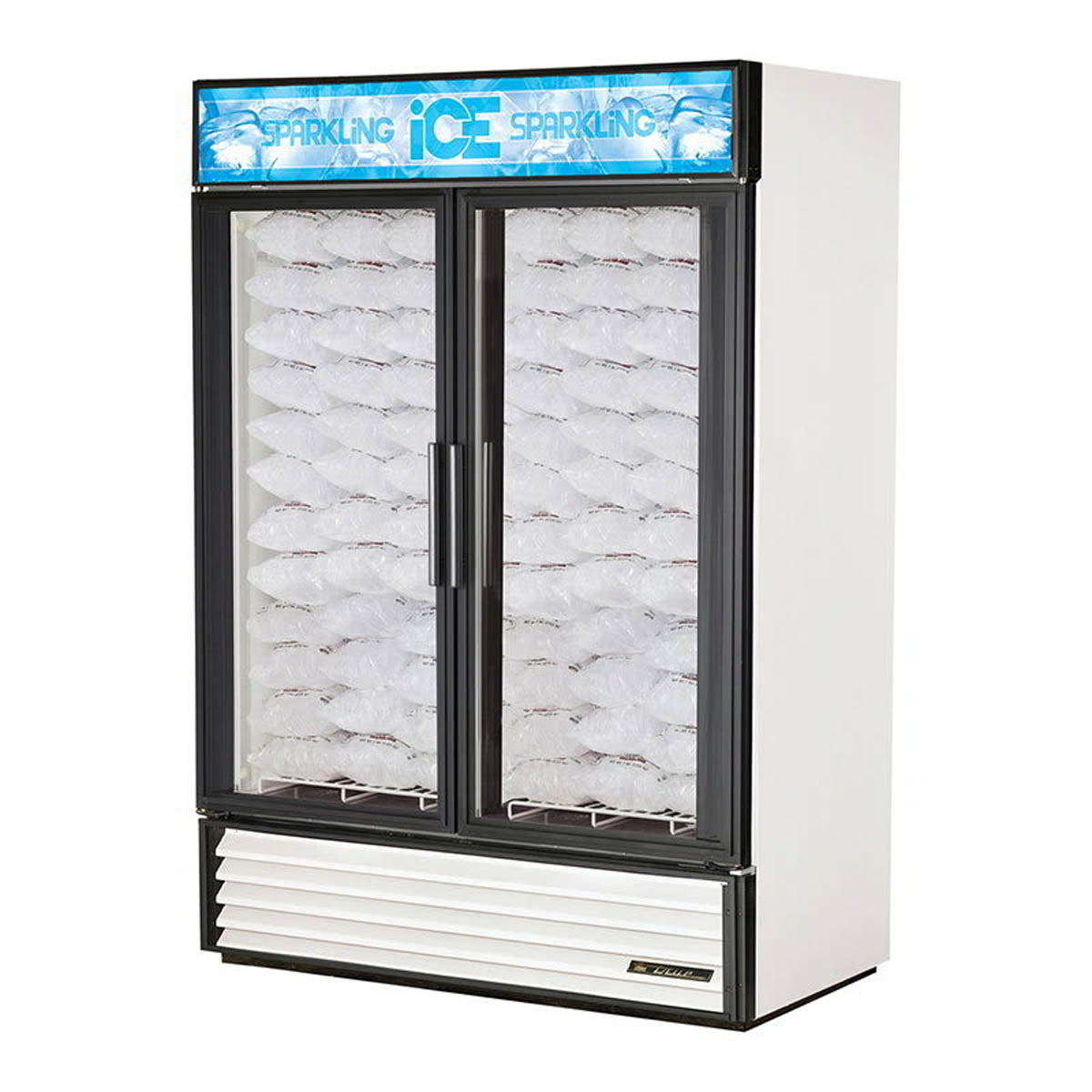

| True Options | White exteriorStainless steel exteriorBlack aluminum interior liner6" standard legs6" seismic/flanged legs2-1/2" diameter castors4" diameter castorsPadlocks |
| Certifications | cULus, UL EPH Classified |
| Sanitation | NSF/ANSI Standard 7 for Packaged or Bottled Product |
