True GDM-23-HST-HC~TSL01 27" 1-Door Glass Swing Door Merchandiser Refrigerator with Health Safety Lock, 33-38°F, 4 Shelves, R290, 115V
A glass door merchandiser that locks itself if the cabinet stays too warm for 30 minutes.

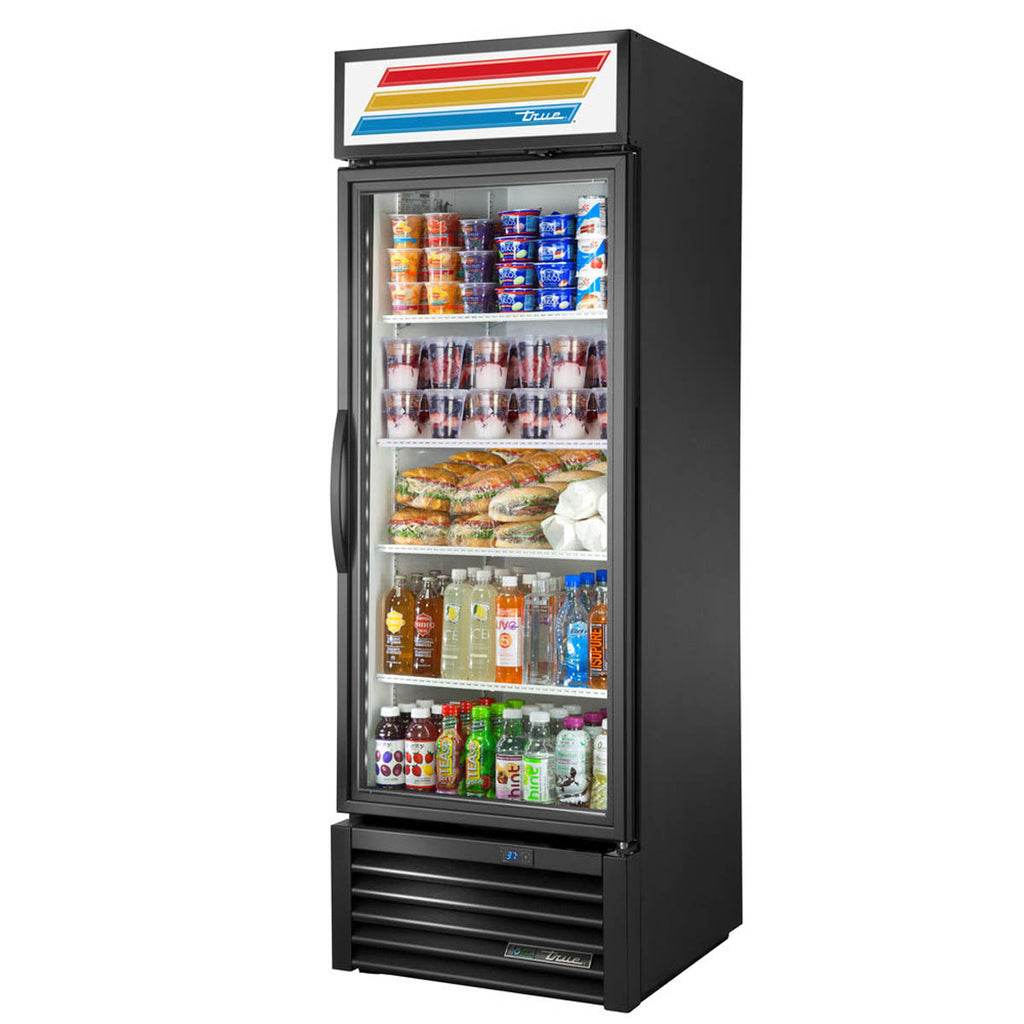

The True GDM-23-HST-HC~TSL01 is a 27" wide glass door merchandiser refrigerator with 1 self-closing Low-E double-pane glass swing door. Its bottom-mounted R290 system holds 33°F to 38°F. Inside, 4 adjustable PVC-coated wire shelves hold the product, with LED interior lighting and an illuminated sign panel. It plugs into a dedicated 115V, 15 amp outlet with the included NEMA 5-15P cord.
Measure every doorway and turn on the delivery path; the smallest outside dimension is the 27" cabinet width.
A factory-balanced, self-contained R290 system holds 33°F to 38°F.
If the cabinet stays above 41°F for 30 minutes, the door locks and an alarm and visual signal alert staff.
Natural R290 hydrocarbon refrigerant with zero ozone depletion potential. The bottom-mounted condenser coil is easy to reach for cleaning.
4 adjustable PVC-coated wire shelves, 22-9/16" x 23-1/4", adjust in 1/2" steps. The "no stoop" bottom shelf sits above the condensing unit.
Safety-shielded LED interior lighting. An illuminated exterior sign panel is standard.
1 self-closing Low-E double-pane glass swing door with a torsion-type closure. Magnetic gaskets come off without tools for cleaning. Exterior: black powder-coated cold rolled steel.
A dedicated 115V, 15 amp outlet. The unit draws 5.4 A and comes with a 9 ft. cord and NEMA 5-15P plug.
The cabinet is 29-7/8" deep, 27" wide and 78-5/8" tall. Add 1-5/8" for door handles. Measure the doorway and every turn on the way in.
True rates the GDM-23-HST-HC~TSL01 to hold 33°F to 38°F.
4 adjustable PVC-coated wire shelves, adjustable in 1/2" steps.
If the cabinet stays above 41°F for 30 minutes, the door locks and an alarm and visual signal alert staff.

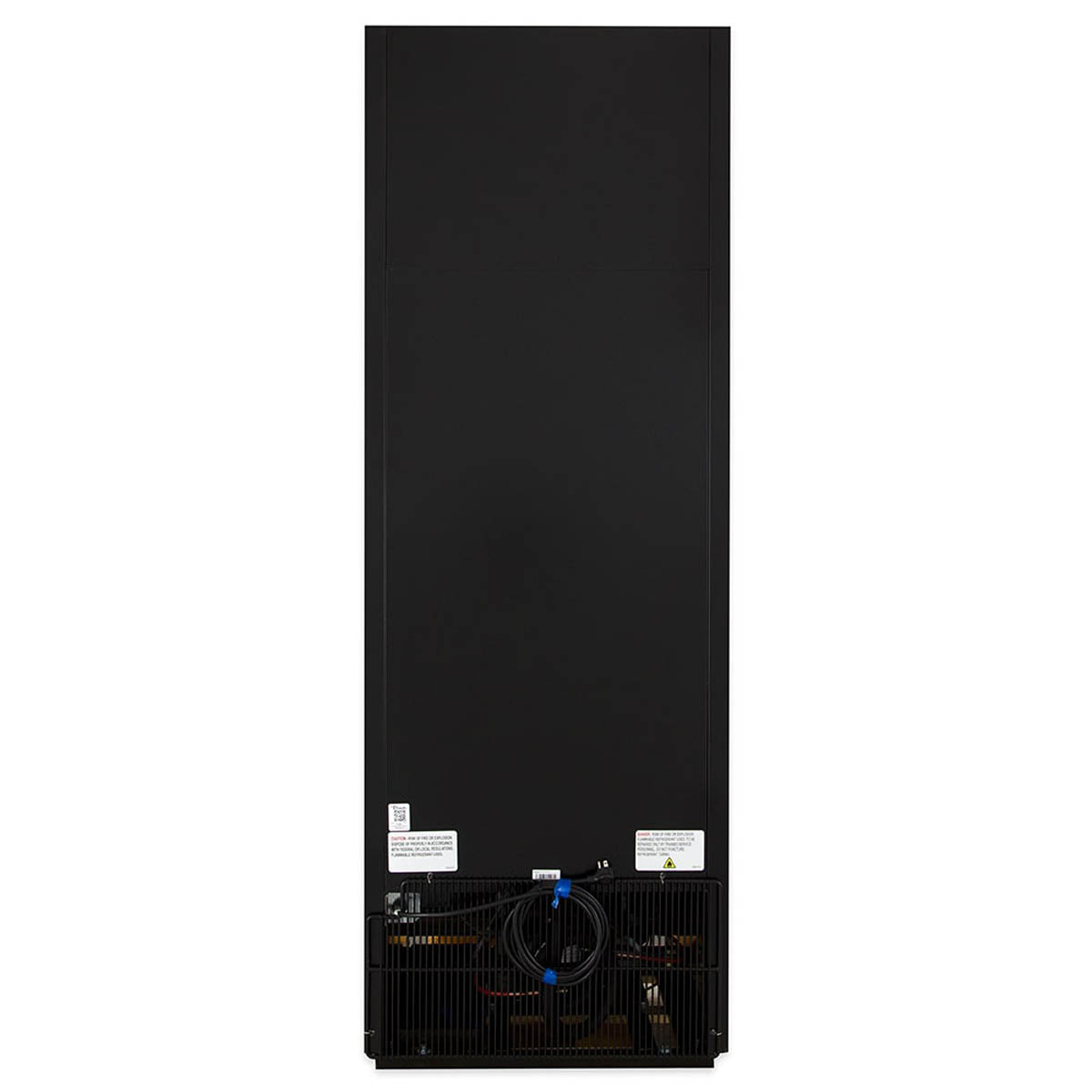

Yes. The condensing unit sits at the bottom of the cabinet, and True designed the condenser coil to be easy to reach for cleaning.
Yes. True products carry our Best Price Guarantee. Found it lower? Send us the lower price with a quote request or call us, and we will match it.
Specs
| Manufacturer | True Manufacturing |
|---|---|
| Model Number | GDM-23-HST-HC~TSL01 |
| Series | GDM Glass Door Merchandiser |
| Quantity | 1/Each |
| Shipping Weight | 305 lb. |
| Version | True Standard Look Version 01 |
| Width | 27 Inches |
| Depth | 29-7/8 Inches |
| Height | 78-5/8 Inches |
| Depth Note | Add 1-5/8" for door handles |
| Voltage | 115 Volts |
| Hertz | 60 Hz |
| Phase | 1 |
| Amps | 5.4 Amps |
| Plug Type | NEMA 5-15P |
| Cord Length | 9 ft. |
| Circuit | Dedicated 15 Amp Outlet |
| Temperature Range | 33 - 38 Degrees F |
| Refrigerant | R290 (Hydrocarbon) |
| Horsepower | 1/3 HP |
| Compressor Location | Bottom Mount |
| System | Self-Contained, Capillary TubeECM Evaporator and Condenser Fan MotorsEpoxy-Coated Evaporator |
| Doors | 1 Glass Swing Door, Self-ClosingLow-E Double-Pane Glass |
| Shelves | 4 Adjustable PVC-Coated Wire Shelves, 22-9/16" L x 23-1/4" D |
| Exterior | Black Powder-Coated Cold Rolled Steel |
| Interior | White Aluminum LinerStainless Steel Floor |
| Legs | Leg Levelers |
| Lighting | LED Interior Lighting |
| Signage | Illuminated Sign Panel |
| Health Safety Timer | Door Locks if Cabinet Exceeds 41°F for 30 Minutes |
| Certifications | cULus, UL EPH Classified |
| Sanitation | NSF/ANSI Standard 7 for Packaged or Bottled Product |
