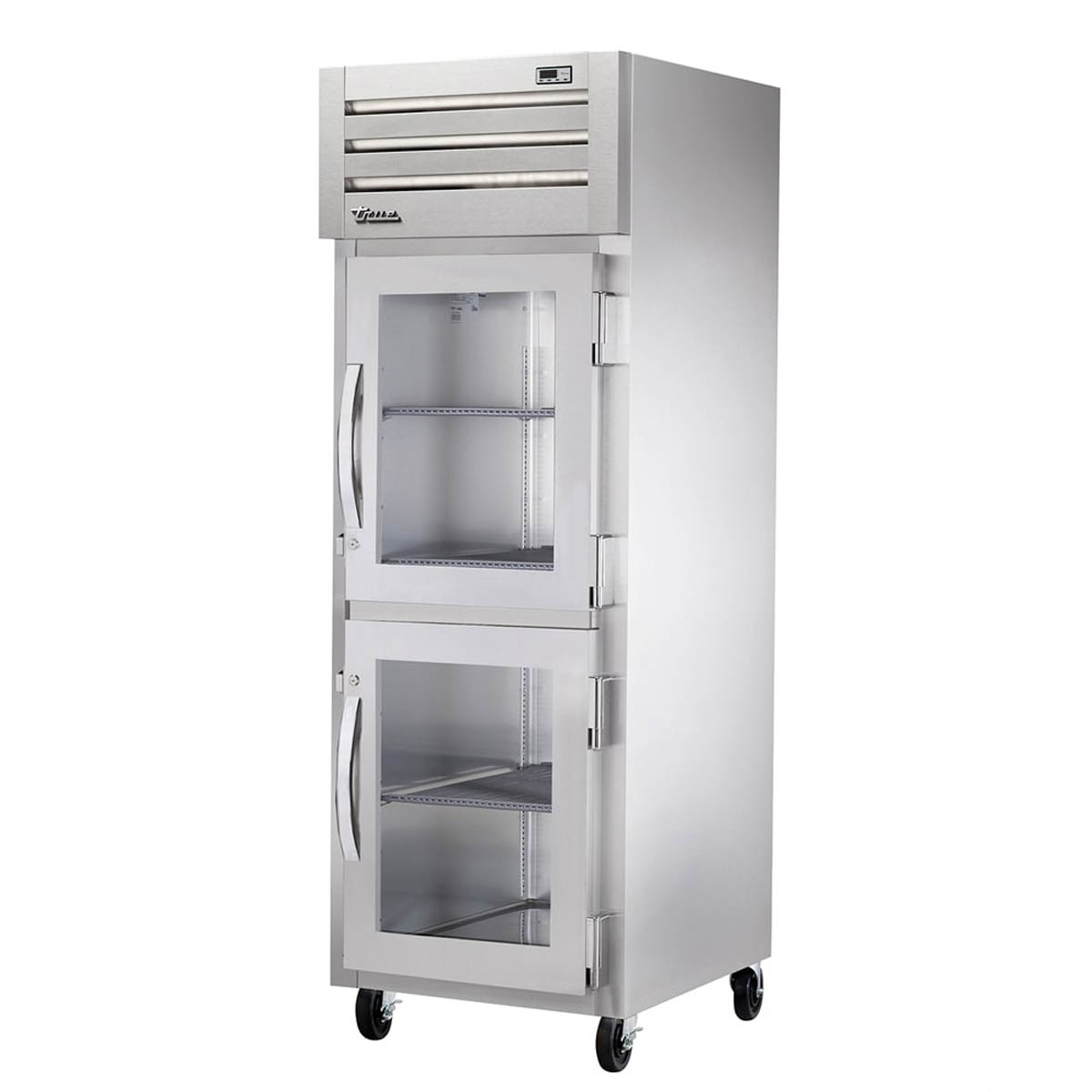

True STA1H-2HG 27-1/2" 1-Section Heated Holding Cabinet, 2 Glass Half Doors, 140°F-180°F, 208-240V
A 1-section Spec Series heated holding cabinet that holds cooked and baked food at 140°F to 180°F for a busy kitchen.
The True STA1H-2HG is a stainless steel Spec Series heated holding cabinet with 2 glass half doors. A 1500-watt heating system holds 140°F to 180°F for warm cooked or baked food; True notes it is not built to heat cold product. It comes with 3 heavy-duty chrome-plated wire shelves. It plugs into a dedicated 208-240V outlet with the included NEMA 6-15P cord.
Measure every doorway and turn on the delivery path; the smallest outside dimension is the 27-1/2" width.
Exterior on/off switch and electronic temperature control, with low-velocity fans for even heat.
A manual vent on top of the cabinet controls moisture.
Three heavy-duty chrome-plated wire shelves; tray slide kits are available as options.
Open only the half you need to keep the rest of the cabinet at temperature.
Self-closing doors stay open at 120°, with bolt-style locks, all-metal handles, 4 cam-lift hinges per door section and gaskets you remove without tools.
A dedicated 208-240V, 15 amp outlet. It comes with a 9 ft. cord and NEMA 6-15P plug and is rated 1500 watts.
The cabinet is 27-1/2" wide, 33-3/4" deep and 77-3/4" tall plus 6-1/8" for castors. Measure the doorway and every turn on the way in.
No. True designs it to hold warm baked or cooked food at 140°F to 180°F, not to heat ambient or cold product.
3 heavy-duty chrome-plated wire shelves. Extra shelves and tray slide kits are True options.
Pick the hinging you need from the options above the price before you order.
6" standard and seismic/flanged legs are True options. Ask us when you order.
Yes. True products carry our Best Price Guarantee. Found it lower? Send us the lower price with a quote request or call us, and we will match it.
Specs
| Manufacturer | True Manufacturing |
|---|---|
| Model Number | STA1H-2HG |
| Series | Spec Series STA |
| Quantity | 1/Each |
| Product Weight | 370 lb. |
| Width | 27-1/2 Inches |
| Depth | 33-3/4 Inches |
| Height | 77-3/4 Inches |
| Height Note | Add 6-1/8" for Castors or 6" for Optional LegsAdd 1/4" for System Mechanical Components |
| Voltage | 208-240 Volts |
| Hertz | 60 Hz |
| Phase | 1 |
| Wattage | 1500 Watts |
| Plug Type | NEMA 6-15P |
| Cord Length | 9 ft. |
| Circuit | Dedicated 15 Amp Outlet |
| Temperature Range | 140 - 180 Degrees F |
| Heating System | 1 Stainless Steel Heating Element1500 Watts Total |
| Controls | Exterior On/Off SwitchElectronic Temperature Control |
| Air Circulation | Low-Velocity Fans for Even Temperature |
| Humidity Control | Manual Vent on Top of Cabinet |
| Use | Holds Warm Cooked or Baked Food; Not Designed to Heat Ambient or Cold Product |
| Doors | 2 Glass Half Doors, Self-Closing, 120 Degree Stay-Open, Locks Standard |
| Glass | Low-E Double Pane Thermal Insulated Glass |
| Door Hardware | All-Metal Work Door HandlesExternal Cam-Lift Hinges, 4 per Door SectionMagnetic Gaskets Removable Without Tools |
| Shelves | 3 Heavy-Duty Chrome-Plated Wire Shelves, 3 per Section |
| Exterior | Stainless Steel Doors, Front and Sides |
| Interior | Aluminum Side Walls and BackStainless Steel Floor and Ceiling |
| Insulation | Foamed-In-Place High Density Polyurethane |
| Castors | 5" Diameter Plate Castors, Locks on Front Set |
| Lighting | Incandescent Interior Lighting, Safety Shielded, Exterior On/Off Switch |
| Display | Exterior Digital Temperature Display, F or C |
| True Options | 6" Standard Legs6" Seismic/Flanged LegsAdditional ShelvesStainless BackTray Slide and Shelf Kits, Field Installed on STA |
| Certifications | cULus, UL EPH Classified |
| Sanitation | NSF/ANSI Standard 4 Compliant for Open Food Product |
