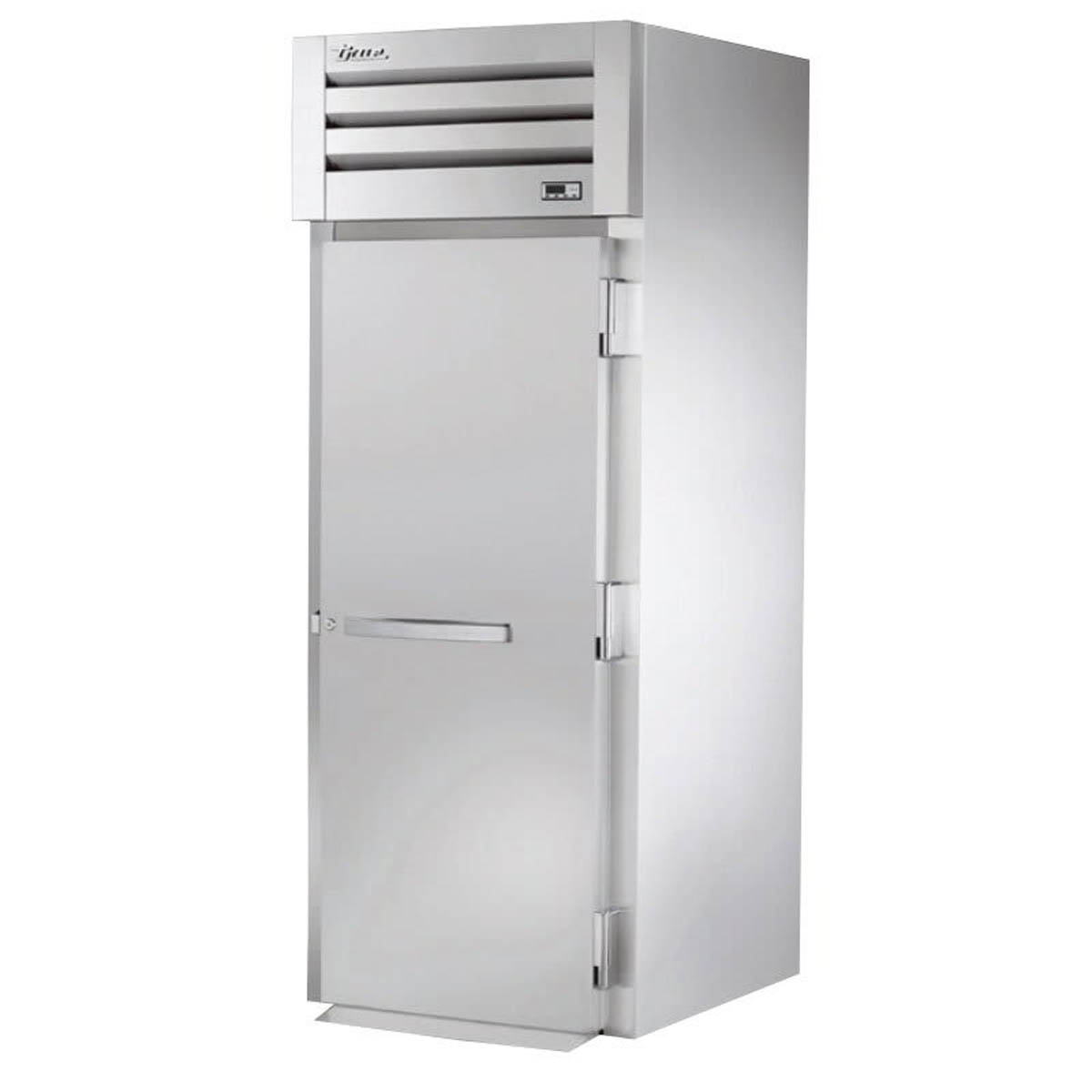

True STA1HRI-1S 35" 1-Section Roll-In Heated Holding Cabinet, 1 Solid Door, 140°F-180°F, 115/208-230V
A 1-section Spec Series roll-in heated holding cabinet that holds cooked and baked food at 140°F to 180°F with full racks rolled straight in.
The True STA1HRI-1S is a stainless steel Spec Series roll-in heated holding cabinet with 1 solid door. A 2000-watt heating system holds 140°F to 180°F for warm cooked or baked food; True notes it is not built to heat cold product. It takes roll-in racks up to 27" L x 29" D x 66" H with inboard castors; racks are not included. It plugs into a dedicated 115/208-230V outlet with the included NEMA 14-20P cord.
Measure every doorway and turn on the delivery path; the smallest outside dimension is the 34-3/4" cabinet depth. Roll-in models sit on the floor, so check the ramp approach too.
Exterior on/off switch and electronic temperature control, with low-velocity fans for even heat.
Takes racks up to 27" L x 29" D x 66" H on inboard castors, with interior bumpers to protect the walls.
A manual vent on top of the cabinet controls moisture, and a 12" x 20" water pan is included for extra humidity.
Self-closing doors stay open at 120°, with bolt-style locks, all-metal handles, 3 cam-lift hinges per door section and gaskets you remove without tools.
A dedicated 115/208-230V, 20 amp outlet. It comes with a 9 ft. cord and NEMA 14-20P plug and is rated 2000 watts.
The cabinet is 35" wide, 34-3/4" deep and 83-3/4" tall. Measure the doorway and every turn on the way in.
No. True designs it to hold warm baked or cooked food at 140°F to 180°F, not to heat ambient or cold product.
Roll-in racks with inboard castors up to 27" L x 29" D x 66" H. Racks are not included.
Pick the hinging you need from the options above the price before you order.
Yes. True products carry our Best Price Guarantee. Found it lower? Send us the lower price with a quote request or call us, and we will match it.
Specs
| Manufacturer | True Manufacturing |
|---|---|
| Model Number | STA1HRI-1S |
| Series | Spec Series STA |
| Quantity | 1/Each |
| Product Weight | 465 lb. |
| Width | 35 Inches |
| Depth | 34-3/4 Inches |
| Height | 83-3/4 Inches |
| Ramp | Add 4-1/8" for Ramp |
| Height Note | Add 1/4" for System Mechanical Components |
| Voltage | 115/208-230 Volts |
| Hertz | 60 Hz |
| Phase | 1 |
| Wattage | 2000 Watts |
| Plug Type | NEMA 14-20P |
| Cord Length | 9 ft. |
| Circuit | Dedicated 20 Amp Outlet, 3 Pole, 4 Wire Circuit |
| Temperature Range | 140 - 180 Degrees F |
| Heating System | 2 Stainless Steel Finned Tube Heating Elements, 1000 Watts Each2000 Watts Total |
| Controls | Exterior On/Off SwitchElectronic Temperature Control |
| Air Circulation | Low-Velocity Fans for Even Temperature |
| Humidity Control | Manual Vent on Top of Cabinet12" x 20" Water Pan Included |
| Use | Holds Warm Cooked or Baked Food; Not Designed to Heat Ambient or Cold Product |
| Doors | 1 Solid Door, Self-Closing, 120 Degree Stay-Open, Locks Standard |
| Door Hardware | All-Metal Work Door HandlesExternal Cam-Lift Hinges, 3 per Door SectionMagnetic Gaskets Removable Without Tools |
| Rack Capacity | Roll-In Racks up to 27" L x 29" D x 66" H with Inboard Castors, Racks Not Included |
| Ramps | 1 Heavy Gauge Stainless Steel Ramp |
| Exterior | Stainless Steel Doors, Front and Sides |
| Interior | Aluminum Side Walls and BackStainless Steel Floor and Ceiling |
| Insulation | Foamed-In-Place High Density Polyurethane |
| Interior Bumpers | Protect Cabinet Walls from Roll-In Carts |
| Breaker Caps | Stainless Steel |
| Lighting | Incandescent Interior Lighting, Safety Shielded, Exterior On/Off Switch |
| Display | Exterior Digital Temperature Display, F or C |
| True Options | Stainless BackSecurity Package |
| Certifications | cULus, UL EPH Classified |
| Sanitation | NSF/ANSI Standard 4 Compliant for Open Food Product |
