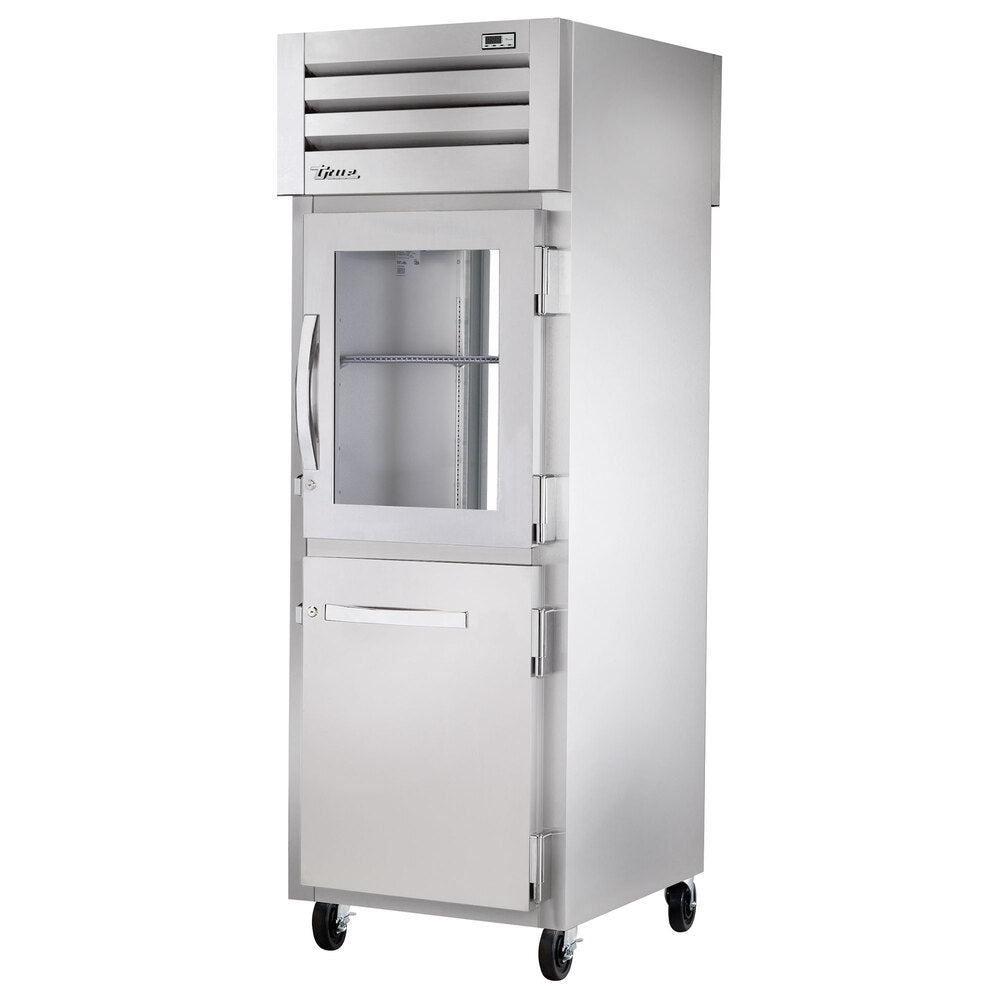

True STA1RPT-1HG/1HS-1G-HC 27-1/2" 1-Section Pass-Thru Refrigerator, 1 Glass Half Door + 1 Solid Half Door Front / 1 Glass Door Rear
A 1-section Spec Series pass-thru refrigerator that keeps food at 33°F to 38°F and opens from both sides.
The True STA1RPT-1HG/1HS-1G-HC is a stainless steel Spec Series pass-thru refrigerator with 1 glass half door and 1 solid half door on the front and 1 glass door on the back. Its top-mounted R290 system holds 33°F to 38°F, with the evaporator kept out of the food zone. Doors on both sides let cooks load from the back while servers pull from the front. It comes with 3 heavy-duty chrome-plated wire shelves.
Measure every doorway and turn on the delivery path; the smallest outside dimension is the 27-1/2" width.
A factory-balanced, top-mounted system holds 33°F to 38°F and an exterior digital display shows the temperature in °F or °C.
Natural R290 hydrocarbon refrigerant with zero ozone depletion potential and a 0.02 global warming potential.
1 glass half door and 1 solid half door on the front and 1 glass door on the back let you load and unload from either side.
Three heavy-duty chrome-plated wire shelves; tray slide kits are available as options.
Low-E double pane thermal insulated glass lets staff see stock before opening the door.
Self-closing doors stay open at 120°, with bolt-style locks, all-metal handles, 4 cam-lift hinges per door section and gaskets you remove without tools.
A dedicated 115V, 15 amp outlet. It comes with a 9 ft. cord and NEMA 5-15P plug and draws 3.8 A.
The cabinet is 27-1/2" wide, 36-1/8" deep and 77-3/4" tall plus 6-1/8" for castors. Measure the doorway and every turn on the way in.
True rates the STA1RPT-1HG/1HS-1G-HC to hold 33°F to 38°F.
3 heavy-duty chrome-plated wire shelves. Extra shelves and tray slide kits are True options.
Ask us before you order if you need a specific hinge side.
6" standard, seismic/flanged and stainless steel legs are True options. Ask us when you order.
Yes. True products carry our Best Price Guarantee. Found it lower? Send us the lower price with a quote request or call us, and we will match it.
Specs
| Manufacturer | True Manufacturing |
|---|---|
| Model Number | STA1RPT-1HG/1HS-1G-HC |
| Series | Spec Series STA |
| Quantity | 1/Each |
| Product Weight | 495 lb. |
| Width | 27-1/2 Inches |
| Depth | 36-1/8 Inches |
| Height | 77-3/4 Inches |
| Depth Note | Add 1-1/2" for Front and Back Door Handles |
| Height Note | Add 6-1/8" for Castors or 6" for Optional LegsAdd 1/4" for System Mechanical Components |
| Voltage | 115 Volts |
| Hertz | 60 Hz |
| Phase | 1 |
| Amps | 3.8 Amps |
| Plug Type | NEMA 5-15P |
| Cord Length | 9 ft. |
| Circuit | Dedicated 15 Amp Outlet |
| Temperature Range | 33 - 38 Degrees F |
| Refrigerant | R290 Hydrocarbon |
| Horsepower | 1/4 HP |
| Compressor Location | Top Mount |
| System | Self-Contained, Expansion Valve TXVECM Evaporator and Condenser Fan MotorsEpoxy Coated EvaporatorElectronic Control |
| Doors | 1 Glass Half Door and 1 Solid Half Door Front / 1 Glass Door Rear, Self-Closing, 120 Degree Stay-Open, Locks Standard |
| Glass | Low-E Double Pane Thermal Insulated Glass |
| Door Hardware | All-Metal Work Door HandlesExternal Cam-Lift Hinges, 4 per Door SectionMagnetic Gaskets Removable Without Tools |
| Shelves | 3 Heavy-Duty Chrome-Plated Wire Shelves, 3 per Section |
| Exterior | Stainless Steel Doors, Front and Sides |
| Interior | Aluminum Side Walls and BackStainless Steel Floor and Ceiling |
| Insulation | Foamed-In-Place High Density Polyurethane |
| Castors | 5" Diameter Plate Castors, Locks on Front Set |
| Lighting | LED Interior Lighting, Safety Shielded |
| Display | Exterior Digital Temperature Display, F or C |
| Curb Mounting | Curb Mounting Ready |
| True Options | 6" Standard Legs6" Seismic/Flanged Legs6" Stainless Steel LegsAdditional ShelvesSecurity PackageTray Slide and Shelf Kits, Field Installed on STA |
| Certifications | cULus, UL EPH Classified |
| Sanitation | NSF/ANSI Standard 7 Compliant for Open Food Product |
