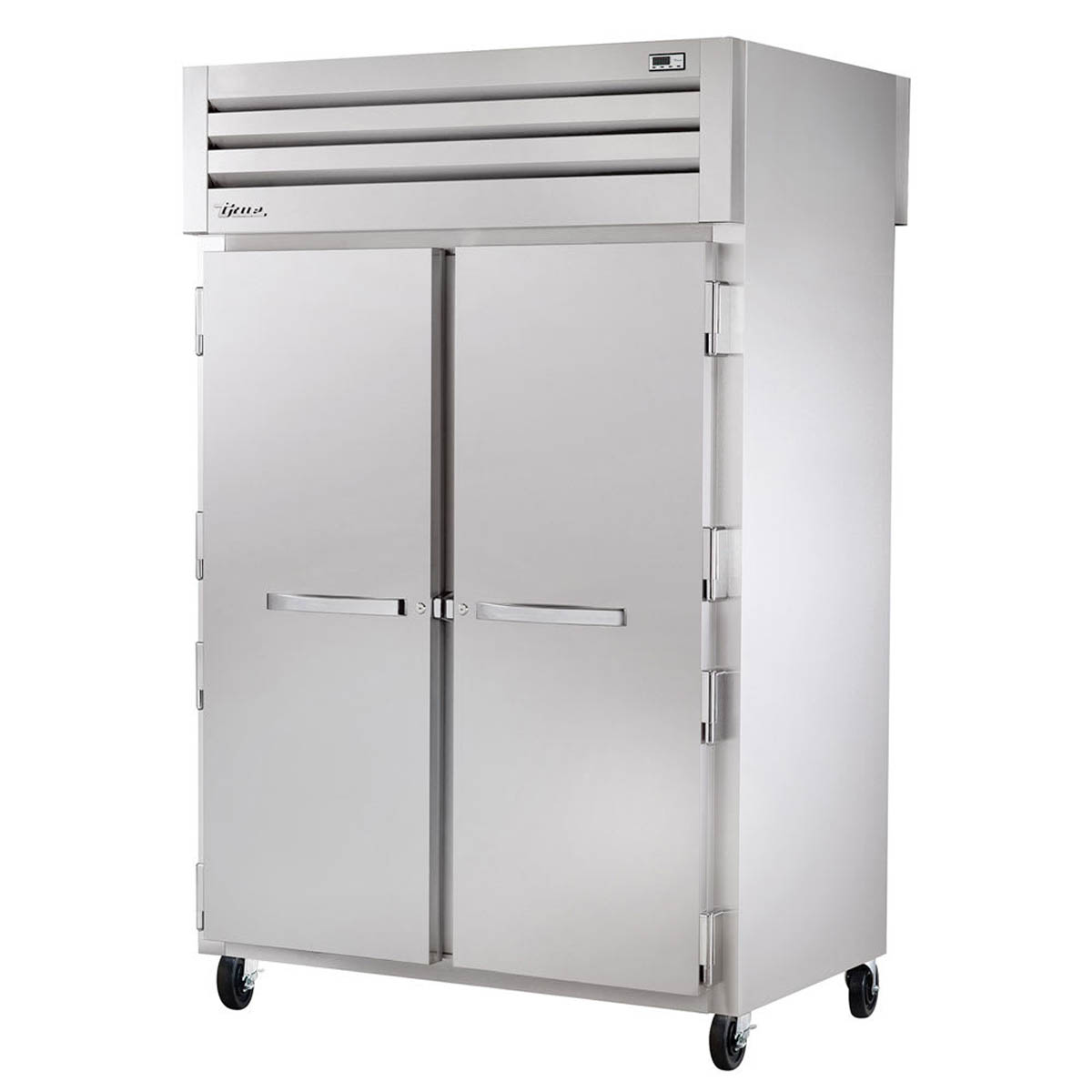

True STA2F-2S-HC 52-5/8" 2-Section Reach-In Freezer, 2 Solid Doors, Top Mount, R290, 115V
A 2-section Spec Series reach-in freezer that holds frozen food and ice cream at -10°F for a busy kitchen.
The True STA2F-2S-HC is a stainless steel Spec Series reach-in freezer with 2 solid doors. Its top-mounted R290 system holds -10°F for frozen food and ice cream, with automatic defrost. It comes with 6 heavy-duty chrome-plated wire shelves. It plugs into a dedicated 115V outlet with the included NEMA 5-15P cord.
Measure every doorway and turn on the delivery path; the smallest outside dimension is the 33-3/4" cabinet depth.
Built for frozen food and ice cream, with automatic defrost and a fan delay during the defrost cycle.
Natural R290 hydrocarbon refrigerant with zero ozone depletion potential and a 0.02 global warming potential.
Three heavy-duty chrome-plated wire shelves per section; tray slide kits are available as options.
Self-closing doors stay open at 120°, with bolt-style locks, all-metal handles, 4 cam-lift hinges per door section and gaskets you remove without tools.
A dedicated 115V, 15 amp outlet. It comes with a 9 ft. cord and NEMA 5-15P plug and draws 9.4 A.
The cabinet is 52-5/8" wide, 33-3/4" deep and 77-3/4" tall plus 6-1/8" for castors. Measure the doorway and every turn on the way in.
True rates the STA2F-2S-HC to hold -10°F, for both frozen food and ice cream.
6 heavy-duty chrome-plated wire shelves, three per section. Extra shelves and tray slide kits are True options.
Pick the hinging you need from the options above the price before you order.
6" standard, seismic/flanged and stainless steel legs are True options. Ask us when you order.
Yes. True products carry our Best Price Guarantee. Found it lower? Send us the lower price with a quote request or call us, and we will match it.
Specs
| Manufacturer | True Manufacturing |
|---|---|
| Model Number | STA2F-2S-HC |
| Series | Spec Series STA |
| Quantity | 1/Each |
| Product Weight | 704 lb. |
| Width | 52-5/8 Inches |
| Depth | 33-3/4 Inches |
| Height | 77-3/4 Inches |
| Depth Note | Add 1-1/2" for Door Handle |
| Height Note | Add 6-1/8" for Castors or 6" for Optional LegsAdd 1/4" for System Mechanical Components |
| Voltage | 115 Volts |
| Hertz | 60 Hz |
| Phase | 1 |
| Amps | 9.4 Amps |
| Plug Type | NEMA 5-15P |
| Cord Length | 9 ft. |
| Circuit | Dedicated 15 Amp Outlet |
| Temperature Range | -10 Degrees F |
| Refrigerant | R290 Hydrocarbon |
| Horsepower | 1-1/4 HP |
| Compressor Location | Top Mount |
| System | Self-Contained, Expansion Valve TXVECM Evaporator and Condenser Fan MotorsEpoxy Coated Evaporator |
| Defrost | Automatic, Time-Initiated, Temperature-Terminated |
| Doors | 2 Solid Doors, Self-Closing, 120 Degree Stay-Open, Locks Standard |
| Door Hardware | All-Metal Work Door HandlesExternal Cam-Lift Hinges, 4 per Door SectionMagnetic Gaskets Removable Without Tools |
| Shelves | 6 Heavy-Duty Chrome-Plated Wire Shelves, 3 per Section |
| Exterior | Stainless Steel Doors, Front and Sides |
| Interior | Aluminum Side Walls and BackStainless Steel Floor and Ceiling |
| Insulation | Foamed-In-Place High Density Polyurethane |
| Castors | 5" Diameter Plate Castors, Locks on Front Set |
| Lighting | LED Interior Lighting, Safety Shielded |
| Display | Exterior Digital Temperature Display, F or C |
| Curb Mounting | Curb Mounting Ready |
| True Options | 6" Standard Legs6" Seismic/Flanged Legs6" Stainless Steel LegsAdditional ShelvesStainless BackSecurity PackageTray Slide and Shelf Kits, Field Installed on STA |
| Certifications | cULus, UL EPH Classified |
| Sanitation | NSF/ANSI Standard 7 Compliant for Open Food Product |
