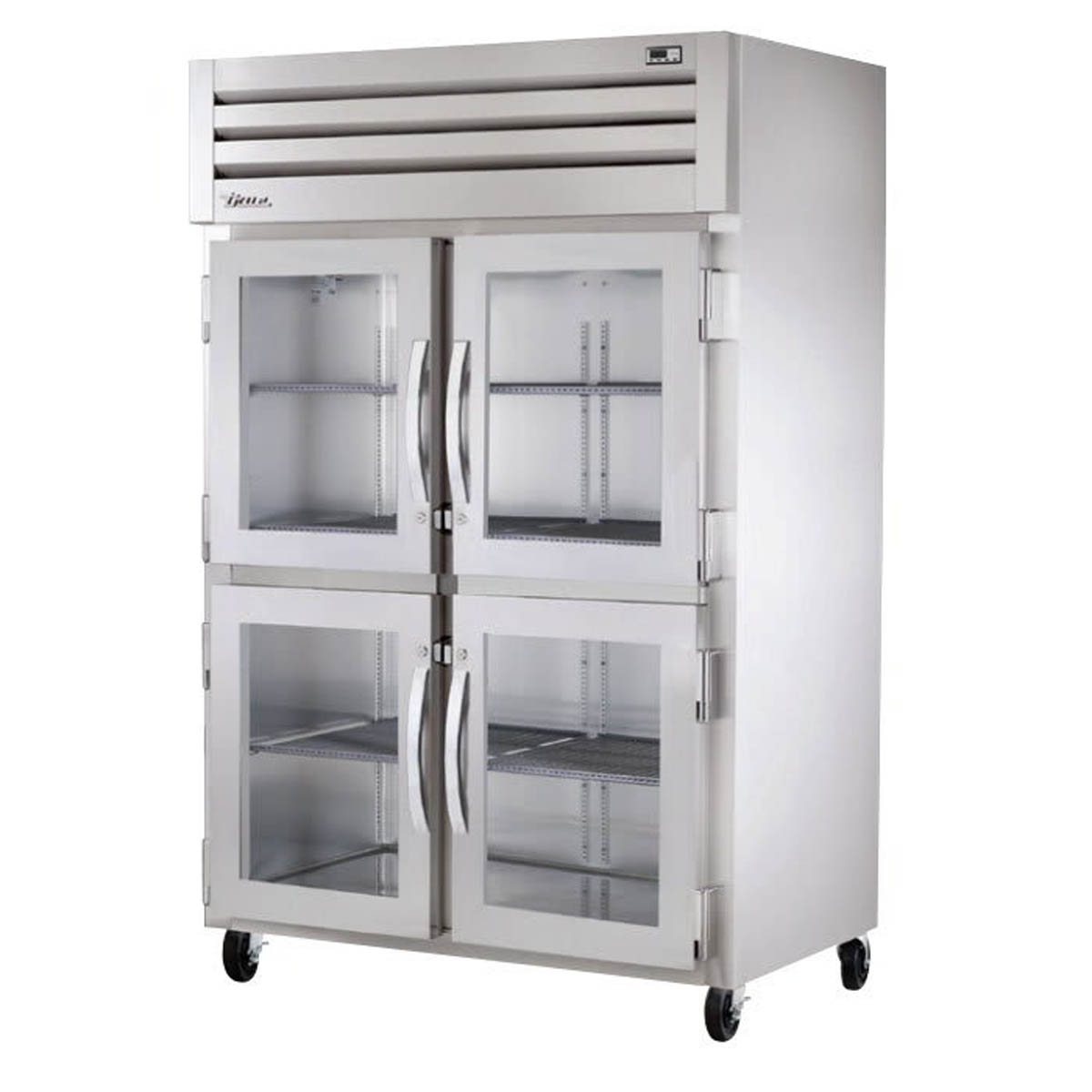

True STA2H-4HG 52-5/8" 2-Section Heated Holding Cabinet, 4 Glass Half Doors, 140°F-180°F, 208-240V
A 2-section Spec Series heated holding cabinet that holds cooked and baked food at 140°F to 180°F for a busy kitchen.
The True STA2H-4HG is a stainless steel Spec Series heated holding cabinet with 4 glass half doors. A 3000-watt heating system holds 140°F to 180°F for warm cooked or baked food; True notes it is not built to heat cold product. It comes with 6 heavy-duty chrome-plated wire shelves. It is hard-wired to a dedicated 208-240V circuit, so plan for an electrician.
Measure every doorway and turn on the delivery path; the smallest outside dimension is the 33-3/4" cabinet depth.
Exterior on/off switch and electronic temperature control, with low-velocity fans for even heat.
A manual vent on top of the cabinet controls moisture.
Three heavy-duty chrome-plated wire shelves per section; tray slide kits are available as options.
Open only the half you need to keep the rest of the cabinet at temperature.
Self-closing doors stay open at 120°, with bolt-style locks, all-metal handles, 4 cam-lift hinges per door section and gaskets you remove without tools.
It is pre-wired at the factory to be hard-wired to a dedicated 208-240V circuit; True lists 3000 watts total. There is no cord or plug.
The cabinet is 52-5/8" wide, 33-3/4" deep and 77-3/4" tall plus 6-1/8" for castors. Measure the doorway and every turn on the way in.
No. True designs it to hold warm baked or cooked food at 140°F to 180°F, not to heat ambient or cold product.
6 heavy-duty chrome-plated wire shelves, three per section. Extra shelves and tray slide kits are True options.
Pick the hinging you need from the options above the price before you order.
6" standard and seismic/flanged legs are True options. Ask us when you order.
Yes. True products carry our Best Price Guarantee. Found it lower? Send us the lower price with a quote request or call us, and we will match it.
Specs
| Manufacturer | True Manufacturing |
|---|---|
| Model Number | STA2H-4HG |
| Series | Spec Series STA |
| Quantity | 1/Each |
| Product Weight | 675 lb. |
| Width | 52-5/8 Inches |
| Depth | 33-3/4 Inches |
| Height | 77-3/4 Inches |
| Height Note | Add 6-1/8" for Castors or 6" for Optional LegsAdd 1/4" for System Mechanical Components |
| Voltage | 208-240 Volts |
| Hertz | 60 Hz |
| Phase | 1 |
| Wattage | 3000 Watts |
| Plug Type | Hard-Wired, No Plug |
| Circuit | Hard-Wired, 208-240V Single Phase, 2 Pole, 3 Wire Circuit, 20 Amp Dedicated |
| Temperature Range | 140 - 180 Degrees F |
| Heating System | 1 Stainless Steel Heating Element3000 Watts Total |
| Controls | Exterior On/Off SwitchElectronic Temperature Control |
| Air Circulation | Low-Velocity Fans for Even Temperature |
| Humidity Control | Manual Vent on Top of Cabinet |
| Use | Holds Warm Cooked or Baked Food; Not Designed to Heat Ambient or Cold Product |
| Doors | 4 Glass Half Doors, Self-Closing, 120 Degree Stay-Open, Locks Standard |
| Glass | Low-E Double Pane Thermal Insulated Glass |
| Door Hardware | All-Metal Work Door HandlesExternal Cam-Lift Hinges, 4 per Door SectionMagnetic Gaskets Removable Without Tools |
| Shelves | 6 Heavy-Duty Chrome-Plated Wire Shelves, 3 per Section |
| Exterior | Stainless Steel Doors, Front and Sides |
| Interior | Aluminum Side Walls and BackStainless Steel Floor and Ceiling |
| Insulation | Foamed-In-Place High Density Polyurethane |
| Castors | 5" Diameter Plate Castors, Locks on Front Set |
| Lighting | Incandescent Interior Lighting, Safety Shielded, Exterior On/Off Switch |
| Display | Exterior Digital Temperature Display, F or C |
| True Options | 6" Standard Legs6" Seismic/Flanged LegsAdditional ShelvesStainless BackTray Slide and Shelf Kits, Field Installed on STA |
| Certifications | cULus, UL EPH Classified |
| Sanitation | NSF/ANSI Standard 4 Compliant for Open Food Product |
