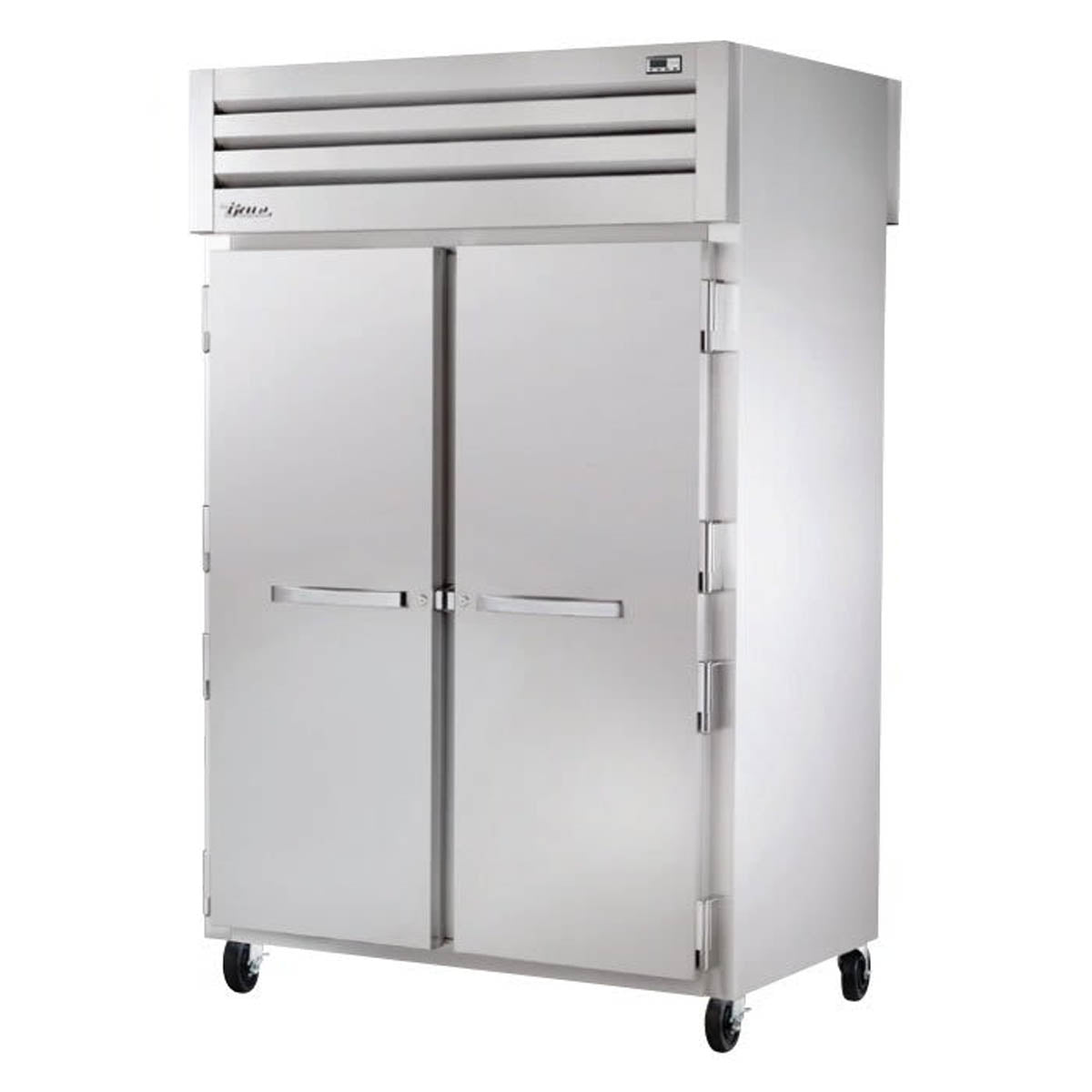

True STA2HPT-2S-2S 52-5/8" 2-Section Pass-Thru Heated Holding Cabinet, 2 Solid Doors Front / 2 Solid Doors Rear, 140°F-180°F, 208-240V
A 2-section Spec Series pass-thru heated holding cabinet that holds cooked and baked food at 140°F to 180°F and opens from both sides.
The True STA2HPT-2S-2S is a stainless steel Spec Series pass-thru heated holding cabinet with 2 solid doors on the front and 2 solid doors on the back. A 3000-watt heating system holds 140°F to 180°F for warm cooked or baked food; True notes it is not built to heat cold product. Doors on both sides let cooks load from the back while servers pull from the front. It comes with 6 heavy-duty chrome-plated wire shelves.
Measure every doorway and turn on the delivery path; the smallest outside dimension is the 36-1/8" cabinet depth.
Exterior on/off switch and electronic temperature control.
2 solid doors on the front and 2 solid doors on the back let you load and unload from either side.
A manual vent on top of the cabinet controls moisture.
Three heavy-duty chrome-plated wire shelves per section; tray slide kits are available as options.
Self-closing doors stay open at 120°, with bolt-style locks, all-metal handles, 4 cam-lift hinges per door section and gaskets you remove without tools.
It is pre-wired at the factory to be hard-wired to a dedicated 208-240V circuit; True lists 3000 watts total. There is no cord or plug.
The cabinet is 52-5/8" wide, 36-1/8" deep and 77-3/4" tall plus 6-1/8" for castors. Measure the doorway and every turn on the way in.
No. True designs it to hold warm baked or cooked food at 140°F to 180°F, not to heat ambient or cold product.
6 heavy-duty chrome-plated wire shelves, three per section. Extra shelves and tray slide kits are True options.
Pick the hinging you need from the options above the price before you order.
6" standard, seismic/flanged and stainless steel legs are True options. Ask us when you order.
Yes. True products carry our Best Price Guarantee. Found it lower? Send us the lower price with a quote request or call us, and we will match it.
Specs
| Manufacturer | True Manufacturing |
|---|---|
| Model Number | STA2HPT-2S-2S |
| Series | Spec Series STA |
| Quantity | 1/Each |
| Product Weight | 565 lb. |
| Width | 52-5/8 Inches |
| Depth | 36-1/8 Inches |
| Height | 77-3/4 Inches |
| Depth Note | Add 1-1/2" for Front and Back Door Handles |
| Height Note | Add 6-1/8" for Castors or 6" for Optional LegsAdd 1/4" for System Mechanical Components |
| Voltage | 208-240 Volts |
| Hertz | 60 Hz |
| Phase | 1 |
| Wattage | 3000 Watts |
| Plug Type | Hard-Wired, No Plug |
| Circuit | Hard-Wired, 208-240V Single Phase, 2 Pole, 3 Wire Circuit, 20 Amp Dedicated |
| Temperature Range | 140 - 180 Degrees F |
| Heating System | 1 Stainless Steel Heating Element per Section3000 Watts Total |
| Controls | Exterior On/Off SwitchElectronic Temperature Control |
| Humidity Control | Manual Vent on Top of Cabinet |
| Use | Holds Warm Cooked or Baked Food; Not Designed to Heat Ambient or Cold Product |
| Doors | 2 Solid Doors Front / 2 Solid Doors Rear, Self-Closing, 120 Degree Stay-Open, Locks Standard |
| Door Hardware | All-Metal Work Door HandlesExternal Cam-Lift Hinges, 4 per Door SectionMagnetic Gaskets Removable Without Tools |
| Shelves | 6 Heavy-Duty Chrome-Plated Wire Shelves, 3 per Section |
| Exterior | Stainless Steel Doors, Front and Sides |
| Interior | Aluminum Side Walls and BackStainless Steel Floor and Ceiling |
| Insulation | Foamed-In-Place High Density Polyurethane |
| Castors | 5" Diameter Plate Castors, Locks on Front Set |
| Lighting | Incandescent Interior Lighting, Safety Shielded, Exterior On/Off Switch |
| Display | Exterior Digital Temperature Display, F or C |
| True Options | 6" Standard Legs6" Seismic/Flanged Legs6" Stainless Steel LegsAdditional ShelvesSecurity PackageTray Slide and Shelf Kits, Field Installed on STA |
| Certifications | cULus, UL EPH Classified |
| Sanitation | NSF/ANSI Standard 4 Compliant for Open Food Product |
