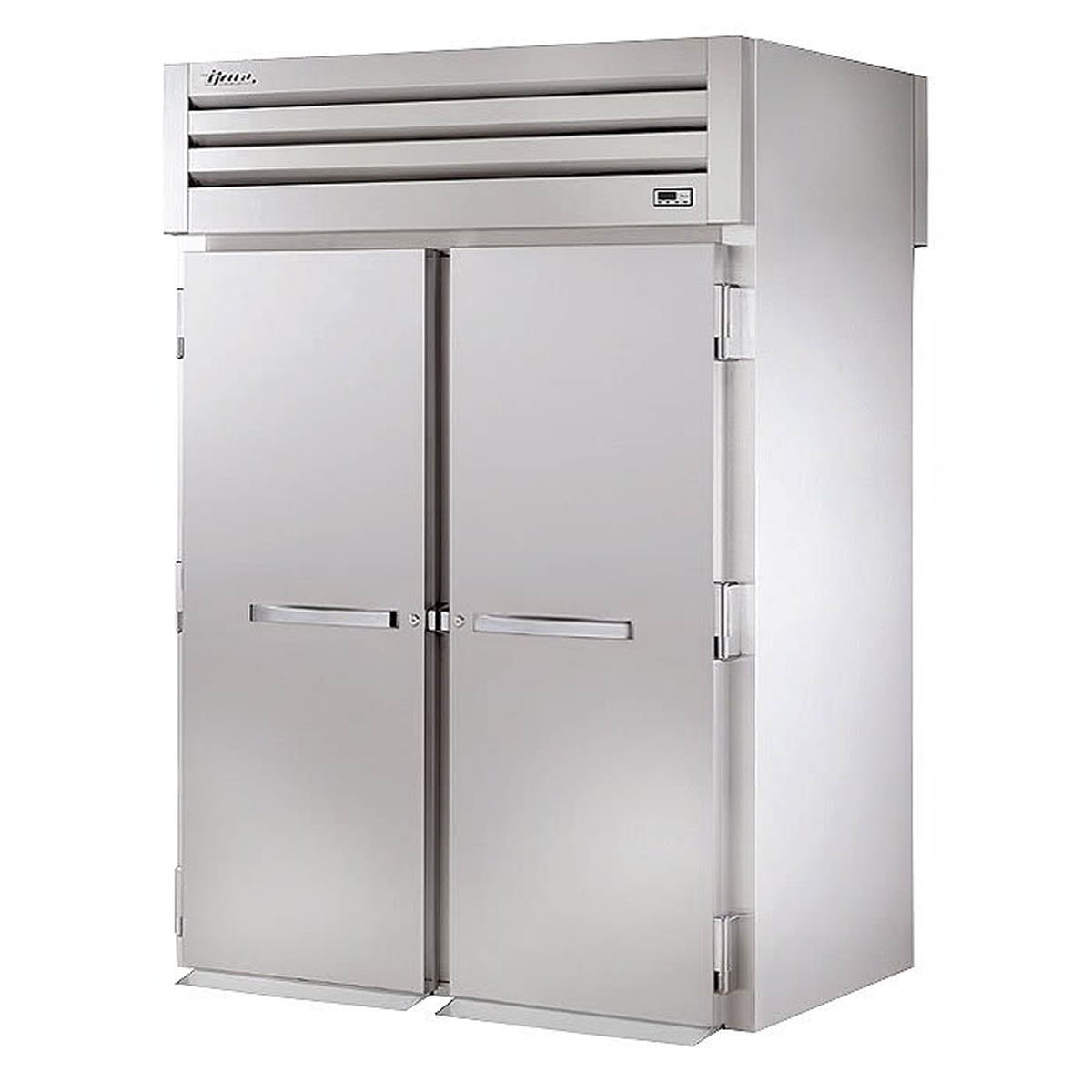

True STA2HRT-2S-2S 68" 2-Section Roll-Thru Heated Holding Cabinet, 2 Solid Doors Front / 2 Solid Doors Rear, 140°F-180°F, 115/208-240V
A 2-section Spec Series roll-thru heated holding cabinet that holds cooked and baked food at 140°F to 180°F: racks roll in from prep and out to service.
The True STA2HRT-2S-2S is a stainless steel Spec Series roll-thru heated holding cabinet with 2 solid doors on the front and 2 solid doors on the back. A 4000-watt heating system holds 140°F to 180°F for warm cooked or baked food; True notes it is not built to heat cold product. It takes roll-in racks up to 27" L x 29" D x 66" H with inboard castors; racks are not included. It is hard-wired to a dedicated 115/208-240V circuit, so plan for an electrician.
Measure every doorway and turn on the delivery path; the smallest outside dimension is the 37-1/2" cabinet depth. Roll-in models sit on the floor, so check the ramp approach too.
Exterior on/off switch and electronic temperature control, with low-velocity fans for even heat.
Takes racks up to 27" L x 29" D x 66" H on inboard castors, with interior bumpers to protect the walls.
Roll a rack in from the prep side and out on the serving side.
A manual vent on top of the cabinet controls moisture, and a 12" x 20" water pan is included for extra humidity.
Self-closing doors stay open at 120°, with bolt-style locks, all-metal handles, 3 cam-lift hinges per door section and gaskets you remove without tools.
It is pre-wired at the factory to be hard-wired to a dedicated 115/208-240V circuit; True lists 4000 watts total. There is no cord or plug.
The cabinet is 68" wide, 37-1/2" deep and 83-3/4" tall. Measure the doorway and every turn on the way in.
No. True designs it to hold warm baked or cooked food at 140°F to 180°F, not to heat ambient or cold product.
Roll-in racks with inboard castors up to 27" L x 29" D x 66" H. Racks are not included.
Pick the hinging you need from the options above the price before you order.
Yes. True products carry our Best Price Guarantee. Found it lower? Send us the lower price with a quote request or call us, and we will match it.
Specs
| Manufacturer | True Manufacturing |
|---|---|
| Model Number | STA2HRT-2S-2S |
| Series | Spec Series STA |
| Quantity | 1/Each |
| Product Weight | 760 lb. |
| Width | 68 Inches |
| Depth | 37-1/2 Inches |
| Height | 83-3/4 Inches |
| Ramp | Add 4-1/8" on Each Side for Ramps |
| Height Note | Add 1" for System Mechanical Components |
| Voltage | 115/208-240 Volts |
| Hertz | 60 Hz |
| Phase | 1 |
| Wattage | 4000 Watts |
| Plug Type | Hard-Wired, No Plug |
| Circuit | Hard-Wired to a Dedicated 115/208-240V Circuit |
| Temperature Range | 140 - 180 Degrees F |
| Heating System | 2 Stainless Steel Finned Tube Heating Elements per Section, 1000 Watts Each4000 Watts Total |
| Controls | Exterior On/Off SwitchElectronic Temperature Control |
| Air Circulation | Low-Velocity Fans for Even Temperature |
| Humidity Control | Manual Vent on Top of Cabinet12" x 20" Water Pan Included |
| Use | Holds Warm Cooked or Baked Food; Not Designed to Heat Ambient or Cold Product |
| Doors | 2 Solid Doors Front / 2 Solid Doors Rear, Self-Closing, 120 Degree Stay-Open, Locks Standard |
| Door Hardware | All-Metal Work Door HandlesExternal Cam-Lift Hinges, 3 per Door SectionMagnetic Gaskets Removable Without Tools |
| Rack Capacity | Roll-In Racks up to 27" L x 29" D x 66" H with Inboard Castors, Racks Not Included |
| Ramps | One Heavy Gauge Stainless Steel Ramp per Door |
| Exterior | Stainless Steel Doors, Front and Sides |
| Interior | Aluminum Side Walls and BackStainless Steel Floor and Ceiling |
| Insulation | Foamed-In-Place High Density Polyurethane |
| Interior Bumpers | Protect Cabinet Walls from Roll-In Carts |
| Breaker Caps | Stainless Steel |
| Lighting | Incandescent Interior Lighting, Safety Shielded, Exterior On/Off Switch |
| Display | Exterior Color-Coded Temperature Display |
| True Options | Security Package |
| Certifications | cULus, UL EPH Classified |
| Sanitation | NSF/ANSI Standard 4 Compliant for Open Food Product |
