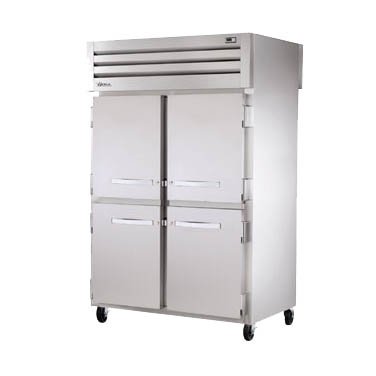

True STA2RPT-4HS-4HS 52-5/8" 2-Section Pass-Thru Refrigerator, 4 Solid Half Doors Front / 4 Solid Half Doors Rear, Top Mount, R134A, 115V
A 2-section Spec Series pass-thru refrigerator that keeps food at 33°F to 38°F and opens from both sides.
The True STA2RPT-4HS-4HS is a stainless steel Spec Series pass-thru refrigerator with 4 solid half doors on the front and 4 solid half doors on the back. Its top-mounted system holds 33°F to 38°F, with the evaporator kept out of the food zone. Doors on both sides let cooks load from the back while servers pull from the front. It comes with 6 heavy-duty chrome-plated wire shelves.
Measure every doorway and turn on the delivery path; the smallest outside dimension is the 36-1/8" cabinet depth.
A factory-balanced, top-mounted system holds 33°F to 38°F and an exterior digital display shows the temperature in °F or °C.
4 solid half doors on the front and 4 solid half doors on the back let you load and unload from either side.
Three heavy-duty chrome-plated wire shelves per section; tray slide kits are available as options.
Self-closing doors stay open at 120°, with bolt-style locks, all-metal handles, 4 cam-lift hinges per door section and gaskets you remove without tools.
A dedicated 115V, 15 amp outlet. It comes with a 9 ft. cord and NEMA 5-15P plug and draws 9.1 A.
The cabinet is 52-5/8" wide, 36-1/8" deep and 77-3/4" tall plus 6-1/8" for castors. Measure the doorway and every turn on the way in.
True rates the STA2RPT-4HS-4HS to hold 33°F to 38°F.
6 heavy-duty chrome-plated wire shelves, three per section. Extra shelves and tray slide kits are True options.
Pick the hinging you need from the options above the price before you order.
6" standard, seismic/flanged and stainless steel legs are True options. Ask us when you order.
Yes. True products carry our Best Price Guarantee. Found it lower? Send us the lower price with a quote request or call us, and we will match it.
Specs
| Manufacturer | True Manufacturing |
|---|---|
| Model Number | STA2RPT-4HS-4HS |
| Series | Spec Series STA |
| Quantity | 1/Each |
| Width | 52-5/8 Inches |
| Depth | 36-1/8 Inches |
| Height | 77-3/4 Inches |
| Depth Note | Add 1-1/2" for Front and Back Door Handles |
| Height Note | Add 6-1/8" for Castors or 6" for Optional LegsAdd 1/4" for System Mechanical Components |
| Voltage | 115 Volts |
| Hertz | 60 Hz |
| Phase | 1 |
| Amps | 9.1 Amps |
| Plug Type | NEMA 5-15P |
| Cord Length | 9 ft. |
| Circuit | Dedicated 15 Amp Outlet |
| Temperature Range | 33 - 38 Degrees F |
| Refrigerant | R134A |
| Horsepower | 1/2 HP |
| Compressor Location | Top Mount |
| System | Self-Contained, Capillary TubeECM Evaporator and Condenser Fan MotorsEpoxy Coated EvaporatorElectronic Control |
| Doors | 4 Solid Half Doors Front / 4 Solid Half Doors Rear, Self-Closing, 120 Degree Stay-Open, Locks Standard |
| Door Hardware | All-Metal Work Door HandlesExternal Cam-Lift Hinges, 4 per Door SectionMagnetic Gaskets Removable Without Tools |
| Shelves | 6 Heavy-Duty Chrome-Plated Wire Shelves, 3 per Section |
| Exterior | Stainless Steel Doors, Front and Sides |
| Interior | Aluminum Side Walls and BackStainless Steel Floor and Ceiling |
| Insulation | Foamed-In-Place High Density Polyurethane |
| Castors | 5" Diameter Plate Castors, Locks on Front Set |
| Lighting | LED Interior Lighting, Safety Shielded |
| Display | Exterior Digital Temperature Display, F or C |
| Curb Mounting | Curb Mounting Ready |
| True Options | 6" Standard Legs6" Seismic/Flanged Legs6" Stainless Steel LegsAdditional ShelvesSecurity PackageTray Slide and Shelf Kits, Field Installed on STA |
| Certifications | cULus, NSF |
| Sanitation | NSF/ANSI Standard 7 Compliant for Open Food Product |
| Warranty | 3 Years Parts and Labor, Additional 2 Years Compressor |
| Warranty Terms | Three year warranty on all parts and labor and an additional 2 year warranty on compressor, U.S.A. only |
