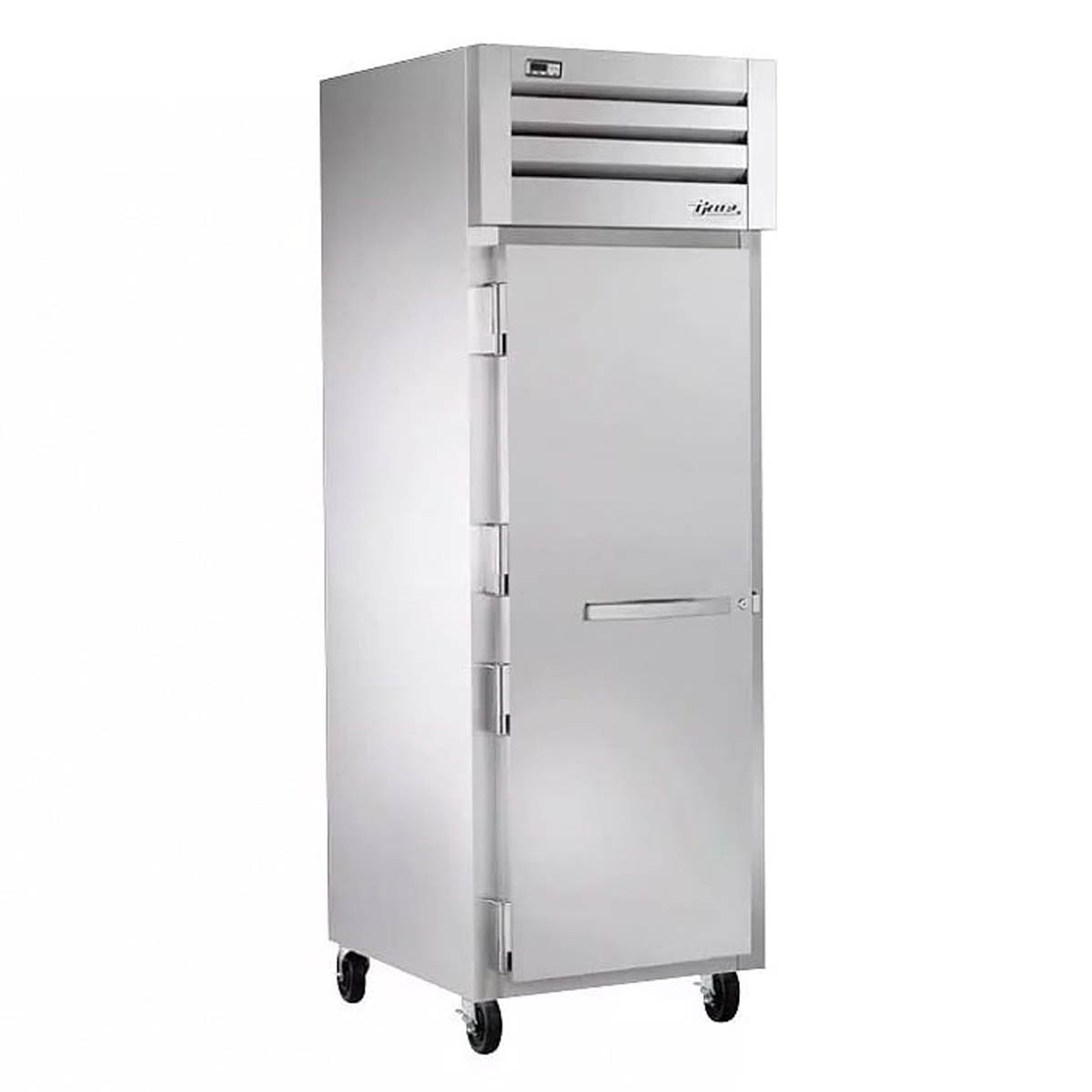

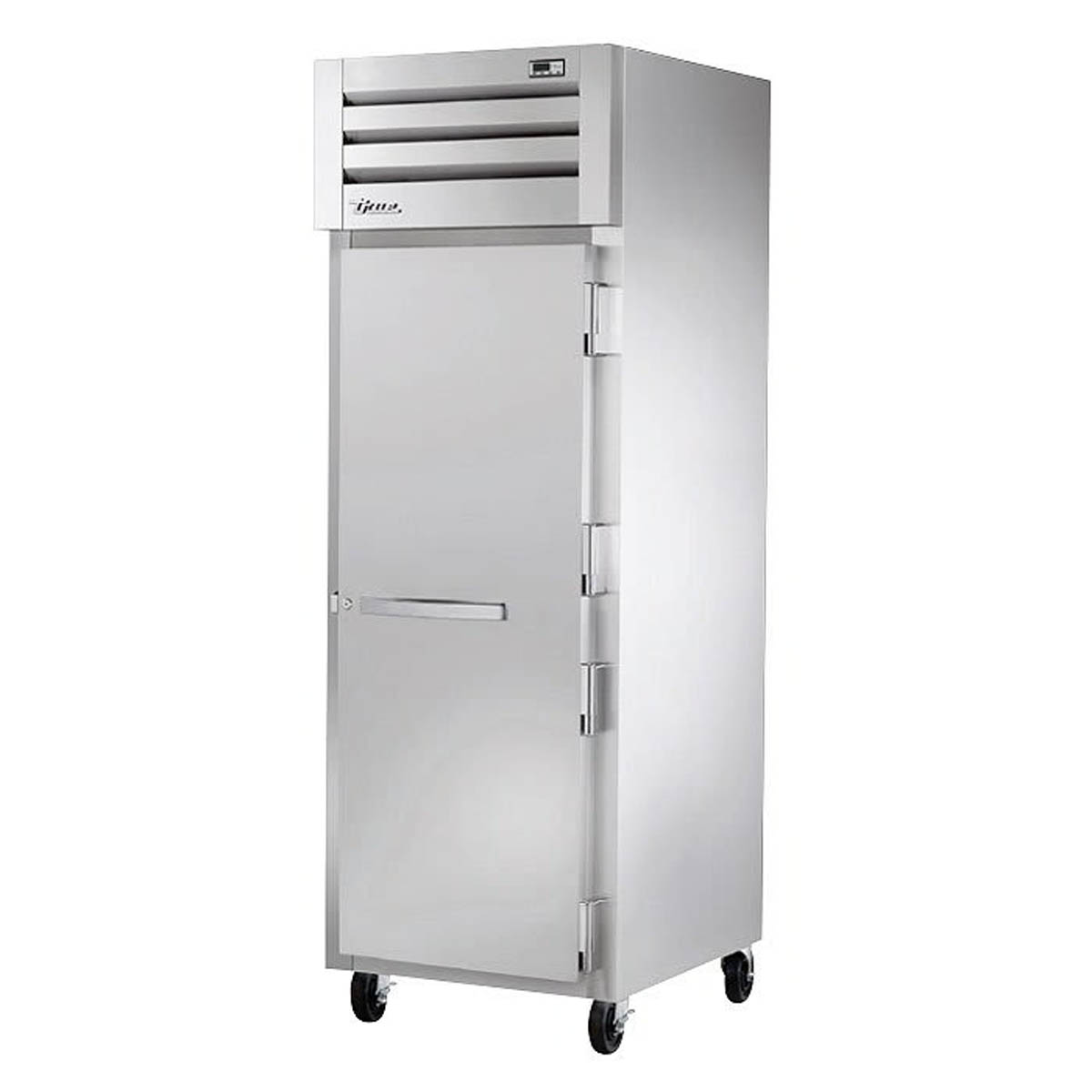

True STG1F-1S-HC Spec Series 27" 1-Section Reach-In Freezer, 1 Solid Door, 3 Shelves, R290, 115V
A 1-section reach-in freezer that holds -10°F for a busy kitchen.
The True STG1F-1S-HC is a 27" wide, 1-section reach-in freezer from True's Spec Series, with 1 solid door. Its top-mounted R290 system holds -10°F for frozen food and ice cream, with automatic defrost. It comes with 3 heavy-duty PVC-coated wire shelves. It plugs into a dedicated 115V, 15 amp outlet with the included NEMA 5-15P cord.
Measure every doorway and turn on the delivery path; the smallest outside dimension is the 27-1/2" width.
A factory-balanced, self-contained system holds -10°F for frozen food and ice cream, with an exterior digital temperature display.
Automatic defrost keeps the coil clear.
True uses natural R290 hydrocarbon refrigerant with zero ozone depletion potential and a 0.02 global warming potential, in a TXV expansion valve system.
3 heavy-duty PVC-coated wire shelves. Shelving kits with tray slides are available.
Outside: stainless steel door and front with matching aluminum sides. Inside: aluminum side walls and back and stainless steel floor and ceiling. Doors are self-closing with a 120° stay-open feature and have locks. One-piece magnetic gaskets come off without tools for cleaning.
LED interior lighting is safety shielded.
A dedicated 115V, 15 amp outlet. The unit draws 6.0 A and comes pre-wired with a 9 ft. cord and NEMA 5-15P plug.
The cabinet is 33-3/4" deep and 27-1/2" wide, plus 1-1/2" for handles. Measure the doorway and every turn on the way in.
True rates the STG1F-1S-HC to hold -10°F; True says it suits both frozen food and ice cream.
The cabinet is 77-3/4" tall; add 6-1/8" for the standard castors or 6" for optional legs.
3 heavy-duty PVC-coated wire shelves. Shelving kits with tray slides and pilasters are available at extra cost.
Yes. Pick the hinging you need from the options above the price before you add it to the cart.
R290, a natural hydrocarbon refrigerant with zero ozone depletion potential and a 0.02 global warming potential.
Yes. True products carry our Best Price Guarantee. Found it lower? Send us the lower price with a quote request or call us, and we will match it.
Specs
| Manufacturer | True Manufacturing |
|---|---|
| Model Number | STG1F-1S-HC |
| Series | Spec Series |
| Quantity | 1/Each |
| Product Weight | 385 lb. |
| Width | 27-1/2 Inches |
| Depth | 33-3/4 Inches |
| Height | 77-3/4 Inches |
| Height Note | Add 6-1/8" for Castors or 6" for Optional Legs |
| Depth Note | Add 1-1/2" for Door Handle |
| Voltage | 115 Volts |
| Hertz | 60 Hz |
| Phase | 1 |
| Amps | 6.0 Amps |
| Plug Type | NEMA 5-15P |
| Cord Length | 9 ft. |
| Circuit | Dedicated 15 Amp Outlet |
| Temperature Range | -10 Degrees F |
| Refrigerant | R290 (Hydrocarbon) |
| Horsepower | 1/2 HP |
| Compressor Location | Top Mount |
| System | Self-Contained, Expansion Valve TXVECM Evaporator and Condenser Fan MotorsEpoxy-Coated EvaporatorAutomatic Defrost |
| Doors | 1 Solid DoorSelf-Closing, 120° Stay-Open, Locks Standard |
| Shelves | 3 Heavy-Duty PVC-Coated Wire Shelves |
| Exterior | Stainless steel door and front with matching aluminum sides |
| Interior | Aluminum side walls and backStainless steel floor and ceiling |
| Insulation | Foamed-In-Place High Density Polyurethane |
| Castors | 5" Plate Castors, Locks on Front Set |
| Lighting | LED Interior Lighting, Safety Shielded |
| True Options | 6" Standard Legs6" Seismic/Flanged Legs6" Stainless Steel LegsAdditional ShelvesStainless BackSecurity PackageShelving Kits with Tray Slides and Pilasters |
| Curb Mounting | Curb Mounting Ready |
| Certifications | cULus, UL EPH Classified |
| Sanitation | NSF/ANSI Standard 7 Compliant for Open Food Product |
