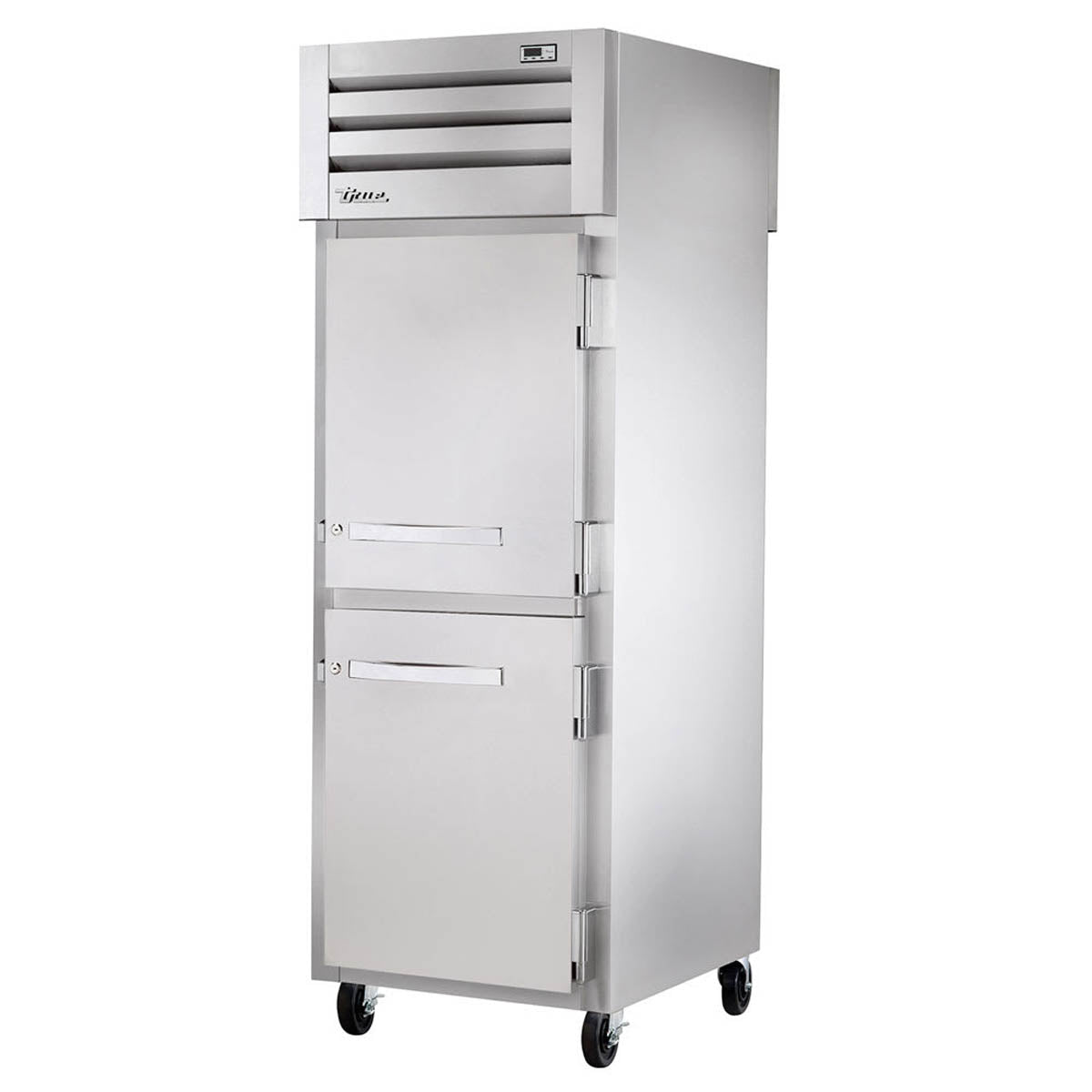

True STG1FPT-2HS-2HS Spec Series 27" 1-Section Pass-Thru Freezer, 2 Solid Half Front Doors, 2 Solid Half Rear Doors, 3 Shelves, R290, 115V
A 1-section pass-thru freezer that loads from one side and serves from the other.
The True STG1FPT-2HS-2HS is a 27" wide, 1-section pass-thru freezer from True's Spec Series, with 2 solid half doors on the front and 2 solid half doors on the rear. Its top-mounted R290 system holds -10°F for frozen food and ice cream, with automatic defrost. It comes with 3 heavy-duty PVC-coated wire shelves. It plugs into a dedicated 115V, 15 amp outlet with the included NEMA 5-15P cord.
Measure every doorway and turn on the delivery path; the smallest outside dimension is the 27-1/2" width.
A factory-balanced, self-contained system holds -10°F for frozen food and ice cream, with an exterior digital temperature display.
Automatic defrost keeps the coil clear.
True uses natural R290 hydrocarbon refrigerant with zero ozone depletion potential and a 0.02 global warming potential, in a TXV expansion valve system.
3 heavy-duty PVC-coated wire shelves. Shelving kits with tray slides are available.
Doors on both sides: 2 solid half doors on the front and 2 solid half doors on the rear. Load from the kitchen and serve from the other side.
Outside: stainless steel door and front with matching aluminum sides. Inside: aluminum side walls and back and stainless steel floor and ceiling. Doors are self-closing with a 120° stay-open feature and have locks. One-piece magnetic gaskets come off without tools for cleaning.
A dedicated 115V, 15 amp outlet. The unit draws 8.7 A and comes pre-wired with a 9 ft. cord and NEMA 5-15P plug.
The cabinet is 36-1/8" deep and 27-1/2" wide, plus 1-1/2" for handles. Measure the doorway and every turn on the way in.
True rates the STG1FPT-2HS-2HS to hold -10°F; True says it suits both frozen food and ice cream.
The cabinet is 77-3/4" tall; add 6-1/8" for the standard castors or 6" for optional legs.
3 heavy-duty PVC-coated wire shelves. Shelving kits with tray slides and pilasters are available at extra cost.
The front has 2 solid half doors and the rear has 2 solid half doors.
Yes. Pick the hinging you need from the options above the price before you add it to the cart.
Yes. True products carry our Best Price Guarantee. Found it lower? Send us the lower price with a quote request or call us, and we will match it.
Specs
| Manufacturer | True Manufacturing |
|---|---|
| Model Number | STG1FPT-2HS-2HS |
| Series | Spec Series |
| Quantity | 1/Each |
| Width | 27-1/2 Inches |
| Depth | 36-1/8 Inches |
| Height | 77-3/4 Inches |
| Height Note | Add 6-1/8" for Castors or 6" for Optional Legs |
| Depth Note | Add 1-1/2" for Door Handles, Front and Back |
| Voltage | 115 Volts |
| Hertz | 60 Hz |
| Phase | 1 |
| Amps | 8.7 Amps |
| Plug Type | NEMA 5-15P |
| Cord Length | 9 ft. |
| Circuit | Dedicated 15 Amp Outlet |
| Temperature Range | -10 Degrees F |
| Refrigerant | R290 (Hydrocarbon) |
| Horsepower | 3/4 HP |
| Compressor Location | Top Mount |
| System | Self-Contained, Expansion Valve TXVECM Evaporator and Condenser Fan MotorsEpoxy-Coated EvaporatorAutomatic Defrost |
| Doors | 2 Solid Half Doors Front2 Solid Half Doors RearSelf-Closing, 120° Stay-Open, Locks Standard |
| Shelves | 3 Heavy-Duty PVC-Coated Wire Shelves |
| Exterior | Stainless steel door and front with matching aluminum sides |
| Interior | Aluminum side walls and backStainless steel floor and ceiling |
| Insulation | Foamed-In-Place High Density Polyurethane |
| Castors | 5" Plate Castors, Locks on Front Set |
| Lighting | LED Interior Lighting, Safety Shielded |
| True Options | 6" Standard Legs6" Seismic/Flanged Legs6" Stainless Steel LegsAdditional ShelvesShelving Kits with Tray Slides and Pilasters |
| Curb Mounting | Curb Mounting Ready |
| Certifications | cULus, UL EPH Classified |
| Sanitation | NSF/ANSI Standard 7 Compliant for Open Food Product |
