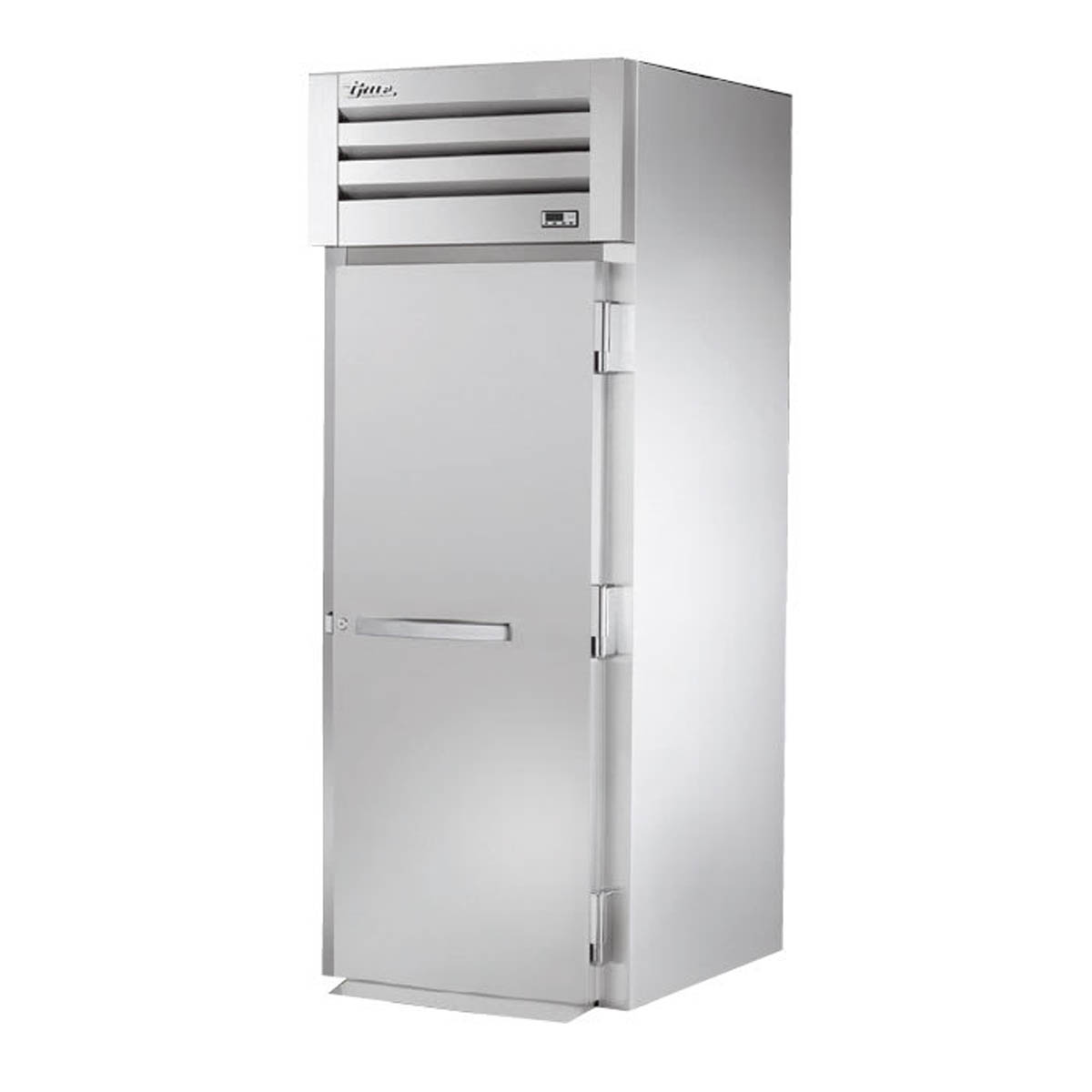

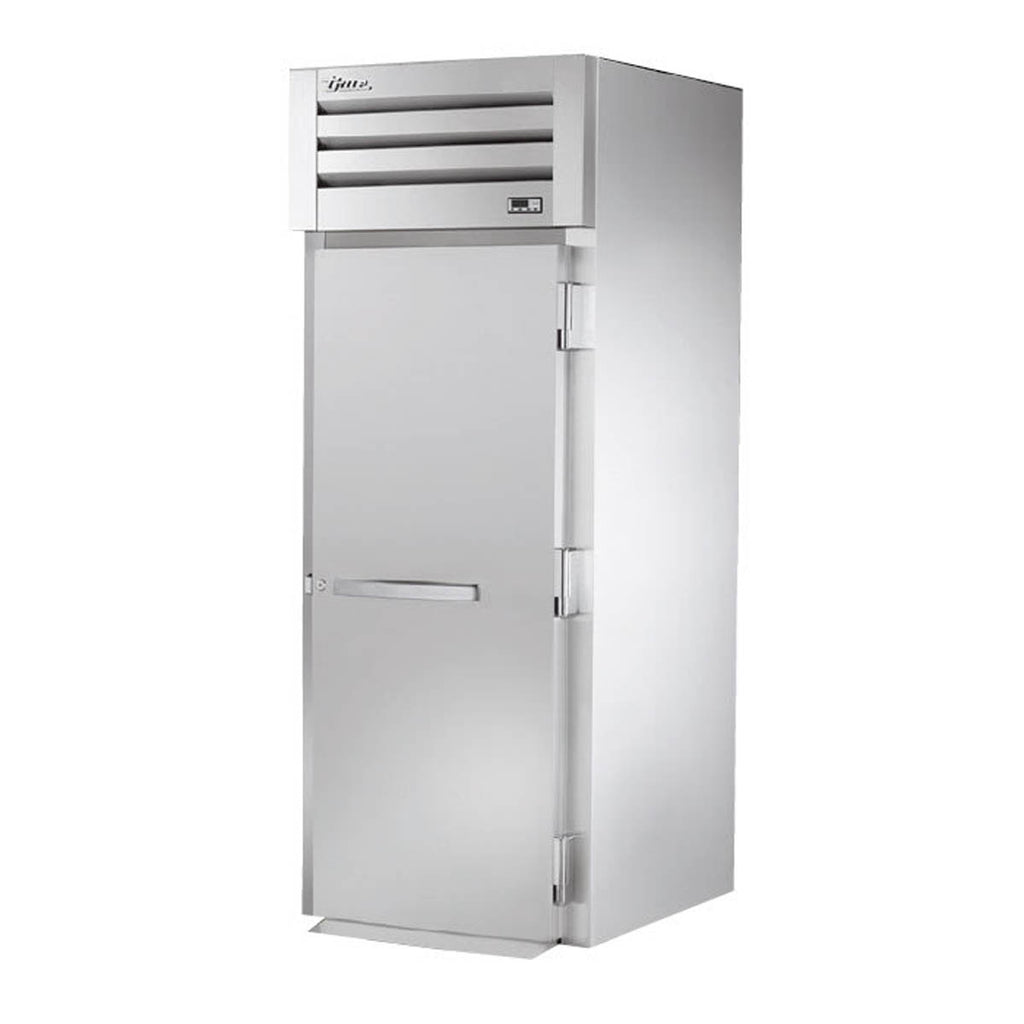

True STG1FRI-1S Spec Series 35" 1-Section Roll-In Freezer, 1 Solid Door, R290, 115V
A 1-section roll-in freezer that takes full racks straight from the cart.
The True STG1FRI-1S is a 35" wide, 1-section roll-in freezer from True's Spec Series, with 1 solid door. Its top-mounted R290 system holds -10°F for frozen food and ice cream, with automatic defrost. It accepts roll-in racks with inboard castors up to 27"L x 29"D x 66"H (racks supplied by others). It plugs into a dedicated 115V, 15 amp outlet with the included NEMA 5-15P cord.
Measure every doorway and turn on the delivery path; the smallest outside dimension is the 34-3/4" cabinet depth.
A factory-balanced, self-contained system holds -10°F for frozen food and ice cream, with an exterior digital temperature display.
Time-initiated automatic defrost keeps the coil clear.
True uses natural R290 hydrocarbon refrigerant with zero ozone depletion potential and a 0.02 global warming potential, in a TXV expansion valve system.
Takes racks up to 27"L x 29"D x 66"H with inboard castors. 1 heavy-gauge stainless steel ramp is included; interior bumpers protect the walls from carts.
Outside: stainless steel door with matching aluminum sides. Inside: aluminum side walls and back and stainless steel floor and ceiling. Doors are self-closing with a 120° stay-open feature and have locks. One-piece magnetic gaskets come off without tools for cleaning.
Incandescent interior lighting is safety shielded.
A dedicated 115V, 15 amp outlet. The unit draws 12.0 A and comes pre-wired with a 9 ft. cord and NEMA 5-15P plug.
The cabinet is 34-3/4" deep and 35" wide, plus 4-1/4" for the ramp. Measure the doorway and every turn on the way in.
True rates the STG1FRI-1S to hold -10°F; True says it suits both frozen food and ice cream.
The cabinet is 83-3/4" tall, plus 1/4" for system mechanical parts on top. It sits on the floor, with no castors.
Roll-in racks with inboard castors up to 27"L x 29"D x 66"H. Racks are not included.
Yes. Pick the hinging you need from the options above the price before you add it to the cart.
R290, a natural hydrocarbon refrigerant with zero ozone depletion potential and a 0.02 global warming potential.
Yes. True products carry our Best Price Guarantee. Found it lower? Send us the lower price with a quote request or call us, and we will match it.
Specs
| Manufacturer | True Manufacturing |
|---|---|
| Model Number | STG1FRI-1S |
| Series | Spec Series |
| Quantity | 1/Each |
| Product Weight | 470 lb. |
| Width | 35 Inches |
| Depth | 34-3/4 Inches |
| Height | 83-3/4 Inches |
| Height Note | Add 1/4" for System Mechanical Components |
| Depth Note | Add 4-1/4" for Ramp |
| Max Rack Size | 27"L x 29"D x 66"H, Inboard Castors, Racks by Others |
| Voltage | 115 Volts |
| Hertz | 60 Hz |
| Phase | 1 |
| Amps | 12.0 Amps |
| Plug Type | NEMA 5-15P |
| Cord Length | 9 ft. |
| Circuit | Dedicated 15 Amp Outlet |
| Temperature Range | -10 Degrees F |
| Refrigerant | R290 (Hydrocarbon) |
| Horsepower | 3/4 HP |
| Compressor Location | Top Mount |
| System | Self-Contained, Expansion Valve TXVSealed Cast Iron Self-Lubricating Evaporator Fan MotorEpoxy-Coated EvaporatorAutomatic Defrost |
| Doors | 1 Solid DoorSelf-Closing, 120° Stay-Open, Locks Standard |
| Exterior | Stainless steel door with matching aluminum sides |
| Interior | Aluminum side walls and backStainless steel floor and ceiling |
| Insulation | Foamed-In-Place High Density Polyurethane |
| Ramps | 1 Heavy-Gauge Stainless Steel Ramp |
| Interior Bumpers | Protect Cabinet Walls from Roll-In Carts |
| Lighting | Incandescent Interior Lighting, Safety Shielded |
| True Options | Stainless Back |
| Certifications | cULus, UL EPH Classified |
| Sanitation | NSF/ANSI Standard 7 Compliant for Open Food Product |
